Nite Ize DoohicKey Ratchet Key Tool

1. Sarrera

The Nite Ize DoohicKey Ratchet Key Tool is a compact, versatile multitool designed for everyday tasks. It integrates multiple functions into a durable, portable form factor, making it suitable for quick fixes and on-the-go utility. This manual provides instructions for the proper use and care of your DoohicKey Ratchet Key Tool.

Image 1.1: The Nite Ize DoohicKey Ratchet Key Tool in its retail packaging, highlighting its compact design and various functions.

2. Produktuaren ezaugarriak

The DoohicKey Ratchet Key Tool combines several essential tools into one convenient device:

• Trinketa: A dual-sided ratchet mechanism for driving bits in tight spaces.
• Bihurkinen Bits: Includes a flat bit (3.5mm + 5.5mm) and Phillips bits (#1 + #2) for common screw types.
• Giltzak: Integrated hex wrenches for various nut and bolt sizes.
• Botila irekitzailea: For opening capped bottles.
• Erregela: Standard and metric measurements for quick estimations.
• Pry Tool: A flat edge for prying or lifting.
• Scoring Point: A sharp point for scoring lines or opening packages.
• Moskete-klipa: For easy attachment to keychains, bags, or belts.

Image 2.1: Detailed diagram illustrating the various features of the DoohicKey Ratchet Key Tool, including the bottle opener, wrenches, ruler, flat bit, Phillips bit, ratchet, pry tool, scoring point, and carabiner clip.

3. Konfigurazioa eta osagaiak

The Nite Ize DoohicKey Ratchet Key Tool comes pre-assembled with its integrated components. No additional setup is required before initial use.

Dakarten osagaiak:

• 1 x DoohicKey Ratchet Key Tool
• 1 x Flat bit (3.5mm + 5.5mm)
• 1 x Phillips bit (#1 + #2)

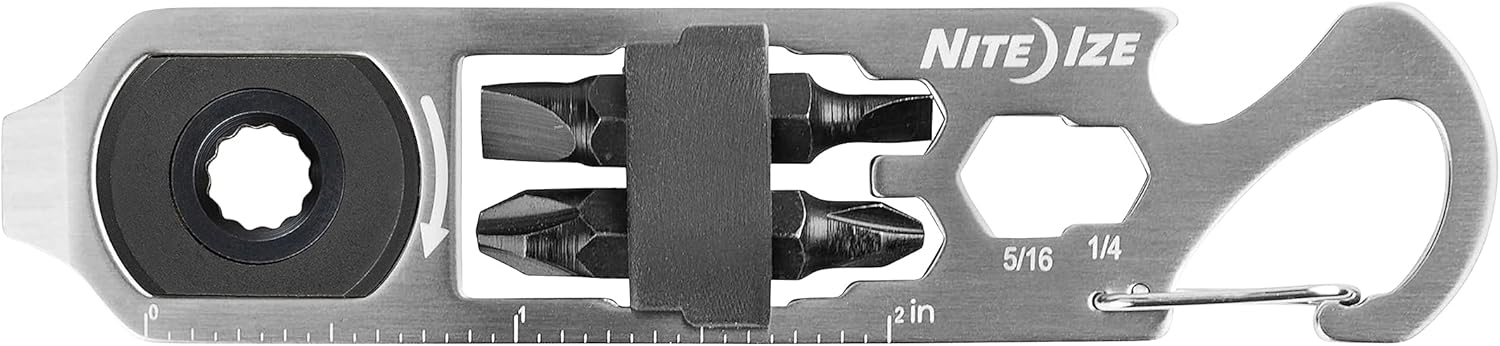

3.1. irudia: Goian view of the DoohicKey Ratchet Key Tool, showing the integrated bits, ruler markings, and carabiner clip.

3.2 irudia: Behealdea view of the DoohicKey Ratchet Key Tool, displaying the reverse side of the bits and additional ruler markings.

4. Funtzionamendu-argibideak

Familiarize yourself with each function before use. Always ensure a secure grip and apply appropriate force for the task.

4.1 Using the Ratchet and Screwdriver Bits

1. Select the appropriate flat or Phillips bit from the tool.
2. Insert the bit firmly into the hexagonal opening of the ratchet mechanism.
3. Place the bit onto the screw head.
4. Rotate the tool in the desired direction (clockwise for tightening, counter-clockwise for loosening). The dual-sided ratchet allows for continuous rotation without repositioning the tool.

Image 4.1: A hand demonstrating the use of the ratchet and Phillips bit to drive a screw into a wooden surface.

4.2 Using the Pry Tool

1. Locate the flat, tapered end of the tool.
2. Carefully insert the pry tool into the gap or seam you wish to open or lift.
3. Apply gentle, steady pressure to pry. Avoid excessive force to prevent damage to the tool or the object.

Image 4.2: A hand using the pry tool feature to open the lid of a paint can.

4.3 Using the Scoring Point

1. Identify the pointed end of the tool.
2. Position the scoring point on the material you intend to mark or cut (e.g., tape on a package).
3. Apply firm, controlled pressure while dragging the point across the surface.

Image 4.3: A hand utilizing the scoring point to open a taped cardboard box.

4.4 Mosketoizko kliparen erabilera

The integrated carabiner clip allows for convenient attachment. Simply open the spring-loaded gate and attach the tool to a keychain, belt loop, backpack, or other suitable anchor point.

Image 4.4: The DoohicKey Ratchet Key Tool attached to a keychain, demonstrating its portability.

5. Mantentzea

To ensure the longevity and optimal performance of your Nite Ize DoohicKey Ratchet Key Tool, follow these simple maintenance guidelines:

• Garbiketa: Wipe the tool with a clean, dry cloth after each use to remove dirt, debris, or moisture. For stubborn grime, a damp xaboi leun batekin oihal bat erabil daiteke, eta ondoren ondo lehortu.
• Biltegiratzea: Store the tool in a dry environment to prevent corrosion.
• Ikuskapena: Periodically inspect the tool for any signs of wear, damage, or loose components.
• Lubrifikazioa: The ratchet mechanism is generally maintenance-free. If it feels stiff, a small amount of light machine oil can be applied to the moving parts, then wipe off any excess.

6. Arazoak

This section addresses common issues you might encounter with your DoohicKey Ratchet Key Tool.

6.1 Bits Slipping or Falling Out

• Kausa: The bit may not be fully inserted into the ratchet mechanism, or the retention ball on the bit might be worn.
• Irtenbidea: Ensure the bit is pushed all the way into the hexagonal opening until it clicks securely. If using third-party bits, ensure they have a retention groove compatible with the tool.

6.2 Ratchet Mechanism Stiff

• Kausa: Zikinkeria pilatzea edo lubrifikazio falta.
• Irtenbidea: Clean the ratchet mechanism thoroughly and apply a small amount of light machine oil. Operate the ratchet several times to distribute the lubricant.

6.3 Tool Not Performing as Expected

• Kausa: Incorrect tool selection for the task, or attempting to use the tool beyond its intended capacity.
• Irtenbidea: Review the operating instructions to ensure the correct function is being used. This tool is designed for light-duty tasks; avoid applying excessive torque or force that could damage the tool or the fastener.

7. Zehaztapenak

Image 7.1: Diagram illustrating the dimensions (width, height, depth) and weight of the DoohicKey Ratchet Key Tool.

8. Bermea eta Laguntza

Nite Ize products are designed for quality and durability. For specific warranty information or customer support, please refer to the official Nite Ize webwebgunera edo jarri harremanetan zuzenean bezeroarentzako arreta-zerbitzura. Gorde erosketa-agiria berme-erreklamazioetarako.
