1. Sarrera
Thank you for choosing the Nilight 12-inch 300W LED Light Bar. This manual provides essential information for the safe installation, operation, and maintenance of your new off-road lighting system. Please read these instructions thoroughly before installation and retain them for future reference.
2. Segurtasun informazioa
- Deskonektatu beti ibilgailuaren bateria edozein lan elektriko egin aurretik.
- Ziurtatu kableatu guztiak ondo isolatuta eta ondo finkatuta daudela zirkuitulaburrak saihesteko.
- Do not look directly into the light bar when it is illuminated, as it can cause eye strain or damage.
- Mount the light bar securely to prevent it from dislodging during vehicle operation.
- Verify that the installation complies with all local and national regulations regarding vehicle lighting.
- Use only the provided wiring harness and fuses, or replacements with equivalent specifications.
3. Paketearen edukia
Mesedez, egiaztatu paketea osagai guztiak daudela ziurtatzeko:
- 1 x Nilight 12-inch 300W LED Light Bar
- 1 x 12V 5-Pin Rocker Switch
- 1 x 16AWG Wiring Harness Kit (2-lead, 12 feet extendable)
- 2 x Adjustable Mounting Brackets
- Assorted Fuses
- Muntatzeko hardwarea (torlojuak, azkoinak, arandelak)

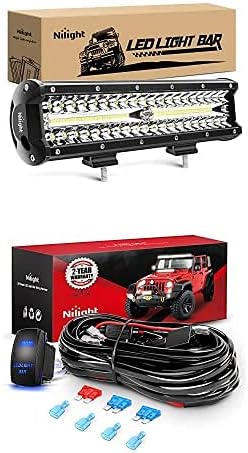

This image displays the Nilight 12-inch LED light bar, featuring a triple-row spot and flood combo beam design, along with its comprehensive wiring harness kit. The kit includes a 12V 5-pin rocker switch, 16AWG wiring, and various blade fuses for installation.
4. Konfigurazioa eta instalazioa
Professional installation is recommended. If installing yourself, ensure you have basic electrical knowledge and proper tools.
4.1 Argi-barra muntatzea
- Aukeratu muntaketa-kokapen bat: Select a sturdy surface on your vehicle that can support the weight of the light bar and provide optimal light projection. Common locations include bumpers, roof racks, or grille guards.
- Posizio-parentesiak: Attach the adjustable mounting brackets to the light bar using the provided hardware. Do not fully tighten yet.
- Markatu zulatzeko puntuak: Hold the light bar in the desired position and mark the drilling points for the brackets on your vehicle.
- Zulatzeko zuloak: Carefully drill pilot holes, then enlarge them to the appropriate size for the mounting hardware.
- Secure Light Bar: Attach the light bar with its brackets to the vehicle using the remaining mounting hardware. Adjust the angle of the light bar as needed for optimal beam direction, then fully tighten all bolts.
4.2 Wiring the Light Bar
The provided 16AWG wiring harness kit is designed for easy connection of two light fixtures (up to 180W total). This light bar is 300W, so ensure proper fuse rating and direct connection for optimal performance.
- Deskonektatu bateria: Hasi aurretik, deskonektatu ibilgailuaren bateriaren terminal negatiboa, zirkuitulaburrik ez izateko.
- Connect Light Bar: Connect the positive and negative wires from the light bar to the corresponding connectors on the wiring harness. Ensure a secure and insulated connection.
- Route Wiring Harness: Carefully route the wiring harness from the light bar to the desired location for the rocker switch and then to the vehicle's battery, avoiding moving parts, sharp edges, and heat sources.
- Install Rocker Switch: Install the 5-pin rocker switch in a convenient and accessible location within the vehicle's cabin. Connect the switch wires to the harness as per the wiring diagram (typically included with the harness). The switch has built-in LEDs for visibility in the dark.
- Konektatu energiara: Connect the positive wire of the wiring harness (with the inline blade fuse) to the positive terminal of the vehicle's battery. Connect the negative wire of the harness to the negative terminal of the battery or a suitable chassis ground point.
- Verify Fuses: Ensure the inline blade fuse is correctly installed in the fuse holder. This acts as the first line of defense against overcurrent and short circuits.
- Berriro konektatu bateria: Once all connections are secure and verified, reconnect the negative terminal of the vehicle's battery.
5. Funtzionamendu-argibideak
To operate the Nilight LED Light Bar:
- Ensure the vehicle's ignition is on (if wired to an accessory circuit) or the battery is connected (if wired directly).
- Locate the installed 5-pin rocker switch.
- Press the rocker switch to turn the LED light bar ON or OFF. The switch's built-in LEDs will illuminate when the light bar is active.
6. Mantentzea
- Garbiketa: Periodically clean the lens of the light bar with a soft cloth and mild soap and water to maintain optimal light output. Avoid abrasive cleaners.
- Ikuskapena: Regularly check all mounting hardware and electrical connections for tightness and corrosion. Tighten any loose bolts and clean any corroded terminals.
- Kableatua: Inspect the wiring harness for any signs of wear, fraying, or damage. Replace damaged sections immediately.
7. Arazoak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Argi-barra ez da pizten. | No power to the light bar. Fusionatua. Kableatu-konexio akastuna. Etengailu akastuna. | Egiaztatu bateriaren konexioak. Inspect and replace the inline fuse if blown. Egiaztatu kableatu-konexio guztiak ondo daudela. Test the rocker switch for functionality. |
| Argi-irteera ahula edo keinuka ari da. | Bolumen baxuatage. Konexio soltea. Korrosiodun terminalak. | Check vehicle's battery voltage. Estutu konexio elektriko guztiak. Clean battery terminals and wiring connections. |
| Lentearen barruko hezetasuna. | Seal integrity compromised. | Jarri harremanetan bezeroarentzako laguntza eskatzeko. |
8. Zehaztapenak
- Marka: Iluntzean
- Eredua: B09BLVTTZ2
- Potentzia: 300W
- Luzera: 12 hazbete
- Beam eredua: Spot Flood Combo (Triple Row, Nest Reflector Cup)
- liburukiatage: 12 Volts DC
- Argi iturri mota: LED
- Kableatu arnesa: 16AWG, 2-Lead, 12 Feet Extendable
- Aldatu: 5-Pin Rocker Switch with built-in LEDs
- Babesa: Inline Blade Fuse for overcurrent and short circuit
- Muntaketa: Euskarri erregulagarria
- Egokitze mota: Egokitze unibertsala
- Ibilgailuen Zerbitzu mota: Truck, SUV, Car
9. Bermearen informazioa
This Nilight LED Light Bar comes with a 2 urteko bermea from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications. Please retain your proof of purchase for warranty claims.
10. Bezeroarentzako arreta
For technical assistance, warranty claims, or any questions regarding your Nilight LED Light Bar, please refer to the contact information provided on the Nilight official website or your purchase platform. When contacting support, please have your product model number (B09BLVTTT2) and proof of purchase readily available.
