COSTWAY Foldable Electric Treadmill Instruction Manual

1. Segurtasun-argibide garrantzitsuak

Please read all instructions carefully before using this treadmill. Keep this manual for future reference.

• Always consult a physician before starting any exercise program.
• Place the treadmill on a flat, stable surface with at least 2 meters of clear space behind it.
• Ensure the safety key is properly attached to your clothing and the console before starting. The treadmill will stop if the safety key is disengaged.
• Ez utzi haurrak edo maskotak zinta-korrikalariaren ondoan martxan dagoen bitartean.
• Jantzi kirol oinetako eta arropa egokiak.
• Do not use the treadmill if it is damaged or malfunctioning.
• Mantendu eskuak eta oinak mugitzen diren pieza guztietatik urrun.
• Deskonektatu zinta-korrikalaria entxufetik erabiltzen ez duzunean edo garbitu/mantentu egin aurretik.
• Maximum user weight capacity: 100 kg.

2. Produktuaren osagaiak

Familiarize yourself with the parts of your COSTWAY Foldable Electric Treadmill.

Figure 2.1: Treadmill Components Overview
This image displays the various parts of the treadmill, including the clear monitor, safety key, speed controls, heart rate sensors, powerful motor, 36 x 100 cm running belt, integrated wheels, tablet/phone tray, and cup holders.

1. Clear Monitor: Displays workout data.
2. Tablet/Phone Tray: For holding personal devices.
3. Kopako euskarriak: Edarietarako.
4. Segurtasun-giltza: Essential safety device.
5. Abiadura +/- botoiak: Adjusts running speed.
6. Hasi/Gelditu botoiak: Initiates and halts operation.
7. Heart Rate Sensors: Integrated into handlebars for pulse monitoring.
8. Motor indartsua: Drives the running belt.
9. Running Belt (36 x 100 cm): The surface for walking or running.
10. Gurpil integratuak: Lekualdatze erraz bat lortzeko.

3. Konfigurazioa eta Muntaketa

The COSTWAY Foldable Electric Treadmill requires minimal assembly. Follow these steps to set up your treadmill.

3.1 Zinta-errota zabaltzea

• Kontu handiz atera zinta-korrikalaria bere paketetik.
• Jarri zinta-korrikalaria gainazal lau eta egonkor batean.
• Locate the locking pin or knob that secures the running deck in the folded position.
• Release the locking mechanism and slowly lower the running deck until it is fully flat on the floor. Ensure it locks securely into place.

3.2 Handlebar and Console Setup

• Raise the console and handlebars to the upright position.
• Secure any bolts or knobs as indicated in the assembly diagram (refer to Figure 2.1 for component identification).
• Ensure all connections are tight and secure before plugging in the unit.

3.3 Energia-konexioa

• Entxufatu korronte-kablea lurreko hartune elektriko batean.
• Ensure the power switch (if present, usually near the power cord inlet) is in the "ON" position.

4. Funtzionamendu-argibideak

4.1 Zinta-errota martxan jartzea

1. Stand on the side rails of the treadmill, not on the running belt.
2. Attach the safety key clip to your clothing and place the magnetic end onto the designated area on the console. The display will illuminate.
3. Sakatu HASI button. The treadmill will begin with a short countdown, then the belt will start moving at a low speed (e.g., 1 km/h).
4. Kontu handiz igo mugikorreko zinta gainean eta hasi ibiltzen.

4.2 Abiadura doitzea

Figure 4.1: Adjustable Speed Range
This image demonstrates the treadmill's capability to adjust speed from 1 to 10 km/h, suitable for walking, jogging, and light running.

• Erabili ABIADURA + button to increase the speed.
• Erabili SPEED - abiadura murrizteko botoia.
• The treadmill offers a speed range of 1-10 km/h.

4.3 Using the Monitor and Heart Rate Function

Figure 4.2: Monitor Display and Heart Rate Sensors
This image highlights the LCD screen which shows workout data such as time, speed, distance, calories burned, and heart rate. It also shows the integrated heart rate sensors on the handlebars.

• LCD pantailak bistaratzen du:
  • Ordua: Zure entrenamenduaren iraupena.
  • Abiadura: Current belt speed in km/h.
  • Distantzia: Egindako distantzia osoa.
  • Kaloriak: Erretako kaloria estimatuak.
• To monitor your heart rate, firmly grasp the heart rate sensors on the handlebars with both hands. Your pulse will be displayed on the monitor after a few seconds.
• The treadmill may include pre-set programs (e.g., P1, P2). Refer to the console for program selection and details.

4.4 Zinta-errota gelditzea

• Sakatu GELDITU button to gradually slow down and stop the treadmill.
• Alternatively, pull the safety key from the console for an immediate emergency stop.
• Zinta guztiz gelditu ondoren, jaitsi zinta-korrikalaritik.

5. Mantentzea

Mantentze-lan erregularrak zure zinta-korrikalariaren iraupena eta funtzionamendu segurua bermatzen ditu.

5.1 Garbiketa

• Deskonektatu beti zinta-korrontea garbitu aurretik.
• Garbitu kontsola eta kanpoko gainazalak iragarkiekinamp oihal. Saihestu garbitzaile edo disolbatzaile urratzaileak erabiltzea.
• Clean the running belt and deck regularly to prevent dust and debris buildup.

5.2 Korrikako Gerrikoen lubrifikazioa

Figure 5.1: Running Belt Construction
This image illustrates the multi-layered design of the running belt, engineered for durability and shock absorption to protect joints during exercise.

• The running belt requires periodic lubrication to reduce friction and extend its lifespan.
• Refer to the specific lubrication instructions provided with your treadmill's lubricant. Typically, this involves lifting the belt and applying silicone lubricant to the deck underneath.
• Frequency of lubrication depends on usage; generally every 3-6 months for moderate use.

5.3 Gerriko doikuntza

• If the running belt starts to slip or drift to one side, it may need adjustment.
• Consult the detailed instructions in the full user manual for belt tensioning and centering procedures, which typically involve adjusting screws at the rear of the treadmill.

6. Biltegiratzea

The treadmill's foldable design allows for convenient storage.

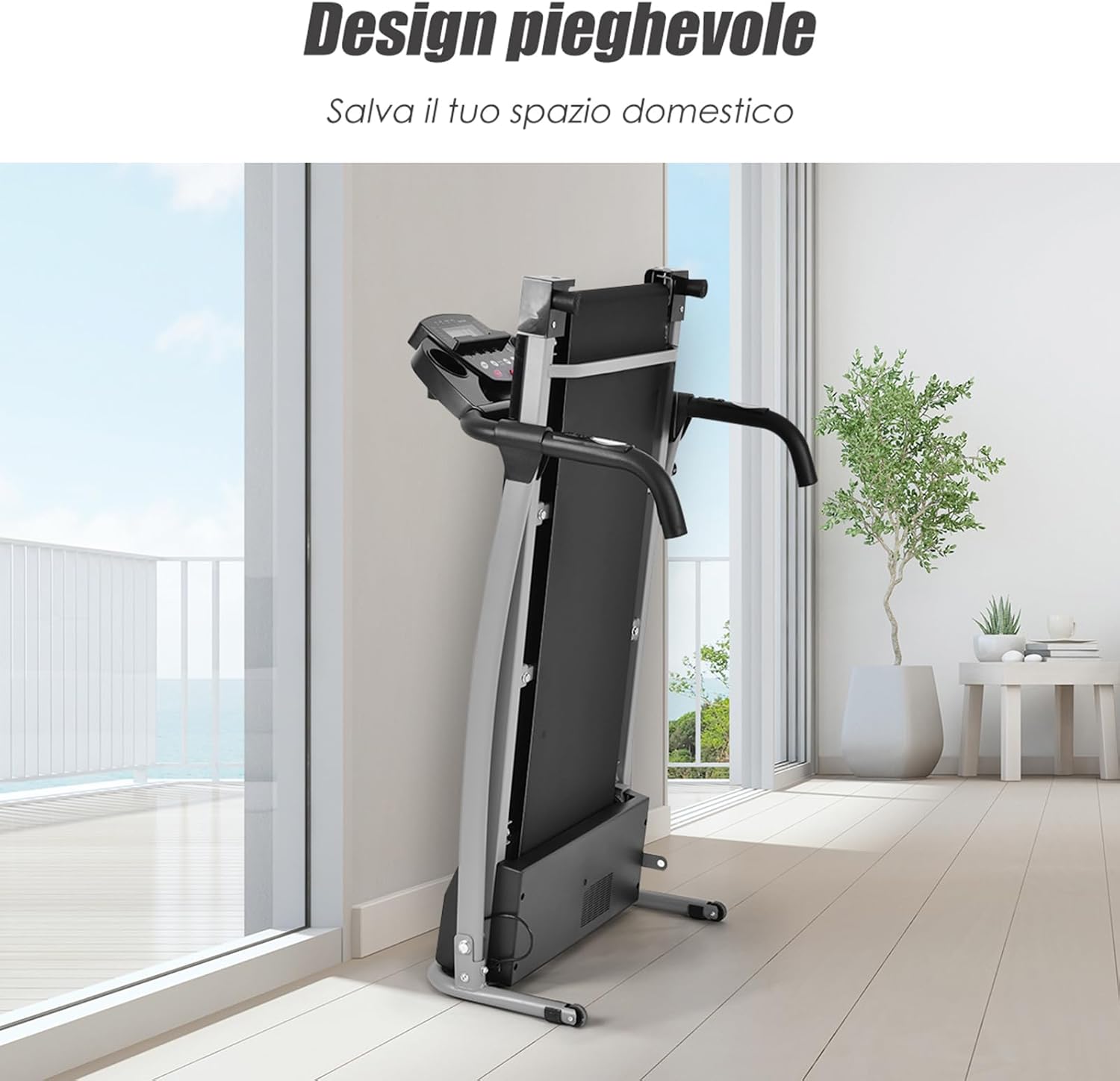

Figure 6.1: Folded Treadmill for Storage
This image shows the treadmill in its compact, folded configuration, demonstrating its space-saving design for easy storage in a home environment.

1. Ziurtatu zinta itzalita eta deskonektatuta dagoela.
2. Lift the running deck until it clicks into the upright, locked position.
3. Use the integrated transport wheels to carefully move the treadmill to your desired storage location.
4. Gorde leku lehor eta fresko batean, eguzki-argitik eta hezetasunetik babestuta.

7. Arazoak

Arazoren bat izanez gero, jo ezazu honako arazo eta irtenbide ohikoenei.

If the problem persists after attempting these solutions, please contact COSTWAY customer support.

8. Produktuaren zehaztapenak

Technical details for the COSTWAY Foldable Electric Treadmill.

Figure 8.1: Treadmill Dimensions
This image provides detailed measurements for both the unfolded and folded states of the treadmill, including height, width, and length, along with the 100 kg weight capacity icon.

9. Bermea eta bezeroarentzako laguntza

For warranty information or technical assistance, please contact COSTWAY customer support through their official webproduktua erosi zen gunea edo dendaria.

Gorde erosketa-agiria erosketaren frogagiri gisa, berme-erreklamazioetarako.
