1. Sarrera
This manual provides comprehensive instructions for the safe and efficient installation, operation, and maintenance of your VENTS-US VK 125-5 Inch Centrifugal Inline Duct Fan. Please read this manual thoroughly before installation and use, and retain it for future reference. The VK 125 fan is designed for various ventilation applications requiring high static pressure and reliable air movement.
2. Segurtasun informazioa
OHARRA: Sute, deskarga elektriko edo pertsonei lesioen arriskua murrizteko, kontuan hartu honako hau:
- Irakurri argibide guztiak haizagailu hau instalatu edo konpondu aurretik.
- Instalazio-lanak eta kableatu elektrikoak pertsona kualifikatuek egin behar dituzte, aplikagarri diren kode eta estandar guztien arabera, suteen aurkako eraikuntza-kodeak barne.
- Aire nahikoa behar da erregaiak erretzeko ekipoen erregaien (tximinia) bidez erretzeko eta gasak agortzeko, atzera-tiroa saihesteko. Jarraitu berogailu-ekipoen fabrikatzailearen jarraibideei eta segurtasun-arauei, hala nola National Fire Protection Association (NFPA) eta American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) eta tokiko kode agintariek argitaratutakoak.
- Horma edo sabaia mozten edo zulatzean, ez kaltetu kable elektrikoa eta ezkutuko beste tresna batzuk.
- Kanpoko haizagailuak aireratu behar dira beti.
- Do not use this fan with any solid-state speed control device unless specifically approved for use with this fan.
- This unit has an ungrounded plug. To reduce the risk of electric shock, connect to properly grounded outlets only.
- Mount with the lowest moving parts at least 8 ft (2.5 meters) above floor or grade level.
3. Produktua amaitu daview
The VENTS-US VK 125 is a 5-inch centrifugal inline duct fan designed for efficient air movement in demanding ventilation systems. Its robust construction and powerful motor ensure reliable performance.
Ezaugarri nagusiak:
- Aire-fluxuaren edukiera: Up to 235 CFM under 0" of static pressure, 214 CFM under 0.2" of static pressure.
- Motorra: Quiet external rotor motor with thermal overload protection, consuming 114 W of power.
- Casing: Constructed from high-quality, UV-resistant plastic (flame rating - 5VA) for durability and corrosion resistance.
- Instalazioa: Includes mounting brackets and a pre-wired power cord for quick and simple setup.
- Aplikazioak: Suitable for bathroom exhaust, kitchen ventilation, living areas, whole-house ventilation, duct boosting, workshops, and smoking areas.
- Safety & Quality: ETL listed and HVI certified for dependable, tested performance.

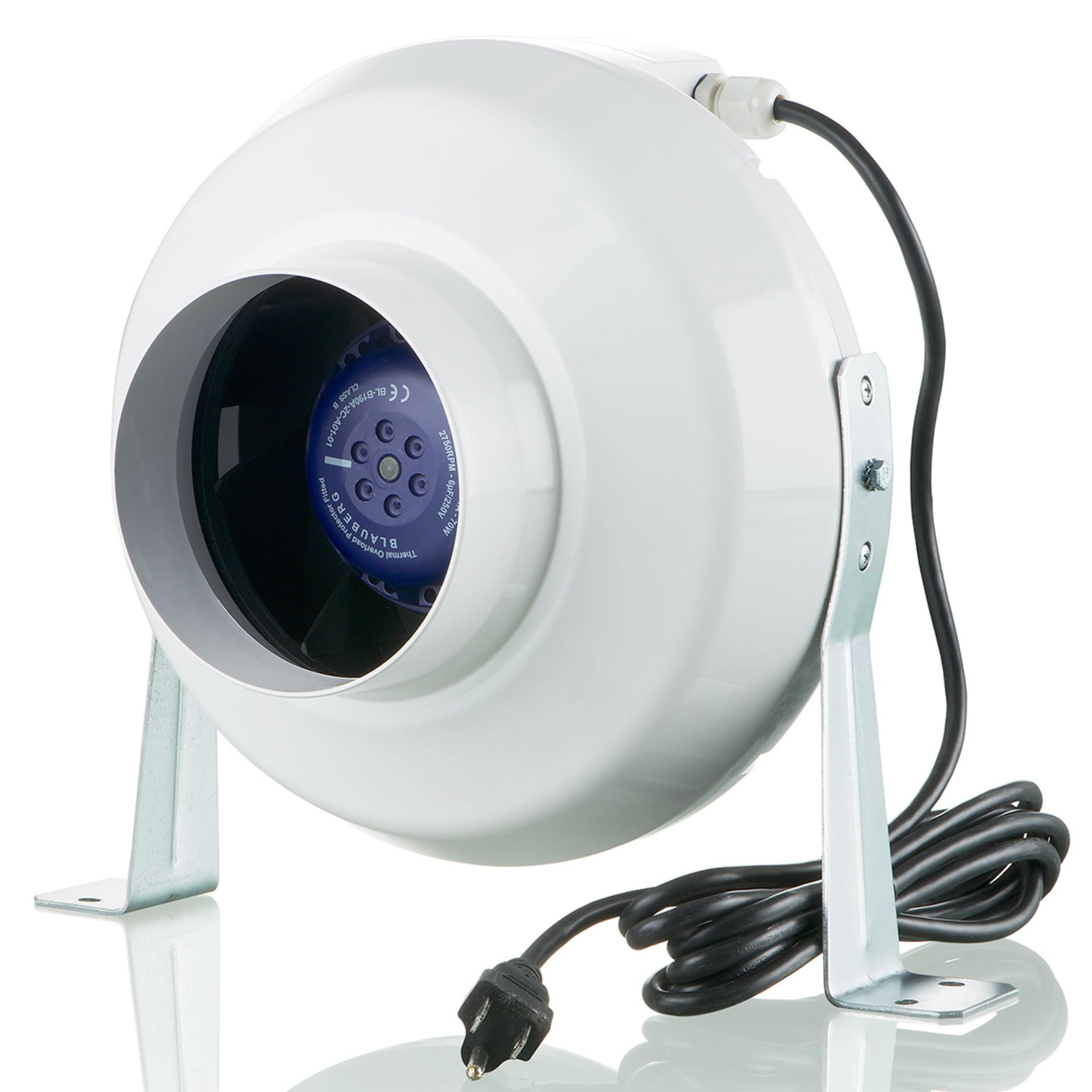

3.1. irudia: Aurrealdea view of the VENTS-US VK 125 inline duct fan.
3.2. irudia: Aldea view of the VK 125 fan, showing mounting brackets and power cord.
3.3. irudia: View of the centrifugal impeller, designed for high static pressure applications.
Produktuen bideoak:
3.1. bideoa: 360 graduko view of the VENTS-US VK 125 inline duct fan, showcasinbere diseinua eta osagaiak.
Video 3.2: Detailed product overview video for the VENTS-US VK series inline centrifugal duct fans, highlighting features and applications.
4. Zehaztapenak
Technical specifications for the VENTS-US VK 125 fan:
| Zehaztapena | Balioa |
|---|---|
| Marka | HIZPIDEAK |
| Ereduaren izena | 125 VK |
| Tamaina | 5" Centrifugal Duct Fan |
| Aire Fluxuaren Ahalmena | 235 oin kubiko minutuko (CFM) |
| Wattage | 114 watt |
| liburukiatage | 120 Volt |
| Zarata Maila | 7 soinuak |
| Produktuaren neurriak | 8.69" L x 10.63" W x 9.81" H |
| Elementuaren pisua | 6.69 kilo |
| Akabera mota | Plastikoa |
| Motor Mota | Outrunner |
| Instalazio mota | Muntatua |
| Barruko/Kanpoko erabilera | Barruan |
| Kontrol-metodoa | App (Note: Requires compatible external control system, not included) |
| Zehaztapena Met | UL 705 |
Figure 4.1: VK 125 Dimensions Diagram.
5. Instalazioa
The VENTS-US VK 125 fan is designed for straightforward installation. Always ensure power is disconnected before beginning any installation work.
Instalazio urratsak:
- Planaren kokapena: Determine the optimal location for the fan within your ducting system. The fan can be mounted at any angle and at any point along the duct run. Consider accessibility for future maintenance.
- Muntaketa: Use the included mounting brackets to secure the fan to a stable surface (e.g., ceiling joist, wall stud, or dedicated support structure). Ensure the fan is mounted securely to prevent vibration and noise. Refer to Figure 4.1 for dimensions and mounting points.
- Hodiaren konexioa: Connect the fan to your ductwork using appropriate duct clamps or aluminum tape to ensure airtight seals. The fan is compatible with 5-inch diameter ducts. Ensure the airflow direction arrow on the fan casing aligns with your desired ventilation path.
- Konexio elektrikoa: The fan comes with a pre-wired power cord. Connect the fan to a standard 120V AC power outlet. Ensure the outlet is properly grounded. If hardwiring is required, consult a qualified electrician.
- Probak: Once installed, restore power and test the fan's operation. Check for proper airflow and listen for any unusual noises.
Oharra: For optimal performance and to prevent rain ingress, install the fan behind shutters if used in an exterior wall application.
6. Funtzionamendua
The VENTS-US VK 125 fan operates by drawing air through one duct opening and expelling it through the other, creating a continuous airflow. Once properly installed and connected to power, the fan will operate when the power supply is active.
- Piztu/Itzali: The fan's operation is controlled by the power switch or control system it is wired to.
- Aire fluxuaren norabidea: Ensure the fan is installed with the airflow direction arrow pointing towards the desired exhaust or supply path.
- Abiadura-kontrola (aukerakoa): If a compatible speed controller (not included) is installed, adjust the fan speed as needed for your ventilation requirements.
7. Mantentzea
Regular maintenance ensures the longevity and efficient operation of your VENTS-US VK 125 fan. Always disconnect power before performing any maintenance.
Mantentze-egutegia:
- Quarterly (or as needed): Inspect the fan impeller and housing for dust and debris buildup. Clean with a soft brush or cloth. Do not use harsh chemicals or abrasive materials.
- Urtero: Check all electrical connections for tightness and signs of wear. Inspect duct connections for leaks and ensure they are securely sealed.
- Motorra: The external rotor motor features long-life ball bearings and is designed to be maintenance-free. No lubrication is required.
If the fan requires repair, contact qualified service personnel. Do not attempt to repair the unit yourself.
8. Arazoak
If you experience issues with your VENTS-US VK 125 fan, refer to the following troubleshooting guide:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Haizagailuak ez du funtzionatzen | Ez dago elikadura hornidurarik Konexio elektriko soltea Gainkarga termikoaren babesa aktibatuta dago | Egiaztatu entxufea eta zirkuitu-hauslea Verify all wiring connections (consult electrician if unsure) Allow fan to cool down; check for obstructions in airflow |
| Aire fluxu baxua | Duct obstruction Leaky duct connections Fan impeller dirty | Ikuskatu hodiak blokeorik dagoen ikusteko Seal all duct connections properly Clean the fan impeller (see Maintenance section) |
| Gehiegizko zarata edo bibrazioa | Muntaketa soltea Impeller imbalance due to dirt Foreign object in fan housing | Ziurtatu haizagailua ondo muntatuta dagoela Clean impeller thoroughly Inspect fan for any foreign objects and remove them |
If the problem persists after attempting these solutions, contact VENTS-US customer support.
9. Bermea eta Laguntza
VENTS-US products are manufactured to high-quality standards and are backed by a manufacturer's warranty. Specific warranty terms and conditions may vary. Please refer to the warranty card included with your product or visit the official VENTS-US webinformazio zehatza lortzeko gunea.
For technical support, service, or to inquire about replacement parts, please contact VENTS-US customer service through their official webgunea edo erosketa-dokumentazioarekin batera emandako harremanetarako informazioa.
