Sharp 50EQ3EA Android TV User Manual

Sarrera

This manual provides essential information for the setup, operation, and maintenance of your Sharp 50EQ3EA Android TV. The Sharp 50EQ3EA is a 50-inch 4K Ultra HD Android TV featuring a frameless design, Quantum Dot display technology for superior color reproduction, and an integrated Harman/Kardon sound system with Dolby Atmos and DTS:X for an immersive audio experience. It operates on Android 11, offering access to numerous applications, Google Assistant, and Chromecast built-in. This television is designed to deliver high-quality visual and auditory entertainment.

Konfigurazioa

1. Desontziratzea eta ikuskatzea

Carefully remove the TV and all accessories from the packaging. Ensure all components listed below are present and undamaged:

• Sharp 50EQ3EA Television
• Urruneko Kontrola
• 2 x AAA bateria
• TV Stand Installation Kit
• Quick Start Guide (this document serves as a detailed guide)

2. Standaren instalazioa

If you are not wall-mounting the TV, attach the included stand using the provided installation kit. Refer to the diagrams in the quick start guide for specific screw placement. Ensure the stand is securely fastened before placing the TV on a stable, level surface.

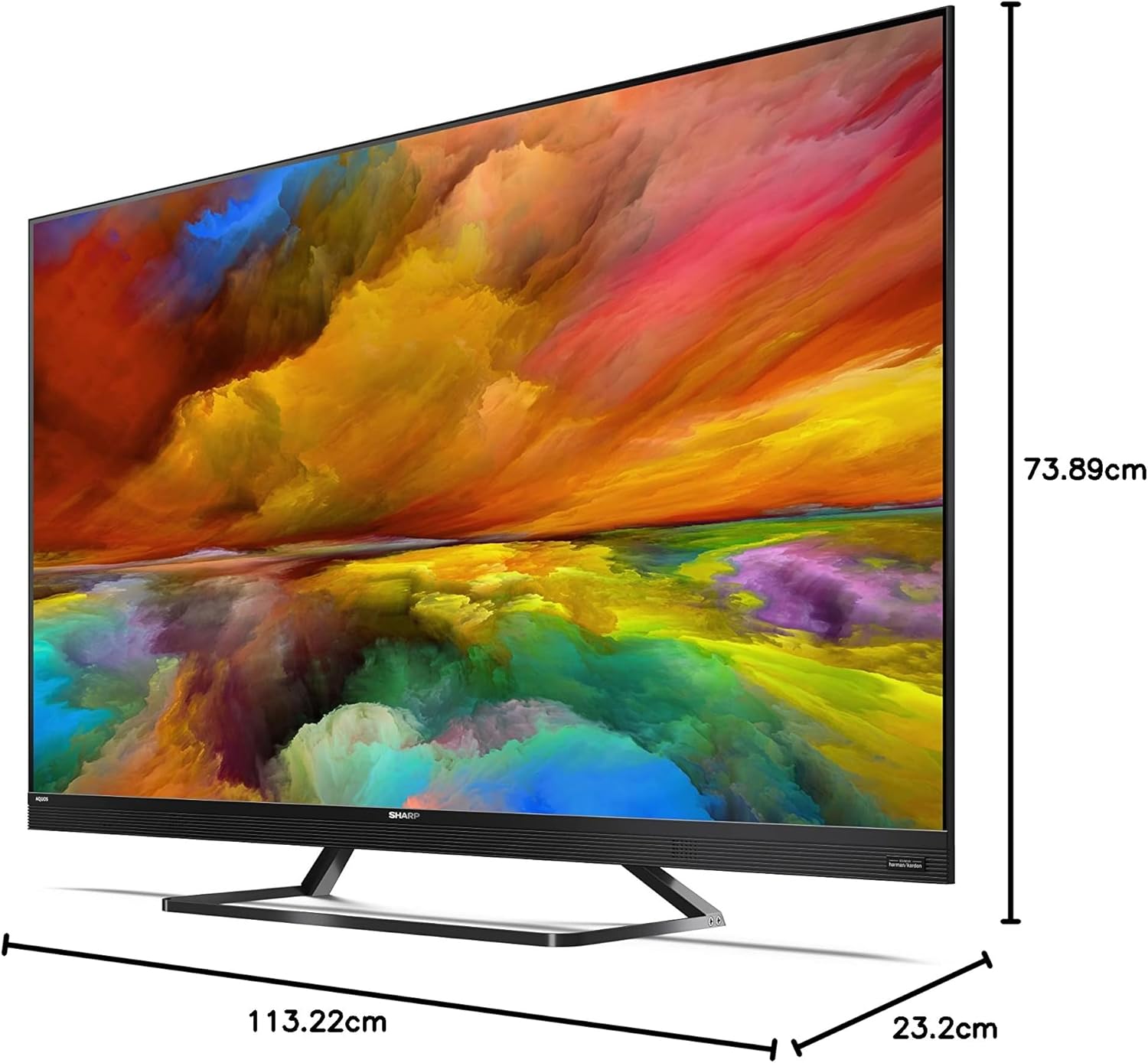

Image: The Sharp 50EQ3EA television with its stand, displaying overall dimensions for placement planning.

3. Potentzia konektatzea

Connect the power cord to the TV's power input and then to a suitable electrical outlet (220V AC, 50Hz). The TV will enter standby mode.

4. Kanpoko gailuak konektatzea

Your Sharp 50EQ3EA TV offers various connectivity options:

• HDMI: Use one of the four HDMI 2.1 ports for high-definition devices like Blu-ray players, gaming consoles, or set-top boxes. These ports support eARC, ALLM, VRR, and QMS for enhanced audio and gaming.
• USBa: Two USB ports are available for connecting USB storage devices to play media or for software updates.
• Antena/Satelitea: Connect your terrestrial (DVB-T/T2), cable (DVB-C), or satellite (DVB-S/S2) antenna/dish to the respective inputs for live TV channels.
• Ethernet (LAN): Interneteko konexio egonkor bat lortzeko, konektatu Ethernet kable bat LAN atakara.
• Audio irteera: Optical digital audio output and a headphone jack are available for external audio systems or headphones.
• Bluetooth/Wi-Fi: The TV supports wireless connectivity for internet access and connecting Bluetooth devices.

Image: The back panel of the Sharp 50EQ3EA TV, highlighting the available connection ports.

5. Hasierako konfigurazioa

Upon first power-on, the TV will guide you through the initial setup process. This includes selecting your language, connecting to a Wi-Fi network, signing in with your Google account, and scanning for TV channels. Follow the on-screen instructions.

Funtzionamendu-argibideak

1. Urruneko kontrola

The TV comes with a remote control. Insert the two AAA batteries into the remote control. The remote supports both infrared and Bluetooth for control, including voice commands via Google Assistant.

Image: The two remote controls included with the Sharp 50EQ3EA TV, featuring dedicated buttons for popular streaming services.

2. Oinarrizko telebista funtzioak

• Potentzia: Sakatu urrutiko agintearen pizteko botoia telebista pizteko edo itzaltzeko (standby modua).
• Bolumena: Erabili VOL +/- botoiak bolumena doitzeko.
• Kanalak: Use the CH +/- buttons to change channels or the number pad to enter a specific channel.
• Iturria: Press the SOURCE button to select input sources (HDMI, AV, TV Tuner).
• Nabigazioa: Erabili norabide-tekla eta Ados botoia menuetan nabigatzeko eta aukerak hautatzeko.

3. Smart TV-ren ezaugarriak (Android TV)

Your Sharp 50EQ3EA runs on Android 11, providing a smart and intuitive user experience.

• Hasierako pantaila: Access the Android TV home screen to find recommended content, installed apps, and settings.
• Google Laguntzailea: Press the Google Assistant button on your remote and speak into the microphone to control your TV, search for content, or get information.
• Chromecast integratua: Cast content from your compatible mobile devices or computer directly to your TV.
• Aplikazioak: Access pre-installed apps like Netflix, YouTube, Google Play Movies & TV, Google Play Store, and Prime Video. You can download more apps from the Google Play Store.

Image: The Android TV home screen, showing easy access to popular streaming services and personalized content.

4. Irudiaren ezarpenak

Optimizatu zure viewing experience through the picture settings menu:

• Irudi modua: Select from various preset modes (e.g., Standard, Movie, Game, Vivid) or customize your own.
• Quantum Dot (Q-COLOUR): This technology enhances color accuracy and vibrancy.
• HDR euskarria: The TV supports HDR10, HLG, and Dolby Vision for improved contrast and color in compatible content.
• Active Motion 1000 & AQUOS Motion: These technologies ensure smooth and clear motion, reducing blur in fast-paced scenes.
• OPC (Optical Picture Control): The light sensor automatically adjusts screen brightness based on ambient light conditions for optimal viewing.

5. Soinu ezarpenak

Experience immersive audio with the integrated Harman/Kardon sound system:

• Soinu modua: Aukeratu aurrez ezarritako soinu moduen artean (adibidez, Estandarra, Musika, Filma, Hizkera) edo doitu berdinketaren ezarpenak.
• Harman/Kardon Audio: The system features front-firing tweeters and down-firing woofers for clear sound and solid bass.
• Dolby Atmos eta DTS:X These technologies provide a 360-degree virtual surround sound experience.
• DTS Virtual:X: Enhances audio depth and spaciousness.

Image: The Sharp 50EQ3EA TV showcasing its Harman/Kardon sound system, designed for an immersive audio experience.

6. Jokoen Ezaugarriak

The Sharp 50EQ3EA is equipped with features for an enhanced gaming experience:

• HDMI2.1: Four HDMI 2.1 ports support advanced gaming features.
• eARC (Hobetutako Audio Itzulera Kanala): Allows for high-quality audio passthrough to compatible sound systems.
• ALLM (Automatikoki latentzia baxuko modua): Telebista automatikoki aldatzen du latentzia baxuko modura joko-kontsola bat detektatzen denean.
• VRR (Freskatze tasa aldakorra): Synchronizes the TV's refresh rate with the game console's output to reduce screen tearing and stuttering.
• QMS (Quick Media Switching): Reduces black screen periods when switching between different frame rates.
• Google Stadia Support: The TV supports Google Stadia for cloud gaming.

Mantentzea

1. Pantaila garbitzea

To clean the screen, first turn off the TV and unplug it from the power outlet. Use a soft, dry, lint-free cloth to gently wipe the screen. For stubborn marks, lightly dampGarbitu zapi bat urarekin edo pantaila-garbitzaile espezializatu batekin. Ez bota inoiz likidorik zuzenean pantailan.

2. Armairua garbitzea

Wipe the TV cabinet with a soft, dry cloth. Avoid using abrasive cleaners, waxes, or solvents as they can damage the finish.

3. Software eguneraketak

Telebistak software eguneraketak jaso ditzake errendimendua hobetzeko eta funtzio berriak gehitzeko. Ziurtatu telebista Internetera konektatuta dagoela eguneratze hauek jasotzeko. Normalean telebistaren ezarpenen menuan egiaztatu ditzakezu eguneratzeak.

Arazoak konpontzea

If you encounter issues with your Sharp 50EQ3EA TV, refer to the following common problems and solutions:

• Potentziarik gabe:
  • Ensure the power cord is securely plugged into both the TV and the wall outlet.
  • Check if the wall outlet is functioning by plugging in another device.
  • Try pressing the power button on the TV itself, not just the remote.
• Irudirik ez/Pantaila beltza:
  • Verify the correct input source is selected (e.g., HDMI 1, TV). Press the SOURCE button on the remote.
  • Check all cable connections between the TV and external devices.
  • Ensure the external device is powered on and functioning correctly.
  • Adjust brightness and contrast settings in the picture menu.
• Soinurik ez:
  • Increase the volume using the remote control.
  • Ensure the TV is not muted. Press the MUTE button.
  • Check audio cable connections if using external speakers.
  • If using an external audio system, ensure it is powered on and the correct input is selected.
• Urruneko kontrola ez dabil:
  • Replace the AAA batteries in the remote control.
  • Ensure there are no obstructions between the remote and the TV's IR sensor.
  • For Bluetooth remote, ensure it is paired with the TV. Refer to the TV's settings for Bluetooth device management.
• Sareko konexio arazoak:
  • For Wi-Fi, ensure your router is on and functioning. Try restarting the router.
  • Re-enter the Wi-Fi password in the TV's network settings.
  • For wired connection, ensure the Ethernet cable is securely connected.
  • Try connecting to a different network if available to isolate the issue.
• Picture Quality Issues (e.g., blurry, pixelated):
  • Check the resolution of the content being played. 4K content will look best.
  • Ensure the input source is providing a high-quality signal.
  • Adjust picture settings like sharpness, noise reduction, and motion settings.

Irtenbide hauek probatu ondoren arazoa konpontzen ez bada, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

Zehaztapenak

Below are the key technical specifications for the Sharp 50EQ3EA Android TV:

Bermea eta Laguntza

Bermearen informazioa

Specific warranty details for your Sharp 50EQ3EA TV are typically provided with your purchase documentation or can be found on the official Sharp webZure eskualdeko gunea. Gorde erosketaren egiaztagiria berme-erreklamazioetarako.

Bezeroarentzako Arreta

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Sharp customer support. Contact information can usually be found on the Sharp official webgunean edo telebistarekin batera datorren dokumentazioan.
