CIARRA CAS9201A 90 cm Class A Wall-Mounted Extractor Hood

1. Segurtasun informazio garrantzitsua

Please read this manual carefully before installation and use. Keep it for future reference. Incorrect installation or use may cause electric shock, fire, or injury.

• Segurtasun elektrikoa: Ziurtatu elikadura hornidura bolumenarekin bat datorrelatage specified on the rating plate. The appliance must be properly grounded. Do not use extension cords or multiple adapters.
• Instalazioa: Installation must be carried out by a qualified person in accordance with all local regulations. Maintain the minimum distance between the hob and the lower part of the hood as specified in the installation instructions.
• Aireztapena: Ziurtatu gelan aireztapen egokia dagoela sukaldeko kanpaia gas edo beste erregai-erregailu batzuekin batera erabiltzen denean.
• Garbiketa: Regularly clean the appliance and its filters to prevent grease accumulation, which can pose a fire risk.
• Haurrak eta pertsona zaurgarriak: Tresna hau 8 urtetik gorako haurrek eta gaitasun fisiko, sentsorial edo mental murriztua duten pertsonek edo esperientzia eta ezagutzarik ez duten pertsonek erabil dezakete, baldin eta aparatua modu seguruan erabiltzeko gainbegiratze edo argibideak eman badituzte eta dakartzan arriskuak ulertzen badituzte. . Haurrek ez dute aparatuarekin jolastuko. Garbiketa eta erabiltzailearen mantentze-lanak ez dituzte haurrek gainbegiratu gabe egingo.

2. Produktua amaitu daview

The CIARRA CAS9201A is a 90 cm wall-mounted extractor hood designed for efficient kitchen ventilation. It features a powerful 370 m³/h suction capacity and three adjustable speed levels to effectively remove cooking fumes and odors. The hood is equipped with durable aluminum grease filters and energy-efficient LED lighting.

Figure 2.1: CIARRA CAS9201A 90cm extractor hood installed in a contemporary kitchen.

Ezaugarri nagusiak:

• A energia-eraginkortasun klasea: Up to 40% energy saving compared to Class C models.
• Xurgatze-ahalmen handia: 370 m³/h for effective air purification.
• Hiru abiadura maila: Adjustable fan speeds for various cooking needs.
• Dual Working Modes: Can be configured for ducted extraction or recirculation with optional carbon filters.
• Aluminum Grease Filters: Three 26 cm aluminum filters, washable for easy maintenance.
• LED argiztapena: Integrated LED light for illuminating the cooking area.
• Ukipen-kontrolak: Erabilera errazteko kontrol-panel intuitiboa.

Figure 2.2: Energy efficiency comparison, highlighting 40% savings for Class A.

3. Instalazioa

The CIARRA CAS9201A extractor hood is designed for wall mounting. It can operate in two modes: ducted extraction or recirculation. Ensure all necessary accessories are present before beginning installation.

3.1 Paketearen edukia:

• 1 x Extractor Hood Unit
• 1 x Torloju eta tapoi poltsa
• 2 x Aluminum Grease Filters (pre-installed)
• 2 x Chimney Extension Sections (40+40 cm)
• 1 x Exhaust Duct (1.5 m)
• 1 x UK Standard Plug (may vary by region)
• 1 x Argibide eskuliburua
• 1 x Pair of Carbon Filters (for recirculation mode, included)

3.2 Instalazio urratsak:

1. Prestaketa: Unpack the hood and check for any damage. Ensure you have all components listed above.
2. Muntatzeko altuera: Determine the appropriate mounting height above your hob. Refer to local building codes and the minimum distance specified in the full manual.
3. Markatzea eta zulatzea: Use the provided template (if available) or measure carefully to mark drilling points on the wall for the hood and chimney bracket. Drill holes and insert wall plugs.
4. Kanpaia muntatzea: Secure the hood to the wall using the provided screws. Ensure it is level and firmly attached.
5. Ducting (Ducted Mode): Connect the exhaust duct to the hood's outlet and route it to an external vent. Ensure the duct is as straight and short as possible to maximize efficiency.
6. Recirculation (Filter Mode): If using recirculation, install the carbon filters onto the motor as per the instructions in the full manual. The exhaust duct is not used in this mode, but the chimney sections are still installed for aesthetic purposes.
7. Tximiniaren instalazioa: Attach the chimney extension sections, ensuring they fit securely and cover the ducting or motor assembly.
8. Konexio elektrikoa: Connect the hood to a suitable power outlet.

Figure 3.1: Dimensional drawing of the CAS9201A hood (Unit: mm).

Figure 3.2: Illustration of ducted (left) and recirculation (right) modes.

4. Funtzionamendu-argibideak

The CIARRA CAS9201A extractor hood features intuitive touch controls for easy operation of its functions.

4.1 Kontrol-panela:

The control panel is located on the front underside of the hood. It typically includes buttons for power, fan speed adjustment, and lighting.

Figure 4.1: Close-up of the control panel with power, speed, and light buttons.

4.2 funtzioak:

• Piztu/Itzali: Sakatu pizteko botoia kanpaia piztu edo itzaltzeko.
• Fan abiaduraren doikuntza: Select from three speed levels (low, medium, high) to match your cooking intensity. Use lower speeds for simmering and higher speeds for frying or grilling.
• Argia piztu/itzali: Press the light button to turn the LED cooking area illumination on or off.

For optimal performance, turn on the hood a few minutes before you start cooking and leave it running for a few minutes after you finish to ensure all fumes are cleared.

5. Mantentzea

Regular maintenance ensures the longevity and efficient operation of your CIARRA extractor hood.

5.1 Cleaning the Aluminum Grease Filters:

The aluminum grease filters should be cleaned regularly, typically every 2-4 weeks depending on usage, to prevent grease buildup and maintain suction efficiency. They are washable and can be cleaned by hand or in a dishwasher.

1. Kentzea: Carefully unlatch and remove the aluminum grease filters from the underside of the hood.
2. Garbiketa: Wash the filters in warm soapy water or place them in a dishwasher on a gentle cycle. Avoid using abrasive cleaners.
3. Lehortzea eta berriro instalatzea: Allow the filters to dry completely before reinserting them into the hood.

5.1. irudia: hurbileko planoa view of the aluminum grease filter.

5.2 Replacing Carbon Filters (Recirculation Mode Only):

If your hood is operating in recirculation mode, the carbon filters (included) need to be replaced periodically, typically every 3-6 months, as they cannot be washed. Refer to the full manual for specific replacement instructions.

5.3 Cleaning the Hood Surface:

Clean the exterior surfaces of the hood with a soft cloth and a mild, non-abrasive cleaning agent. Do not use harsh chemicals or abrasive pads, as these can damage the stainless steel finish.

Figure 5.2: Demonstrating cleaning the hood surface.

6. Arazoak

This section provides solutions to common issues you might encounter with your extractor hood. If the problem persists, contact customer support.

7. Zehaztapenak

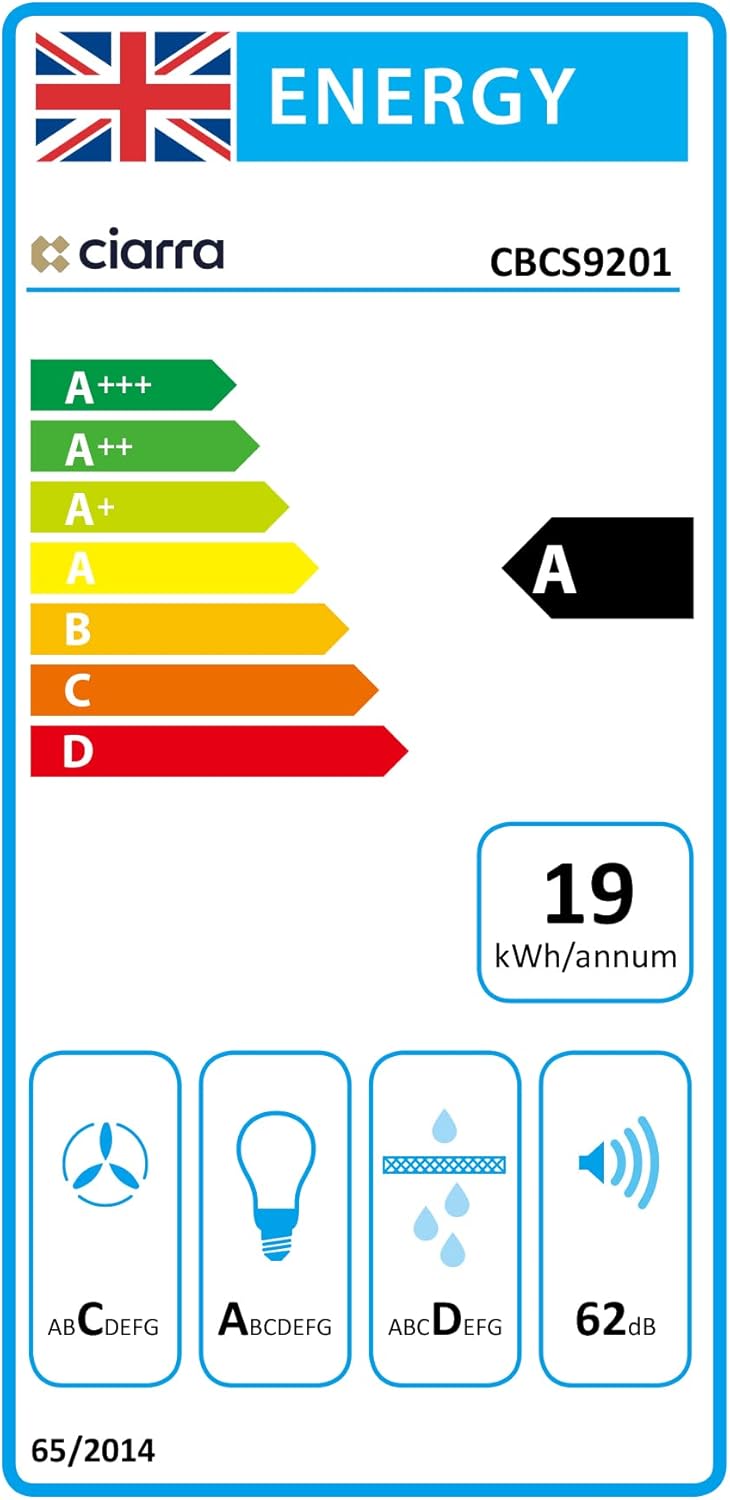

Figure 7.1: Energy label for the CIARRA extractor hood.

8. Bermea eta Laguntza

Your CIARRA CAS9201A extractor hood comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, spare parts, or any other inquiries, please contact CIARRA customer support. Contact information can typically be found on the manufacturer's webgunean edo zure produktuarekin batera emandako dokumentazioan.

When contacting support, please have your model number (CAS9201A) and purchase date ready.
