1. Sarrera
This manual provides comprehensive instructions for the proper setup, operation, maintenance, and troubleshooting of your U.S. Solid Digital Precision Lab Scale, Model USS-DBS00059. This electronic balance is designed for accurate weighing in various applications, offering a maximum capacity of 15KG with a readability of 0.1g. It features a durable stainless steel weighing pan, multiple measurement units, AC/DC power options, and essential functions such as counting and tare.
Please read this manual thoroughly before using the scale to ensure correct operation and to maximize its lifespan.
2. Segurtasun-neurriak
- Operate the scale on a stable, level, and vibration-free surface.
- Avoid placing the scale near strong electromagnetic fields, heat sources, or direct sunlight.
- Ez jarri balantza muturreko tenperaturen edo hezetasunaren eraginpean.
- Use only the provided AC adapter or specified DC batteries.
- Keep the weighing pan and surrounding area clean and free from debris.
- Do not overload the scale beyond its maximum capacity of 15KG.
- Disconnect power before cleaning or if the scale will not be used for an extended period.
3. Produktua amaitu daview
The U.S. Solid Digital Precision Lab Scale (USS-DBS00059) is equipped with features designed for reliable and precise measurements.
Ezaugarri nagusiak:
- Edukiera: 15KG with 0.1g readability.
- Pisatzeko platera: 150x180 mm stainless steel for corrosion resistance.
- Pantaila: Backlit LCD for clear readings.
- Potentzia: AC (100-240V) and DC (9V battery) operation.
- Unitateak: 11 selectable measurement units (g, ct, oz, ozt, lb, GN, t, dwt, kg, dr, tlT, N, %).
- Funtzioak: Weighing, parts counting, tare, unit conversion, manual calibration, and fault alerts.
- Eraikuntza: Durable ABS housing with height-adjustable feet and a level bubble.
Osagaiak:
4. Konfigurazioa
4.1 Paketatzea
Carefully remove all components from the packaging. Verify that all items listed in Figure 3.2 are present and undamaged. Retain the packaging for future transport or storage.
4.2 Jartzea
Place the scale on a firm, level, and stable surface. Ensure the location is free from vibrations, drafts, direct sunlight, and rapid temperature changes, which can affect measurement accuracy.
4.3 Eskala berdintzea

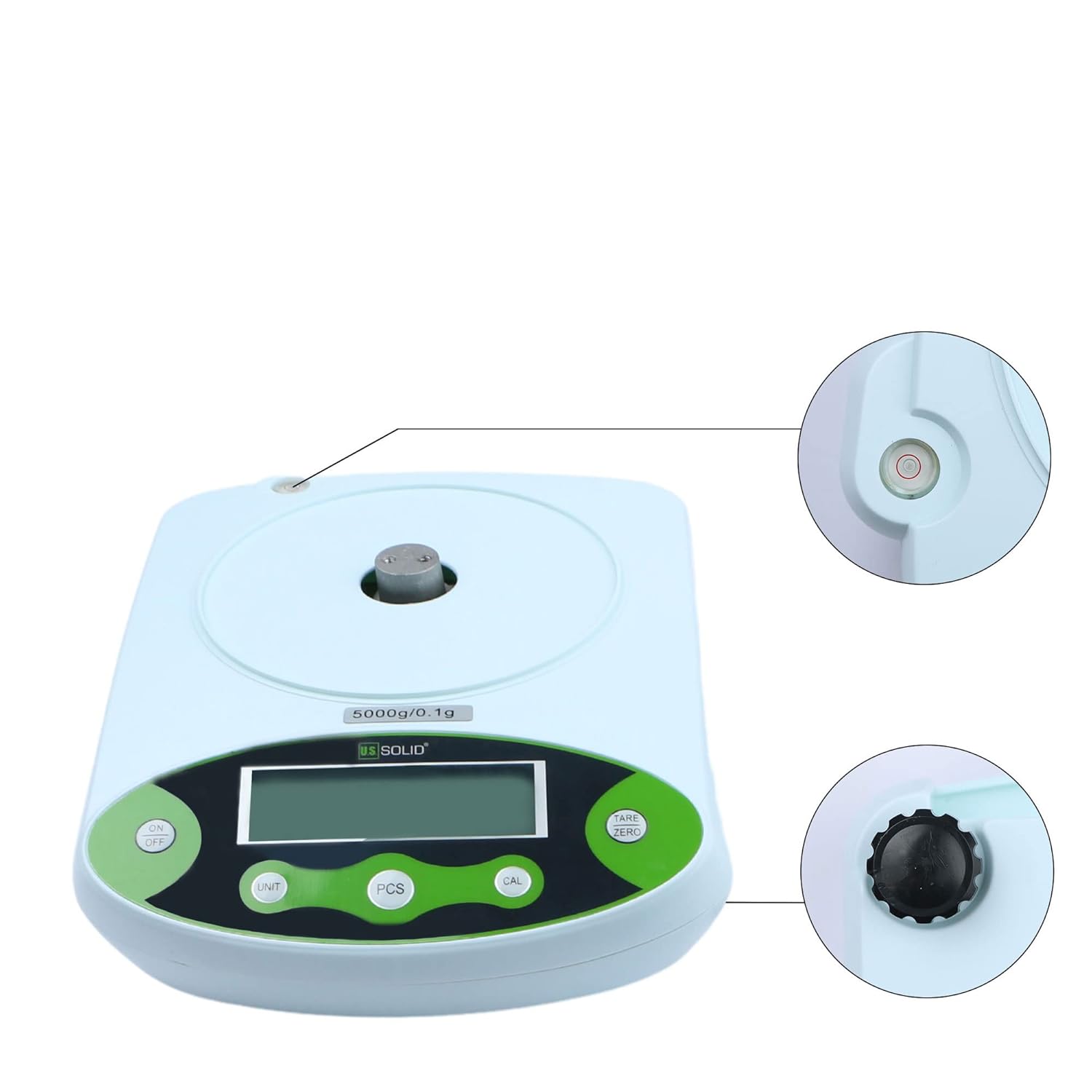

The scale must be perfectly level for accurate readings. Adjust the four height-adjustable feet located on the bottom of the scale until the bubble in the built-in level indicator is centered within the red circle.
4.4 Energia-konexioa
- AC potentzia: Connect the provided AC adapter to the power input port on the rear of the scale, then plug it into a suitable electrical outlet (100-240V).

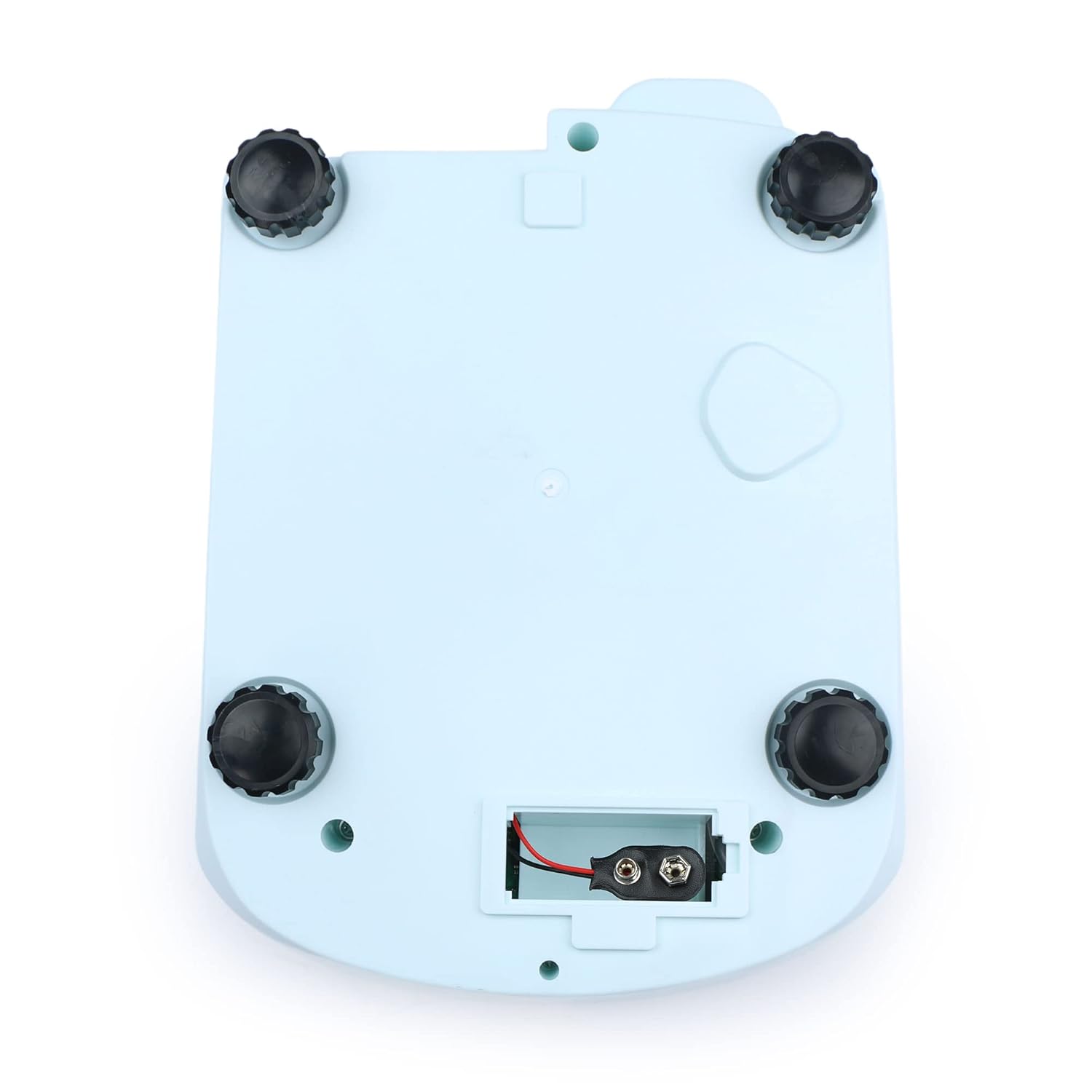

- DC Power (Battery): For portable use, open the battery compartment on the bottom of the scale (Figure 4.3) and insert a 9V DC battery, ensuring correct polarity.
4.5 Initial Warm-up
After connecting power, allow the scale to warm up for at least 30 minutes before performing critical measurements. This stabilizes the internal components and ensures optimal accuracy.
5. Funtzionamendu-argibideak
5.1 Kontrol-panela amaituview
5.2 Piztu/Itzali
- Sakatu ON/OFF botoia balantza pizteko.
- Eduki sakatuta ON/OFF botoia balantza itzaltzeko.
5.3 Oinarrizko pisatzea
- Ensure the scale is level and powered on.
- Wait for the display to show "0.0" or "0.00" (depending on the unit).
- Kontu handiz jarri pisatu beharreko elementua altzairu herdoilgaitzezko pisatzeko platera erdian.
- Read the stable weight displayed on the LCD.
5.4 Tara funtzioa
Tara funtzioak ontzi baten pisua kentzea ahalbidetzen du, beraz, edukiaren pisu garbia bakarrik neurtzen da.
- Jarri ontzi huts bat pisatzeko ontzian.
- Sakatu TARE/ZERO botoia. Pantaila "0.0" edo "0.00"-ra berrezarriko da.
- Gehitu pisatu beharreko materiala ontzira. Pantailak materialaren pisu garbia erakutsiko du.
5.5 Unitate-bihurketa
The scale supports 11 different measurement units.
- Sakatu UNITATEA button repeatedly to cycle through the available units: g, ct, oz, ozt, lb, GN, t, dwt, kg, dr, tlT, N, and %.
- The selected unit will be indicated on the LCD.
5.6 Parts Counting (PCS)
This function allows you to count a large number of identical items by weight.
- Place a known quantity of items (e.g., 10, 20, 50, 100) on the pan.
- Sakatu PCS button. The display will show a prompt for sample size (e.g., "P-10").
- Sakatu UNITATEA botoia s hautatzekoample size that matches the number of items you placed on the pan.
- Sakatu PCS button again to confirm. The scale is now in counting mode.
- Add more items of the same type to the pan, and the display will show the total count.
5.7 Kalibrazioa
Regular calibration ensures the accuracy of your scale. It is recommended to calibrate the scale after initial setup, if it has been moved, or if you suspect inaccurate readings. A calibration weight (not included) is required.
- Ensure the scale is powered on and the pan is empty.
- Eduki sakatuta CAL button until "CAL" appears on the display.
- The display will then show the required calibration weight (e.g., "15000g").
- Carefully place the specified calibration weight onto the center of the weighing pan.
- Wait for the display to show "PASS" or return to normal weighing mode, indicating successful calibration.
- Remove the calibration weight.
6. Mantentzea
6.1 Garbiketa
- Deskonektatu beti elektrizitatea garbitu aurretik.
- Wipe the scale's housing with a soft, damp oihal. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
- The stainless steel weighing pan can be removed and cleaned with mild soap and water, then dried thoroughly before reattaching.
- Ensure no liquids enter the internal components of the scale.
6.2 Biltegiratzea
When not in use for extended periods, store the scale in a dry, dust-free environment at room temperature. If using battery power, remove the battery to prevent leakage.
7. Arazoak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Balantza ez da pizten | No power supply; AC adapter unplugged; Dead battery. | Check AC adapter connection; Replace 9V battery. |
| Irakurketa okerrak | Scale not level; Drafts or vibrations; Needs calibration; Overloaded. | Adjust leveling feet; Move to a stable environment; Perform calibration; Do not exceed 15KG. |
| Display shows "OUE" or "EEEE" | Gainkargaren errorea. | Remove excess weight from the pan. |
| Display shows "UNST" | Irakurketa ezegonkorra. | Ensure scale is on a stable surface, free from vibrations or air currents. |
| Display shows "LO" | Bateria baxua. | Replace the 9V battery or use AC power. |
8. Zehaztapenak
| Zehaztapena | Balioa |
|---|---|
| Modelo zenbakia | USS-DBS00059 |
| Marka | AEB Solidoak |
| Edukiera | 15 Kilograms (15KG) |
| Readability / Accuracy | 0.1 gramo |
| Pisatzeko platera | Altzairu herdoilgaitza |
| Weighing Pan Dimensions | 150 x 180 mm |
| Bistaratzeko mota | Atzeko argiztatutako LCDa |
| Elikatze Hornidura | AC 100-240V; DC 9V Battery |
| Neurketa Unitateak | g, ct, oz, ozt, lb, GN, t, dwt, kg, dr, tlT, N, % |
| Funtzioak | Weighing, Counting, Tare, Unit Conversion, Calibration |
| Elementuaren pisua | 4.33 kilo |
| Paketearen neurriak | 11.61 x 9.37 x 5.55 hazbete |
9. Bermea eta Laguntza
U.S. Solid products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official U.S. Solid webgunea.
If you encounter any issues or require technical assistance, please contact U.S. Solid customer support. Contact details can typically be found on the product packaging, the official webgunea edo zure erosketa plataformaren bidez.
