HOOKE ROAD Full Width Front Bumper User Manual

1. Sarrera

This manual provides comprehensive instructions for the installation, operation, and maintenance of the HOOKE ROAD Full Width Front Bumper, Model BXG.6300AB-1. Please read this manual thoroughly before installation and use to ensure proper function and safety.

1.1. Produktua amaitu daview

The HOOKE ROAD Full Width Front Bumper is a heavy-duty steel bumper designed for enhanced front-end protection and off-road capability. It features an integrated winch plate, LED light mounts, and D-ring mounts.

1.2. Bateragarritasuna

This front bumper is compatible with 2019, 2020, 2021, 2022, 2023, and 2024 Ram 2500 and 3500 trucks, including Regular Cab, Quad Cab, and Crew Cab models. Note: Not compatible with factory sensors.

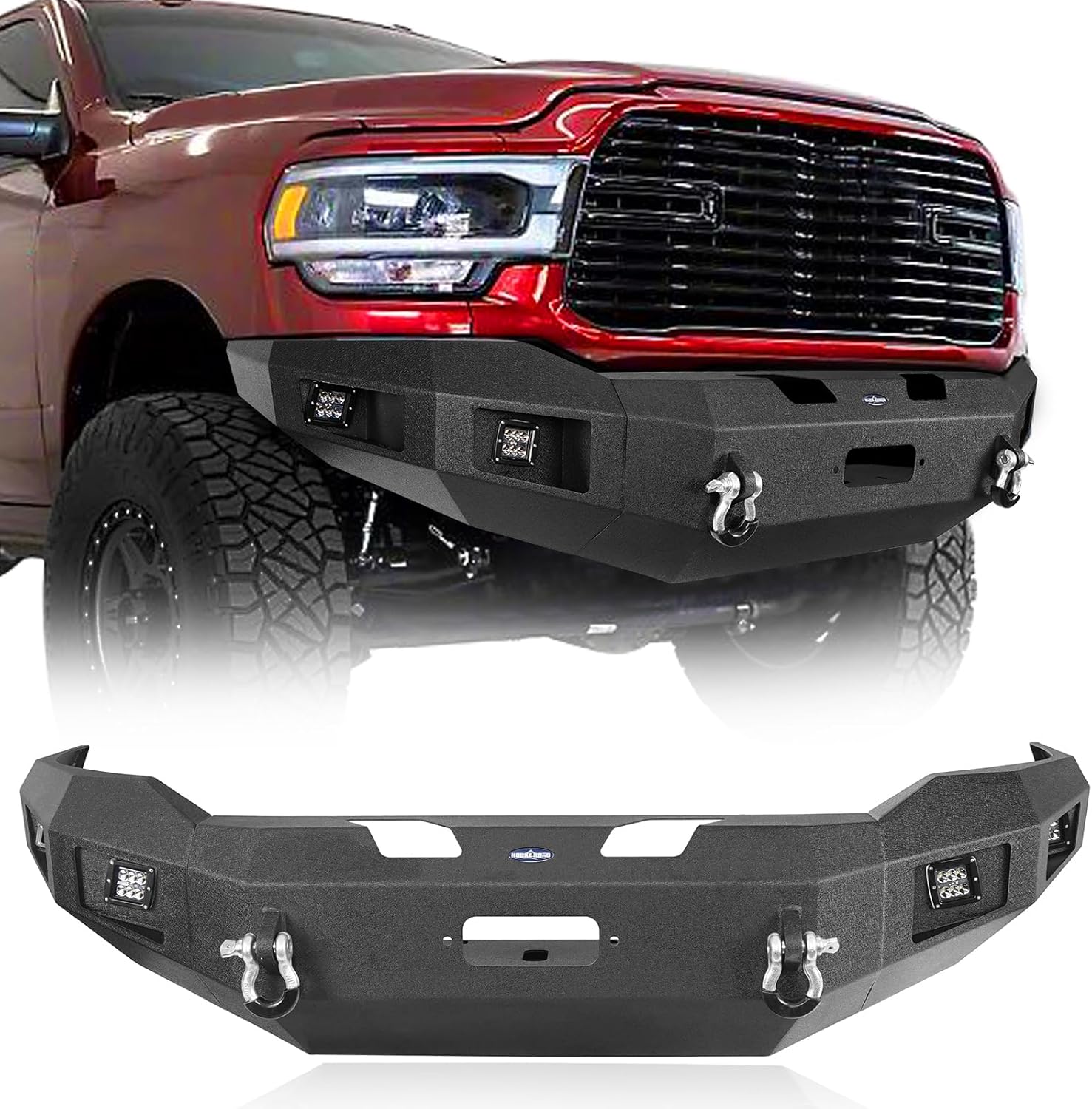

Figure 1: HOOKE ROAD Full Width Front Bumper installed on a Ram truck. This image shows the bumper's robust design and integrated lighting, enhancing the vehicle's front profile.

2. Segurtasun informazioa

• Instalazioan zehar, beti erabili babes pertsonaleko ekipamendu (EPI) egokia, segurtasun-betaurrekoak eta eskularruak barne.
• Ensure the vehicle is parked on a level surface with the parking brake engaged. Disconnect the battery before beginning any electrical work.
• Bilatu laguntza profesionala instalazio prozesuaren edozein atalen inguruan ziur ez bazaude.
• Do not exceed the rated capacity of the winch plate (12,000 lbs) or D-rings (9,500 lbs).
• Regularly inspect all mounting hardware for tightness and signs of wear or damage.

3. Piezen zerrenda

Instalazioa hasi aurretik, egiaztatu osagai guztiak daudela.

• Front Bumper Assembly (3-piece structure)
• 4x 18W LED Spotlights
• 2x 3/4 inch D-Rings (rated up to 9,500 lbs)
• Rubber D-Ring Isolators
• Muntatzeko euskarriak eta hardwarea
• Winch Plate (integrated, rated up to 12,000 lbs)

2. Irudia: Lehertuta view showing the main components of the HOOKE ROAD Front Bumper, including the three bumper sections, mounting hardware, and D-rings.

Figure 3: Feature diagram illustrating the modular 3-piece design, premium steel construction, 4x18W LED spotlights, high-strength D-ring mounts, and built-in winch plate.

4. Instalatzeko jarraibideak

Installation is a direct bolt-on process. No cutting, drilling, or modification to the vehicle is required. It is recommended to have assistance during installation due to the bumper's weight and size.

4.1. Beharrezko tresnak

• Oinarrizko eskuzko tresnak (giltzak, torlojuak)
• Torque-giltza
• Segurtasun-betaurrekoak eta eskularruak

4.2. Instalazioa urratsez urrats

1. Ibilgailua prestatu: Park the truck on a level surface, engage the parking brake, and disconnect the negative terminal of the battery.
2. Kendu fabrikako babes-babeslea: Carefully unbolt and remove the original stock front bumper. Retain any factory hardware that may be reused.
3. Assemble Bumper Components: Assemble the three-piece HOOKE ROAD bumper structure according to the provided hardware. Do not fully tighten bolts at this stage.
4. Mount Bumper to Frame: With assistance, carefully lift the assembled bumper onto the vehicle's frame. Align the mounting points with the factory mounting locations.
5. Babes-euskarri segurua: Install the provided mounting brackets and hardware. Hand-tighten all bolts to allow for minor adjustments.
6. Adjust Bumper Position: Adjust the bumper's position to ensure proper alignment with the vehicle body lines.
7. Hardwarea estutu: Once aligned, fully tighten all bolts to the manufacturer's specified torque settings.
8. Instalatu LED argiak: Mount the 18W LED spotlights into their designated openings on the bumper.
9. Hari LED argiak: Connect the LED spotlights to the vehicle's electrical system. Professional wiring is recommended if you are unfamiliar with automotive electrical systems.
10. Install D-Rings: Attach the 3/4 inch D-rings with rubber isolators to the high-strength shackle mounts.
11. Berriro konektatu bateria: Reconnect the negative battery terminal. Test all lights and ensure proper function.

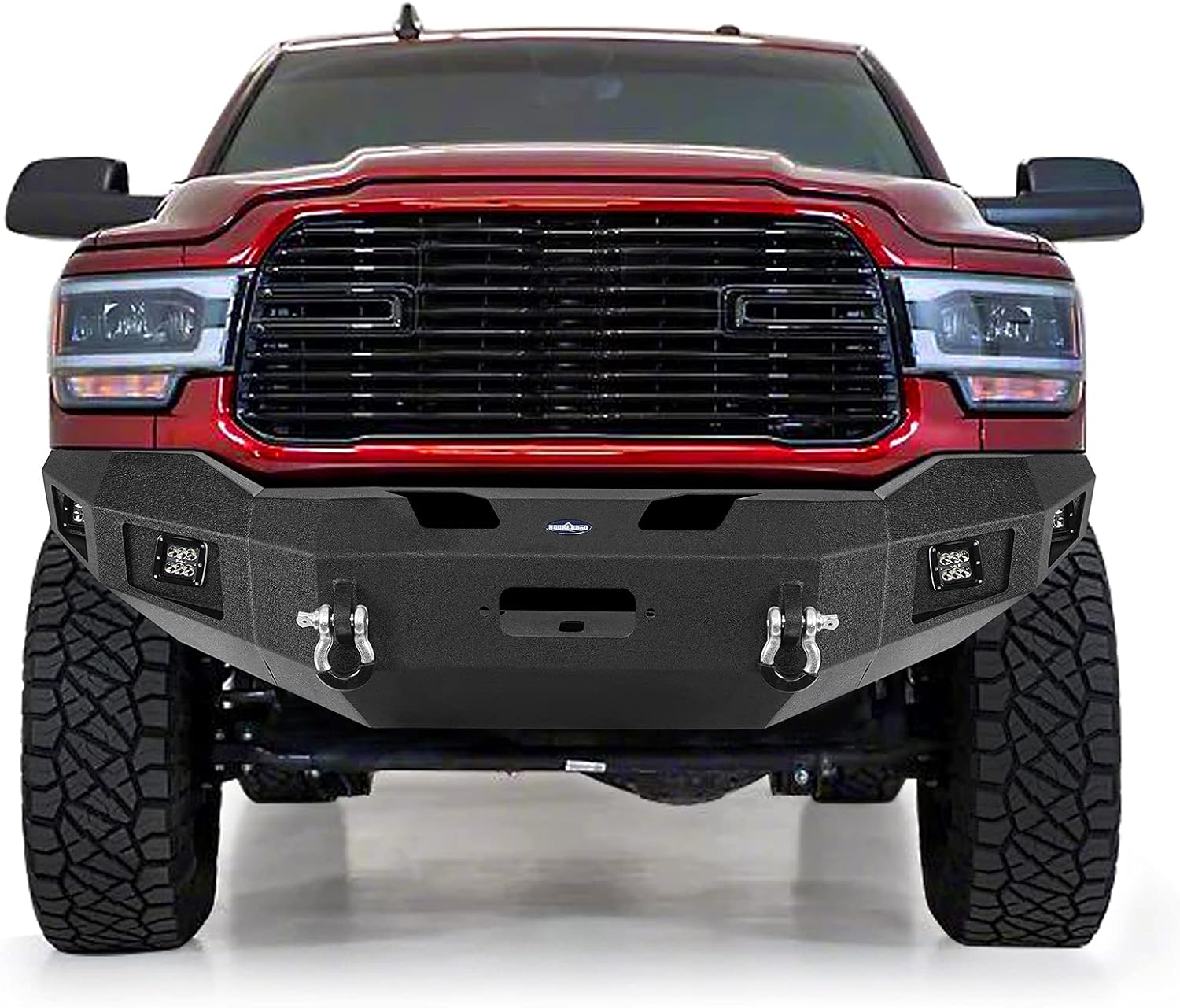

4. irudia: Aurrealdea view of the installed bumper, showcasing its integration with the truck's design and the placement of the LED lights.

5. Funtzionamendu-ezaugarriak

5.1. LED Spotlights

The bumper includes four 18W LED spotlights for enhanced visibility during off-road driving or in low-light conditions. These lights are designed to provide powerful illumination. Ensure they are wired correctly to a switch for independent operation.

5.2. Winch Plater

An integrated winch plate is designed to accommodate most standard winches up to 12,000 lbs capacity. When installing a winch, follow the winch manufacturer's instructions carefully. Ensure the winch is securely mounted and properly wired.

5.3. D eraztun euskarriak

High-strength shackle mounts are welded both inside and out, providing secure attachment points for the included 3/4 inch D-rings. These D-rings have a 4.75-ton (9,500 lbs) capacity and are essential for recovery operations. Always use D-rings for recovery and avoid attaching tow straps directly to the bumper itself.

6. Mantentzea

• Ohiko garbiketa: Clean the bumper regularly with mild soap and water to remove dirt, mud, and road salt. Avoid abrasive cleaners or harsh chemicals that could damage the textured black powder coat finish.
• Ikuskatu kalteak ikusteko: Periodically inspect the bumper for any signs of damage, such as dents, scratches, or rust. Touch up any paint chips or scratches promptly to prevent corrosion.
• Egiaztatu hardwarea: Regularly check all mounting bolts and nuts for tightness. Vibrations from driving can cause hardware to loosen over time. Re-torque as necessary.
• LED argiaren ikuskapena: Ensure LED lights are clean and free from debris. Check wiring for any signs of wear or damage.

7. Arazoak

7.1. LED Lights Not Functioning

• Egiaztatu kableak: Ziurtatu konexio elektriko guztiak ondo isolatuta eta seguruak direla.
• Fusiblearen egiaztapena: Verify that the fuse for the LED lights is not blown. Replace if necessary.
• Lur-konexioa: Confirm that the ground wire is securely attached to a clean, unpainted metal surface on the vehicle frame.

7.2. Bumper Appears Loose

• Torlojuak estutu: Re-check and tighten all mounting bolts to the specified torque.
• Inspect Brackets: Ensure mounting brackets are not bent or damaged.

8. Zehaztapenak

Figure 5: Dimensional drawing of the HOOKE ROAD Front Bumper, providing key measurements for width, depth, and height.

9. Bermea eta Laguntza

HOOKE ROAD provides a manufacturer warranty for 2 years from the date of purchase. Lifetime customer support is available from HOOKE ROAD for any product-related inquiries or assistance.

For support, please refer to the contact information provided with your purchase or visit the official HOOKE ROAD webgunea.
