1. Sarrera
This manual provides detailed instructions for the safe and efficient operation of your Pyle PWMA1299A 12-inch Portable Wireless Bluetooth Speaker System. Please read this manual thoroughly before using the device and retain it for future reference. This system is designed for versatile audio playback and amplification, featuring Bluetooth connectivity, USB/Micro SD card readers, FM radio, and microphone inputs.
2. Segurtasun-argibideak
- Ez jarri unitate hau euripean edo hezetasunean sute edo deskarga elektrikoen arriskuak saihesteko.
- Do not open the cabinet. There are no user-serviceable parts inside. Refer all servicing to qualified personnel.
- Ziurtatu aireztapen egokia dagoela. Ez blokeatu aireztapen-irekidurak.
- Saihestu unitatea bero-iturrien ondoan jartzea, hala nola erradiadoreen, bero-erregistroen, sukaldeen edo beroa sortzen duten beste aparatuen ondoan.
- Babestu korronte-kablea oinez ibiltzetik edo atxilotzetik, batez ere entxufeetan, erosotasun-harguneetan eta aparatutik irteten diren puntuetan.
- Deskonektatu aparatua tximista-ekaitzetan edo denbora luzez erabiltzen ez duzunean.
- Erabili fabrikatzaileak zehaztutako eranskinak/osagarriak soilik.
- Dispose of batteries properly. Do not expose batteries to excessive heat.
3. Paketearen edukia
Egiaztatu elementu guztiak paketean daudela:
- Pyle PWMA1299A Portable PA Speaker System
- (2) Eskuko hari gabeko mikrofonoak
- Elikatze-kablea
- Urruneko Kontrola

Image: The Pyle PWMA1299A speaker system, shown with its included two wireless handheld microphones and remote control. The speaker features a retractable handle and wheels for portability.
4. Produktuaren ezaugarriak
- Diseinu trinkoa eta eramangarria: Features a convenient carry handle and rolling wheels for easy transport.
- Haririk gabeko Bluetooth bidezko erreprodukzioa: Connects to smartphones, tablets, laptops, and other Bluetooth-enabled devices.
- Bateria kargagarria integratua: Provides up to 3+ hours of operation on a single charge.
- FM irratia: Integrated FM tuner with a digital LED display.
- USB Flash & Micro SD Memory Card Readers: MP3 audio digitala onartzen du file erreprodukzioa.
- Audio Recording Function: Allows recording audio directly to USB/Micro SD.
- Mikrofonoaren sarrerak: Includes 1/4'' microphone input and support for two wireless microphones.
- Aux (3.5mm) Input Jack: Kanpoko audio gailuak konektatzeko.
- Full Range Stereo Sound: Equipped with a 12'' mid-range speaker and a 3'' tweeter for clear audio.
- Adjustable Audio Controls: Features Echo, Bass, and Volume adjustments.
- Karaoke Microphone Talk-Over Mode: Automatically lowers background music when microphone is in use.

Irudia: Leherketa bat view of the speaker's internal components, highlighting the 12-inch mid-range speaker and the 3-inch tweeter, which contribute to the system's sound reproduction.
5. Konfigurazioa
5.1 Hasierako karga
Before first use, fully charge the speaker's built-in rechargeable battery. Connect the power cable to the AC input on the rear panel of the speaker and plug it into a standard wall outlet (120/240V). The charging indicator light will illuminate. Charging typically takes several hours. Once fully charged, the indicator may change color or turn off, depending on the model. A full charge provides approximately 3+ hours of battery life.

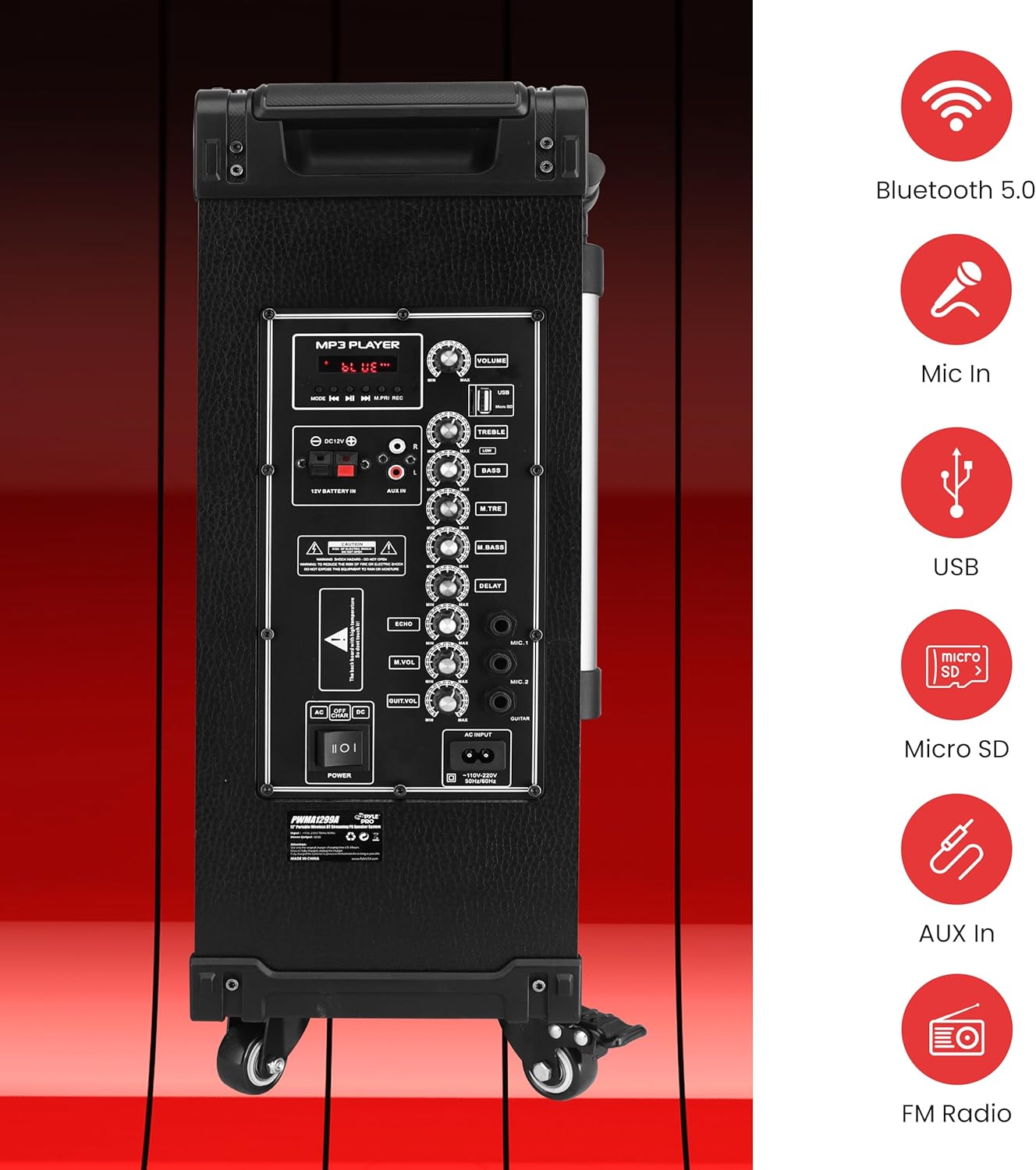

Image: The rear control panel of the Pyle speaker, showing various inputs and controls, including the power input for charging the internal battery.
5.2 Piztu/Itzaltzea
Locate the power switch on the rear panel of the speaker. Flip the switch to the "ON" position to power on the unit. The digital LED display will light up. To power off, flip the switch to the "OFF" position. It is recommended to turn off the power with the ON/OFF switch when not in use to prevent battery damage from standby mode.
6. Funtzionamendu-argibideak

Irudia: Xehetasun zehatza view of the speaker's rear control panel, illustrating the layout of the MP3 player section, volume and tone controls, microphone inputs, and auxiliary connections.
6.1 Bluetooth parekatzea
- Bozgailua piztu.
- Press the "MODE" button on the control panel or remote control until "BLUE" appears on the digital LED display, indicating Bluetooth mode.
- Bluetooth gaitutako gailuan (smartphone-a, tableta, etab.), gaitu Bluetooth eta bilatu eskuragarri dauden gailuak.
- Select "PYLE" from the list of devices.
- Once paired, the speaker will emit a confirmation tone, and you can begin streaming audio wirelessly. The Bluetooth wireless range is approximately 33+ feet.
The Pyle speaker supports Bluetooth version 5.0 for stable wireless connections.
6.2 USB/Micro SD Playback
- Insert a USB flash drive or Micro SD card into the corresponding slot on the control panel.
- The speaker will automatically switch to USB/SD mode and begin playing MP3 files. If it does not switch automatically, press the "MODE" button to select USB/SD mode.
- Use the playback controls (Play/Pause, Next, Previous) on the control panel or remote control to manage your music.
6.3 FM Irratia
- Press the "MODE" button until "FM" appears on the digital LED display.
- Press and hold the Play/Pause button to initiate an automatic scan for FM stations. The speaker will save all found stations.
- Use the Next/Previous buttons to navigate through the saved FM stations.
6.4 Mikrofonoaren erabilera
The system includes two wireless handheld microphones and a 1/4'' wired microphone input.
- Haririk gabeko mikrofonoak: Ensure the wireless microphones have fresh 'AA' batteries (2 per microphone). Power on the microphones. They should automatically connect to the speaker.
- Kabledun mikrofonoa: Plug a 1/4'' microphone into the "MIC IN" jack on the control panel.
- Doitu "MIC VOL" botoia mikrofonoaren bolumena kontrolatzeko.
- Use the "ECHO", "M.BASS" (Mic Bass), and "M.TRE" (Mic Treble) knobs to fine-tune the microphone's sound.
- The Karaoke Microphone Talk-Over Mode automatically lowers background music when you speak into the microphone.

Image: Two individuals using the wireless microphones with the Pyle speaker system, demonstrating its use for vocal performances or public speaking.
6.5 Audio Recording Function
To record audio from the microphone or auxiliary input directly to a USB drive or Micro SD card:
- Ensure a USB drive or Micro SD card is inserted into the speaker.
- Connect your microphone or auxiliary device.
- Press the "REC" button on the control panel or remote control to start recording.
- Press "REC" again to stop recording. The recorded file will be saved to the USB drive or Micro SD card.
6.6 Aux (3.5mm) Sarrera
Connect external audio devices (e.g., MP3 players, CD players) using a 3.5mm audio cable to the "AUX IN" jack on the control panel. Press the "MODE" button to select AUX input mode.
6.7 Kontrol-panela amaituview
The rear control panel features various knobs and buttons for adjusting audio settings:
- bolumena: Soinu irteera orokorraren bolumen nagusiaren kontrola.
- Treble: Maiztasun handiko erantzuna doitzen du.
- BAXUA: Maiztasun baxuko erantzuna doitzen du.
- OHARRA: Controls the echo effect for microphones.
- MIC VOL: Adjusts the volume of connected microphones.
- M.BASS: Adjusts the bass for microphones.
- M.TRE: Adjusts the treble for microphones.
- ATZERAPENA: Controls the delay effect for microphones.
7. Mantentzea
- Garbiketa: Erabili zapi leun eta lehor bat bozgorailuen kanpoaldea garbitzeko. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
- Bateria zaintzea: To prolong battery life, fully charge the unit before storing it for extended periods. Avoid completely draining the battery frequently.
- Biltegiratzea: Gorde bozgorailua leku fresko eta lehor batean, eguzki-argitik eta muturreko tenperaturetatik babestuta.
8. Arazoak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Botererik ez | Battery is depleted; Power cable not connected; Power switch is off. | Charge the battery; Ensure power cable is securely connected and plugged into a live outlet; Turn the power switch to "ON". |
| Ez dago soinu irteerarik | Volume is too low; Incorrect input mode selected; Audio cable not connected properly. | Increase the master volume; Press "MODE" to select the correct input (Bluetooth, USB, SD, FM, AUX); Check audio cable connections. |
| Bluetootha ez da konektatzen | Bozgorailua ez dago Bluetooth moduan; Gailua urrunegi dago; Gailua beste bozgorailu batera konektatuta dago dagoeneko. | Ensure speaker is in Bluetooth mode ("BLUE" on display); Move device closer to speaker; Disconnect from other Bluetooth devices. |
| Mikrofonoa ez dabil | Microphone volume too low; Wireless microphone batteries depleted; Wired microphone not connected. | Increase "MIC VOL" knob; Replace 'AA' batteries in wireless microphones; Ensure wired microphone is securely plugged into "MIC IN". |
If you experience issues with charging, ensure the power cable is firmly connected to both the speaker and a working power outlet. If the issue persists, consult the support section.
Video: This video demonstrates the Pyle 12'' Portable Wireless Bluetooth Speaker system, showcasing its features and portability. It provides a visual overview of the product's design and functionality.
9. Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Modelo zenbakia | PWMA1299A |
| MAX Potentzia Irteera | 800 Watt |
| Soinu Sistema | 12'' Mid-Range Speaker + 3'' Tweeter |
| Inpedantzia | 4 Ohm |
| S/N erlazioa | 60 dB |
| Bluetooth bertsioa | 5.0 |
| Bluetooth haririk gabeko barrutia | 33'+ oin. |
| Bateria kargagarria integratua | 12V/7AH Lead-Acid Battery |
| Bateriaren iraupena | Gehienez 3 ordu baino gehiago |
| Elikatze Hornidura | 120/240V |
| Mic Nominal Current Drain | <100mAh |
| Microphone Battery Requirement | (2) x 'AA' Batteries (Each) |
| Produktuaren neurriak (L x W x H) | 18.50'' x 11.22'' x 25.59'' hazbete |
| Elementuaren pisua | 28.3 kilo |
| UPC | 842893147017 |
10. Bermea eta Laguntza
Pyle products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the official Pyle webwebgunera edo jarri harremanetan bezeroarentzako arreta-zerbitzuarekin. Gorde erosketa-agiria erosketaren frogagiri gisa berme-erreklamazioetarako.
