DeWALT EUDXV23P 23L Wet/Dry Vacuum Cleaner User Manual

1. Segurtasun informazioa

Read and understand all safety warnings and instructions before operating this wet/dry vacuum cleaner. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Erabili beti segurtasun-betaurrekoak eta entzumen-babesak.
• Do not vacuum toxic, carcinogenic, or other hazardous materials.
• Ez xurgatu likido sukoiak edo erregaiak, hala nola gasolina, eta ez erabili horiek egon daitezkeen lekuetan.
• Ez hartu erretzen edo erretzen ari den ezer, hala nola zigarroak, pospoloak edo errauts beroak.
• Ensure the power cord is undamaged and properly grounded.
• Unplug the vacuum from the power source before making adjustments, changing accessories, or storing.
• Keep children and bystanders away while operating the vacuum.

2. Osagaiak baino gehiagoview

Familiarize yourself with the main parts of your DeWALT EUDXV23P Wet/Dry Vacuum Cleaner.

2.1. irudia: Lehertuta view of the DeWALT EUDXV23P Wet/Dry Vacuum. Key components include the powerful motor, reliable safety protection, washable cartridge filter, and the main vacuum port on the tank.

The vacuum consists of a powerful motor head, a durable poly tank, and various accessories for different cleaning tasks.

2.2. irudia: Included accessories with the DeWALT EUDXV23P. This kit typically contains the main vacuum unit, flexible hose, two extension wands, a crevice tool, a floor nozzle, a washable cartridge filter, a user manual, and a disposable dust bag.

3. Konfigurazioa eta Muntaketa

Follow these steps to assemble your wet/dry vacuum cleaner before first use.

1. Deskonprimitu osagaiak: Carefully remove all parts from the packaging. Verify that all components listed in Image 2.2 are present.
2. Gurpilak erantsi: Invert the tank and firmly insert the four caster feet into the designated slots on the base of the tank. Ensure they click securely into place for 360° rotation.
3. Instalatu iragazkia:
   • Izan ere lehorra xurgatzea, install the washable cartridge filter over the filter cage on the motor head. Secure it with the filter nut. A disposable dust bag can also be used for dry debris.
   • Izan ere xurgagailu hezea, remove the cartridge filter. A foam filter (not always included, check manual) is typically used for wet applications to protect the motor. Ensure no dry filter is used for wet pickup.
4. Lotu mahuka: Insert the larger end of the flexible hose into the vacuum port on the front of the tank. Twist to secure if applicable. For blowing function, attach the hose to the blower port located on the motor head.
5. Konektatu osagarriak: Attach the desired extension wands and nozzle (e.g., floor nozzle, crevice tool) to the free end of the hose.
6. Motorraren burua segurua: Place the motor head onto the tank, aligning it properly. Secure the motor head with the side latches.

4. Funtzionamendua

This DeWALT EUDXV23P vacuum offers 3-in-1 functionality: wet vacuuming, dry vacuuming, and blowing.

4.1. irudia: The DeWALT DXV23P is a versatile 3-in-1 unit, capable of wet and dry vacuuming, and blowing. It features a 23-liter capacity, 1150 Watts of power, and a 3-meter power cord.

4.1 Lehorra xurgatzea

• Ensure the washable cartridge filter is correctly installed. For fine dust, consider using a disposable dust bag in conjunction with the cartridge filter.
• Plug the 10-foot power cord into a suitable grounded outlet. The cord wrap feature helps manage the cable.
• Turn the waterproof switch to the "ON" position.
• Guide the nozzle over the dry debris. The powerful 4 HP motor provides strong suction for various materials like sawdust, dirt, and general workshop debris.
• After use, turn the switch "OFF" and unplug the unit.

4.2 Hezea xurgatzea

• Garrantzitsua: Remove the cartridge filter before wet vacuuming. If available, install a foam filter (sold separately or included in some kits) for wet pickup.
• Plug the vacuum into a grounded outlet.
• Turn the waterproof switch to the "ON" position.
• Vacuum liquids. The vacuum will automatically shut off when the liquid reaches a predetermined level in the tank to prevent overfilling.
• After use, turn the switch "OFF", unplug, and empty the tank. Clean the tank thoroughly.

4.3 Puzgailu-funtzioa

• Locate the blower port on the motor head.
• Remove the hose from the vacuum port and firmly insert it into the blower port.
• Plug the vacuum into a grounded outlet and turn it "ON".
• Use the powerful airflow to clear debris from workshops, garages, or other areas.
• After use, turn the switch "OFF" and unplug the unit.

4.2. irudia: Key operational features include a waterproof switch for durability, a hose strap for convenient storage, a 48mm x 2.1m hose for effective debris collection, and a cord wrap system for tidy cable management.

4.3. irudia: The crevice nozzle is designed for quick collection of dust and small debris in tight spaces, such as car interiors.

5. Mantentzea

Mantentze-lan erregularrak zure xurgagailuaren errendimendu optimoa bermatzen du eta bizitza luzatzen du.

5.1 Iragazkiaren garbiketa eta ordezkapena

• Kartutxoen iragazkia: For dry use, tap the filter gently to dislodge dust. For thorough cleaning, rinse the filter with water. Allow it to air dry completely before reinstallation. Replace the filter if it is damaged or suction power decreases significantly.
• Foam Filter (for wet use): Rinse with water and allow to air dry.
• Hauts poltsa: Replace disposable dust bags when full.

5.2 Deposituaren garbiketa

• After wet vacuuming, always empty and clean the tank to prevent mold and odors.
• Garbitu barrualdea iragarkiarekinamp cloth and mild detergent if necessary. Rinse thoroughly and allow to air dry.

5.3 Hose and Accessory Care

• Inspect the hose and accessories for blockages or damage regularly. Clear any obstructions.
• Clean accessories with water and mild soap as needed.

6. Arazoak

Atal honetan ohiko arazoei eta haien irtenbideei buruzko informazioa aurkituko duzu.

7. Zehaztapenak

Technical details for the DeWALT EUDXV23P Wet/Dry Vacuum Cleaner.

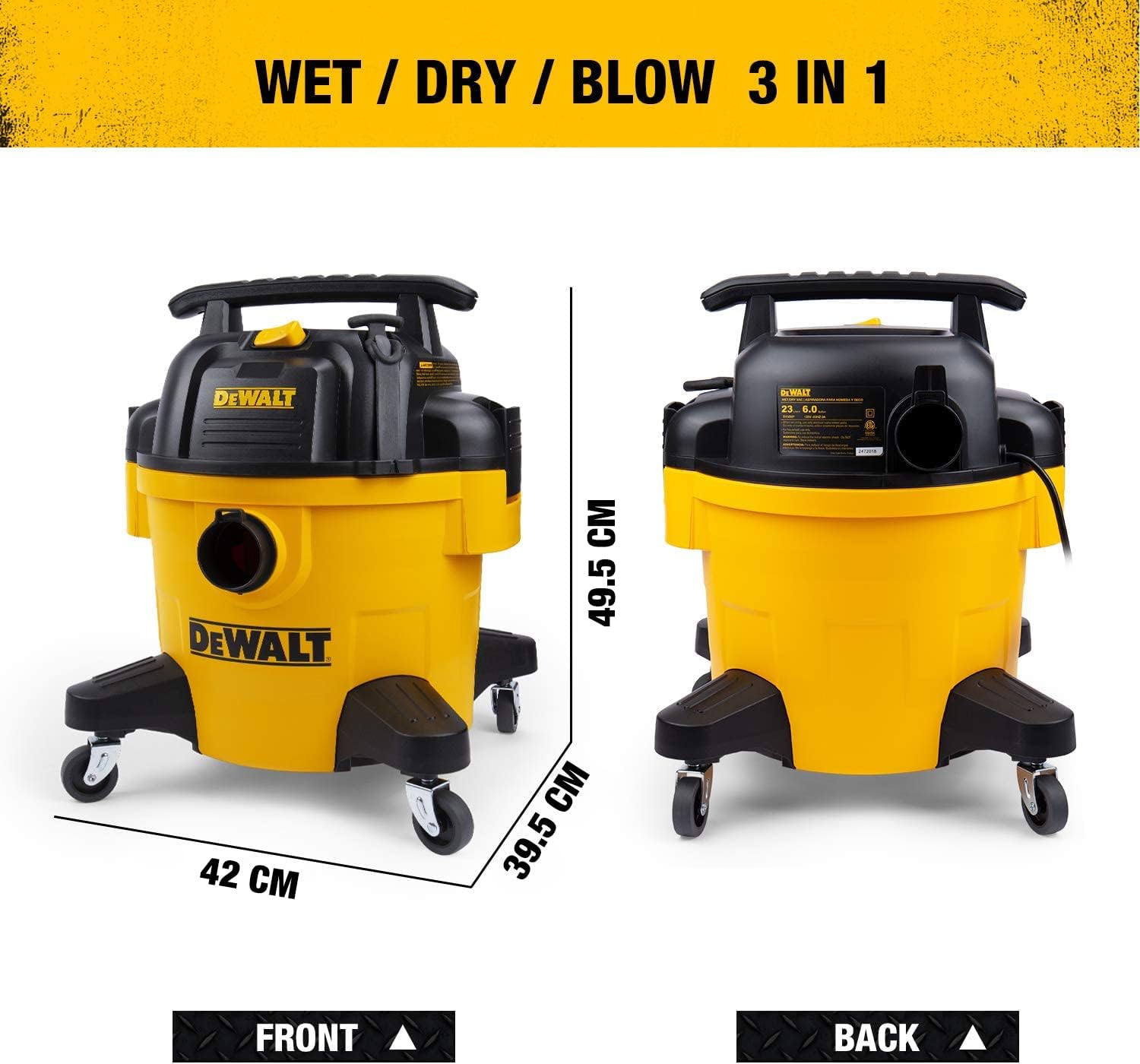

7.1. irudia: Aurretik eta atzetik views of the DeWALT EUDXV23P, illustrating its approximate dimensions: 49.5 cm in height, 42 cm in width, and 39.5 cm in depth.

8. Bermea eta Laguntza

For warranty information and customer support, please refer to the official DeWALT webwebgunean edo produktuarekin batera datorren berme-txartelean. Gorde erosketa-agiria erosketaren frogagiri gisa.

For technical assistance or to order replacement parts, contact DeWALT customer service. Contact details can typically be found in the included manual or on the manufacturer's webgunea.
