Ibergrif M14450-98 Single-Lever Low Pressure Kitchen Faucet

Sarrera

This manual provides detailed instructions for the installation, operation, and maintenance of your Ibergrif M14450-98 single-lever low pressure kitchen faucet. Designed for comfort and efficiency, this faucet features a durable brass construction, a polished chrome finish, and a 360° swivel spout. Please read these instructions carefully before installation and use to ensure proper function and longevity of your product.

Produktua amaituview eta Dimentsioak

The Ibergrif M14450-98 is a single-lever kitchen faucet designed for low-pressure water systems. Its chrome finish provides a sleek look and is easy to clean. The faucet features a 360° rotatable spout for enhanced flexibility in your kitchen sink area.

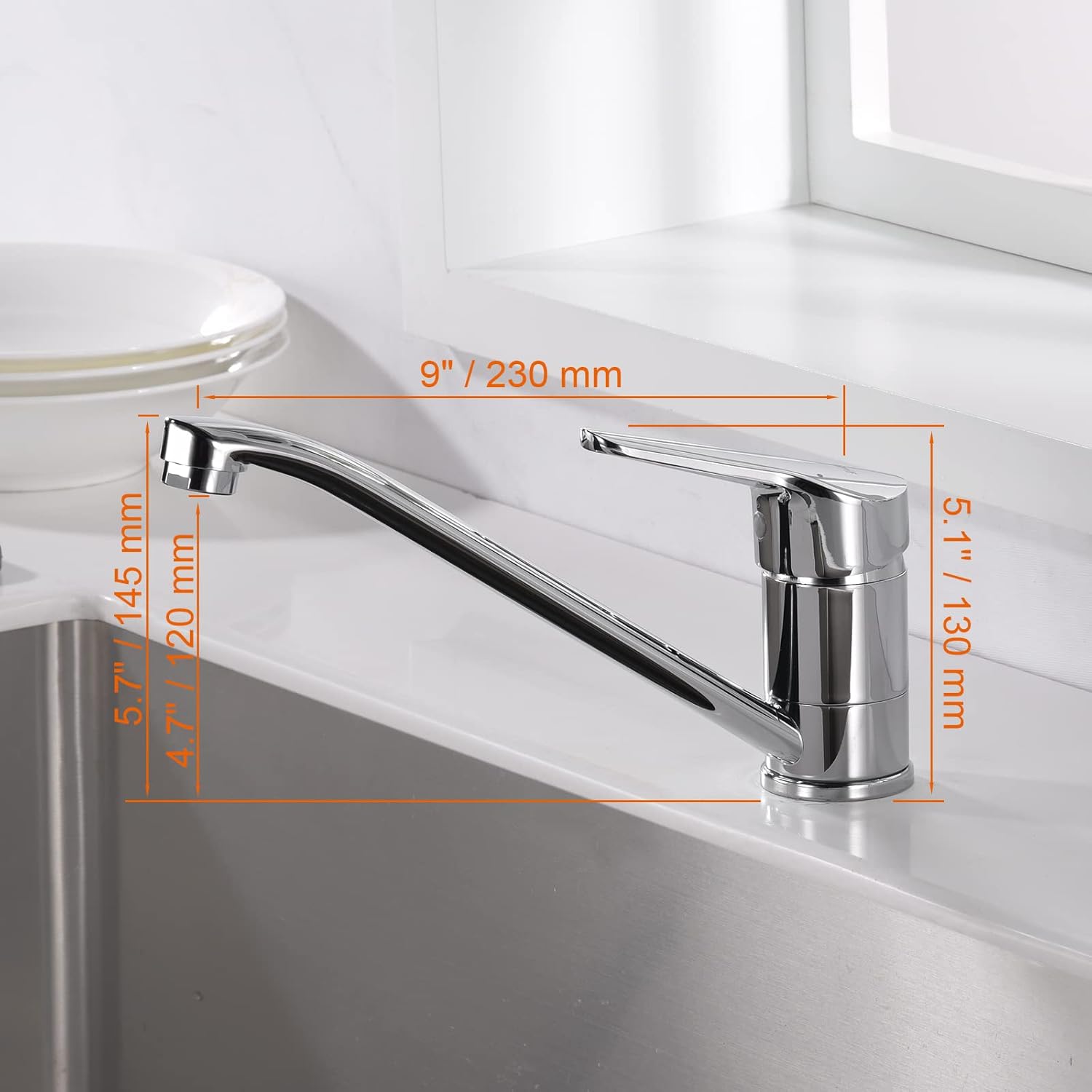

Irudia: Aurrealdea view of the Ibergrif M14450-98 kitchen faucet with key dimensions labeled. The spout height is approximately 120mm (4.7 inches) and the total height is 130mm (5.1 inches). The spout reach is 230mm (9 inches).

Irudia: Diagram illustrating the applicability of the low-pressure faucet with different water pressure systems (max. 2 bar, max. 4 bar, max. 6 bar) and the requirement for a water heater or hot water storage.

Konfigurazioa eta Instalazioa

This low-pressure faucet is designed for systems requiring a water heater or hot water storage unit. It comes with all necessary installation materials and three connection hoses: one for cold water and two for the low-pressure boiler/water heater. Installation is straightforward and can be completed without professional plumbing assistance.

Hasi aurretik:

• Ensure your water supply system is low pressure and compatible with this faucet.
• Itzali ur-hornidura nagusia instalazioa hasi aurretik.
• Gather necessary tools (not included): adjustable wrench, screwdriver, sealant tape (if needed).

Instalazio urratsak:

1. Prestatu muntatzeko zuloa: Ensure the sink or countertop has a single mounting hole of appropriate size for the faucet base.
2. Connect Hoses to Faucet: Attach the three supplied connection hoses to the corresponding inlets on the faucet base. One hose is for cold water (marked blue), and two are for the hot water supply from your low-pressure water heater (marked red).
3. Muntatu txorrota: Insert the faucet into the mounting hole. Secure it from underneath the sink using the provided mounting hardware (washer, nut, and fixing screw). Tighten securely but do not overtighten.
4. Connect Hoses to Water Supply:
   • Connect the cold water hose (blue) to your cold water supply valve.
   • Connect the two hot water hoses (red) to the inlet and outlet of your low-pressure water heater/boiler as per the heater's instructions.
5. Egiaztatu ihesak: Konexio guztiak ondo finkatuta daudenean, poliki-poliki ireki ur-hornidura nagusia eta egiaztatu ihesik dagoen.

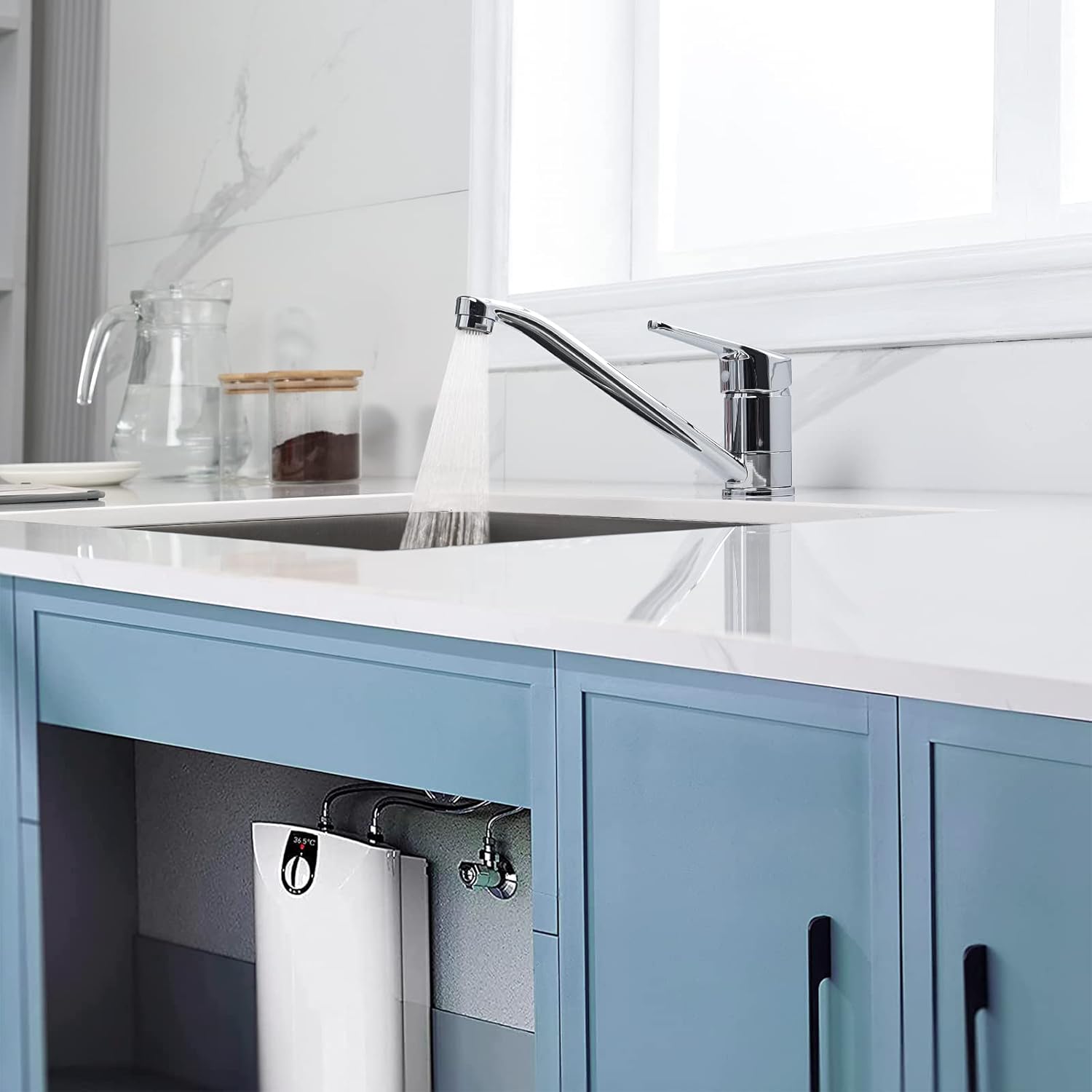

Irudia: The Ibergrif M14450-98 faucet installed on a kitchen sink, with a low-pressure water heater visible in the cabinet below, demonstrating a typical setup.

Irudia: Detailed diagram illustrating the connection of the faucet's three hoses to a low-pressure water heater and the cold water supply. 'A' is cold water inlet, 'B' is cold water to heater, 'C' is hot water from heater.

Irudia: All components included for installation: the faucet unit, mounting hardware (washer, nut, fixing screw), and three flexible connection hoses.

Funtzionamendu-argibideak

Your Ibergrif M14450-98 faucet is designed for ease of use with a single lever control and a highly flexible spout.

Uraren fluxua eta tenperaturaren kontrola:

• Single Lever: The single lever controls both water flow and temperature.
• Tenperaturaren doikuntza: Mugitu palanka ezkerrera ur berorako eta eskuinera ur hotzeko.
• Fluxuaren doikuntza: Lift the lever upwards to increase water flow and push it downwards to decrease or stop the flow.

360°-ko biraketa-hodia:

The faucet spout can rotate 360 degrees, providing maximum flexibility for various kitchen tasks, especially useful for double sinks or filling large pots outside the sink basin.

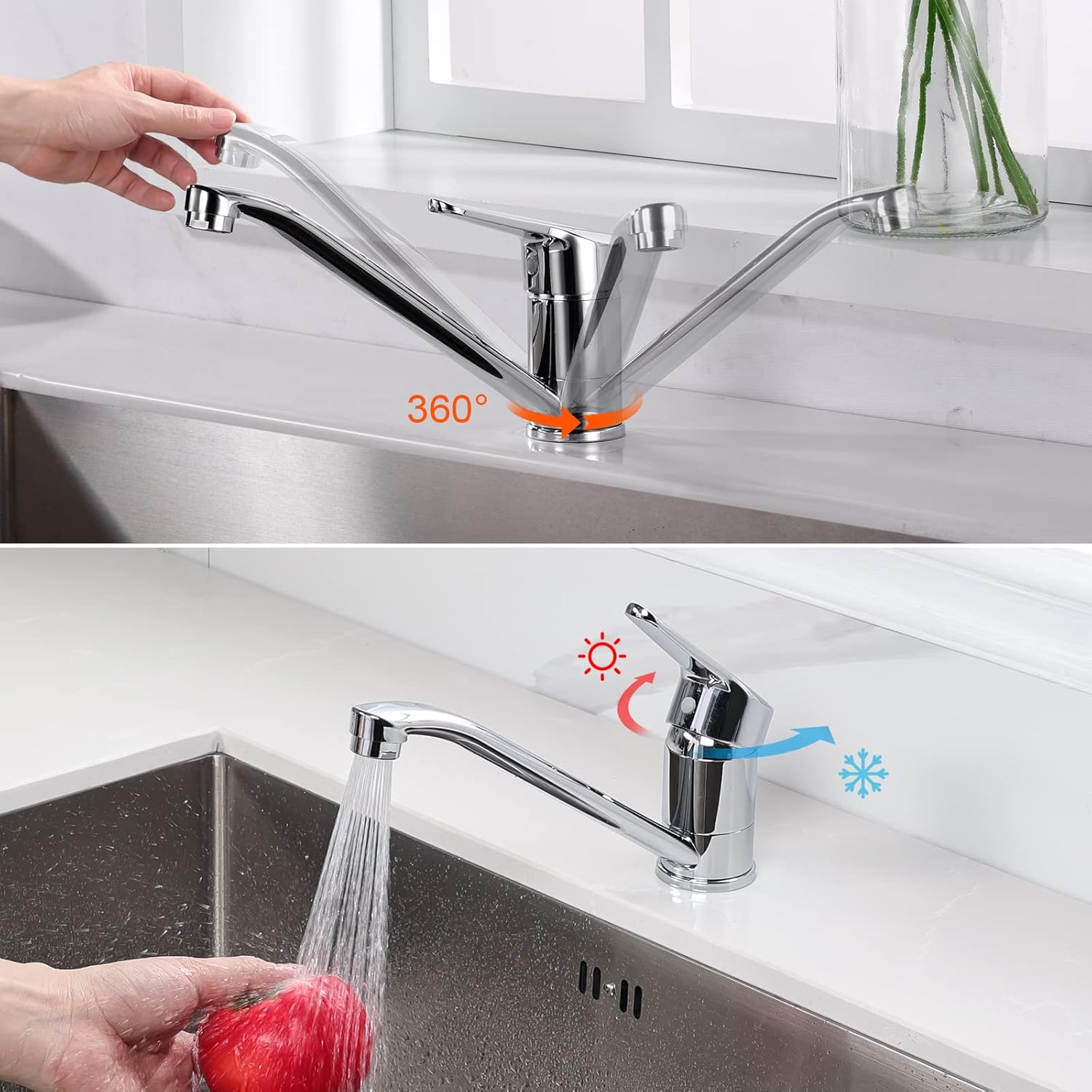

Irudia: The faucet demonstrating its 360-degree swivel capability and the single lever control for adjusting water temperature (hot/cold indicators).

Mantentzea

Regular maintenance ensures the longevity and optimal performance of your Ibergrif faucet.

Txorrota garbitzea:

• The polished chrome surface is easy to clean. Use a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome finishes.
• Avoid using abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the chrome finish.
• Garbitu ondoren, lehortu txorrota ur-orbanak saihesteko.

Aireztagailuaren mantentze-lanak:

The faucet is equipped with an aerator to ensure a stable water flow, even at low pressure. Over time, mineral deposits can accumulate in the aerator, reducing water flow. Regular cleaning is recommended.

1. Kendu aireztatzailea tutuaren puntatik.
2. Disassemble the aerator components.
3. Rinse all parts under running water to remove debris. For stubborn mineral deposits, soak the parts in a solution of equal parts white vinegar and water for a few hours.
4. Berriro muntatu aireztagailua eta torlojutu berriro tutuari.

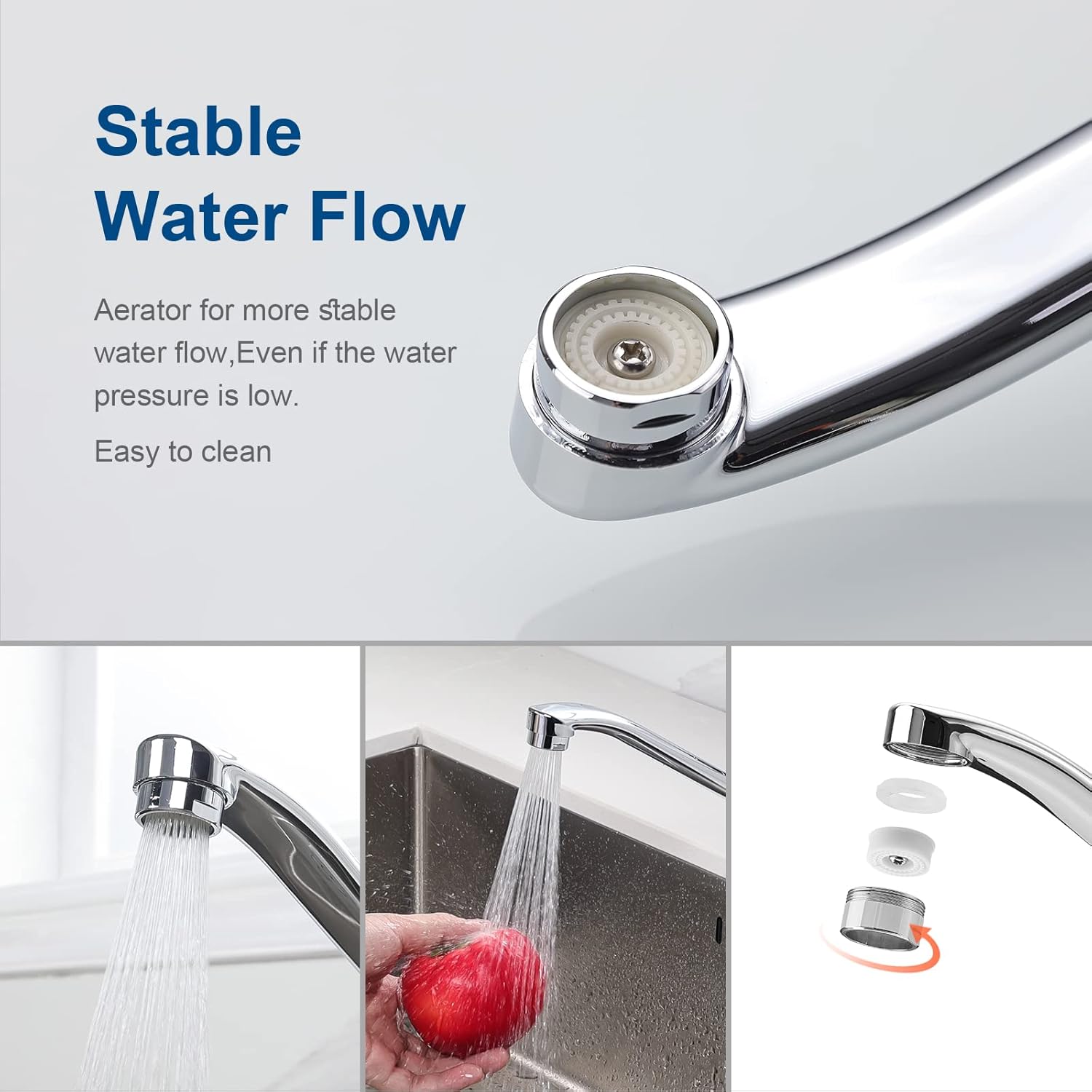

Irudia: Gertutik view of the faucet's aerator and a diagram showing how to disassemble and clean its components for stable water flow.

Arazoak konpontzea

Txorrotarekin arazoak badituzu, jo ezazu honako arazo eta irtenbide ohikoenei:

Zehaztapenak

Bermea eta Laguntza

For information regarding warranty coverage or technical support, please contact Ibergrif customer service. Details can typically be found on the official Ibergrif webgunea edo erosketa-dokumentazioaren bidez.

Sareko baliabideak: Laguntza eta produktuaren informazioa gehiago lortzeko, bisitatu Ibergrif Store on Amazon.
