PROAIM Vanguard Collapsible Utility Production Cart (CT-VNGD-UC5) Instruction Manual

1. Produktua amaitu daview

The PROAIM Vanguard Collapsible Utility Production Cart (CT-VNGD-UC5) is designed for efficient transportation of equipment in various professional settings. This versatile cart features a collapsible design for minimal storage space and an extendable bed to accommodate different load sizes. It is built with robust materials to handle heavy payloads and navigate diverse terrains.

• Efficient and Time-Saving: Designed to transport equipment in a single trip, folding compactly when not in use.
• Versatile Platform: Supports a load capacity of up to 200kg (440lb) with a narrow platform width of 13.3 inches for easy maneuverability.
• Extendable Bed: The cart's bed can be lengthened from 30 inches to 52 inches to suit various equipment sizes.
• Smooth and Reliable Wheels: Equipped with four solid rubber wheels for excellent traction and durability on different surfaces.

2. Assembly and Folding Instructions

The PROAIM Vanguard Production Cart is designed for quick and tool-free assembly and folding. Follow these steps to prepare your cart for use or storage.

2.1 Saskia zabaltzea

1. Jarri tolestutako gurdia gainazal lau eta egonkor batean.
2. Locate the release bar at the bottom of the cart.
3. Step on the release bar with your foot to unlock the handles.
4. Lift the handles into their upright position until they lock securely.
5. Ensure all locking mechanisms are engaged before loading the cart.

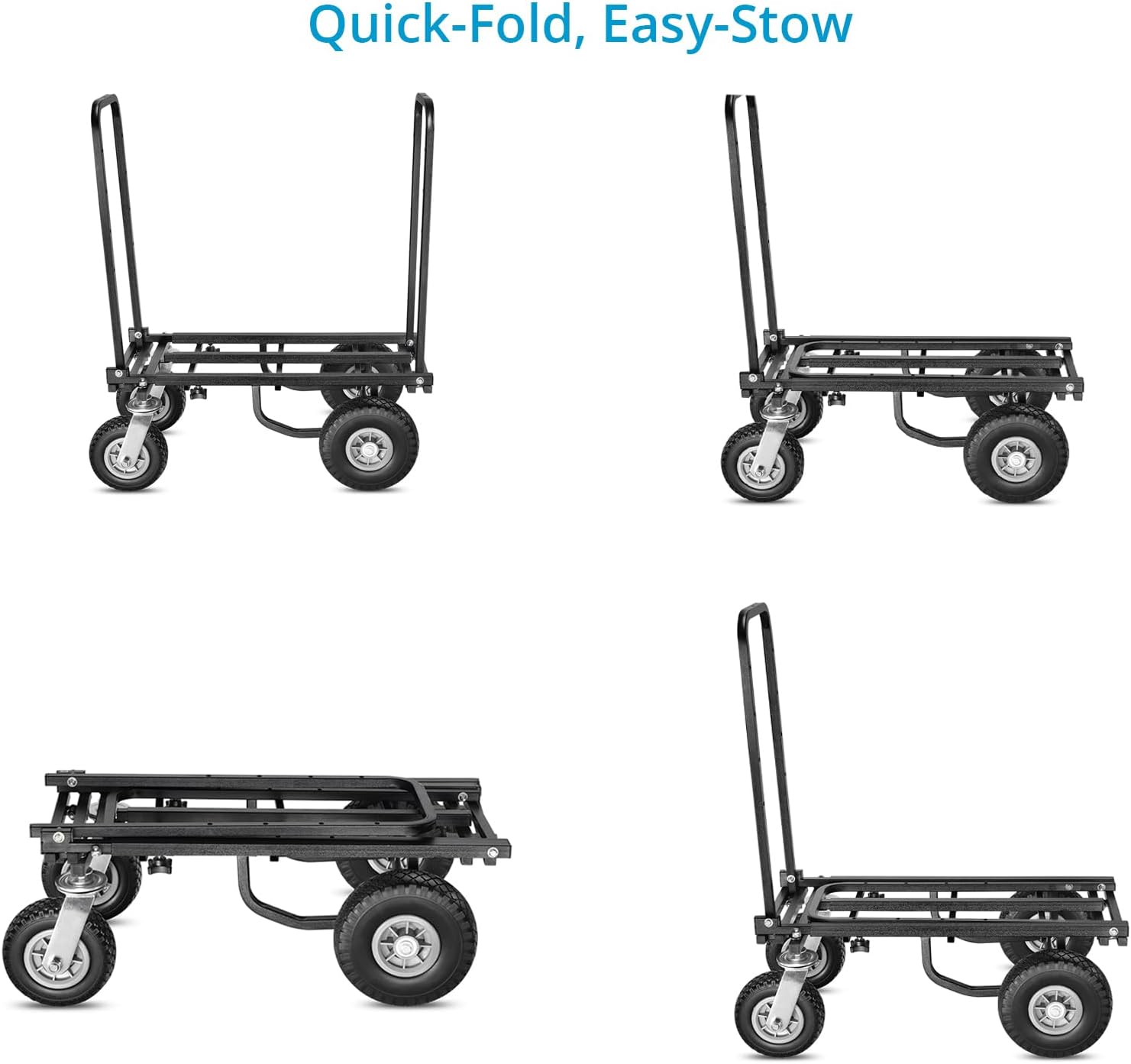

Image: The cart shown in different stages of folding and unfolding, demonstrating its compact storage and readiness for use.

2.2 Extending the Cart Length

1. To extend the cart, loosen the locking knobs located on the side of the main frame.
2. Gently pull the ends of the cart outwards to achieve the desired length (from 30 to 52 inches).
3. Tighten the locking knobs firmly to secure the cart at the extended length.

Image: The cart extended to its full length, illustrating how the frame slides to increase carrying capacity.

2.3 Tolestura biltegiratzeko

1. Ensure the cart is unloaded and any extensions are retracted by loosening the knobs and pushing the frame inwards.
2. Step on the release bar at the bottom of the cart.
3. Push the handles downwards until the cart is fully collapsed.
4. The compact design allows it to fit into tight spaces, such as car trunks or elevator doors.

3. Funtzionamendu-argibideak

The PROAIM Vanguard cart is designed for ease of use and versatility in transporting various types of gear.

3.1 Saskia kargatzea

• Distribute the weight evenly across the cart's platform to maintain stability.
• Utilize the integrated eyelets on the handles to secure loads with bungee cords or straps, preventing items from shifting or falling during transport.
• The cart can support a maximum payload of 200kg (440lb). Do not exceed this weight limit.

Image: The cart fully loaded with production equipment, showcasing its capacity and the use of handles for pushing.

3.2 Maneuvering and Steering

• The front wheels swivel 360 degrees, allowing for easy steering and navigation in tight spaces.
• The solid rubber wheels provide excellent grip and stability on various surfaces, including uneven ground and grass.
• For optimal control, push the cart using the ergonomic handles.

3.3 Balaztak erabiltzea

• Each front swivel wheel is equipped with an integrated brake.
• To engage the brake, press down on the lever located on the wheel caster until it locks.
• To release, lift the lever upwards. Always engage brakes when the cart is stationary, especially on inclines.

Image: A person pushing the cart, illustrating the comfortable steering and the design of the ergonomic handles.

4. Mantentzea

Regular maintenance ensures the longevity and optimal performance of your PROAIM Vanguard Production Cart.

• Garbiketa: Garbitu saskia iragarkiarekinamp cloth after use to remove dirt and debris. Avoid harsh chemicals that may damage the finish.
• Loturak: Periodically check all nuts, bolts, and locking mechanisms to ensure they are tight. Tighten any loose fasteners to prevent wear and maintain stability.
• Gurpilak: Inspect the wheels for any signs of wear or damage. Ensure the axles are free of obstructions and rotate smoothly. Lubricate moving parts if necessary.

5. Arazoak

If you encounter any issues with your PROAIM Vanguard Production Cart, refer to the following common solutions:

• Gurpil gogorrak: If wheels are not turning smoothly, check for debris caught in the axles or casters. Clean thoroughly and apply a small amount of lubricant if needed.
• Handles Not Locking/Unlocking: Ensure the release bar is fully engaged or disengaged. Check for any obstructions preventing the mechanism from operating correctly.
• Cart Instability: Verify that all extension and folding locks are securely fastened. Ensure the load is evenly distributed and within the specified weight limit.

6. Zehaztapenak

7. Bermea eta Laguntza

PROAIM stands behind the quality of its products. This product comes with a 100% Customer Satisfaction Guarantee.

• Itzulketak: Gozatu 30 eguneko itzulketa errazez.
• Bezeroarentzako laguntza: For any inquiries or assistance, please refer to the official PROAIM support channels or visit the PROAIM Store on Amazon.
