Sygonix Built-in Thermostat SY-5044424 User Manual

1. Sarrera

This manual provides essential information for the safe and efficient operation of your Sygonix Built-in Thermostat SY-5044424. This device is designed as a built-in solution for regulating and monitoring heat generators within heating, climate, and ventilation technology systems. Please read these instructions thoroughly before installation and use, and retain them for future reference.

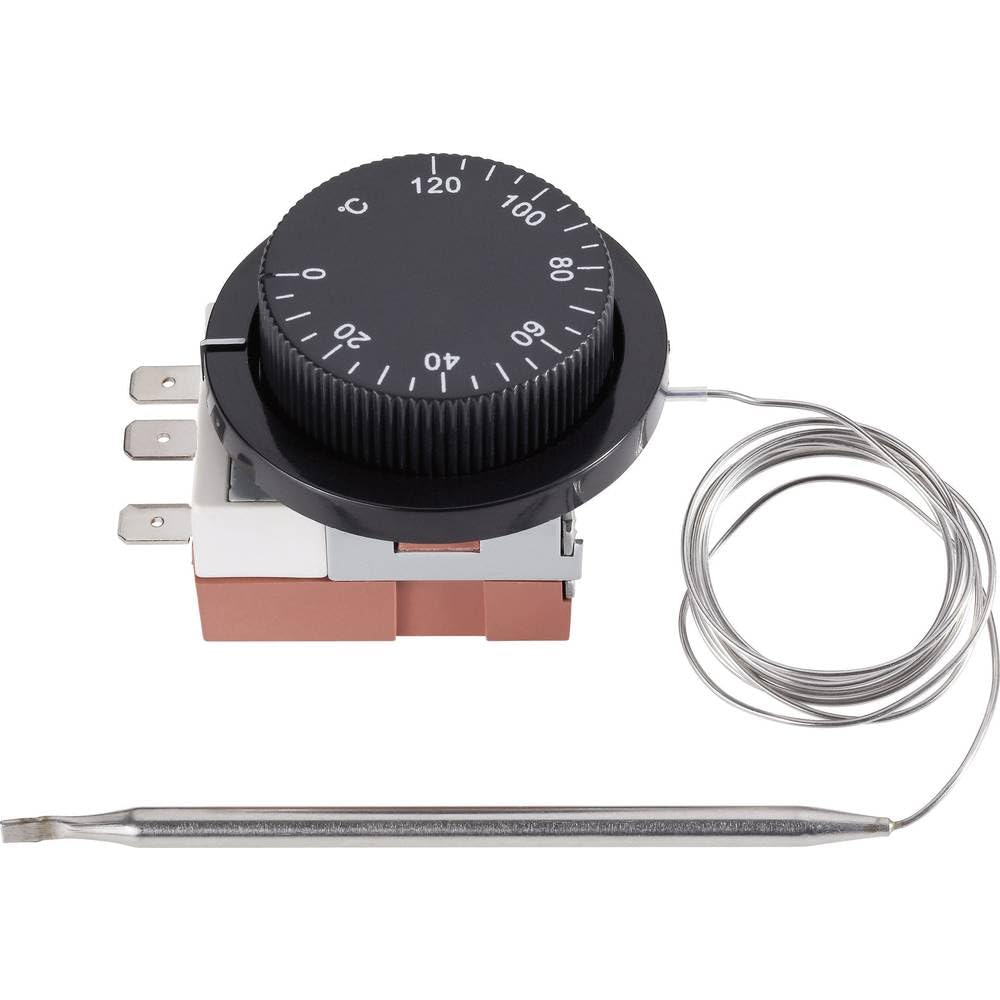

Image 1.1: The Sygonix Built-in Thermostat SY-5044424. This image shows the compact design of the thermostat, ready for integration into a control panel or wall unit.

2. Segurtasun-argibideak

Abisua: Failure to follow these safety instructions may result in fire, electric shock, injury, or damage to the product or property.

• Instalazioa elektrizista kualifikatu batek egin behar du, tokiko eta estatuko arau elektriko guztien arabera.
• Ensure the power supply is disconnected before installation, maintenance, or troubleshooting.
• Ez jarri gailua hezetasunean, tenperatura altuetan edo eguzki-argiaren eraginpean.
• Ez saiatu gailua zeuk aldatzen edo konpontzen. Jarri harremanetan zerbitzu-langile kualifikatuekin.
• Mantendu ontziratzeko materialak haurrengandik urrun.

3. Produktuaren ezaugarriak

• Setting range: 0 - 120 °C
• Switching differential: 3 ± 1.5 °C
• Integraziorik gabeko diseinua integratzeko
• Suitable for heating, climate, and ventilation systems
• Remote control capability (via RF connectivity)

4. Konfigurazioa eta instalazioa

The Sygonix Built-in Thermostat is designed for integration into existing control systems or panels. Professional installation is highly recommended.

4.1. Instalazio aurreko egiaztapenak

• Verify that the power supply matches the thermostat's requirements (230V).
• Ensure the installation location is free from excessive vibration, moisture, and direct heat sources.
• Confirm that all necessary mounting hardware is available.

4.2. Kableatua

1. Deskonektatu energia: Turn off the main power supply to the circuit where the thermostat will be installed. Use a voltage probatzailea argindarra itzalita dagoela baieztatzeko.
2. Muntaketa: Secure the thermostat in its designated built-in location using the provided mounting hardware.
3. Konektatu kableak: Follow the wiring diagram provided with the product packaging. Connect the power input, load output, and sensor wires to the appropriate terminals. Ensure all connections are secure.
4. Sentsoreen kokapena: Position the temperature sensor in an area that accurately reflects the ambient temperature to be controlled, away from drafts or direct heat sources.
5. Berrezarri boterea: Konexio guztiak ondo finkatuta eta egiaztatuta daudenean, berrezarri zirkuituaren korrontea.

5. Funtzionamendu-argibideak

The Sygonix Built-in Thermostat is designed for straightforward temperature control. Specific operation details may vary based on the integrated system and any connected remote control unit.

5.1. Hasierako piztea

• Upon first power-on, the thermostat may display a default temperature or enter a calibration mode. Refer to the specific display indicators in your product packaging.

5.2. Tenperatura ezartzea

• Use the integrated controls (if any) or a compatible remote control unit to adjust the desired temperature. The setting range is 0 to 120 °C.
• The thermostat will activate or deactivate the connected heating/cooling device to maintain the set temperature within the specified switching differential.

5.3. Urrutiko agintearen funtzionalitatea

• The thermostat supports RF connectivity for remote control. Pair your compatible remote control or smart system according to its specific instructions.
• Ensure the remote control unit is within the effective range and has fresh batteries (if applicable).

6. Mantentzea

The Sygonix Built-in Thermostat requires minimal maintenance.

• Garbiketa: Gently wipe the surface of the thermostat with a soft, dry cloth. Do not use abrasive cleaners, solvents, or excessive moisture.
• Ohiko egiaztapenak: Periodically inspect the wiring connections for any signs of wear or damage. Ensure the temperature sensor is clean and unobstructed.
• Potentzia-zikloa: If the device behaves unexpectedly, try disconnecting and reconnecting the power supply for a few minutes.

7. Arazoak

Termostatoarekin arazoak badituzu, jo ezazu honako arazo eta irtenbide ohikoenei:

Konponbide hauek saiatu ondoren arazoa konpontzen ez bada, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

8. Zehaztapenak

9. Bermea eta Laguntza

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Sygonix webgunea. Gorde erosketaren egiaztagiria bermearen erreklamazioetarako.
