Cecotec Flux PM 604300 Pyramid Extractor Hood User Manual

1. Sarrera eta Overview

Thank you for choosing the Cecotec Flux PM 604300 Pyramid Extractor Hood. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new appliance. Please read it thoroughly before use and keep it for future reference.

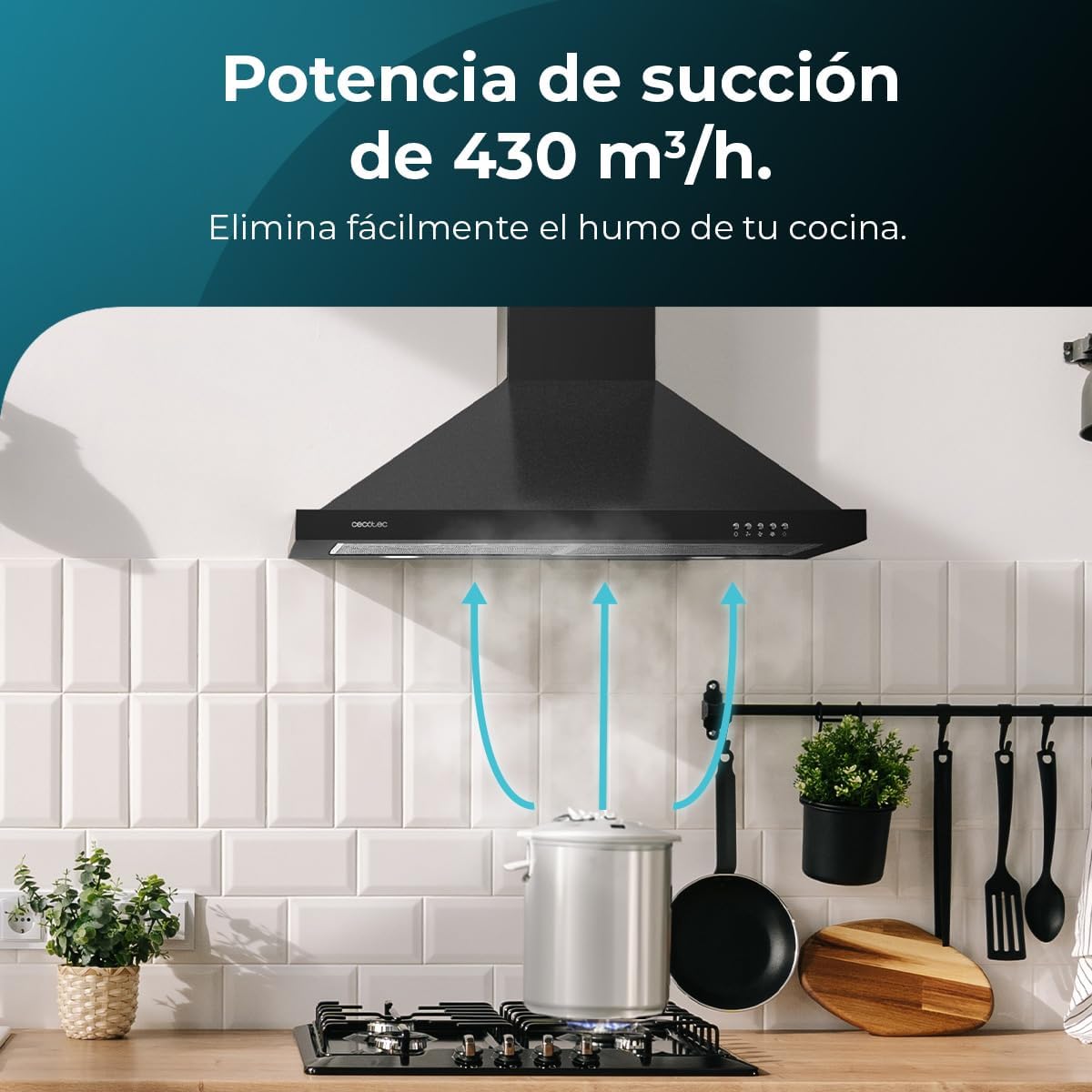

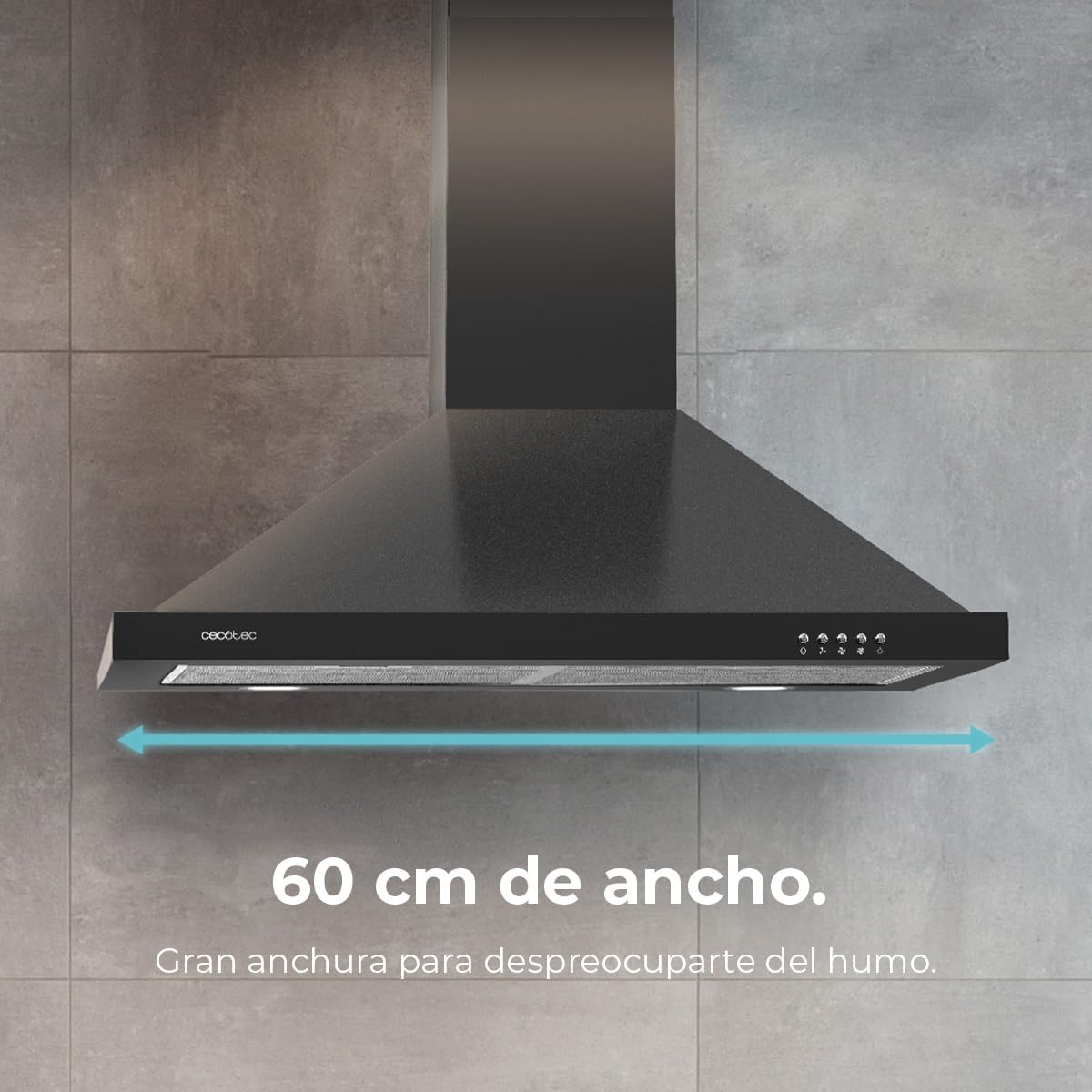

The Cecotec Flux PM 604300 is a 60 cm pyramid-style extractor hood designed to effectively remove smoke, steam, and odors from your kitchen. It features a powerful 105W motor, offering an extraction capacity of 430 m³/h, mechanical controls with three power levels, and efficient LED lighting. Its matte black finish provides a sleek and modern aesthetic.

2. Segurtasun-argibideak

Beti jarraitu oinarrizko segurtasun neurriak tresna elektrikoak erabiltzean, sute, deskarga elektriko eta lesio pertsonalen arriskua murrizteko.

• Ziurtatu elikadura hornidura boltage matches the rating label on the hood.
• This appliance is for domestic use only. Do not use it for purposes other than its intended use.
• Instalazioa teknikari kualifikatu batek egin behar du, tokiko araudien arabera.
• Do not operate the hood if the power cord is damaged or if the appliance shows any signs of malfunction.
• Garbitu aldizka koipe-iragazkiak sute arriskuak saihesteko.
• Ez egin flameatu erauzgailuaren azpian.
• Ziurtatu gelan aireztapen egokia dagoela kanpaia gas edo beste erregai-erregailu batzuekin batera erabiltzen denean.
• Mantendu haurrak tresnatik urrun funtzionamenduan eta garbiketan zehar.

3. Paketearen edukia

Carefully unpack your Cecotec Flux PM 604300 Extractor Hood and check that all components are present and undamaged. If any items are missing or damaged, contact your retailer immediately.

• 1 x Cecotec Flux PM 604300 Pyramid Extractor Hood
• 1 x Motor Cover
• 1 x Installation Kit (screws, wall plugs, etc.)
• 1 x Erabiltzailearen eskuliburua

4. Konfigurazioa eta instalazioa

The Cecotec Flux PM 604300 is designed for wall-mounted installation. Proper installation is crucial for the hood's performance and safety. Refer to the included installation kit and follow these general guidelines:

1. Prestaketa: Ensure the installation area is suitable and has access to a power outlet and an exhaust duct (if using ducted mode). The minimum distance between the cooking surface and the lower part of the hood should be observed according to local safety regulations (typically 65-75 cm for electric hobs and 75-85 cm for gas hobs).
2. Muntatzeko euskarria: Mark the drilling points on the wall according to the provided template or measurements. Secure the mounting bracket firmly to the wall using appropriate screws and wall plugs.
3. Kanpaiaren instalazioa: Carefully lift the hood and hang it onto the mounting bracket. Ensure it is level and securely attached.
4. Hodi-konexioa: Connect the exhaust outlet of the hood to the external ducting system. Ensure the ducting is airtight and free of obstructions.
5. Konexio elektrikoa: Connect the hood to a grounded power outlet. Ensure all electrical connections comply with local codes.
6. Motor Cover Installation: Install the decorative motor cover over the ducting, securing it in place as per the instructions.

5. Funtzionamendu-argibideak

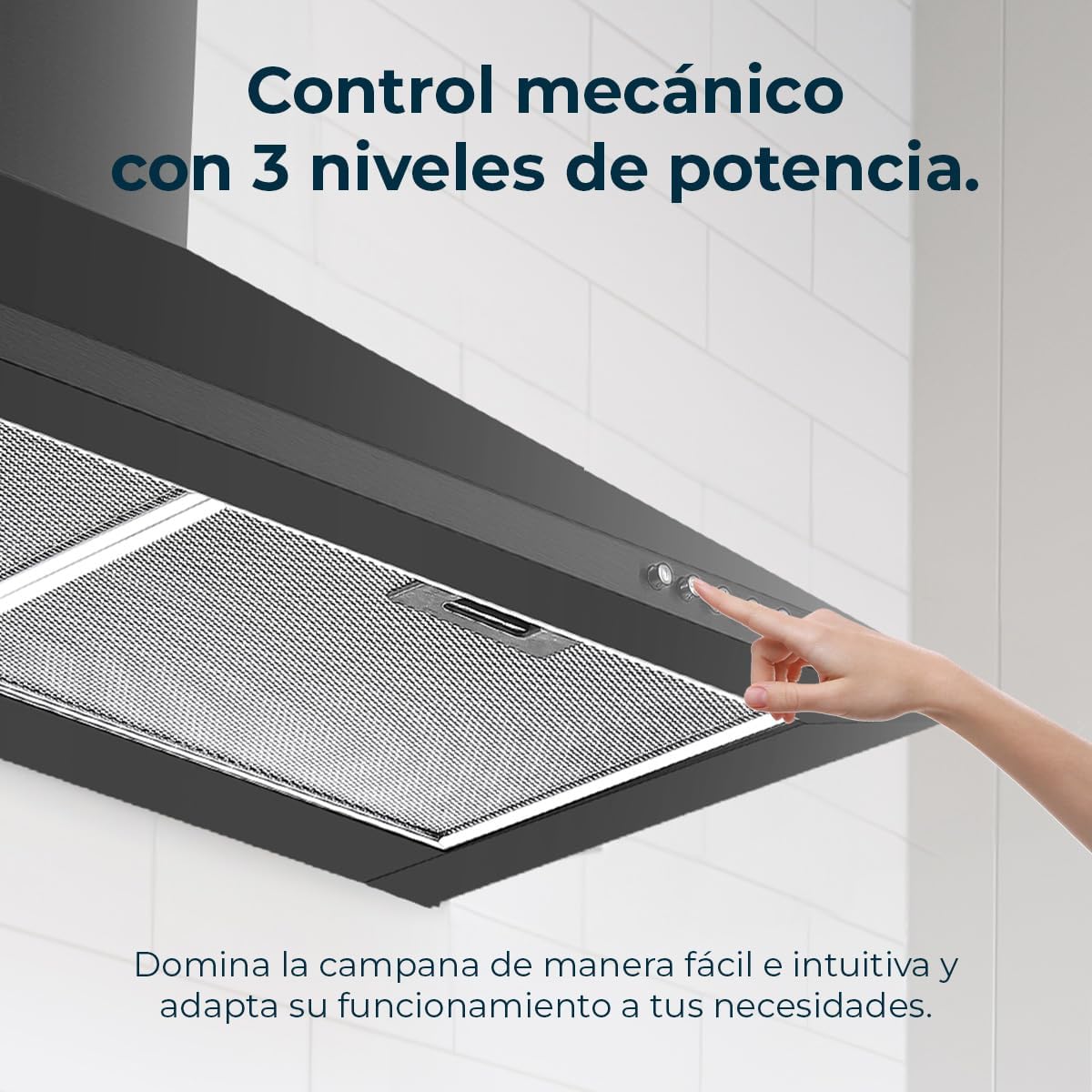

The Cecotec Flux PM 604300 features intuitive mechanical controls for easy operation.

• Piztu/Itzali: Sakatu pizteko botoia kanpaia piztu edo itzaltzeko.
• Abiadura aukeraketa: Use the speed control buttons to select one of the three available power levels (Low, Medium, High) depending on the intensity of cooking fumes.
• LED argiztapena: Press the light button to switch the integrated LED lighting on or off, illuminating your cooking area.

6. Mantentzea

Mantentze-lan erregularrak zure erauzgailuaren iraupena eta errendimendu optimoa bermatzen ditu.

• Koipe-iragazkiaren garbiketa: The aluminum grease filters should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to maintain extraction efficiency. These filters are dishwasher safe. To remove, simply unlatch and pull them out. Wash them in the dishwasher or by hand with hot water and a mild detergent. Ensure they are completely dry before re-installing.
• Kanpoko garbiketa: Clean the exterior surfaces of the hood with a soft cloth and a non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that could damage the matte black finish.
• Carbon Filter Replacement (if applicable): If your hood is used in recirculation mode (without external ducting), it will require activated carbon filters (not included). These filters cannot be washed and must be replaced every 3-6 months, depending on usage. Refer to the specific instructions for carbon filter installation and replacement.

7. Arazoak

If you encounter any issues with your extractor hood, refer to the following common problems and solutions before contacting technical support.

8. Zehaztapenak

Technical details for the Cecotec Flux PM 604300 Extractor Hood:

• Modelo zenbakia: 02850
• Produktuaren neurriak (Sakonera x Zabalera x Altuera): 48 cm x 60 cm x 96 cm
• Elementuaren pisua: 8 kg
• Kolorea: Beltza
• Akabera mota: Powder Coated (Matte Black)
• Materiala: Aluminioa
• Motor potentzia: 105 W
• Aire-fluxuaren edukiera: 430 m³/h
• Zarata maila: 69 dB
• Abiadura kopurua: 3
• Kontrol mota: Button (Mechanical)
• Argi iturria: LED
• Iragazki mota: Mesh (Aluminum)
• Instalazio mota: Hormako Muntaia
• liburukiatage: 230 Volt
• Produktuaren forma: Piramidea
• Lehenengo data eskuragarri: 4ko urriaren 2023a

9. Bermea eta Laguntza

Cecotec is committed to providing quality products. This product is covered by a manufacturer's warranty in accordance with local regulations. Please retain your proof of purchase for any warranty claims.

• Spare Part Availability: Spare parts for this model are available for a period of 10 years within the European Union.
• Laguntza teknikoa: For technical assistance, warranty service, or to inquire about spare parts, please contact Cecotec customer service or your authorized retailer. Refer to the contact information provided with your purchase documentation.
