Inkbird Air Quality Monitor User Manual

Sarrera

Welcome to your new Inkbird Air Quality Monitor. This device is designed to provide comprehensive real-time monitoring of various air quality parameters in your environment. This manual will guide you through the setup, operation, and maintenance of your device, ensuring you get the most accurate and reliable readings.

Paketearen edukia

Mesedez, markatu laukitxoa elementu hauetarako:

• 1x Inkbird Air Quality Monitor
• 1x Erabiltzailearen eskuliburua
• 1x USB motako C kargatzeko kablea

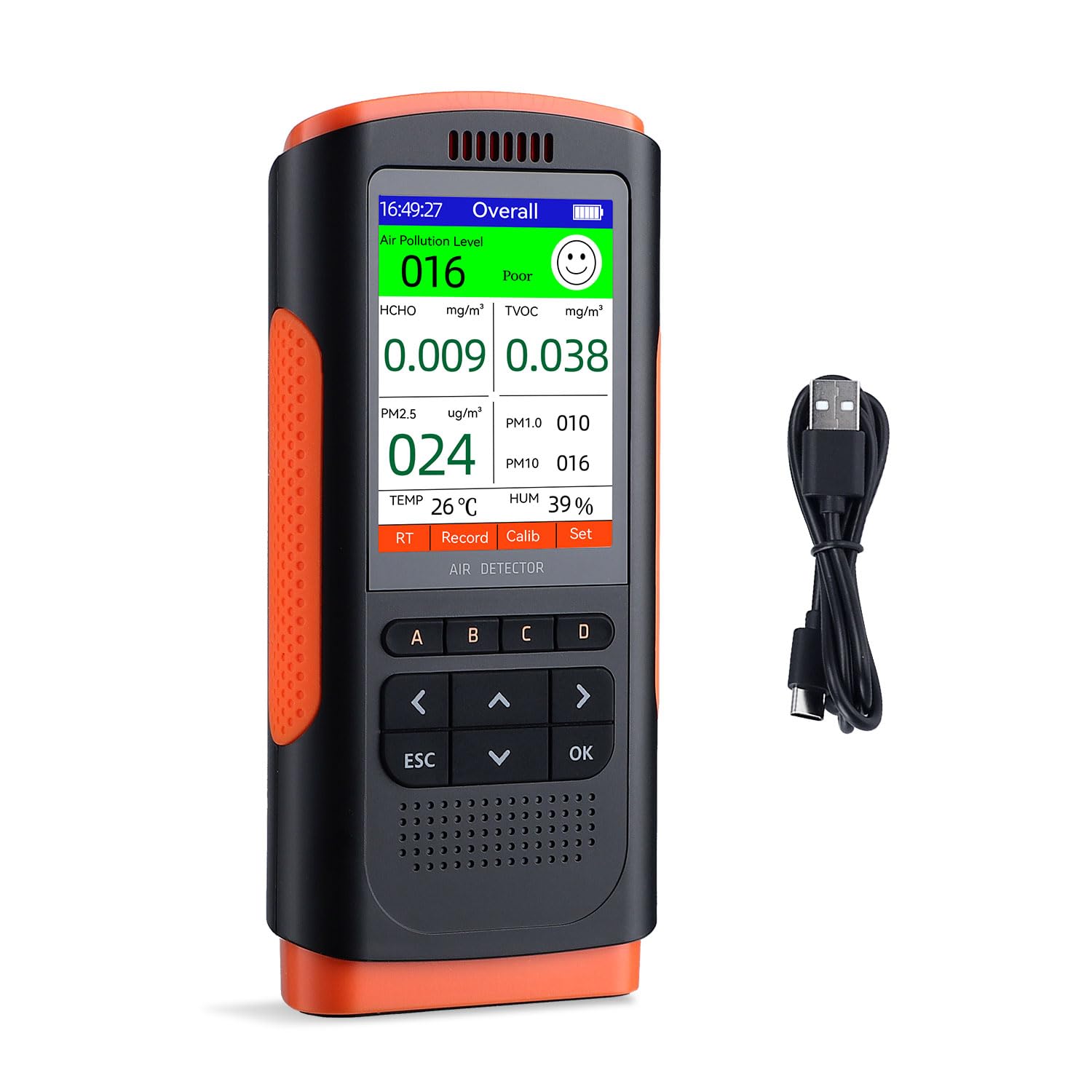

Image: Contents of the Inkbird Air Quality Monitor package, showing the device, user manual, and USB charging cable.

Produktua amaituview

Familiarize yourself with the components of your air quality monitor:

Irudia: Aurrealdea view of the Inkbird Air Quality Monitor with key components labeled for easy identification.

• Detection Port: Located at the top, this is where air samples are drawn for analysis. Keep it clear of obstructions.
• LCD pantaila: A 2.8-inch HD display showing all measurement data and menu options.
• Function Buttons (A, B, C, D): These buttons provide quick access to specific features like Real-time (RT), Record, Calibrate (Calib), and Settings (Set) as indicated on the display.
• Direction Buttons (<, ^, v, >): Menuetan nabigatzeko eta ezarpenak doitzeko erabiltzen da.
• Return Button (ESC): Used to go back to the previous screen or exit a menu.
• Confirm Button (OK): Aukeraketak berresteko edo azpimenuetara sartzeko erabiltzen da.

Konfigurazioa

Gailua kargatzen

The Inkbird Air Quality Monitor is equipped with a built-in 1200mAh lithium battery. For optimal performance, it is recommended to fully charge the device before its first use.

1. Bilatu gailuko USB C motako kargatzeko ataka.
2. Connect the provided USB Type-C cable to the device's charging port.
3. Connect the other end of the USB cable to a compatible USB power adapter (e.g., a phone charger, computer USB port) or a power bank.
4. The device will indicate charging status on the screen. A full charge typically takes approximately 3 hours.

The device can operate for 4 to 8 hours on a full charge, depending on usage. It can also be used continuously while connected to a power source.

Image: The Inkbird Air Quality Monitor being charged via its USB Type-C port, illustrating the connection and battery indicator.

Funtzionamendu-argibideak

Piztu/Itzali

Gailua pizteko edo itzaltzeko:

• Locate the ON/OFF switch, typically found at the bottom or side of the device.
• Slide the switch to the "ON" position to power on the monitor.
• Slide the switch to the "OFF" position to power off the monitor.

Pantaila ulertzea

The 2.8-inch HD LCD screen provides a clear overview of current air quality. Key indicators include:

• HCHO (formaldehidoa): Measurement in mg/m³.
• TVOC (Konposatu Organiko Lurrunkor Totalak): Measurement in mg/m³.
• PM2.5, PM1.0, PM10 (Particulate Matter): Measurements in µg/m³.
• Tenperatura: Current ambient temperature in °C.
• Hezetasuna: Current relative humidity in %RH.
• Overall Air Pollution Level (AQI): A qualitative indicator with six levels: Fresh, Normal, Poor, Harmful, Serious, and Danger, often accompanied by a visual emoji for quick assessment.

Irudia: Xehetasun zehatza view of the monitor's display, illustrating the various air quality parameters and their readings.

Nabigazioa eta ezarpenak

Use the control buttons to interact with the device:

• Erabili Norabide botoiak (Up, Down, Left, Right) to move the cursor or scroll through options in menus.
• Sakatu Ados botoia to confirm a selection, enter a sub-menu, or acknowledge a prompt.
• Sakatu ESC botoia to return to the previous screen or exit the current menu.
• The Function Buttons (A, B, C, D) located below the screen may correspond to on-screen labels such as "RT" (Real-time), "Record", "Calib" (Calibrate), and "Set" (Settings), allowing direct access to these functions.

Ezaugarri nagusiak

8-in-1 Air Quality Monitoring

The Inkbird Air Quality Monitor provides comprehensive environmental analysis by simultaneously detecting eight critical air quality parameters:

• HCHO (formaldehidoa): Range 0.000~1.999 mg/m³
• TVOC (Konposatu Organiko Lurrunkor Totalak): Range 0.000~9.999 mg/m³
• PM2.5, PM1.0, PM10 (Particulate Matter): Range 0~999 µg/m³
• Tenperatura: Range 0°C ~ 50°C
• Hezetasuna: Range 20~99% RH
• Overall Air Pollution Level (AQI): Categorized into Fresh, Normal, Poor, Harmful, Serious, and Danger.

Image: Visual representation of the eight air quality parameters monitored by the device.

Real-time Monitoring and Accuracy

The monitor utilizes a high-precision sensor and a built-in high-performance chip to accurately capture and process data. This ensures reliable, real-time readings, with data updates occurring every 5 seconds by default.

Image: The monitor in use, demonstrating its real-time display of air quality data.

Historical Data Record

The device features a historical data recording function, allowing you to track changes in air quality over time. This is useful for identifying trends and understanding environmental shifts.

• The data record interval can be adjusted to 5s, 10s, 20s, 30s, 45s, 60s, 90s, or 120s.
• The device can store up to 500 data points, which can be reviewed in graphical charts on the display.

Image: The monitor showing its historical data recording capability, useful for long-term monitoring.

Mantentzea

Garbiketa

To ensure the longevity and accuracy of your Inkbird Air Quality Monitor:

• Garbitu gailuaren kanpoaldea zapi leun eta lehor batekin.
• Do not use abrasive cleaners, solvents, or strong chemicals, as these can damage the device's casing edo barne osagaiak.
• Ensure the detection port at the top of the device remains clear of dust, lint, and other debris. Obstructions can lead to inaccurate readings.

Biltegiratzea

Denbora luzez erabiltzen ez denean:

• Gorde gailua leku fresko eta lehor batean.
• Avoid storing it in direct sunlight or environments with extreme temperatures or high humidity.

Arazoak konpontzea

Gailua ez da pizten

• Egiaztatu etengailua: Ziurtatu ON/OFF etengailua "ON" posizioan dagoela.
• Egiaztatu bateria: The battery might be depleted. Connect the device to a power source using the USB Type-C cable and allow it to charge for at least 30 minutes before attempting to power it on again.

Irakurketa okerrak

• Detection Port Obstruction: Verify that the detection port at the top of the device is not blocked by dust, debris, or your hand.
• Ingurumen-faktoreak: Avoid using the device immediately after opening in environments with strong air currents, or near sources of high concentrations of pollutants (e.g., fresh paint, cleaning products, cooking fumes). These can temporarily skew readings.
• Egonkortze denbora: Allow the device to stabilize for a few minutes after powering on, especially when moving it to a new environment.
• Kalibrazioa: If available in the device settings, consider performing a calibration. Refer to the "Calib" option on the screen and follow the on-screen instructions.

Bateriaren iraupen laburra

• Karga osoa: Ensure the device is fully charged. A complete charge takes approximately 3 hours.
• Erabilera-ereduak: Battery life can vary based on continuous usage and specific environmental conditions.
• Etengabeko potentzia: The device can be used while connected to a power source via the USB Type-C cable for extended operation.

Zehaztapenak

Bermea eta Laguntza

Inkbird provides official after-sales service exclusively for products purchased directly from authorized INKBIRD stores. This ensures you receive genuine products and dedicated support.

For any questions, technical assistance, or warranty claims, please refer to the contact information provided with your original purchase documentation or visit the official Inkbird weblaguntza-baliabide eguneratuenak lortzeko gunea.
