Sarrera
This manual provides instructions for the Matias Wired USB-C Keyboard for Mac with Numeric Keypad, Model FK316CS. It covers setup, operation, maintenance, troubleshooting, and product specifications to ensure optimal use of your keyboard.
Paketearen edukia
- Matias Wired USB-C Keyboard
Konfigurazioa
The Matias Wired USB-C Keyboard is designed for simple plug-and-play functionality with compatible Mac devices. No additional drivers or software installation is required.
- Locate an available USB-C port on your Mac computer (e.g., MacBook Pro, MacBook Air, iMac).
- Insert the USB-C connector of the keyboard into the USB-C port on your Mac.
- Zure sistema eragileak teklatua automatikoki ezagutu beharko luke.

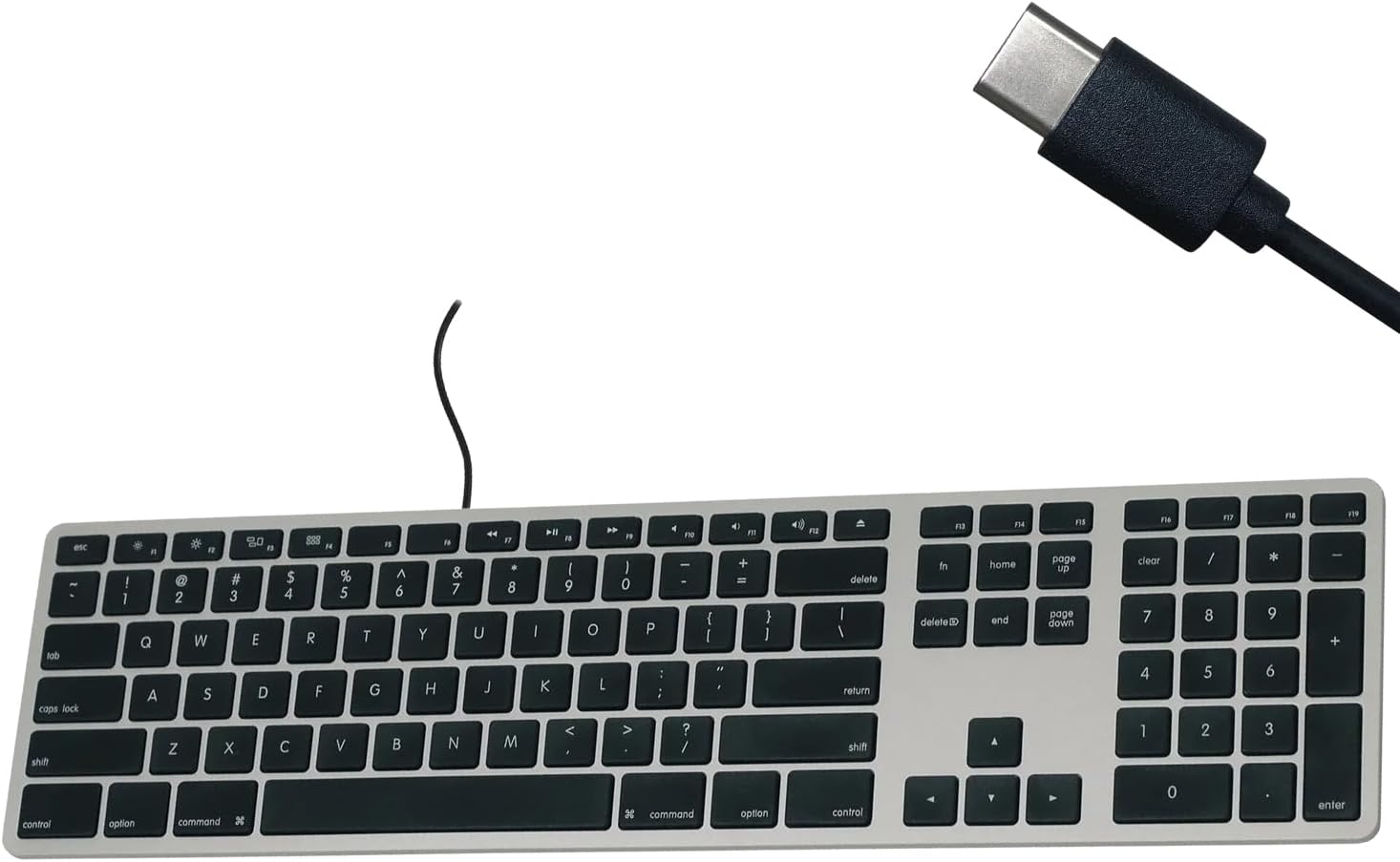

Figure 1: Matias USB-C Keyboard with its USB-C connector, ready for connection.
Figure 2: The keyboard connected to a Mac computer, demonstrating a typical setup.
Funtzionamendu-argibideak
Basic Typing
The keyboard features a standard QWERTY layout with a full numeric keypad. Simply begin typing after connecting the keyboard to your Mac.
Zenbakizko teklatua
The integrated numeric keypad allows for efficient data entry and calculations. Ensure the 'Num Lock' function is active if numbers are not registering (though typically not required on Mac keyboards for the numeric pad).
Mac funtzio-teklak
The top row of keys (F1-F12) provides dedicated Mac-specific functions. These keys allow for quick access to controls such as screen brightness, volume adjustment, media playback, and Mission Control.
3. irudia: hurbileko planoa view of the Mac-specific function keys (F1-F12) on the keyboard.
Mantentzea
To maintain the performance and appearance of your Matias keyboard, follow these guidelines:
- Garbiketa: Erabili lipurrik gabeko zapi leun bat dampened with water or a mild, non-abrasive cleaner to wipe the surface of the keyboard. Avoid spraying liquids directly onto the keyboard.
- Hautsa kentzea: Erabili aire konprimatua teklen arteko hautsa eta hondakinak kentzeko.
- Biltegiratzea: Gorde teklatua erabiltzen ez duzunean, leku garbi eta lehor batean.
Arazoak konpontzea
If you encounter issues with your Matias Wired USB-C Keyboard, consider the following steps:
- Teklatuak ez du erantzuten:
- Ensure the USB-C cable is securely connected to both the keyboard and your Mac.
- Try connecting the keyboard to a different USB-C port on your Mac.
- Restart your Mac computer.
- Test the keyboard on another compatible Mac computer, if available, to determine if the issue is with the keyboard or the computer.
- Giltzak ez dira behar bezala funtzionatzen:
- Check for any physical obstructions or debris under the affected keys.
- Ensure your Mac's operating system is up to date.
If these steps do not resolve the issue, please refer to the Support section for further assistance.
Zehaztapenak
Figure 4: Key specifications of the Matias USB-C Keyboard.
| Ezaugarri | Xehetasuna |
|---|---|
| Modelo zenbakia | FK316CS |
| Konektibitate Teknologia | USB-C (kable bidezkoa) |
| Gailu bateragarriak | MacBook Pro, MacBook Air, iMac, Mac OS X v.10.6.8 and later |
| Produktuaren neurriak | 17.35 x 4.58 x 0.75 hazbete (44.07 x 11.63 x 1.91 cm) |
| Elementuaren pisua | 1.35 libra (612 gramo) |
| Kablearen luzera | 5 oinak (1.5 metro) |
| Materiala | Plastic keyframe |
| Kolorea | Espazio Grisa |
Figure 5: Keyboard dimensions and ergonomic tilt angle.
Bermearen informazioa
Matias products are covered by a manufacturer's warranty. For specific details regarding the warranty period and terms, please refer to the warranty card included with your product or visit the official Matias webgunea.
Laguntza
For further assistance, technical support, or to inquire about replacement parts, please contact Matias customer service through their official webgunea:
- Matias Official Webgunea: www.matias.ca
Please have your product model number (FK316CS) and purchase information ready when contacting support.
