Produktua amaituview
This manual provides essential information for the safe and efficient operation of your West Bend Beverage Cooler Refrigerator, Model WB15600BCZSB. Please read these instructions thoroughly before use and retain for future reference.
Ezaugarri nagusiak:
- 15 Bottle / 60 Can Capacity: Stores up to 15 standard wine bottles or 60 12-ounce cans, offering versatile storage for various beverages.
- Tenperatura kontrola: Equipped with compressor technology to ensure consistent temperature maintenance within a range of 37°F to 65°F (2.8°C to 18.3°C), unaffected by external heat sources.
- Erraz erabiltzeko kontrolak: Features soft-touch controls and a bright LED display for convenient temperature adjustment and interior light activation.
- Diseinu independentea: Specifically designed for freestanding installation, requiring proper ventilation for optimal performance.
- Desizozte automatikoa: Includes an automatic defrost system for simplified maintenance and consistent cooling.
Segurtasun-argibide garrantzitsuak
Zure tresna erabiltzean sute, deskarga elektriko edo lesio arriskua murrizteko, jarraitu oinarrizko neurri hauek:
- Irakurri argibide guztiak aparatua erabili aurretik.
- Ez ukitu gainazal hotzak unitatea konektatu ondoren.
- Ensure the appliance is properly grounded. Connect only to properly grounded outlets.
- Ez erabili luzapen-kable batekin.
- Deskonektatu aparatua garbitu edo konponketarik egin aurretik.
- Mantendu aireztapen-zuloak oztoporik gabe.
- Ez gorde substantzia lehergarririk (adibidez, aerosol latak, propultsatzaile sukoi batekin) aparatu honetan.
- Tresna hau ez da gaitasun fisiko, sentsorial edo mental murriztua duten edo esperientzia eta ezagutza falta duten pertsonek (haurrak barne) erabiltzeko, baldin eta haien segurtasunaz arduratzen den pertsona batek gailuaren erabilerari buruz gainbegiratu edo jarraibiderik eman ez badu.
- Haurrak gainbegiratu behar dira aparatuarekin jolasten ez dutela ziurtatzeko.
Konfigurazioa eta Instalazioa
Despaketatzea
Kontu handiz kendu ontziratzeko material guztiak. Ziurtatu osagai guztiak daudela eta kalterik gabe daudela. Mantendu ontziratzeko materialak haurren eskura ez daudenak.
Kokapen-baldintzak
This beverage cooler is designed for freestanding use only. It requires adequate ventilation to operate efficiently and prevent overheating. Allow at least 5 inches (12.7 cm) of space between the back and sides of the unit and any adjacent walls or cabinets. Ensure the floor is strong enough to support the unit when fully loaded.
This diagram provides the precise external dimensions of the West Bend Beverage Cooler: 20.5 inches in height, 17 inches in width, and 18.75 inches in depth, crucial for placement and installation.
Unitatea berdintzea
It is important for the appliance to be level to function properly. The unit has adjustable leveling legs. Turn the leveling legs clockwise to raise the unit or counter-clockwise to lower it. Ensure the unit is stable and level before plugging it in.
Konexio elektrikoa
Plug the appliance into a dedicated, grounded 120 Volt, 60 Hz AC outlet. Do not use an adapter or extension cord. Allow the unit to stand upright for at least 2-4 hours before plugging it in to allow the refrigerant to settle.
Operating Your Beverage Cooler
Kontrol panela
The control panel is located on the top front of the unit. It features soft-touch buttons and an LED display to manage the cooler's settings.

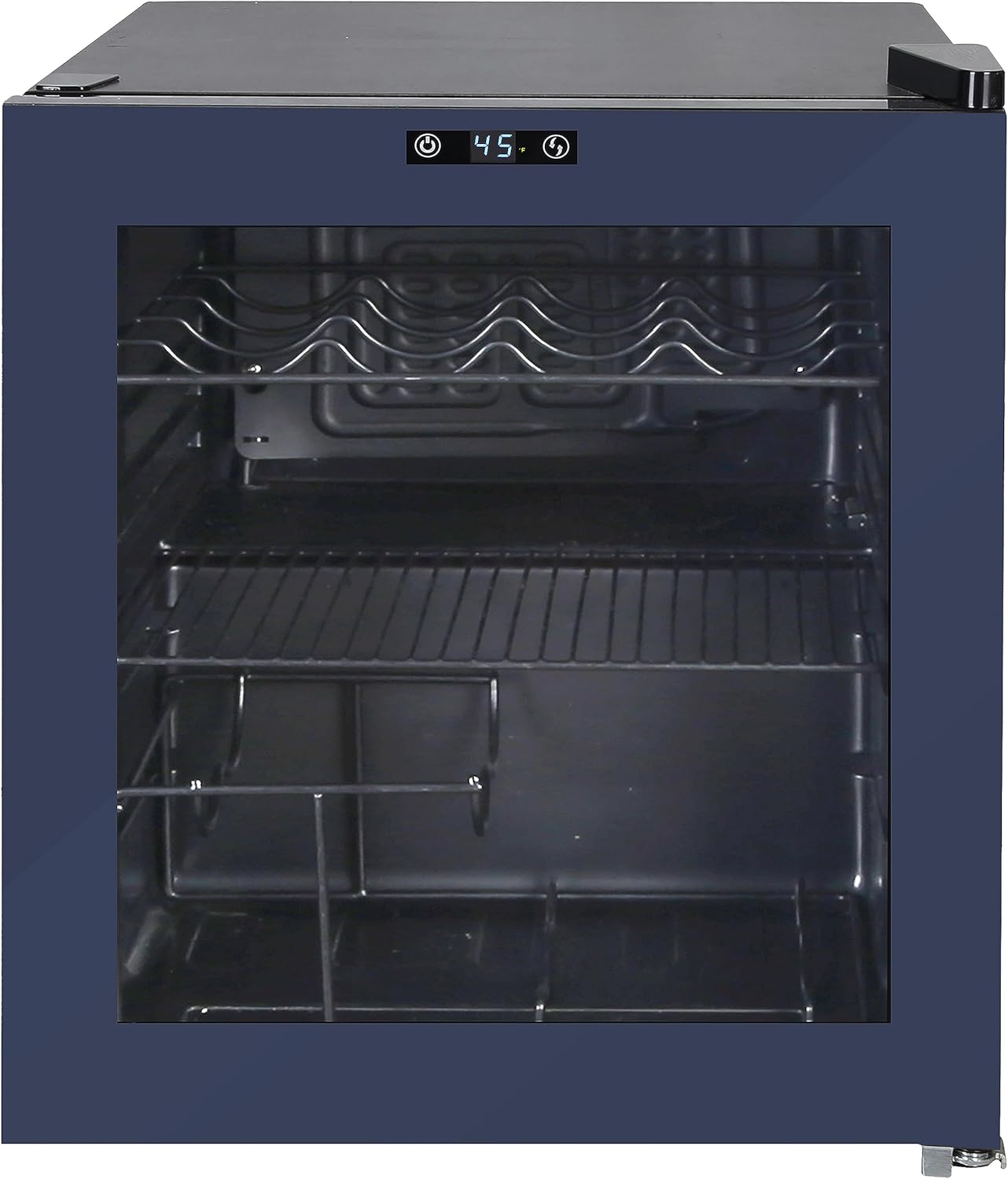

This image displays the front of the West Bend Beverage Cooler, highlighting its sleek slate blue glass door and the integrated digital control panel at the top.
Tenperatura ezarpenak
Use the temperature adjustment buttons (usually marked with '+' and '-') on the control panel to set your desired temperature between 37°F and 65°F (2.8°C and 18.3°C). The LED display will show the current temperature. The unit will automatically adjust to reach and maintain the set temperature.
Barruko Argia
Press the light button on the control panel to turn the interior LED light on or off. This allows for easy viewing of your beverages.
Loading the Cooler
Arrange beverages on the wire shelving and the specially designed top shelf for optimal organization and air circulation. Avoid overfilling the cooler, as this can impede cooling performance.
Angelu bat. view of the beverage cooler, illustrating the internal wire shelving designed for organizing wine bottles and beverage cans.
Zainketa eta Mantentzea
Garbiketa
- Barrualdea: Unplug the unit before cleaning. Wash the interior surfaces with a solution of warm water and baking soda (2 tablespoons of baking soda to 1 quart of water). Rinse thoroughly and wipe dry.
- Kanpoaldea: Clean the exterior with a mild detergent and warm water. Do not use abrasive cleaners or sharp objects.
- Ateko junta: Keep the door gasket clean to ensure a proper seal.
Desizozte automatikoa
This appliance features an automatic defrost system. Frost will melt and drain into a drip tray located at the back of the unit, where it evaporates. No manual defrosting is required under normal operating conditions.
Potentzia Outage
Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. For longer power outages, consider placing dry ice in the unit.
Vacation/Storage
For long vacations or periods of non-use, unplug the unit, clean the interior, and leave the door slightly ajar to prevent odors and mold growth.
Arazoak konpontzeko gida
Before contacting customer service, please refer to the following troubleshooting steps:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Unitateak ez du funtzionatzen | Ez dago konektatuta; Zirkuitu-hauslea jauzi egin du; Tenperatura altuegia da. | Ensure plug is secure; Reset circuit breaker; Lower temperature setting. |
| Tenperatura ez da nahikoa hotza | Door opened too frequently; Poor ventilation; Excessive items inside; Unit located near heat source. | Minimize door openings; Ensure proper clearance around unit; Reduce contents; Relocate unit away from direct sunlight or heat. |
| Unit is making unusual noises | Unit not level; Vibrating against wall; Normal compressor operation. | Adjust leveling legs; Move unit away from wall; Gurgling or humming sounds are normal. |
| Atea ez da behar bezala ixten | Unit not level; Door gasket dirty or damaged; Items obstructing door. | Level the unit; Clean or replace gasket; Rearrange items inside. |
Produktuaren zehaztapenak
| Marka | West Bend |
| Modelo zenbakia | WB15600BCZSB |
| Edukiera | 1.6 Cubic Feet (approx. 15 wine bottles or 60 12-oz cans) |
| Neurriak (L x W x H) | 18.75" x 17" x 20.5" |
| Elementuaren pisua | 41 kilo |
| Instalazio mota | exentu |
| liburukiatage | 120 Volt |
| Desizozteko sistema | Automatikoa |
| Atearen Material Mota | Beira |
| Apala Mota | Hari |
| Apalategi kopurua | 2 |
| Kolorea | Arbel Urdina |
Bermea eta Bezeroarentzako Arreta
Berme mugatua
West Bend products are manufactured to the highest quality standards. This product is covered by a limited warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including duration and coverage details.
Bezeroarentzako Arreta
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact West Bend Customer Service. Have your model number (WB15600BCZSB) and purchase information ready when you call or email.
Webgunea: www.westbend.com
Telefonoa: Refer to your product registration or warranty card for the most current contact number.
