Behringer Xenyx 802S 8-channel Analog Streaming Mixer User Manual

Sarrera

The Behringer Xenyx 802S is a premium analog 8-input mixer designed for a variety of audio applications, including streaming, podcasting, and recording. It features an ultra-low noise design, analog mixing and equalization for pure sound, and a stereo USB audio interface for seamless connection to your computer or mobile device. This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your Xenyx 802S mixer.

1. irudia: Aurrealdea view of the Behringer Xenyx 802S mixer, showing all controls and inputs.

Segurtasun Informazioa

Before operating your Behringer Xenyx 802S, please read and understand all safety instructions. Keep this manual for future reference. Always disconnect the power cable before cleaning or servicing the unit. Do not expose the unit to rain or moisture. Ensure proper ventilation to prevent overheating. Only use attachments/accessories specified by the manufacturer. Refer all servicing to qualified service personnel.

Konfigurazioa

Proper setup is crucial for optimal performance of your Xenyx 802S mixer. Follow these steps to get started:

Despaketatzea: Carefully unpack the mixer and inspect it for any signs of damage. Retain the packaging for future transport or storage.
Potentzia-konexioa: Connect the supplied power adapter to the mixer's power input and then to a suitable AC outlet. Ensure the mixer is turned off before connecting or disconnecting power.
Microphone Connections (MIC 1, MIC 2):
Use XLR cables to connect your microphones to the MIC 1 and MIC 2 inputs. These inputs feature XENYX mic preamps for high-quality audio. For condenser microphones requiring phantom power, ensure the +48V PHANTOM switch is engaged (located in the MAIN section). The +10 and +60 gain switches allow for adjusting input sensitivity.
Figure 2: Detail of the microphone and line inputs, showing gain controls.
Line Input Connections (LINE IN 1-8):
Connect line-level devices such as keyboards, drum machines, or other audio players to the 1/4" LINE IN jacks. Channels 1 and 2 have dedicated line inputs, while channels 3/4, 5/6, and 7/8 are stereo paired inputs.
USB/RCA Streaming Connection (STREAM USB/RCA):
Connect the mixer to your computer or mobile device using a USB cable for stereo audio streaming. The RCA IN/OUT jacks allow for connecting external recording devices or playback sources. This interface enables direct mixing of PC/gaming sounds into your streaming output.
Figure 3: USB and RCA input/output section for streaming and external devices.
Irteerako konexioak:
- IRTEERA NAGUSIA: Connect to your main speakers or amplifier using 1/4" TRS cables.
- MONITOREA IRTEERA: Connect to studio monitors or a separate monitoring system.
- TELEFONOAK: Konektatu entzungailuak monitorizatzeko.
- FX BIDALIA: For connecting external effects processors.

Funtzionamendu-argibideak

This section details the functions of the various controls on your Xenyx 802S mixer.

Angelukoa view of Behringer Xenyx 802S showing all controls

4 Irudia: Gainetikview of the mixer's control panel.

Channel Controls (Channels 1-8)

EQ (Ekualizazioa): Each channel features a 3-band EQ (HIGH, MID, LOW) to shape the tone of your audio.
- ALTU (12 kHz): Maiztasun agudoak doitzen ditu.
- MID (2.5 kHz): Erdi-mailako maiztasunak doitzen ditu.
- BAXUA (80 Hz): Frekuentzia baxuak doitzen ditu.
FX (Effects Send): Controls the amount of signal sent from the channel to the FX SEND output, typically used for external effects processors.
PAN/BAL (Pan/Balance):
- PAN (Channels 1-2): Adjusts the position of the mono signal within the stereo field (left to right).
- BAL (Channels 3/4, 5/6, 7/8): Adjusts the balance between the left and right signals of a stereo input.
MAILA: Controls the output level of each individual channel.
CLIP LED: Illuminates when the input signal is too high, indicating potential distortion. Reduce the input gain or level if this LED lights up frequently.

Main Section Controls

PHONES/MONITOR: Controls the overall volume for the headphones and monitor outputs.
MAMUA (+48V): Activates phantom power for condenser microphones connected to MIC 1 and MIC 2 inputs.
STREAM TO MONITOR: Routes the USB/RCA input signal to the monitor output, allowing you to hear your computer's audio.
NAHASTU ETA IRUDITU: Routes the USB/RCA input signal to the main mix, allowing it to be included in your overall output.
MAILA neurgailua: Displays the output level of the main mix. Aim for levels that are consistently in the green, occasionally peaking into yellow, and avoid red (CLIP) to prevent distortion.
MAIN MIX: Nahastailearen irteerako bolumen orokorra kontrolatzen du.

Person using Behringer Xenyx 802S mixer with headphones

Figure 5: User interacting with the mixer, demonstrating a typical use case for monitoring audio.

Mantentzea

To ensure the longevity and optimal performance of your Behringer Xenyx 802S, follow these maintenance guidelines:

Garbiketa: Use a soft, dry cloth to clean the exterior of the mixer. Avoid using abrasive cleaners, solvents, or waxes, as they may damage the finish or controls.
Hautsaren babesa: When not in use, cover the mixer with a dust cover to prevent dust and debris from accumulating on the controls and inside the unit.
Biltegiratzea: Gorde irabiagailua leku fresko eta lehor batean, eguzki-argitik, tenperatura muturrekoetatik eta hezetasun handitik babestuta.
Kableen kudeaketa: Ensure all cables are neatly organized and not under strain to prevent damage to the connectors or the mixer's ports.

Arazoak konpontzea

If you encounter issues with your Xenyx 802S, refer to the following common problems and solutions:

Arazoa	Kausa posiblea	Irtenbidea
Ez dago soinu irteerarik	Itzali/deskonektatu Main Mix level too low Channel level too low Kable konexio okerrak Speakers/headphones not connected or off	Egiaztatu konexio elektrikoa eta etengailua Increase MAIN MIX knob Increase individual channel LEVEL knobs Egiaztatu audio-kable guztiak behar bezala konektatuta daudela Ensure speakers/headphones are connected and powered on
Distorted audio (CLIP LED on)	Input signal too hot Channel/Main Mix level too high	Reduce input GAIN for the specific channel Lower individual channel LEVEL knobs or MAIN MIX knob
No phantom power for condenser mic	+48V PHANTOM switch off Incorrect microphone type (dynamic mic doesn't need it)	Engage the +48V PHANTOM switch in the MAIN section Ensure you are using a condenser microphone
Ordenagailuak ez du USB audioa ezagutzen	USB cable faulty or disconnected Driver issues (though usually plug-and-play) Incorrect audio input/output selected on computer	Probatu beste USB ataka edo kable batekin Restart computer and mixer Check computer's sound settings and select "USB Audio CODEC" as input/output device

Zehaztapenak

Marka: Behringer
Eredua: XENYX 802S
Kanal kopurua: 8
Konektibitate Teknologia: USBa
Energia iturria: Kable elektrikoa
Elementuaren pisua: 3.55 libra (1610 gramo)
Produktuaren neurriak: 19.69 x 19.69 x 11.02 hazbete (19.69"S x 19.69"Z x 11.02"A)
Lehenengo data eskuragarri: 13ko apirilaren 2023a

Behringer Xenyx 802S with dimensions overlay

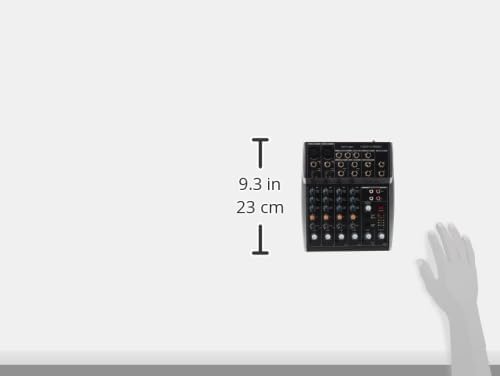

Figure 6: Product dimensions for the Behringer Xenyx 802S.

Bermea eta Laguntza

Behringer products are manufactured to the highest quality standards. For detailed warranty information and support, please refer to the warranty card included with your product or visit the official Behringer website. You can also find frequently asked questions, software downloads, and contact information for technical support there.

Laguntza gehiago behar baduzu, bisitatu Behringer denda Amazonen.
