1. Produktua amaitu daview
The ENEGON 26800 mAh USB-C PD 85W Portable Power Bank is a high-capacity external battery designed to provide fast and efficient charging for a wide range of devices, including laptops, smartphones, and tablets. It features multiple output ports, including USB-C PD, USB-A, and a DC output with various adapters, ensuring broad compatibility.
Irudia: Aurrealdea eta atzealdea view of the ENEGON Portable Power Bank, showcasing its sleek design and the included DC converters and cables.
Paketearen edukia:
- 1 x ENEGON PD 85W Power Bank
- 1 x USB-C to USB-C E-Cable
- 1 x DC kablea
- 10 x DC Converters
- 1 x Bidaia poltsa
- 1 x Welcome Guide (User Manual)
Image: Visual representation of the power bank's dimensions and all items included in the package, such as cables and DC converters.
Product Ports and Display:
- USB-A irteera: USB ataka estandarra hainbat gailu kargatzeko.
- USB-C2 irteera: USB-C port with 20W maximum output.
- USB-C1 sarrera/irteera: USB-C port for both charging the power bank and outputting up to 60W.
- DC irteera: Dedicated DC port for laptop charging with included converters, up to 65W.
- LCD pantaila: Bateriaren ehunekoa erakusten dutage and current voltage ezarpenak.
- Pizteko botoia: Activates the display and controls voltage doikuntza.
Irudia: Gertuko planoa view of the power bank's top edge, highlighting the USB-A, USB-C, and DC ports, along with the LCD display and power button.
2. Konfigurazioa eta hasierako erabilera
Power Banka kargatzen:
Before first use, fully charge the power bank. It can be fully recharged in approximately 2.5 hours using a 60W PD charger (not included). Connect a USB-C charger to the USB-C1 (Input/Output) port. The LCD display will show the charging progress.
Image: Diagram illustrating the fast charging capability of the power bank, showing it can be fully recharged in 2.5 hours with a 60W PD charger.
3. Funtzionamendu-argibideak
Kargatzeko gailuak:
The power bank offers 3-in-1 fast charging with a total output of 85W, allowing you to charge multiple devices simultaneously.
- USB-C1: Max 60W output.
- USB-C2: Max 20W output.
- DC irteera: Max 65W output.
- USB-A: Max 18W output.
For optimal charging, use the appropriate cable for your device and connect it to the corresponding port on the power bank. The power bank automatically detects and delivers the optimal charging current for most devices.
Image: Diagram illustrating the simultaneous charging of a laptop, smartphone, and another device using the USB-C1, USB-C2, and DC ports, highlighting their respective maximum power outputs.
Adjusting DC Output Voltage:
The DC output port supports multiple voltage settings (5V, 9V, 12V, 15V, 20V) to accommodate various laptops and devices. Follow these steps to adjust the voltage:
- Egiaztatu potentzia-maila: Short press the power button to display the current power level.
- Sartu Voltage Adjustment Mode: Long press the power button for 3-5 seconds. The display will light up and show the current voltage (adibidez, DC 9V).
- Egokitu Voltage: While the indicator is blinking, short press the power button once (1-2 seconds) to cycle through the available voltages (9V, 12V, 15V, 20V).
- Berretsi Voltage: Stop pressing the button when the desired voltage is displayed. The setting will be confirmed automatically after a few seconds of inactivity.

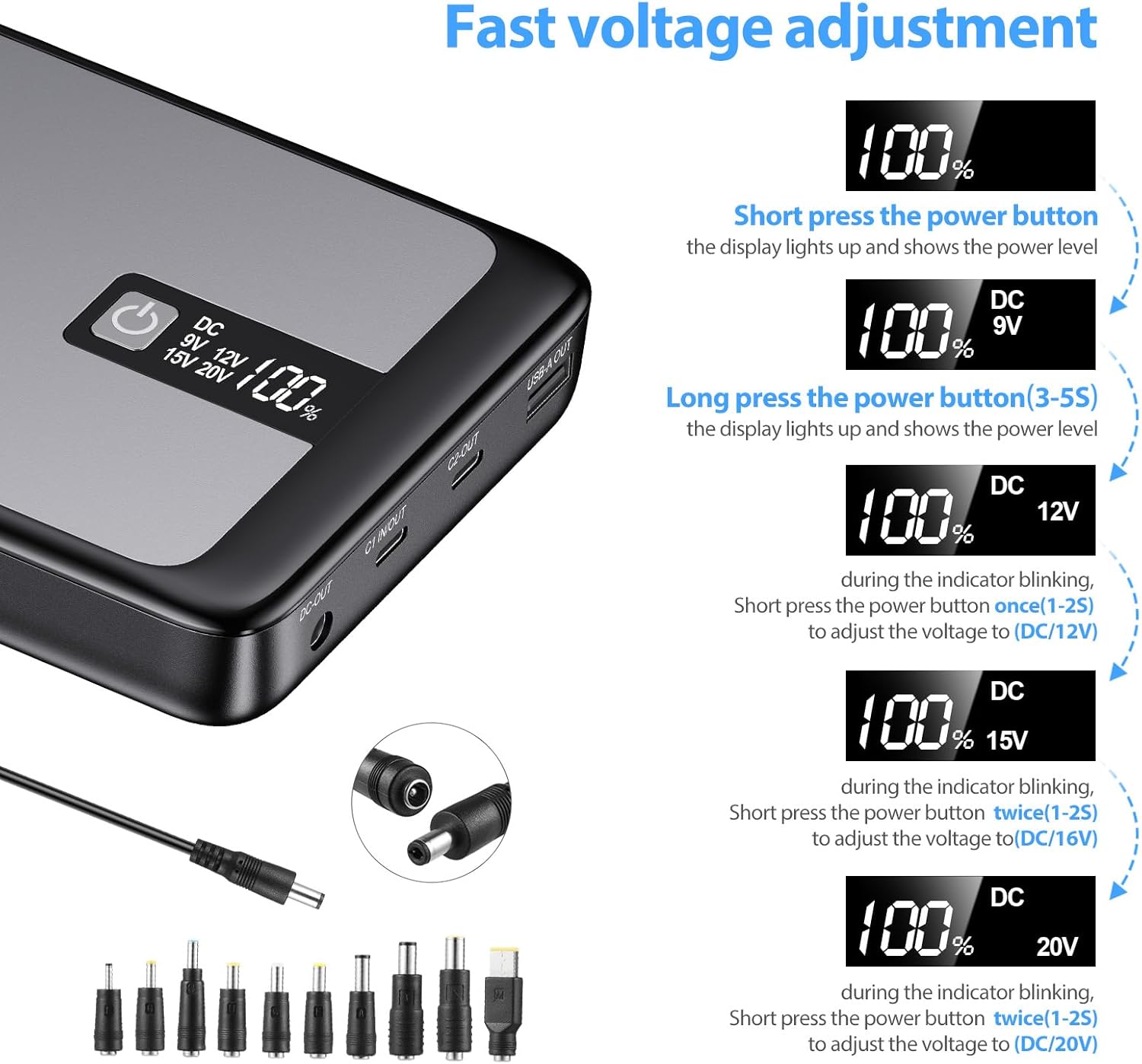

Image: Step-by-step visual guide on how to adjust the DC output voltage using the power button and LCD display, showing the different voltage aukerak.
Using DC Converters:
The power bank comes with 10 different DC converters to ensure compatibility with various laptop models. Select the appropriate converter for your laptop's DC input port and connect it to the DC cable, then plug into the power bank's DC output.

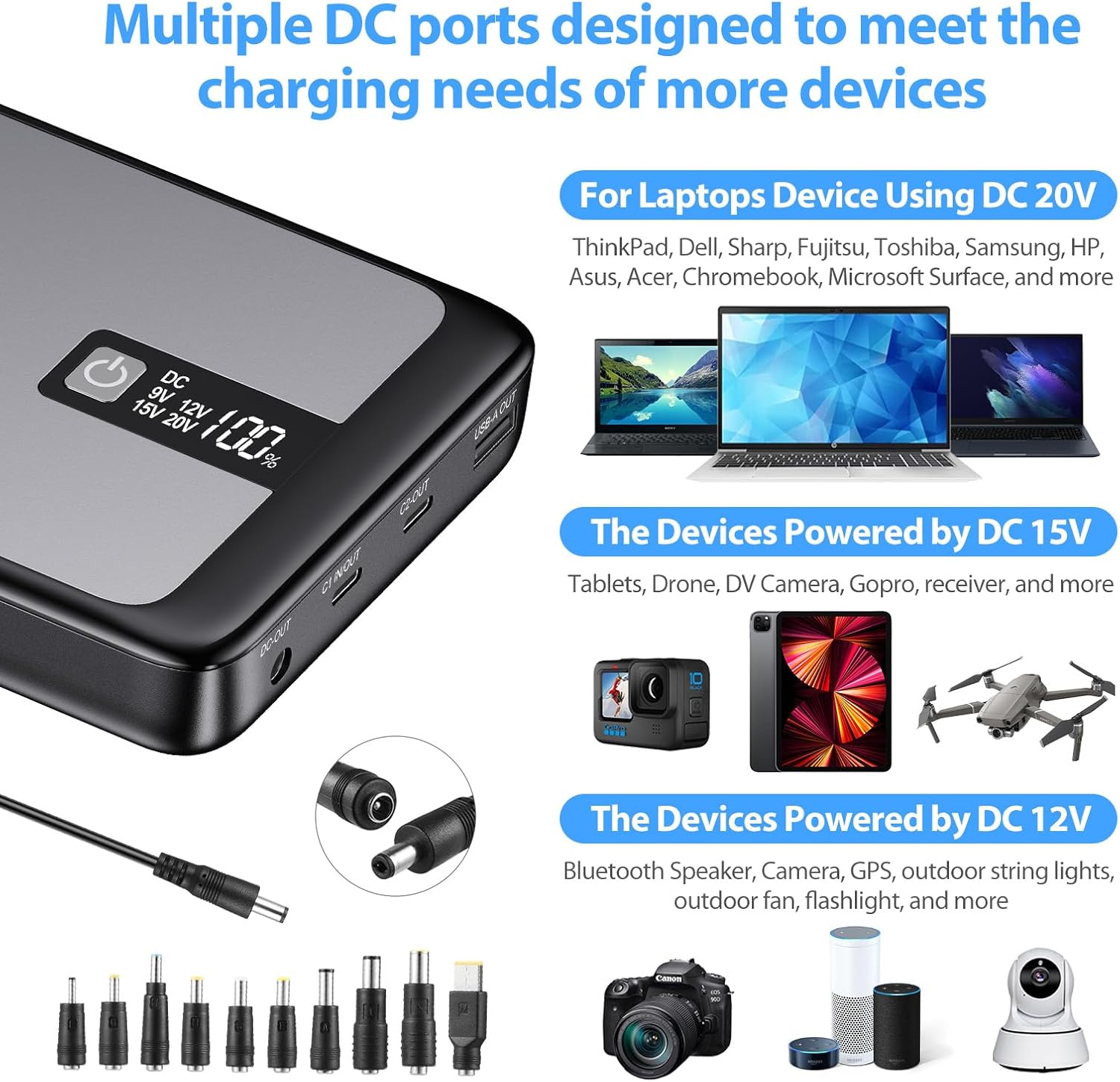

Image: Illustration of the various DC converters and examples of devices they can power, categorized by voltage (20V for laptops, 15V for tablets/drones, 12V for speakers/cameras).
Image: A circular diagram showing various laptop brands (Asus, Acer, HP, Samsung, Toshiba, Sony) and the corresponding DC converters, indicating broad compatibility.
4. Bateragarritasun Unibertsala
The ENEGON Power Bank is designed for wide compatibility with a variety of electronic devices:
- Ordenagailu eramangarriak: MacBook Pro/Air 13"/15"/16", Dell XPS, ThinkPad, Surface Book 2, Lenovo YOGA, Google Pixel Acer Series, HP Series, Samsung Series, Toshiba Series, iPad Pro.
- Telefonoak: iPhone 13 series, 12 series, 11 Pro/Pro Max/XS/XS Max/XR/X, 8 Plus/8, 7/7 Plus, SE2, Samsung Galaxy S22/S21 Ultra/S21/S20/S10/S9/S8 series, Note 20/10/9/8/7, OnePlus 6T/7T/8T/7 Pro, Nord N100.
- Tablets & Other Devices: iPad Pro 10.5/12.9, iPad Air 3/10.5, iPad Mini 5/7.9, AirPods, Nintendo Switch, Bluetooth speakers, digital cameras, and more.

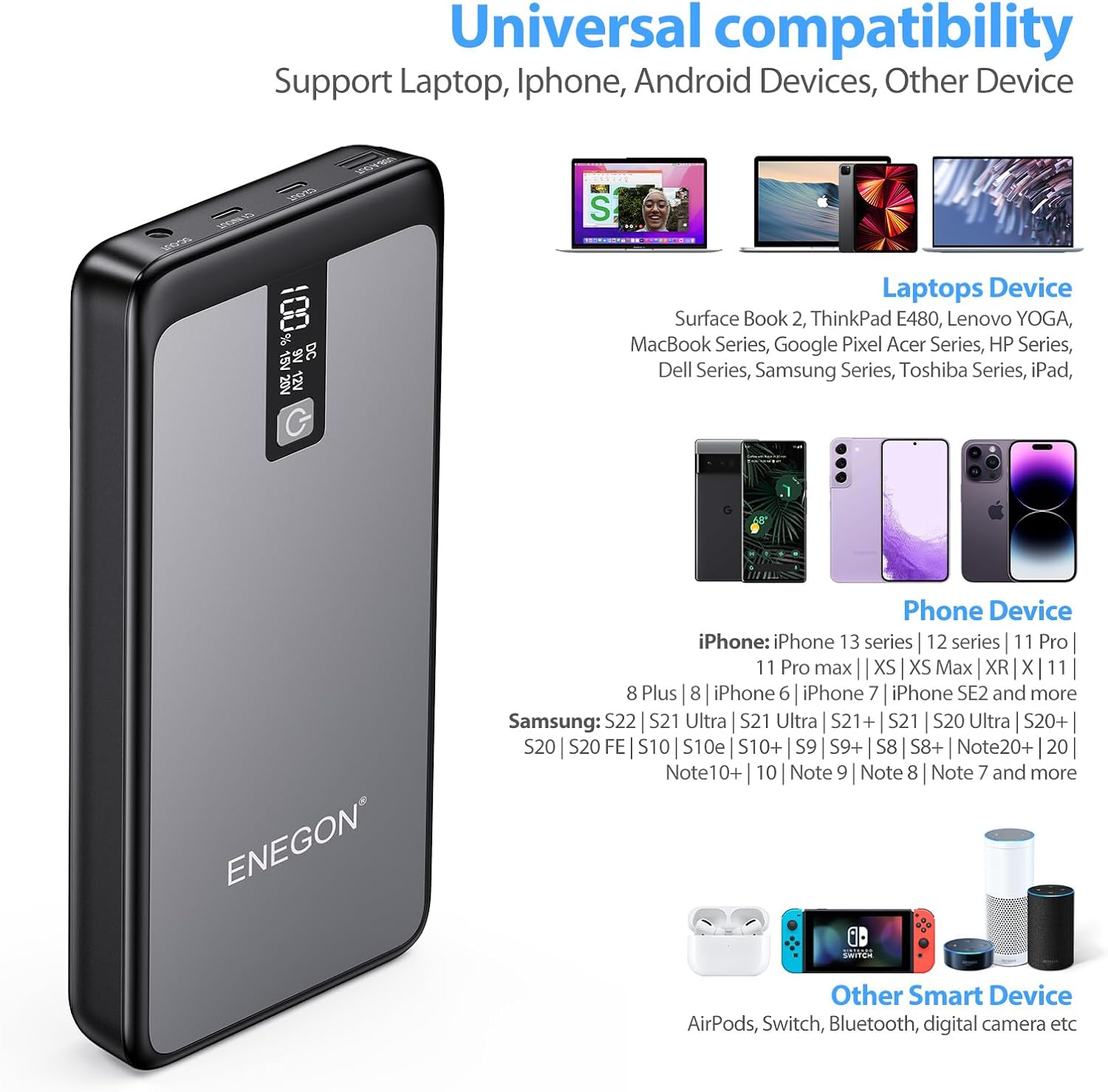

Image: Visual representation of the power bank's universal compatibility, showing it can charge various laptops, iPhones, Android phones, and other smart devices like AirPods and Nintendo Switch.
5. Mantentzea eta Zainketa
- Gorde bateria eramangarria leku fresko eta lehor batean, eguzki-argitik eta muturreko tenperaturetatik babestuta.
- Saihestu potentzia-bankua erortzea edo eragin gogorrak jasan behar izatea.
- Ez jarri power banka uretara edo beste likidoetara.
- Garbitu gainazala zapi leun eta lehor batekin. Ez erabili produktu kimiko gogorrik edo material urratzailerik.
- For long-term storage, charge the power bank to about 50-70% every 3 months to maintain battery health.
6. Arazoak
Ohiko arazoak eta irtenbideak:
- Energia-bankua ez da kargatzen:
- Ziurtatu kargatzeko kablea eta egokigailua behar bezala funtzionatzen dutela.
- Check if the USB-C1 port is used for input.
- Saiatu beste kargatzeko kable edo egokitzaile batekin.
- Gailua ez da kargatzen power bank-etik:
- Ziurtatu bateria eramangarriak nahikoa karga duela.
- Check if the charging cable is securely connected to both the power bank and the device.
- Verify that the correct DC voltage is selected for laptops.
- Try a different port on the power bank or a different charging cable.
- LCD pantailak ez du funtzionatzen:
- Sakatu pizteko botoia pantaila aktibatzeko.
- Arazoak jarraitzen badu, jarri harremanetan bezeroarentzako laguntza-zerbitzuarekin.
7. Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Eredua | PD 85W-ko bateria eramangarria |
| Bateria Edukiera | 26800 mAh |
| USB-C1 irteera | Gehienez 60W |
| USB-C2 irteera | Gehienez 20W |
| DC irteera | Max 65W (Adjustable: 5V, 9V, 12V, 15V, 20V) |
| USB-A irteera | Gehienez 18W |
| Irteera osoa | 85W (DC+USB-C2) |
| Recharge Time (60W PD) | Gutxi gorabehera. 2.5 ordu |
| Produktuaren neurriak | 23.2 x 12.9 x 5 cm |
| Pisua | 880 gramo |
| Bateria mota | Litio-polimeroa |
8. Bermea eta Laguntza
ENEGON provides an 18-month worry-free warranty for this product. If you have any questions or require assistance, please do not hesitate to contact our friendly customer service team. We are committed to ensuring your satisfaction.
For support, please refer to the contact information provided in your Welcome Guide or visit the official ENEGON webgunea.
