Sarrera
The Feyachi HL-20 Pistol Light is a compact, rail-mounted tactical flashlight designed to provide powerful illumination for handguns and other firearms equipped with Picatinny rails. Constructed from durable aerospace aluminum, it offers high brightness, reliable performance in various environments, and user-friendly operation with multiple lighting modes. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your HL-20 Pistol Light.

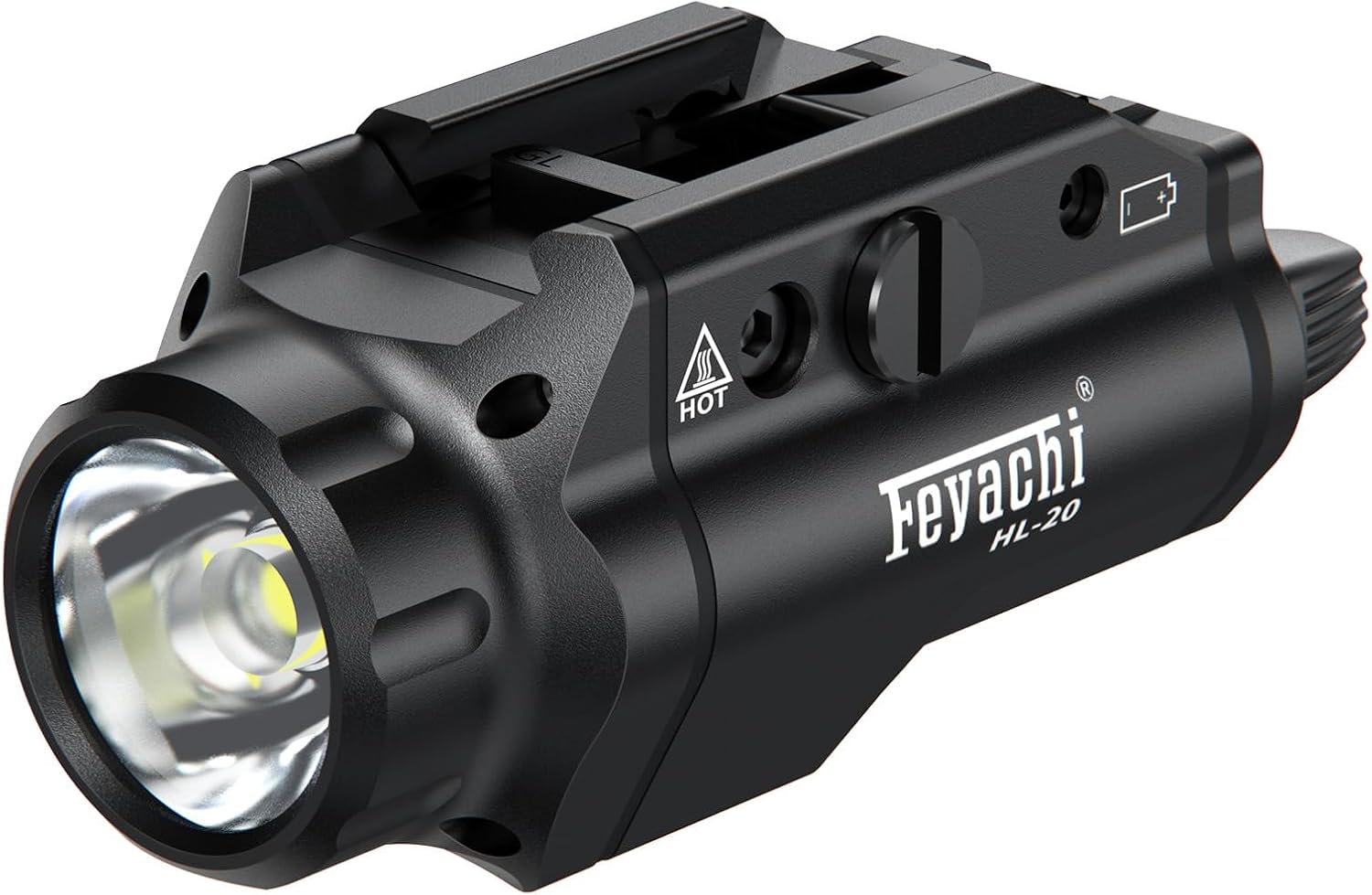

Figure 1: Feyachi HL-20 Pistol Light Overview
Produktua amaituview eta Osagaiak
The HL-20 features a robust design with key components engineered for performance and durability.
2. Irudia: Lehertuta View of HL-20 Components
- Optical Reflector & Lens: Designed for optimal light projection and beam clarity.
- Battery Buckle: Secures the CR123A batteries within the housing.
- Rail Locating Keys: Interchangeable keys for compatibility with various rail systems.
- Rail Fixing Screw: For secure attachment to the firearm's rail.
- Waterproof Ring: Ensures IPX5 water resistance.
- 2 Mode (ON/OFF+Strobe) Switch: Provides versatile lighting options.
Konfigurazioa
Bateriaren instalazioa
The HL-20 Pistol Light is powered by two CR123A batteries. Ensure correct polarity during installation.
- Desblokeatu: Apply force to the spring lock and pull it upwards to unlock the battery compartment.
- Sartu bateriak: Place two CR123A batteries into the compartment, observing the polarity indicators (+/-).
- Itxi: Hold the tail cap firmly and then close the spring lock until it clicks securely into place.
3. irudia: Bateriaren instalazio gida
Mounting to Firearm Rail
The HL-20 is designed for universal compatibility with most rail-equipped handguns. It comes with 5 different Locating Keys (GL, TSW/99, 90two, P320, and 1913) to ensure a secure fit.
- Hautatu gakoa: Choose the appropriate rail locating key for your firearm's rail type. The GL key is pre-installed. Use the provided Allen wrench to change keys if necessary.
- Argia erantsi: Askatu erraila clamp tension bolt. Align the light with your firearm's Picatinny rail and slide it into position.
- Argi Segurua: Estutu erraila clamp tension bolt firmly using the provided Allen wrench or a flathead screwdriver until the light is securely attached and does not wobble.
Figure 4: Universal Rail Compatibility
Figure 5: Standard Picatinny Mounting Examples
Funtzionamendu-argibideak
The HL-20 features an ambidextrous switch for easy operation.
- Momentuan piztuta: Press and hold either side of the switch for momentary illumination. Release to turn off.
- Etengabea: Press and quickly release either side of the switch to activate constant illumination. Press again to turn off.
Video 1: Feyachi HL-20 New Upgrade Pistol Light - Demonstrates light modes and features.
Bateragarritasuna
The Feyachi HL-20 Pistol Light is designed for broad compatibility with various firearm models. Below is a table detailing some compatible models based on the included rail keys:
| Rail Key | Eredu bateragarriak |
|---|---|
| GL | GL17/GL19/GL20/GL22/GL23/GL25/GL32/GL44/GL45/GL19X/GL P80/GL17 GEN 4 |
| SIG SAUER | P220/P226/P227/P229/P320/(M18) |
| WALTHER | PPQ/P99/CCP/PPQ M1 |
| SMITH & WESSON | M&P 40/SD40VE/M&P 9MM/M&P 9 2.0MM & ORIGINAL/M&P 40 2.0 VERSIONS/M&P SHORT BUILDS |
| CZ | P-01/P-07/P-09/P-10C |
| SPRINGFIELD | SPRINGFIELD XD SERIES/SPRINGFIELD XDM SERIES/SPRINGFIELD ARMORY XDM 10MM |
| CANIK | TP9SA/TP9 V2 |
| TAURO | TX22/TX22 22 CAL |
| BESTELAKOAK | IWI MASADA/STEYR M9-A1/PSA DAGGER G19 CLONE 9MM/FN 509 SHORT BUILDS(9MM 1913 RAIL)/BERETTA 92/EAA WITNESSIKEL-TEC PMR-30/PSA ROCK 5.7X28MM/H&K P2000 LEM/40S&W |
Table 1: HL-20 Pistol Light Compatibility
Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Distira | 1000 lumen |
| Argiztapen Distantzia | 200-300 metro (gutxi gorabehera 600-984 oin) |
| Exekuzioa | > 2 ordu |
| Materiala | Aerospace Aluminum (anodized surface) |
| Uraren Erresistentzia | IPX5 (iragazgaitza) |
| Shock Erresistentzia | 800 G gravitational acceleration tested |
| Bateria mota | CR123A (Lithium Manganese Dioxide) |
| Neurriak | 3.4" L x 1.5" W x 1.5" H |
| Elementuaren pisua | 0.62 libra (gutxi gorabehera 9.9 ontza) |
| Muntatze Mota | Gun Mount (Picatinny Rail) |
| Argi iturri mota | LED |
Table 2: HL-20 Pistol Light Technical Specifications
Mantentzea
- Garbiketa: Erabili biguna, damp cloth to clean the exterior of the light. Avoid abrasive cleaners or solvents.
- Bateria ordezkatzea: Replace batteries when the light output becomes dim or inconsistent. Always use fresh, high-quality CR123A batteries.
- Biltegiratzea: Store the light in a cool, dry place when not in use. Remove batteries if storing for extended periods to prevent leakage.
- Uraren erresistentzia: While IPX5 rated, avoid submerging the light for prolonged periods. Ensure the battery compartment is securely closed after battery changes to maintain water resistance.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Argia ez da pizten. | Bateriak hilda edo gaizki instalatuta. | Egiaztatu bateriaren polaritatea eta, beharrezkoa bada, ordezkatu bateriak. |
| Argia ahula da edo keinuka ari da. | Bateria baxua. | Ordeztu bateriak berriekin. |
| Light is loose on the rail. | Mounting bolt is not tight or incorrect rail key used. | Ziurtatu erraila clamp tension bolt is tightened securely. Verify the correct rail key is installed for your firearm. |
3 taula: Arazoak konpontzeko ohiko urratsak
Kutxan dagoena
Your Feyachi HL-20 Pistol Light package includes the following items:
- 1 x HL-20 Pistol Light
- 1 x Erabiltzailearen eskuliburua
- 2 x Allen giltza
- 5 x Different Rail Keys (GL, TSW/99, 90two, P320, 1913)
- 1 x Fixed Steel Sheet
6. irudia: paketearen edukia
Bermea eta Laguntza
The Feyachi HL-20 Pistol Light comes with a berme osoa. For any product inquiries, technical support, or warranty claims, please visit the official Feyachi Store or contact their customer service through the platform where the product was purchased.
