Total TCS1120508 Silent Air Compressor 50 Liter User Manual

1. Sarrera eta Overview

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Total TCS1120508 Silent Air Compressor. The TCS1120508 is a heavy-duty, direct-drive air compressor designed for industrial and workshop applications. It features a powerful motor and a direct-drive system for efficient and consistent air compression, along with a large air tank to store compressed air and reduce cycle frequency. This unit provides a stable and reliable source of compressed air for various pneumatic tools and equipment, making it an essential tool for professionals in automotive repair, carpentry, and other fields requiring compressed air.

Please read this manual thoroughly before operating the compressor and retain it for future reference.

2. Segurtasun-argibideak

OHARRA: Segurtasun-jarraibide hauek ez betetzeak lesio larriak edo ondasunen kalteak eragin ditzake.

• Segurtasun elektrikoa: Ensure the compressor is connected to a grounded outlet with the correct voltage (220-240V, 50Hz). Do not use extension cords unless absolutely necessary and ensure they are rated for the compressor's power requirements. Disconnect power before performing any maintenance or repairs.
• Presioaren Segurtasuna: Never exceed the maximum operating pressure of 8 Bar. Do not tamper with the pressure relief valve. Always wear appropriate eye protection when operating the compressor or using air tools.
• Norberaren Babeserako Ekipamendua (PPE): Always wear safety glasses or goggles. Hearing protection is recommended, especially during prolonged use.
• Aireztapena: Beroa ez pilatzeko eta aire-sarrera egokia bermatzeko, erabili konpresorea ondo aireztatutako gune batean.
• Egonkortasuna: Place the compressor on a firm, level surface to prevent tipping.
• Haurrak eta ingurukoak: Mantendu haurrak eta baimenik gabeko pertsonak funtzionamendu-eremutik urrun.
• Mantentzea: Regularly inspect the compressor for damage, leaks, or loose connections. Do not operate a damaged compressor.

3. Paketearen edukia

Egiaztatu elementu guztiak bertan daudela eta kalterik gabe daudela paketea desontziratzean.

• 1 × Total Air Compressor TCS1120508 1200 Watt 8 Bar Direct Drive, 50 Liter Capacity

4. Zehaztapenak

5. Konfigurazioa

1. Despaketatzea eta ikuskatzea: Carefully remove the compressor from its packaging. Inspect the unit for any signs of shipping damage. Report any damage to your retailer immediately.
2. Lekua: Position the compressor on a stable, level, and clean surface. Ensure there is adequate ventilation around the unit to prevent overheating. Do not operate in damp edo baldintza hezeak.
3. Konexio elektrikoa: Connect the power cord to a suitable grounded electrical outlet that matches the compressor's voltage and frequency requirements (220-240V, 50Hz).
4. Hasierako egiaztapena: Before first use, ensure all connections are secure and there are no visible leaks.

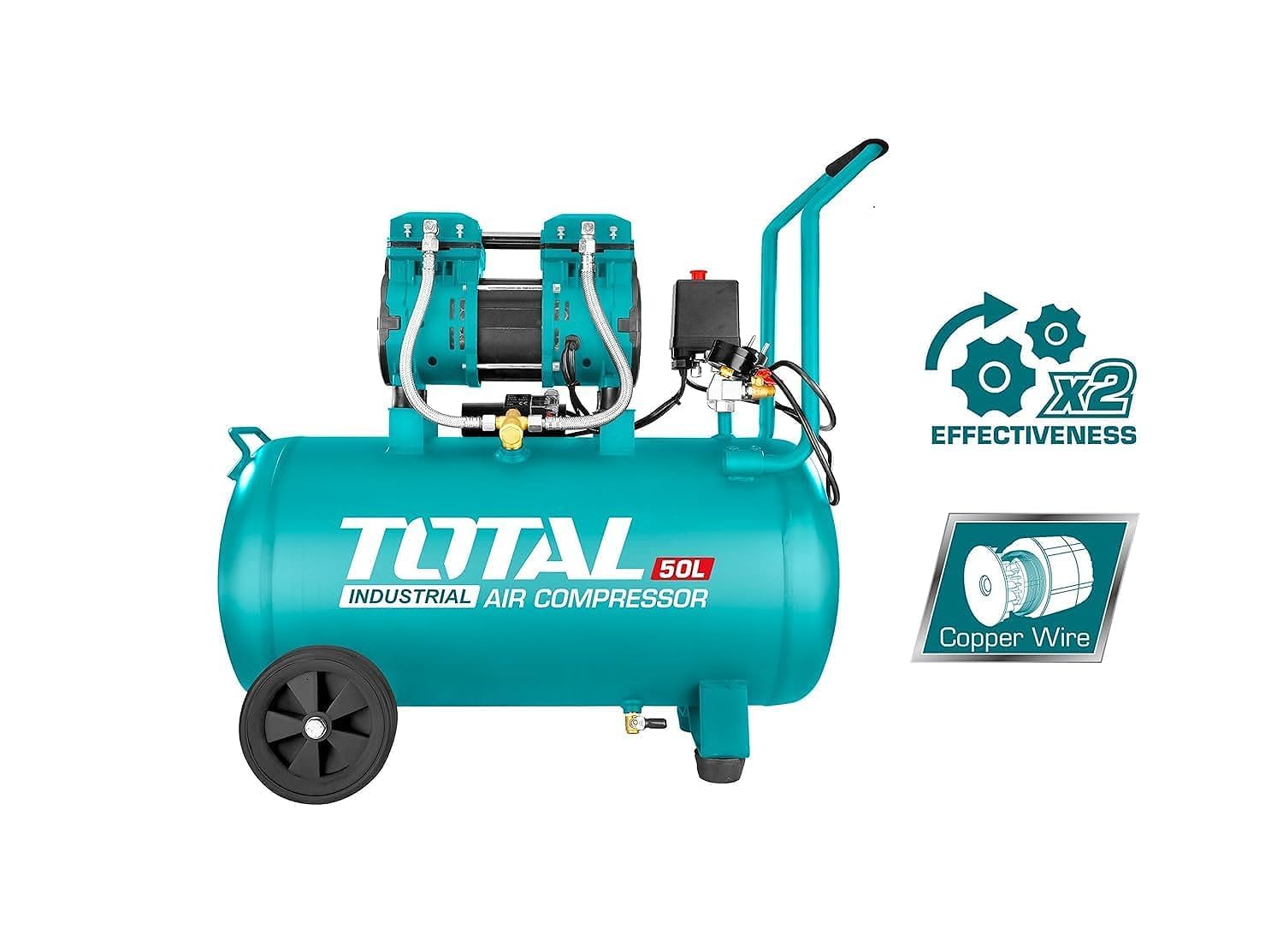

Image showing the Total TCS1120508 Silent Air Compressor, a blue and black unit with a 50-liter tank and control panel.

6. Funtzionamendu-argibideak

1. Konpresorea martxan jartzea: Plug in the power cord. Turn the power switch to the 'ON' position. The compressor will start to build pressure in the tank. It will automatically shut off once the maximum pressure (8 Bar) is reached.
2. Aireko tresnak konektatzea: Attach your pneumatic tool to the air outlet hose. Ensure the connection is secure.
3. Presioa doitzea: Use the pressure regulator knob to set the desired output pressure for your air tool. Monitor the pressure gauge to ensure the correct setting.
4. Using Air Tools: Operate your air tool according to its specific instructions. The compressor will cycle on and off automatically to maintain the set pressure.
5. Itzaltzea: When finished, turn the power switch to the 'OFF' position. Disconnect the air tool. Release any remaining air pressure from the tank by opening the drain valve or using an air tool until the pressure gauge reads zero.

7. Mantentzea

Mantentze-lan erregularrak konpresorearen errendimendu optimoa bermatzen du eta bizitza luzatzen du.

• Drain Condensation Daily: After each use, or daily if used frequently, drain the condensation from the air tank. This prevents rust and corrosion inside the tank. Locate the drain valve at the bottom of the tank, place a container underneath, and open the valve until all water is expelled. Close the valve securely.
• Aire-iragazkia ikuskatu: Periodically check the air filter for dirt or debris. Clean or replace it as necessary to ensure proper air intake and prevent damage to the motor.
• Egiaztatu ihesak: Regularly inspect all hoses, fittings, and connections for air leaks. Tighten any loose connections.
• Garbitu kanpoaldea: Keep the exterior of the compressor clean and free of dust and debris. Use a damp oihal; ez erabili produktu kimiko gogorrik.
• Biltegiratzea: Store the compressor in a clean, dry, and well-ventilated area when not in use. Ensure the tank is drained of condensation before storage.

8. Arazoak

Atal honek zure aire-konpresorearekin izan ditzakezun arazo ohikoenei buruzko informazioa ematen du.

If you encounter problems not listed here or if the suggested solutions do not resolve the issue, please contact customer support.

9. Bermea eta Laguntza

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your purchase receipt as proof of purchase.

For technical support or service inquiries, please contact Total customer service through their official channels. Provide your product model number (TCS1120508) and a detailed description of the issue to assist them in providing efficient support.
