1. Sarrera
This manual provides essential information for the safe and efficient use of your Quality Heating QH-HH 700W Infrared Heating Panel. Please read these instructions carefully before installation and operation, and retain them for future reference.
The Quality Heating QH-HH infrared panel is a 700-watt radiant heater designed for efficient heating. It features an elegant white frame and additional insulation on the back, which contributes to a higher surface temperature and more powerful radiant heat output. Constructed entirely from aluminum, the panel is lightweight and durable. Its IP52 rating ensures safety and water resistance, making it suitable for various indoor spaces such as hallways, living rooms, recreation rooms, bathrooms, and even covered outdoor areas like verandas.
Figure 1: Quality Heating QH-HH 700W Infrared Heating Panel, front view.
2. Segurtasun informazio garrantzitsua
OHARRA: Segurtasun-jarraibide hauek ez betetzeak sutea, deskarga elektrikoa, lesioak edo ondasunen kalteak eragin ditzake.
- Irakurri argibide guztiak berogailu hau erabili aurretik.
- Berogailu hau erabiltzen denean bero dago. Erredurak saihesteko, ez utzi azala biluziak gainazal beroak ukitzen.
- Kontuz ibili behar da berogailuren bat umeek edo baliogabetuek erabiltzen dutenean edo ondoan erabiltzen dutenean, eta berogailua funtzionatzen eta zaindu gabe uzten dutenean.
- Ez erabili berogailurik kablea edo entxufea hondatuta dagoenean, edo berogailuak gaizki funtzionatzen badu, erori edo hondatu ondoren. Itzuli berogailua baimendutako zerbitzu-instalaziora, azterketa, doikuntza elektriko edo mekanikoa edo konpontzeko.
- Do not use outdoors unless specifically rated for outdoor use (IP52 rating allows for covered outdoor use, e.g., under a veranda).
- Ez jarri kablea alfonbra azpian. Ez estali kablea alfonbra, lasterkari edo antzeko estalkiekin. Jarri kablea trafiko-eremutik urrun eta estropezu egingo ez den tokitik.
- Berogailua deskonektatzeko, itzali kontrolak eta kendu entxufea entxufetik.
- Ez sartu edo utzi objektu arrotzrik aireztapen edo ihes-zuloren batean sartzen, deskarga elektrikoa edo sutea eragin dezakeelako, edo berogailua kaltetu.
- Sute posible bat saihesteko, ez blokeatu aire-harrerak edo ihesak inola ere. Ez erabili gainazal bigunetan, ohe batean adibidez, non irekidurak blokeatu daitezkeen.
- Berogailu batek barruan pieza beroak eta arkuak edo txinpartak ditu. Ez erabili gasolina, pintura edo lurrun edo likido sukoiak erabiltzen edo gordetzen diren lekuetan.
- Erabili berogailu hau eskuliburu honetan deskribatzen den moduan soilik. Fabrikatzaileak gomendatzen ez duen beste edozein erabilerak sua, deskarga elektrikoa edo pertsonei zauriak eragin ditzake.
- Konektatu beti berogailuak zuzenean hormako entxufe/hargune batean. Inoiz ez erabili luzapen-kablearekin edo lekuz alda daitekeen korrontearekin (hartunea/elektro-multzoa).
- Ziurtatu hornidura elektrikoa bolumenarekin bat datorrelatage eta wattagBerogailuaren eskakizunak.
- Professional installation by a qualified electrician is recommended for permanent wiring.
3. Konfigurazioa eta instalazioa
The Quality Heating QH-HH infrared panel is designed for easy ceiling mounting. Due to its electrical nature, professional installation is recommended.
3.1 Paketatzea
- Carefully remove the heating panel from its packaging.
- Inspect the panel for any signs of damage during transit. If damage is found, do not proceed with installation and contact your supplier.
- Retain packaging materials for future transport or storage if needed.
3.2 Kokapena aukeratzea
- The panel is suitable for ceiling installation in various indoor rooms (hallway, living room, recreation room, bathroom).
- It can also be installed in covered outdoor areas, such as under a veranda, thanks to its IP52 water resistance rating.
- Ensure the chosen location has adequate structural support for the panel's weight (approximately 4 kg).
- Maintain appropriate distances from flammable materials, curtains, and other objects as per local regulations and safety guidelines.

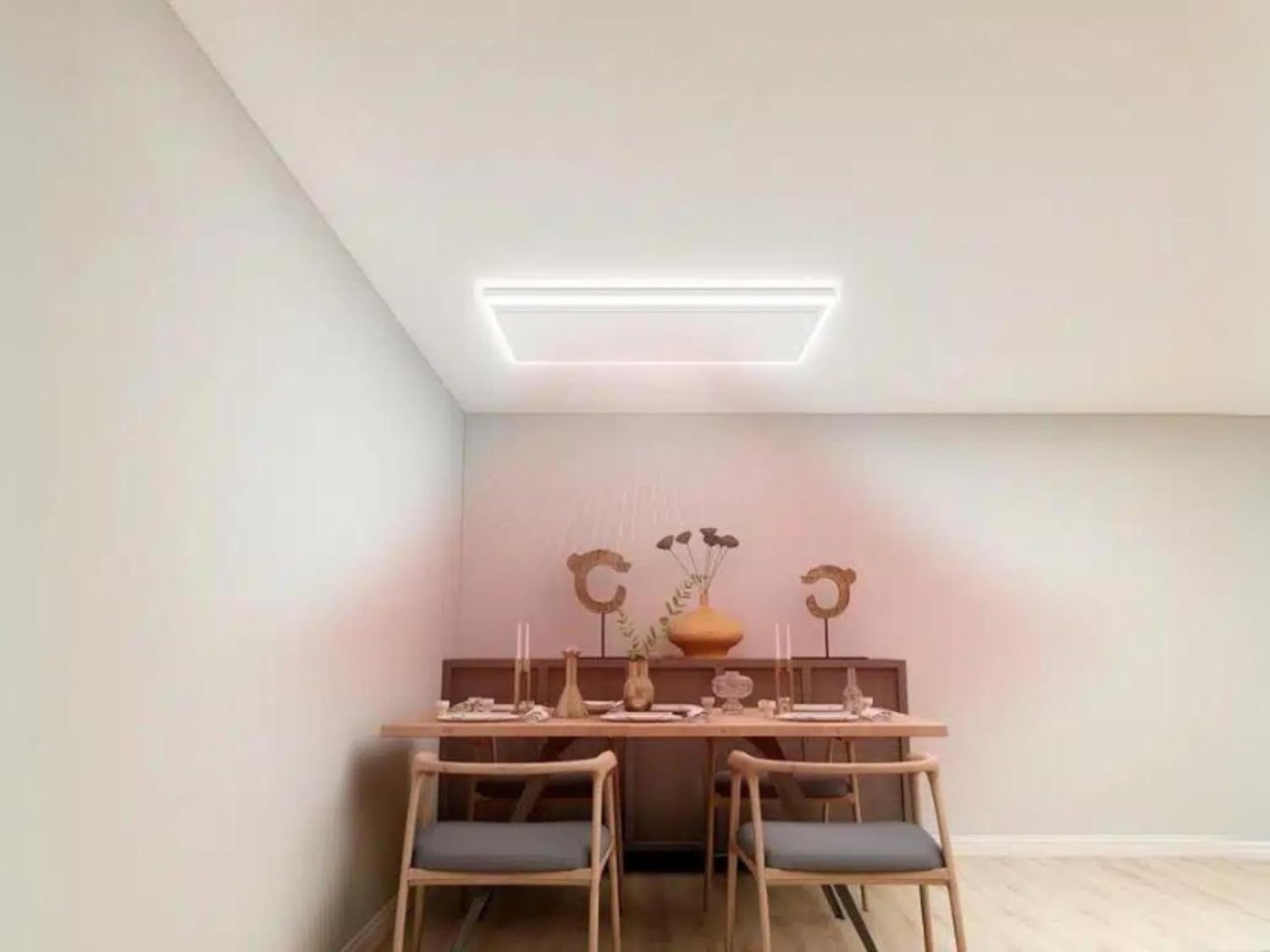

2. irudia: Adibample of the infrared heating panel installed on a dining room ceiling.
3.3 Panela muntatzea
The panel is designed for ceiling mounting. Specific mounting hardware (e.g., brackets, screws) should be included or purchased separately based on your ceiling type. The panel features additional insulation on the back, which helps direct heat forward efficiently.
- Mark the drilling points on the ceiling according to the panel's mounting holes.
- Drill holes and insert appropriate wall plugs if necessary.
- Secure the mounting brackets (if applicable) to the ceiling.
- Carefully lift the panel and attach it to the mounting brackets or directly to the ceiling using the provided or suitable screws. Ensure it is securely fastened.
3. irudia: hurbileko planoa view of the panel's corner, illustrating frame and potential mounting points.
3.4 Konexio elektrikoa
This panel operates on an electrical cable. It is crucial that the electrical connection is performed by a qualified electrician to ensure safety and compliance with local electrical codes.
- Ensure the main power supply to the circuit is turned off before making any electrical connections.
- Connect the panel's electrical cable to a suitable power source, typically a dedicated circuit or a switched outlet.
- Egiaztatu konexio guztiak seguru daudela eta behar bezala isolatuta daudela.
- Once connected, restore power and test the unit.
4. Funtzionamendu-argibideak
The Quality Heating QH-HH 700W Infrared Heating Panel provides efficient radiant heat. Operation is straightforward once properly installed.
4.1 Piztu/Itzaltzea
- If connected to a wall switch or thermostat, simply use the switch or thermostat to turn the panel on or off.
- When the panel is on, it will begin to emit radiant heat. The surface will become warm to the touch.
- Allow some time for the panel to reach its optimal operating temperature and for the radiant heat to effectively warm the room.
Figure 4: The infrared heating panel providing warmth in a living room setting.
4.2 Radiant Heating Principle
Infrared heating panels work by emitting infrared radiation, which directly heats objects and surfaces in a room, rather than just the air. This results in a comfortable, even heat distribution and can be more energy-efficient than traditional convection heaters. The 700W output is designed to provide powerful warmth for its intended space.
5. Mantentzea
The Quality Heating QH-HH Infrared Heating Panel requires minimal maintenance to ensure optimal performance and longevity.
5.1 Garbiketa
- Always ensure the panel is turned off and completely cool before cleaning.
- Wipe the surface of the panel with a soft, dry, or slightly damp oihal.
- Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the panel's finish.
- Avoid spraying water directly onto the panel.
5.2 Biltegiratzea
If storing the panel for an extended period, ensure it is clean, dry, and stored in its original packaging or a protective covering in a cool, dry place.
6. Arazoak
If you encounter issues with your Quality Heating QH-HH Infrared Heating Panel, refer to the following common problems and solutions:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Panela ez da pizten. | Ez dago elikadura hornidurarik. Faulty wiring/connection. Blown fuse/tripped circuit breaker. | Egiaztatu pizteko etengailua piztuta dagoen. Verify the electrical connection is secure (consult an electrician if unsure). Check your home's fuse box or circuit breaker panel. |
| Bero-irteera nahikorik ez. | Room size too large for panel wattage. Poor room insulation. Panel obstructed. | Ensure the panel's wattage is appropriate for the room size. Improve room insulation. Ensure no objects are blocking the panel's radiant heat path. |
| Zarata edo usain ezohikoak. | Initial use (new product smell). Barne matxura. | A slight odor during initial use is normal and should dissipate. If persistent or strong, immediately turn off the panel, disconnect power, and contact customer support. |
If the problem persists after attempting these solutions, please contact Quality Heating customer support or a qualified technician.
7. Zehaztapenak
Detailed technical specifications for the Quality Heating QH-HH 700W Infrared Heating Panel:
| Ezaugarri | Zehaztapena |
|---|---|
| Marka | Kalitatezko Berokuntza |
| Modelo zenbakia | HH-Serie |
| Potentzia Irteera | 700 Watt |
| Kolorea | Zuria |
| Elementuaren pisua | 4 kilogramo |
| Ezaugarri Berezia | Additional insulation at the back |
| IP balorazioa | IP52 (Water-resistant) |
| Forma-faktorea | Sabaiko Muntaia |
| Barruan/Kanpoan erabilera | Indoor / Covered Outdoor (e.g., veranda) |
| Energia iturria | Kable elektrikoa |
| Berotze metodoa | Distiratsua |
| Materiala | Aluminioa |
| Jatorrizko Herrialdea | Herbehereak |
5 irudia: Alboko aldeafile of the infrared heating panel, highlighting its slim design.
8. Bermea eta laguntza
8.1 Bermearen informazioa
Specific warranty details for the Quality Heating QH-HH 700W Infrared Heating Panel are typically provided with your purchase documentation or can be found on the official Quality Heating website. Please refer to these resources for information regarding warranty duration, coverage, and terms.
8.2 Bezeroarentzako laguntza
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Quality Heating customer support. Contact information can usually be found on the product packaging, the official Quality Heating webgunea edo zure erosketa faktura.
