SHEHDS 200W COB Par Light User Manual

1. Sarrera

This manual provides essential information for the safe and effective operation of your SHEHDS 200W COB Par Light. This professional stage lighting fixture features a 200W COB LED, offering both cool white (4500K) and warm white (3500K) illumination. Designed with an IP65 waterproof rating and a fanless, muted operation, it is suitable for various indoor and outdoor applications. Please read this manual thoroughly before installation and use.

2. Segurtasun-argibideak

• Segurtasun elektrikoa: Ziurtatu elikadura hornidura boltage matches the specified requirements of the fixture. Always connect to a grounded power outlet. Disconnect power before any service or maintenance.
• Instalazioa: Install the fixture in a well-ventilated area, away from flammable materials. Ensure mounting surfaces and hardware can support the weight of the fixture.
• Tenperatura: Do not operate the fixture in environments exceeding 40°C (104°F). Allow adequate space around the fixture for heat dissipation.
• Begietako babesa: Saihestu begietan argi-iturriaren eraginpean zuzenean egotea, begietan kalteak eragin ditzakeelako.
• Iragazgaitzaren balorazioa: The fixture is IP65 rated, meaning it is protected against dust and low-pressure water jets. While suitable for outdoor use in rain, avoid submerging the unit.
• Mantentzea: Konponketa guztiak langile kualifikatuei eskatu. Ez saiatu unitatea zeuk konpontzen.

3. Paketearen edukia

Egiaztatu elementu guztiak bertan daudela paketea desegiten duzunean:

• SHEHDS 200W COB Par Light (1 unit)
• Argibideen eskuliburua (kopia 1)
• Signal Line (1 unit)
• Kable elektrikoa (unitate 1)

Image: Contents of the SHEHDS 200W COB Par Light package.

4. Produktua amaitu daview eta Ezaugarriak

The SHEHDS 200W COB Par Light is engineered for robust performance and versatility in various lighting scenarios.

• IP65 iragazgaitza diseinua: Features a durable cast aluminum shell with waterproof signal lines, power cords, and control buttons, ensuring reliable operation in outdoor conditions.
• High-Brightness COB LED: Equipped with a 200W COB (Chip-on-Board) LED, providing uniform and powerful cool white (4500K) or warm white (3500K) illumination. The light is designed to be non-glare and eye-safe.
• Fanless Muted Operation: Operates silently without a cooling fan, making it ideal for environments where noise reduction is critical.
• Izpi angelu zabala: Offers a beam angle of 65°-70°, with an effective range of up to 10 meters.
• Strobe and Dimmer Functions: Includes a shuttle flash rate of 0-10Hz and a 0-100% mechanical dimmer for dynamic lighting effects.
• Eraikuntza iraunkorra: Built with a sturdy aluminum alloy shell and a long-lasting COB light source, ensuring an LED lifespan exceeding 60,000 hours.

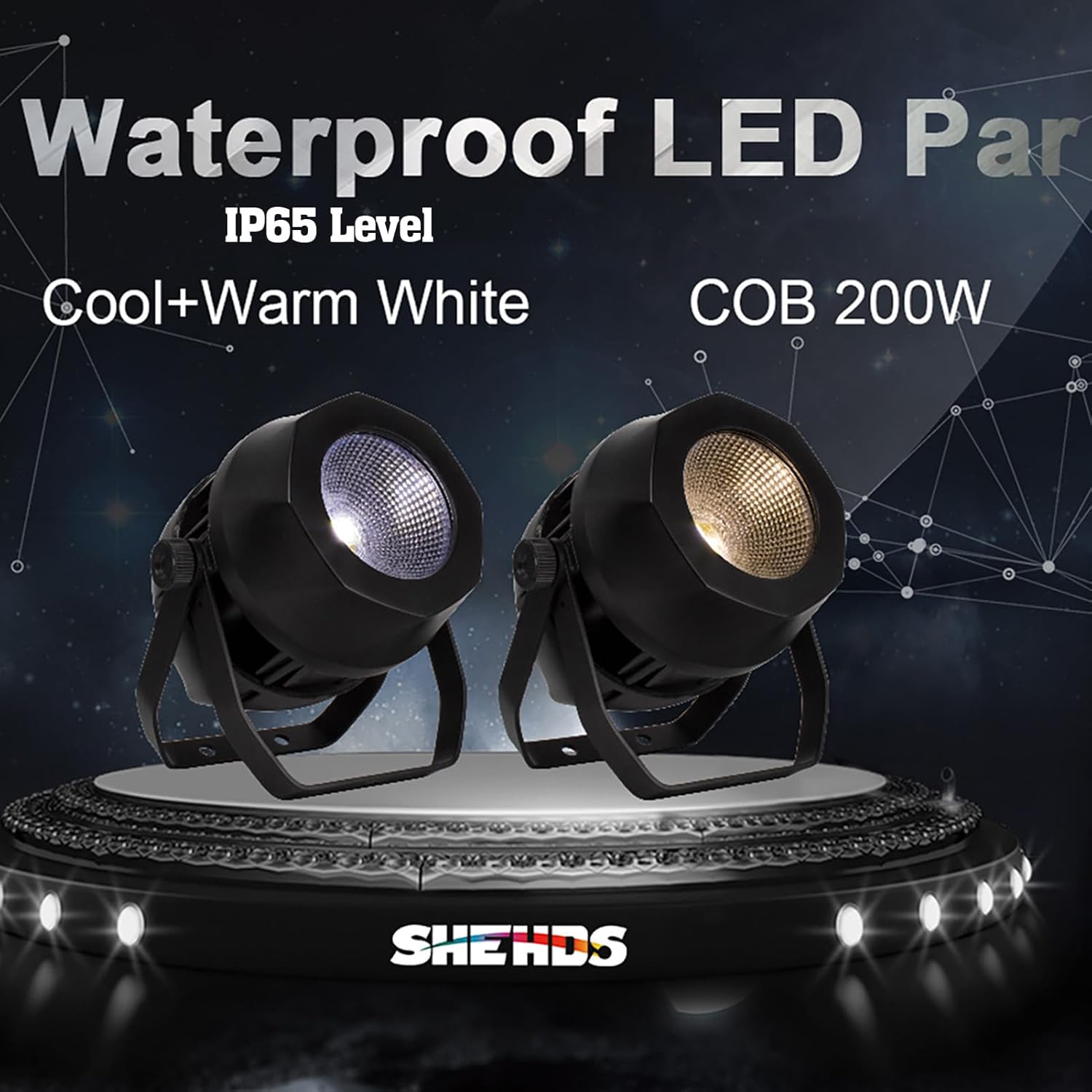

Irudia: Aurrealdea view of the SHEHDS 200W COB Par Light, illustrating its cool and warm white capabilities and IP65 rating.

Image: Close-up of the light's waterproof design and rear control panel.

5. Konfigurazioa eta instalazioa

The SHEHDS 200W COB Par Light is designed for flexible installation. Always ensure the fixture is securely mounted to prevent accidents.

5.1 Muntatzeko aukerak

• Lurrean muntaia: The integrated dual mounting brackets allow the light to be placed directly on a flat surface. Adjust the angle using the durable knobs on the sides.
• Ceiling/Truss Mount: The flexible dual mounting brackets can also be used to hang the fixture from a ceiling or truss system. Ensure appropriate clamps and safety cables (not included) are used and rated for the fixture's weight (approximately 10.78 lbs / 5.05 kg).

5.2 Energia-konexioa

Connect the provided power cord to the fixture's power input and then to a suitable grounded power outlet. Ensure the power source meets the fixture's electrical requirements.

5.3 DMX konexioa (aukerakoa)

For DMX control, connect a DMX signal line from your DMX controller to the DMX IN port of the fixture. For multiple fixtures, daisy-chain them by connecting the DMX OUT of the first fixture to the DMX IN of the next, and so on. The fixture uses waterproof DMX connectors; ensure you use compatible cables or adapters.

Image: Dimensions and weight of the SHEHDS 200W COB Par Light.

6. Funtzionamendu-argibideak

The SHEHDS 200W COB Par Light can be operated via its onboard control panel or an external DMX controller.

6.1 Onboard Control Panel

The back control panel features a digital display and buttons to navigate menus and adjust settings. Press the 'Menu' button to cycle through options, 'Up'/'Down' to change values, and 'Enter' or 'OK' to confirm. Specific modes and settings include:

• DMX helbidearen ezarpena: Set the DMX starting address for external control. Once set and confirmed, the address is preserved even after power cycling.
• Manual Dimmer: Adjust the light intensity from 0-100%.
• Estrobo efektua: Activate and adjust the flash rate from 0-10Hz.
• Kolore aukeraketa: Switch between Cool White (4500K) and Warm White (3500K) modes.

Irudia: Adibamples of warm white and cool white lighting effects.

Image: Direct comparison of warm white and cool white output.

7. DMX Kontrola

The SHEHDS 200W COB Par Light is compatible with DMX512 protocol, allowing for professional control over its functions.

7.1 DMX Channel Assignment

Refer to the specific DMX channel chart provided with your fixture for detailed channel assignments. Typically, channels will control:

• 1 kanala: Dimmer maisua (% 0-100)
• 2 kanala: Intentsitate Zuri Hotza
• 3 kanala: Intentsitate Zuri Beroa
• 4 kanala: Strobe Speed (0-10Hz)

Consult the fixture's display for the current DMX address and mode settings. Ensure your DMX controller is configured to match the fixture's address and channel mode.

8. Mantentzea

Regular maintenance ensures optimal performance and extends the lifespan of your SHEHDS 200W COB Par Light.

• Garbiketa: Periodically clean the lens and exterior housing with a soft, lint-free cloth. Do not use abrasive cleaners or solvents.
• Ikuskapena: Regularly check power and signal cables for any signs of damage. Ensure all mounting hardware is secure.
• Biltegiratzea: Erabiltzen ez duzunean, gorde gailua leku lehor eta hautsik gabeko batean.

9. Arazoak

If you encounter issues with your SHEHDS 200W COB Par Light, refer to the following common problems and solutions:

10. Zehaztapenak

Technical specifications for the SHEHDS 200W COB Par Light (Model: 200W_IP65).

11. Bermea eta Laguntza

SHEHDS products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the contact information provided at the point of purchase or visit the official SHEHDS webgunea. Gorde erosketa-agiria erosketaren frogagiri gisa berme-erreklamazioetarako.
