Sarrera
The RSHTECH 4-Port USB C 3.2 Gen 2 Hub (Model RSH-RX05) is a compact and portable device designed to expand the connectivity of your USB-C enabled devices. It converts a single USB-C port into two USB-C 3.2 data ports and two USB-A 3.2 data ports, facilitating high-speed data transfer for various peripherals. This manual provides essential information for setting up, operating, and maintaining your USB hub.
Produktuaren Ezaugarriak
- 4-Port USB C Hub Adapter: Expands a single USB-C port into 2 USB-C 3.2 and 2 USB-A 3.2 data ports.
- SuperSpeed USB 10Gbps: Data transfer rates up to 10Gbps, significantly faster than older USB standards. Ideal for large file transferentziak.
- Bateragarritasun zabala: Compatible with MacBook Pro/Air, iPad Pro, Surface Pro, Huawei Matebook, Dell, HP, Lenovo, and other USB-C/USB 4.0/Thunderbolt 3/4 devices. Supports Windows, Mac OS, Linux, Chrome OS, iPad OS, and Android operating systems.
- OTG euskarria: Enables tablets or smartphones to act as hosts, allowing connections to other USB devices like digital cameras, hard drives, mice, or keyboards.

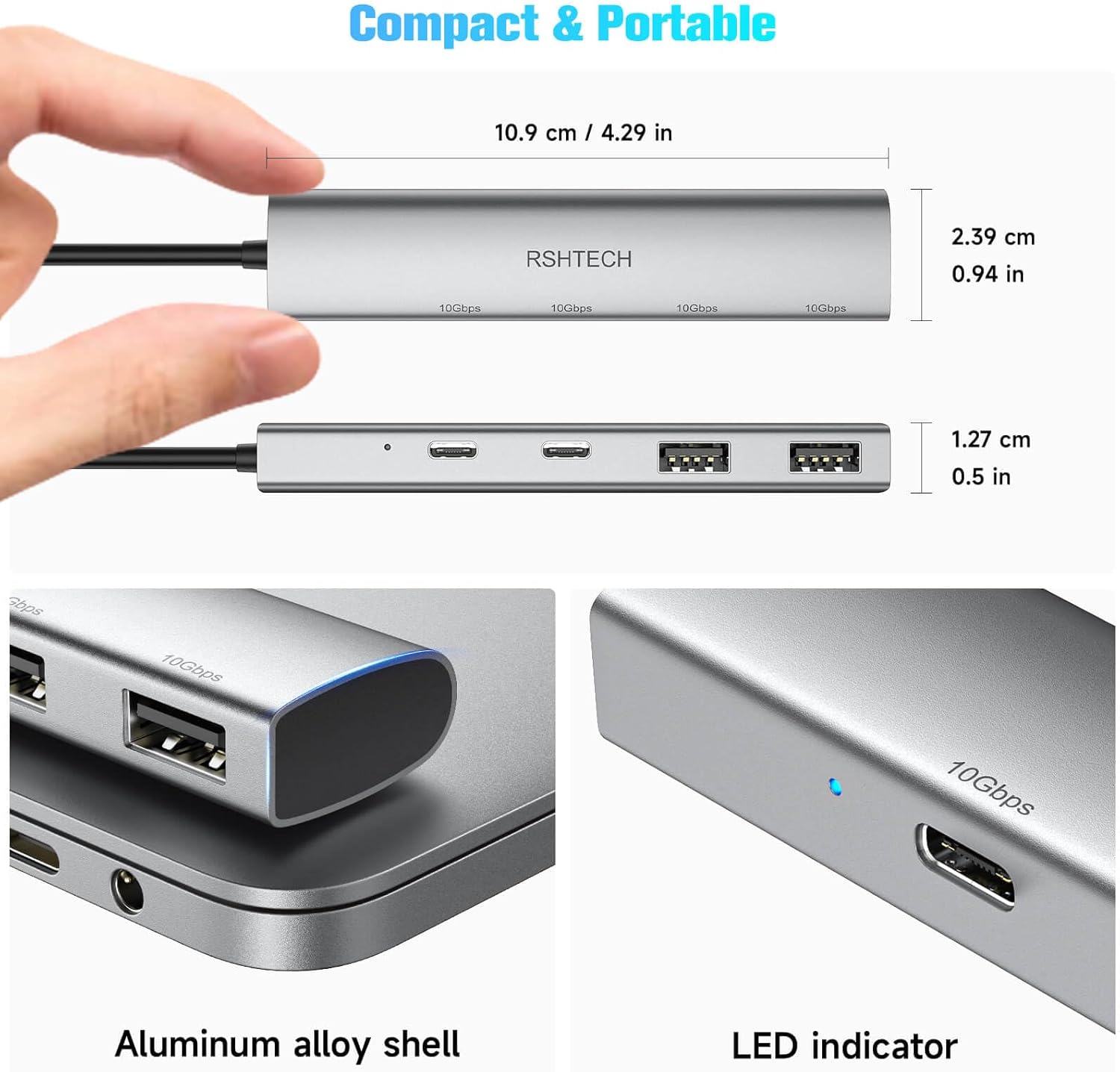

- Trinkoa eta eramangarria: Measures only 4.3 x 0.9 x 0.5 inches, making it easy to carry in a backpack, pocket, or computer bag.
- Premium Aluminum Housing: Designed for good heat dissipation performance and durability.
Konfigurazioa eta Instalazioa
The RSHTECH USB C Hub is designed for simple plug-and-play operation, requiring no additional drivers for most operating systems.
- Konektatu hub-a: Plug the integrated USB-C cable of the hub directly into an available USB-C port on your host device (laptop, tablet, smartphone, etc.).
- Konektatu periferikoak: Insert your USB-C or USB-A devices (e.g., hard drives, flash drives, mice, keyboards) into the corresponding ports on the hub.
- Aitorpen automatikoa: Your operating system should automatically detect the connected hub and its peripherals.
Funtzionamendu-argibideak
Once connected, the RSHTECH USB C Hub functions as a data expansion device for your compatible host system.

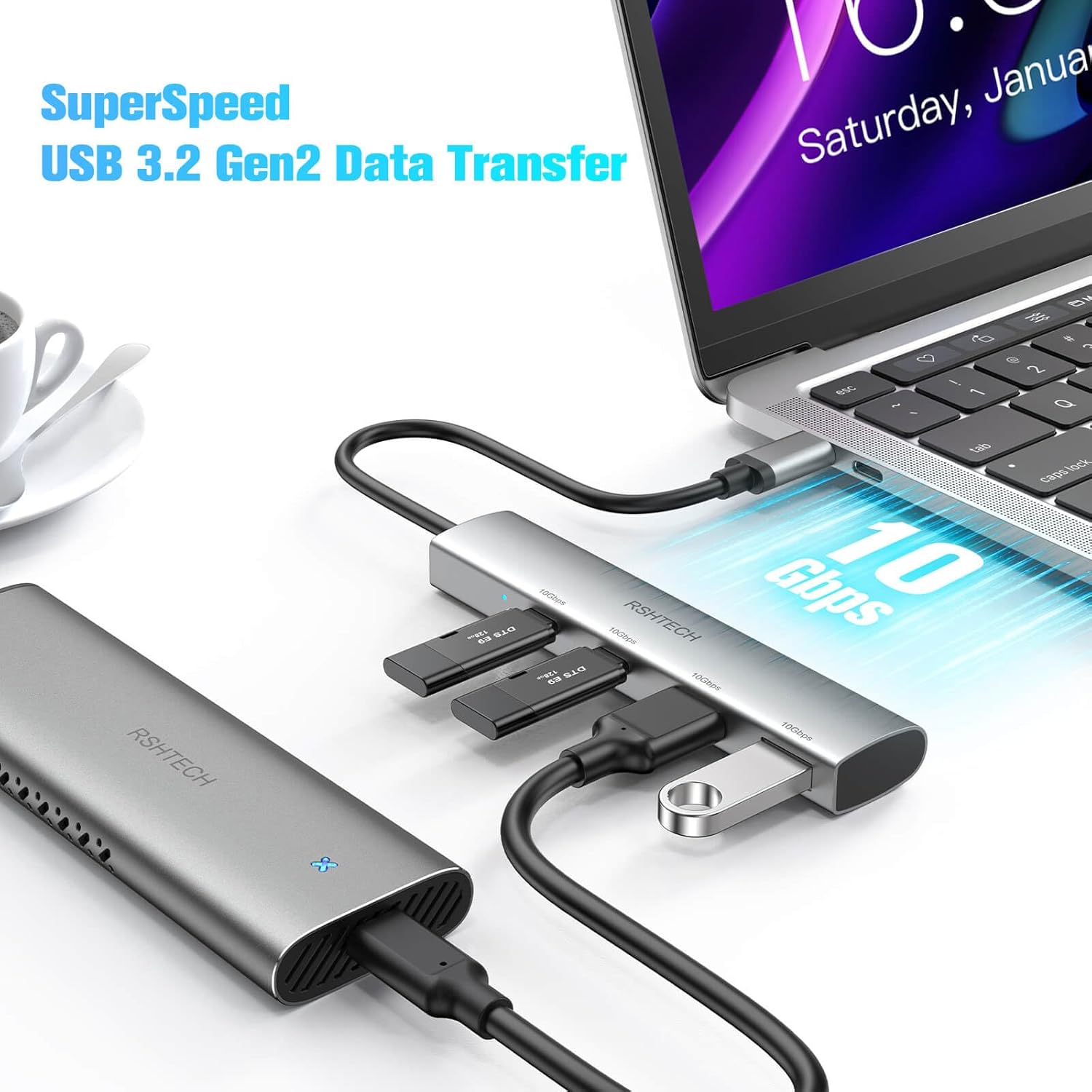

- Datuen transferentzia: Utilize the 10Gbps USB-C and USB-A ports to transfer files between your host device and connected storage devices at high speeds.
- Konektibitate periferikoa: Connect various USB peripherals such as mice, keyboards, and card readers for extended functionality.
- OTG funtzionaltasuna: For devices supporting USB On-The-Go (OTG), the hub allows direct connection and interaction with USB peripherals without needing a computer as an intermediary.
Ohar garrantzitsuak
Please be aware of the following limitations and characteristics of the RSHTECH 4-Port USB C 3.2 Gen 2 Hub:

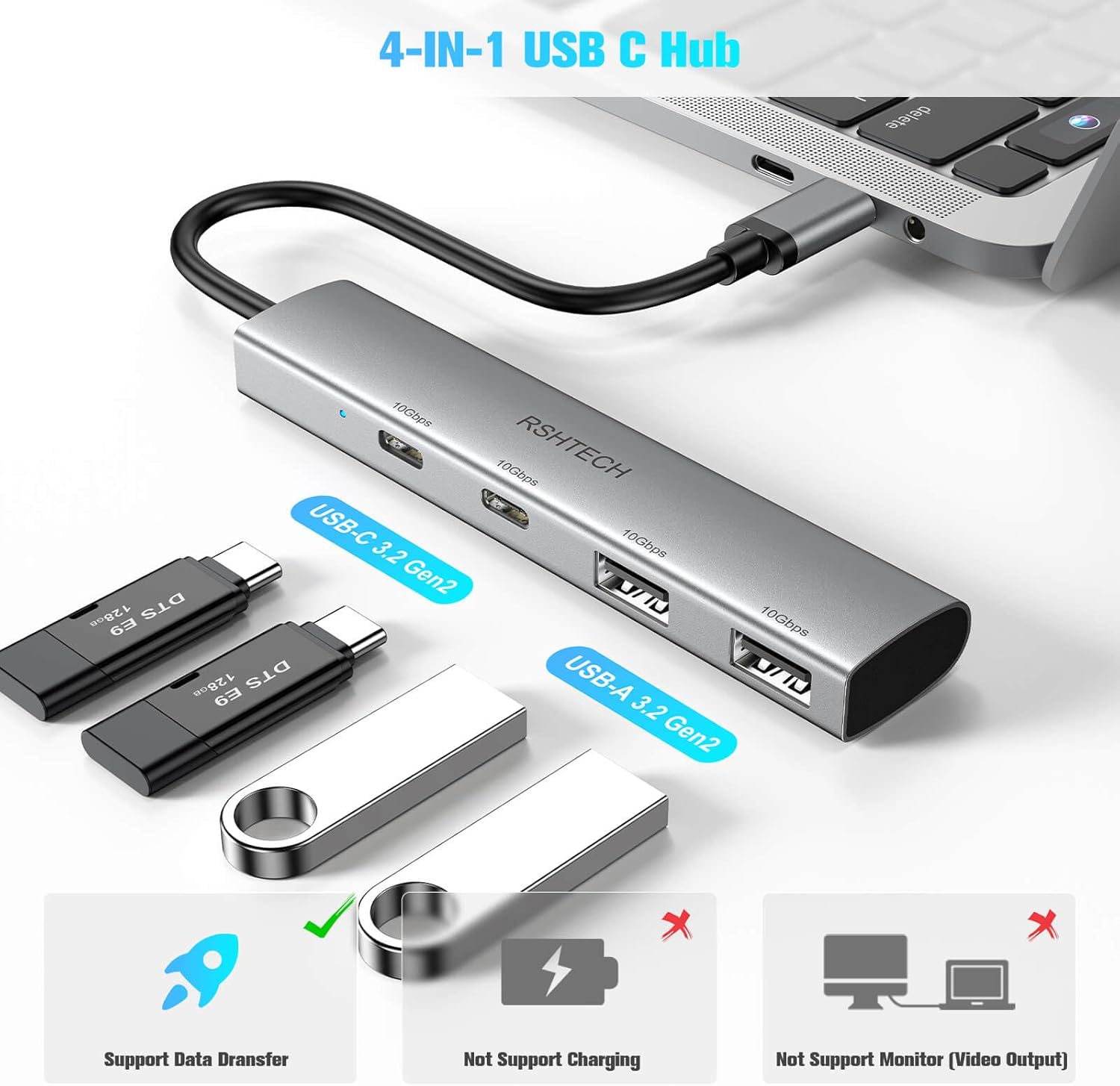

- Data Transfer Only: This USB hub is designed exclusively for data transfer. It does not support charging of host devices or connected peripherals.
- Bideo-irteerarik ez: Huba does not support video streaming or display output (e.g., HDMI, DisplayPort).
- Potentzia-eskakizunak: For optimal performance, especially when connecting multiple high-power devices, ensure your host device can provide sufficient power (minimum 5V3A).
Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Produktuaren neurriak | 4.3 x 0.9 x 0.5 hazbete |
| Elementuaren pisua | 1.76 ontza |
| Marka | RSHTECH |
| Kolorea | Grisa |
| Hardware interfazea | USB, USB C mota |
| Ezaugarri Berezia | Plug and Play, Portable, SuperSpeed USB 10Gbps |
| Gailu bateragarriak | Card Readers, Hard Disk Drive, Laptops, Smartphones, USB Flash Drives |
Mantentzea eta zaintzea
To ensure the longevity and optimal performance of your RSHTECH USB C Hub, follow these simple maintenance guidelines:
- Mantendu garbi: Gently wipe the hub with a soft, dry cloth to remove dust or smudges. Avoid using liquid cleaners or abrasive materials.
- Babestu kalteetatik: The aluminum housing is durable, but avoid dropping the device or exposing it to excessive force.
- Ingurune optimoa: Use the hub in a dry environment and avoid extreme temperatures.
- Kableen zainketa: Do not bend or twist the integrated USB-C cable excessively to prevent internal damage.
Arazoak konpontzea
If you encounter issues with your RSHTECH USB C Hub, consider the following:
- Ez da gailua ezagutzen: Ensure the hub's USB-C connector is fully inserted into your host device. Try connecting to a different USB-C port on your host device if available.
- Datuen transferentzia motela: While the hub supports 10Gbps, actual speeds depend on the connected devices and the host port. Connecting multiple high-speed devices simultaneously may distribute the available bandwidth, potentially reducing individual device speeds. Ensure your cables and connected devices also support USB 3.2 Gen 2 speeds.
- Energia-arazoak: This hub is for data transfer only and does not provide power delivery for charging. If a connected device requires external power, ensure it has its own power source. Some host devices may not provide enough power for multiple high-power peripherals through the hub (minimum 5V3A recommended for the host port).
- Bideo-irteerarik ez: This hub does not support video output. If you require video display, please use a hub specifically designed for that purpose.
Bermea eta Laguntza
The RSHTECH 4-Port USB C 3.2 Gen 2 Hub comes with an 18 hilabeteko bermea erosketa-datatik aurrera.
For technical support, warranty claims, or any inquiries regarding your product, please contact RSHTECH customer service through the retailer's platform or visit the official RSHTECH webharremanetarako informazioa lortzeko gunea.
