Nashi Ovian SE Smart Japanese Toilet User Manual

1. Sarrera

Figure 1.1: Nashi Ovian SE Smart Japanese Toilet. This image shows the complete smart toilet unit, highlighting its sleek design and the accompanying remote control for comprehensive functionality.

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Nashi Ovian SE Smart Japanese Toilet. Please read this manual thoroughly before installation and use to ensure proper function and safety.

The Nashi Ovian SE is an advanced smart toilet designed to enhance personal hygiene and comfort with features such as water washing, drying, heated seat, automatic lid opening, and self-cleaning functions.

2. Segurtasun informazioa

Beti jarraitu segurtasun neurri hauek produktuari lesioak edo kalteak saihesteko:

• Ensure the product is installed by a qualified professional in accordance with local plumbing and electrical codes.
• Ez murgildu produktua uretan eta ez bota ura zuzenean osagai elektrikoen gainean.
• Ez saiatu unitatea zeuk desmuntatzen edo konpontzen. Jarri harremanetan zerbitzu-langile kualifikatuekin laguntza jasotzeko.
• Keep children and individuals with reduced physical, sensory, or mental capabilities under supervision when using the product.
• Use only cold water supply for connection.
• Ensure the electrical outlet is properly grounded and matches the product's voltage eskakizunak (220V).

3. Produktuaren ezaugarriak

The Nashi Ovian SE Smart Japanese Toilet offers a range of advanced features for optimal hygiene and comfort:

• Washing and Drying Function: Instantaneous heated water jet with 5 pressure levels and 4 temperature levels. Air drying with 5 temperature levels. Control via remote or side multifunction button. Includes a washable metallic filter for maximum hygiene.
• Durable and Quality Materials: Constructed from antibacterial ceramic and high-quality, highly resistant ABS. Features IPX7 water protection.
• Automatic Washing and UV Sterilization: Retractable stainless steel nozzle with a UV light head for sterilization when the lid is closed. Includes a dense anti-splash foam device. The nozzle has 5 positions and an oscillating movement for better water distribution and cleaning.
• Heated Seat and Built-in Deodorizer: Heated seat with 4 temperature levels and an occupancy sensor. Integrated bamboo charcoal deodorizer eliminates odors.
• Maximum Autonomy: The integrated bidet promotes hygiene for all family members, including children and the elderly. Both the seat and lid feature soft-close functionality.
• Contactless Technology and Cyclonic System: Automatic lid and seat opening/closing, and a silent automatic flush system. The innovative cyclonic system and Rimless technology improve toilet cleaning, ensuring clean, efficient, and ecological water evacuation without splashes.

3.1. irudia: Ezaugarri nagusiakview. This image illustrates the heated seat with adjustable heating, the multifunction control for easy access to washing, drying, and bidet functions, the automatic opening and closing sensor for the lid, and the innovative anti-splash foam barrier for cleanliness.

Figure 3.2: Nozzle Functions. This diagram highlights the various functions of the retractable nozzle, including hot air drying, dedicated streams for anal and feminine washing, UV sterilization for hygiene, and its self-cleaning capability.

Figure 3.3: User Benefits. This graphic illustrates the advantages of using the smart toilet, such as improved intimate hygiene, better daily cleanliness, skin care benefits, enhanced independence for users, reduced reliance on toilet paper, and potential relief for hemorrhoid sufferers.

4. Konfigurazioa eta instalazioa

The Nashi Ovian SE toilet requires a cold water inlet and an electrical outlet for proper operation. This model is designed for wall outlet drainage.

4.1 Instalazio aurreko kontrol-zerrenda

• Verify that the installation area has a cold water supply line.
• Confirm the presence of a grounded 220V electrical outlet (Type F plug) within 1.5 meters of the installation point.
• Ensure the wall drainage outlet is correctly positioned.
• Bildu beharrezko tresnak (ez daude barne).

4.2 Dimentsioak eta konexioak

Refer to the diagrams below for precise measurements and connection points. The toilet measures approximately 58 cm (length) x 38 cm (width) x 45 cm (height).

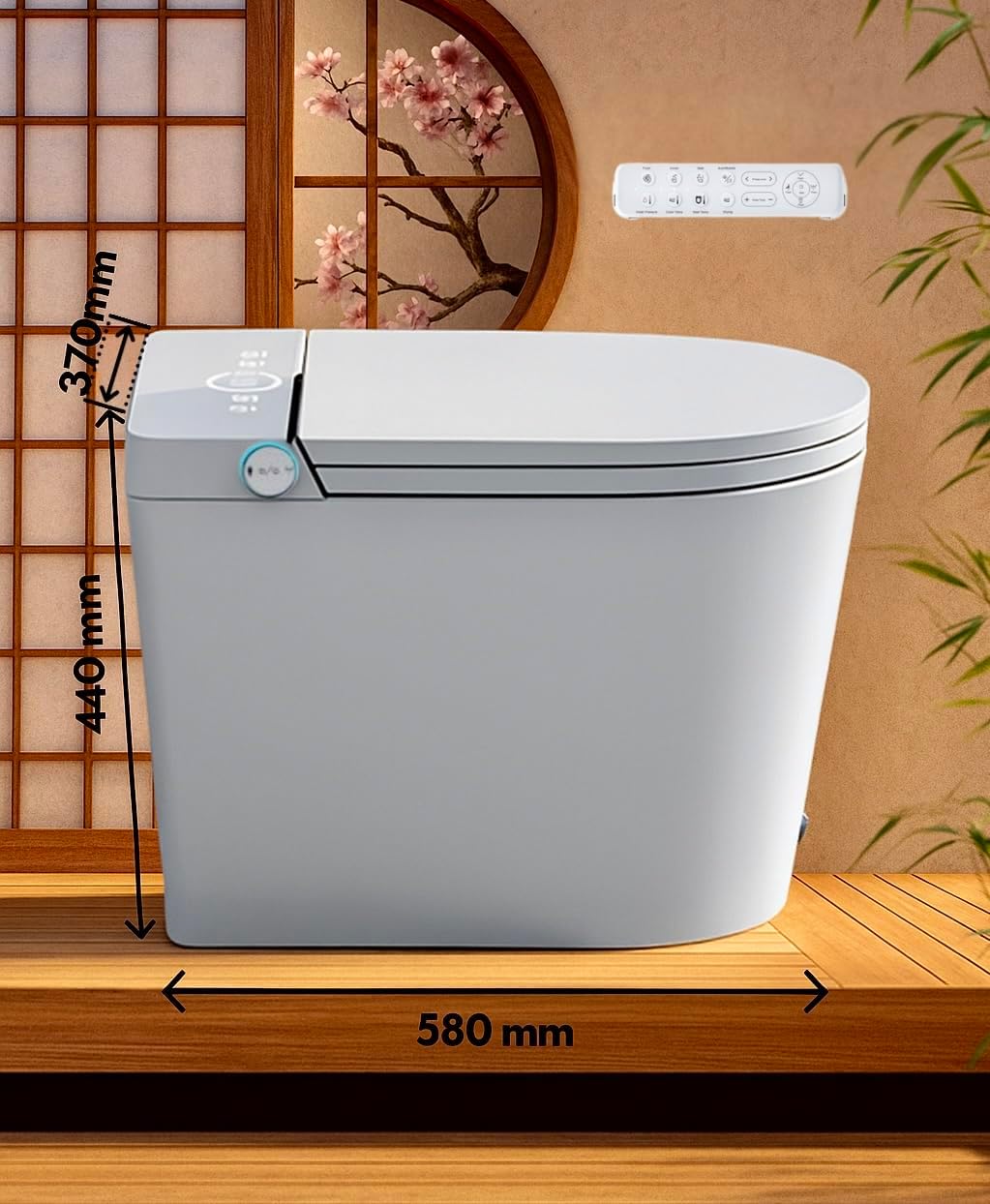

4.1 irudia: Produktuaren neurriak. This image provides key measurements of the toilet, including its overall length of 580 mm, height to the seat of 440 mm, and total height to the top of the lid of 370 mm (likely referring to the lid's height from the seat, or total height from floor to top of lid is 450mm as per specs).

Figure 4.2: Wall Outlet Installation Diagram. This diagram illustrates the recommended positioning for the water inlet, electrical outlet, and wall drainage for the Ovian SE model with a wall outlet. It shows distances such as 25 cm from the center axis to the side for electrical and water connections, and 18 cm from the floor to the center of the drainage pipe (10.2 cm diameter).

4.3 Instalazio Urratsak (Orokorra)

1. Position the toilet according to the dimensions and connection requirements.
2. Connect the cold water supply hose (51 cm length provided) to the toilet and the water inlet.
3. Connect the drainage pipe to the wall outlet.
4. Plug the power cable (approx. 1.5 m) into the grounded electrical outlet.
5. Test all functions to ensure proper operation and check for leaks.

Oharra: Professional installation is highly recommended. The product does not include installation services from Nashi certified installers.

5. Funtzionamendu-argibideak

The Nashi Ovian SE can be operated via the included remote control or the side multifunction button.

5.1 Urruneko kontrolaren funtzioak

The remote control provides full access to all features. Familiarize yourself with the button layout:

5.1. irudia: Urrutiko agintearen diseinua. This image displays the remote control with clear labels for each function, including flushing, lid and seat control, foam activation, energy-saving mode, water pressure adjustment, dryer and seat temperature settings, drying mode, water temperature control, nozzle positioning, massage function, stop button, light control, and dedicated buttons for feminine and anal wash.

• Hustu: Activates the toilet flush.
• Open/Close Cover: Controls the automatic lid opening and closing.
• Open/Close Seat: Controls the automatic seat opening and closing.
• Foam (Auto/Bubble): Activates the anti-splash foam.
• Energy-save: Energia aurrezteko modua aktibatzen du.
• Uraren presioa: Adjusts the water jet pressure (5 levels).
• Dryer Temp: Adjusts the air drying temperature (5 levels).
• Eserlekuaren tenperatura: Berogailudun eserlekuaren tenperatura doitzen du (4 maila).
• Drying (ECO): Activates the drying function.
• Water Temp (+/-): Adjusts the water temperature (4 levels).
• Toberaren posizioa: Adjusts the position of the bidet nozzle (5 positions).
• Masajea: Activates the oscillating massage function of the nozzle.
• Gelditu: Stops all active functions (wash, dry, etc.).
• Argia: Controls the courtesy LED lights.
• Emakumezkoen garbiketa: Activates the feminine wash function.
• Anal Wash: Activates the anal wash function.

5.2 Side Multifunction Button

A single button on the side of the toilet provides quick access to primary functions. Consult the product for specific button presses and their corresponding actions (e.g., short press for wash, long press for dry).

6. Mantentzea

Regular maintenance ensures the longevity and hygienic operation of your Nashi Ovian SE toilet.

6.1 Tobera garbitzea

The stainless steel nozzle has a self-cleaning function. Additionally, it is recommended to periodically clean the nozzle manually with a soft brush and mild soap. Ensure the nozzle is retracted before manual cleaning.

6.2 Iragazkia garbitzea

The metallic filter should be removed and cleaned regularly to maintain optimal water flow and hygiene. Refer to the product diagram for filter location and removal instructions.

6.3 Garbiketa orokorra

• Use a soft cloth and mild, non-abrasive cleaning agents for the ceramic and ABS surfaces.
• Ez erabili produktu kimiko gogorrik, garbitzaile urratzailerik edo urratzailerik, hauek akabera kaltetu baitezakete.
• Wipe down the exterior surfaces regularly to prevent dirt and grime buildup.
• Ensure no water enters the electrical components during cleaning.

7. Arazoak

If you encounter issues with your Nashi Ovian SE toilet, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact Nashi customer support for further assistance.

8. Zehaztapenak

9. Bermea eta Laguntza

Bermeari buruzko informazioa eta bezeroarentzako laguntza lortzeko, kontsultatu erosketarekin batera emandako dokumentazioa edo bisitatu Nashiren webgune ofiziala. webgunea. Gorde erosketaren egiaztagiria bermearen erreklamazioetarako.

If you require technical assistance or have questions regarding your Nashi Ovian SE Smart Japanese Toilet, please contact Nashi customer service.
