Diyeeni 1080P Hirukoitz Lenteko Autoaren Arbeleko Kamera Erabiltzailearen Eskuliburua

1. Sarrera

Thank you for choosing the Diyeeni 1080P Triple Lens Car Dashboard Camera. This manual provides essential information for the proper installation, operation, and maintenance of your device. Please read it thoroughly before use to ensure optimal performance and safety.

2. Produktua amaitu daview

Ezaugarri nagusiak:

• 1080P High Definition Recording: Captures clear video with a wide-angle lens.
• Triple Lens Design: Monitors the front, rear, and interior of the vehicle simultaneously.
• 2 hazbeteko pantaila: Provides clear playback and supports automatic rear view aldatzea.
• Gaueko Ikusmen Teknologia: Records clear videos in low-light conditions.
• 24 orduko aparkaleku modua: Automatically records in case of collision or proximity detection when parked.
• Mugimendu-detekzioa: Initiates recording upon detecting movement.
• Loop grabaketa: Janaririk zaharrena gainidazten dutage memoria txartela beteta dagoenean.
• Supports up to 32GB Memory Card: (Memory card not included).

Paketearen edukia:

• 1 x Diyeeni Car Dashboard Camera Unit
• 1 x Power Cord (Car Cigarette Lighter Interface)
• 1 x Argibide eskuliburua
• 1 x Atzeko kamera
• 2 x Torlojuak
• 1 x License Plate Sticker
• 1 x Connecting Bracket

Produktuaren osagaiak:

2.1. irudia: Aurrealdea view of the Diyeeni Triple Lens Car Dashboard Camera, showing the main unit with its display screen and front-facing lens.

2.2 irudia: Gertuko planoa view of the main camera lens, indicating 'WIDE ANGLE LENS F/2.0 1080P FOV 130'.

2.3 irudia: Albokoa view of the dash camera, highlighting the control buttons: OK, M (Menu), Up, Down, and Power.

Image 2.4: The compact rear camera unit with its connecting cable.

Image 2.5: All components included in the package: the dash cam, power cord, rear camera, screws, and bracket.

3. Konfigurazioa eta instalazioa

3.1 Memoria txartelaren instalazioa

1. Ensure the dash camera is powered off.
2. Locate the memory card slot on the side of the device.
3. Insert a compatible Micro SD card (Class 10 or higher, up to 32GB, not included) into the slot until it clicks into place.
4. Txartela astiro-astiro ateratzeko, atera arte bultzatu.

3.2 Unitate Nagusiaren Instalazioa

1. Garbitu kamera muntatu nahi duzun haizetakoaren eremua.
2. Attach the connecting bracket to the dash camera.
3. Securely mount the dash camera to the windshield using the bracket, ensuring it does not obstruct your view.
4. Adjust the camera angle to capture the desired view aurretik dagoen errepidearena.

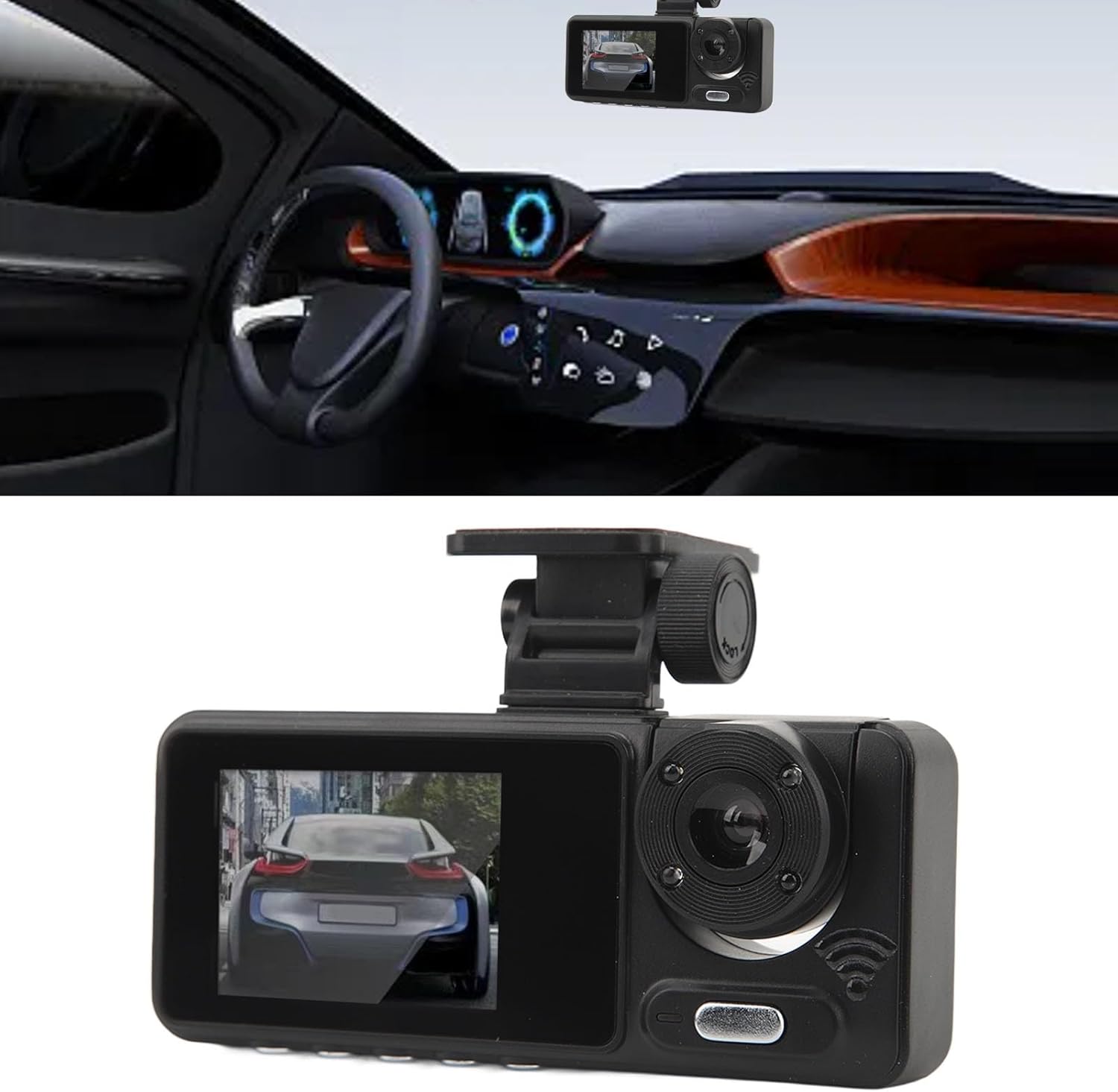

Image 3.1: The dash camera mounted on the windshield, positioned to capture the road ahead and the vehicle's interior.

3.3 Atzeko kameraren instalazioa

1. Mount the rear camera at the back of your vehicle, typically above the license plate or on the rear window.
2. Use the provided screws or adhesive to secure it.
3. Route the rear camera cable to the main dash camera unit, ensuring it does not interfere with vehicle operations.
4. Connect the rear camera cable to the designated port on the main dash camera.

3.4 Energia-konexioa

1. Connect the power cord to the dash camera's power input port.
2. Plug the other end of the power cord into your car's cigarette lighter interface.
3. The camera will typically power on automatically when the vehicle starts and power off when the engine is turned off.

4. Funtzionamendu-argibideak

4.1 Oinarrizko grabaketa

Once powered on, the dash camera will automatically begin loop recording. Video segments are saved to the memory card. When the card is full, the oldest unlocked files grabazio berriek gainidatziko dituzte.

4.2 Mugimendu-detekzioa

To activate Motion Detection, access the camera's menu settings. When enabled, the camera will automatically start recording if it detects movement in front of the vehicle while parked. This feature helps capture incidents when the vehicle is unattended.

4.3 Aparkaleku monitorea

The 24-hour Parking Mode automatically switches to parking mode when the car is turned off. In this mode, the camera will record a 30-second video clip if it detects a collision or someone approaching the front of the car. This provides continuous surveillance for your parked vehicle.

4.4 Gaueko ikusmena

The camera is equipped with advanced night vision technology, allowing it to record clear videos even in low-light conditions, enhancing visibility and detail during nighttime driving or parking.

4.5 Display and Menu Navigation

Use the 2-inch color display to view bizi footage, playback recorded videos, and access the camera's settings menu. Navigate through the menu options using the physical buttons (OK, M, Up, Down) located on the device.

4.6 App Connectivity (for 6Frametech)

The device supports connectivity with the 'for 6Frametech' app. Refer to the app's instructions for pairing and utilizing features such as live view, video download, and settings adjustment via your smartphone.

5. Mantentzea

5.1 Garbiketa

• Gently wipe the camera lens and screen with a soft, lint-free cloth.
• Saihestu gailua kaltetu dezaketen garbitzaile urratzaileak edo disolbatzaileak erabiltzea.

5.2 Memoria Txartelaren Kudeaketa

• Regularly format the memory card (at least once a month) within the camera's settings to ensure optimal performance and prevent data corruption.
• Egin bideo garrantzitsuen babeskopia files to another storage device before formatting.

6. Arazoak

Ohiko arazoak eta irtenbideak:

• Kamera ez da pizten: Check the power connection to the cigarette lighter. Ensure the vehicle's ignition is on.
• Grabaketa ustekabean gelditzen da: Ensure the memory card is properly inserted and not full. Format the memory card. Use a high-quality Class 10 or higher Micro SD card.
• Bideoaren kalitate eskasa: Clean the camera lens. Ensure the protective film has been removed from the lens. Check settings for video resolution.
• Pantaila izoztuta edo ez du erantzuten: Press and hold the power button to restart the device. If issues persist, use a small pin to press the reset button (if available).
• Atzeko kamerak ez du erakusten: Check the connection of the rear camera cable to the main unit. Ensure the rear camera is properly installed.

7. Zehaztapenak

8. Bermea eta Laguntza

For any questions, technical assistance, or warranty claims, please contact Diyeeni customer support through your purchase platform. Please have your model number (Diyeeni56vmx0gnu1) and purchase details ready when contacting support.
