1. Sarrera
This manual provides essential instructions for the safe installation, operation, and maintenance of your perfektGarten 53.5 cm mower blade set. These blades are designed as replacement parts for various ride-on mower models, ensuring efficient cutting performance.
Each set includes two 53.5 cm blades, contributing to a total cutting width of 1070 mm (42 inches). The blades feature a specific geometry optimized for effective grass collection or side ejection, depending on your mower's configuration.
Bateragarritasuna: MTD, Bolens, Columbia, Efco, Gutbrod, Oleo-Mac, Wolf, Yard Man ride-on mowers.
Pieza zenbakiak ordezkatzen ditu: 742-0616 / 942-0616.
2. Segurtasun informazioa
Always prioritize safety when handling mower blades. Failure to follow these safety guidelines can result in serious injury.
- Deskonektatu energia: Before performing any work on the mower, ensure the engine is off, the spark plug wire is disconnected, and the ignition key is removed (if applicable).
- Babes-ekipoak jantzi: Always wear heavy-duty work gloves and eye protection when handling or working near mower blades. Blades are sharp and can cause severe cuts.
- Azalera egonkorra: Ensure the mower is on a flat, stable surface and properly supported before lifting or tilting it.
- Palaren egoera: Never operate a mower with bent, cracked, or excessively worn blades. Replace damaged blades immediately.
- Haurrak eta ingurukoak: Mantendu haurrak eta ingurukoak lan-eremutik urrun.
3. Konfigurazioa eta instalazioa
Follow these steps carefully to install your new mower blades.
- Prestatu sega-makina: Ensure the mower is turned off, the spark plug wire is disconnected, and the ignition key is removed. Allow the engine to cool if it has been running.
- Sega-makinaren segurtasuna: Lift the front of the mower and secure it with jack stands or sturdy blocks to prevent it from falling. Ensure the mower deck is accessible.
- Pala zaharrak kendu: Using a wrench, loosen the blade retaining bolt(s) that hold the old blade(s) in place. You may need a block of wood to prevent the blade from turning while loosening the bolt. Remove the old blade(s) and any washers or spacers, noting their orientation.
- Inspect Spindle: Clean any grass or debris from the blade spindle and mounting area. Inspect the spindle for damage or wear.
- Pala berriak instalatu: Place the new perfektGarten blade onto the spindle, ensuring the correct orientation. The cutting edge should face towards the direction of rotation (usually upwards when viewed from below). The center hole of the blade is a 6-arm star shape, designed to fit specific mower spindles.
Image 1: perfektGarten 53.5 cm Mower Blade. Note the cutting edge and star-shaped center hole.

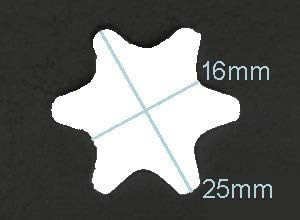

2 irudia: Xehetasun zehatza view of the 6-arm star center hole, measuring approximately 16mm x 25mm.
- Torlojuak estutu: Reinstall the blade retaining bolt(s) and washers. Tighten the bolt(s) securely using a torque wrench to the manufacturer's specified torque setting for your mower model. Refer to your mower's owner's manual for the correct torque specifications. Overtightening or undertightening can be dangerous.
- Lower Mower: Carefully lower the mower to the ground.
- Berriro konektatu energia: Konektatu berriro bujiaren haria.
4. Funtzionamendu-jarraibideak
While these blades are designed for optimal performance, proper operating practices are crucial for safety and longevity.
- Garbitu hondakinak: Before mowing, clear the area of any rocks, sticks, wires, or other debris that could damage the blades or be thrown by them.
- Ebaketa-altuera doitzea: Set your mower's cutting height appropriately for the grass type and conditions. Avoid cutting more than one-third of the grass blade length at a time.
- Saihestu oztopoak: Exercise caution around fixed objects like trees, fences, and garden beds to prevent blade impact.
- Pala lotzea: Engage the blades only when the engine is running at the recommended RPM and the mower is in a clear area.
5. Mantentzea
Regular maintenance extends the life of your blades and ensures consistent cutting quality.
- Ohiko ikuskapena: After each use, inspect the blades for nicks, bends, cracks, or excessive wear. Replace blades that show signs of significant damage.
- Garbiketa: Clean grass clippings and debris from the blades and underside of the mower deck regularly. This prevents rust and maintains balance.
- Zorroztea: Blades should be sharpened periodically to maintain a clean cut. Dull blades tear grass, leading to an unhealthy lawn. Sharpening can be done professionally or carefully at home using a file or grinder. Ensure the blade's original angle is maintained.
- Orekatzea: After sharpening, it is crucial to balance the blades. An unbalanced blade can cause excessive vibration, damage to the mower, and an uneven cut. Use a blade balancer tool to ensure even weight distribution.
- Ordezkoa: Even with proper maintenance, blades will eventually wear out. The manufacturer states these blades are designed for a minimum of 3 seasons of use. Replace blades when they become too worn, bent, or damaged to be safely sharpened or balanced.
6. Arazoak
This section addresses common issues related to mower blade performance.
- Poor Cut Quality (Ragged Edges):
- Kausa: Pala oparoak.
- Irtenbidea: Zorroztu edo ordeztu xaflak.
- Kausa: Incorrect blade installation (e.g., upside down).
- Irtenbidea: Reinstall blades with the cutting edge facing the correct direction.
- Excessive Mower Vibration:
- Kausa: Unbalanced blades (after sharpening or due to impact).
- Irtenbidea: Balance the blades using a blade balancer tool.
- Kausa: Pala tolestuta edo hondatuta.
- Irtenbidea: Replace the damaged blade.
- Kausa: Loose blade retaining bolt.
- Irtenbidea: Tighten the blade bolt to the manufacturer's specified torque.
- Poor Grass Discharge/Clogging:
- Kausa: Pala oparoak.
- Irtenbidea: Zorroztu edo ordeztu xaflak.
- Kausa: Wet or excessively long grass.
- Irtenbidea: Mow when grass is dry and cut in smaller increments.
7. Zehaztapenak
- Blade Length (L): 535 mm (each blade)
- Total Cutting Width: 1070 mm (42 inches) for a set of two blades
- Center Hole (ZB): 6-arm star (approx. 16mm x 25mm)
- Outer Hole (AL): 8 mm
- Distance between Center and Center of Outer Bore (AB): 63.5 mm
- Blade Width (B): 74 mm
- Pala lodiera: 3.7 mm
- Materiala: Certified steel (50CrV4), hardened (45HRC)
- Produktuaren neurriak (L x W x H): 53.5 x 5 x 3 cm (per blade)
- Modelo zenbakia: 046 X 2
- Replaces OEM Part Numbers: 742-0616 / 942-0616
Image 3: Diagram illustrating key blade dimensions: L (Length), ZB (Center Hole), AL (Outer Hole), AB (Distance between Center and Outer Bore), B (Width).
8. Bermearen informazioa
Specific warranty details for perfektGarten products may vary. Please retain your proof of purchase. For information regarding warranty coverage, terms, and conditions, please contact the seller or the manufacturer directly.
9. Laguntza
If you have any questions, require technical assistance, or need further support regarding your perfektGarten mower blades, please contact the retailer from whom you purchased the product or the perfektGarten manufacturer. Provide your product model number (046 X 2) and any relevant purchase details when seeking assistance.
