iPower 600W Digital Dimmable Electronic Horticulture Ballast User Manual

1. Sarrera eta Produktuaren Azalpenaview

The iPower 600W Digital Dimmable Electronic Horticulture Ballast is designed for use with Hydroponic High-Pressure Sodium (HPS) and Metal Halide (MH) grow light systems. This ballast features advanced technology for efficient and reliable operation in indoor gardening environments.

1.1. irudia: Amaituview of the iPower 600W Digital Dimmable Electronic Horticulture Ballast.

Ezaugarri nagusiak:

• Hozte Aurreratua: Built-in cooling fan and graduating fin design to minimize ballast temperature during operation.
• Babes-ezaugarriak: Incorporates advanced protection against short circuits, power surges, ignition failure, and end-of-bulb-life technology.
• Bateragarritasun zabala: Automatically converts between HPS and MH light bulbs through micro-chip programming.
• Pizte azkarra: Ensures rapid lamp ignition, typically within 1-2 minutes maximum.
• Irteera egonkorra: Bolumen egonkorra eskaintzen dutage output for flicker-free light.
• Aukera erregulagarriak: Offers dimmable settings at 50%, 75%, and 100% power.
• Wattage Aukerak: Supports 250W, 400W, and 600W lamps.
• Eraginkortasun handia: High frequency output reduces power loss, delivering up to 30% more lumens compared to magnetic ballasts.

2. Segurtasun-argibideak

Read all safety instructions carefully before installing or operating the ballast. Failure to follow these instructions may result in electric shock, fire, or other hazards.

• Ensure the ballast is installed in a dry, well-ventilated area to prevent overheating and moisture exposure.
• Always disconnect power before making any connections, adjustments, or performing maintenance.
• Use only compatible HPS or MH lamps wat zuzenarekintage for this ballast (250W, 400W, 600W).
• Egiaztatu sarrerako boltage (100V~265V, 120V working voltage) matches your power supply.
• Do not operate the ballast if it appears damaged or if any wires are frayed.
• Keep the ballast away from flammable materials.
• Ziurtatu konexio guztiak seguru eta behar bezala isolatuta daudela.
• Produktu hau barrualdean erabiltzeko diseinatuta dago.

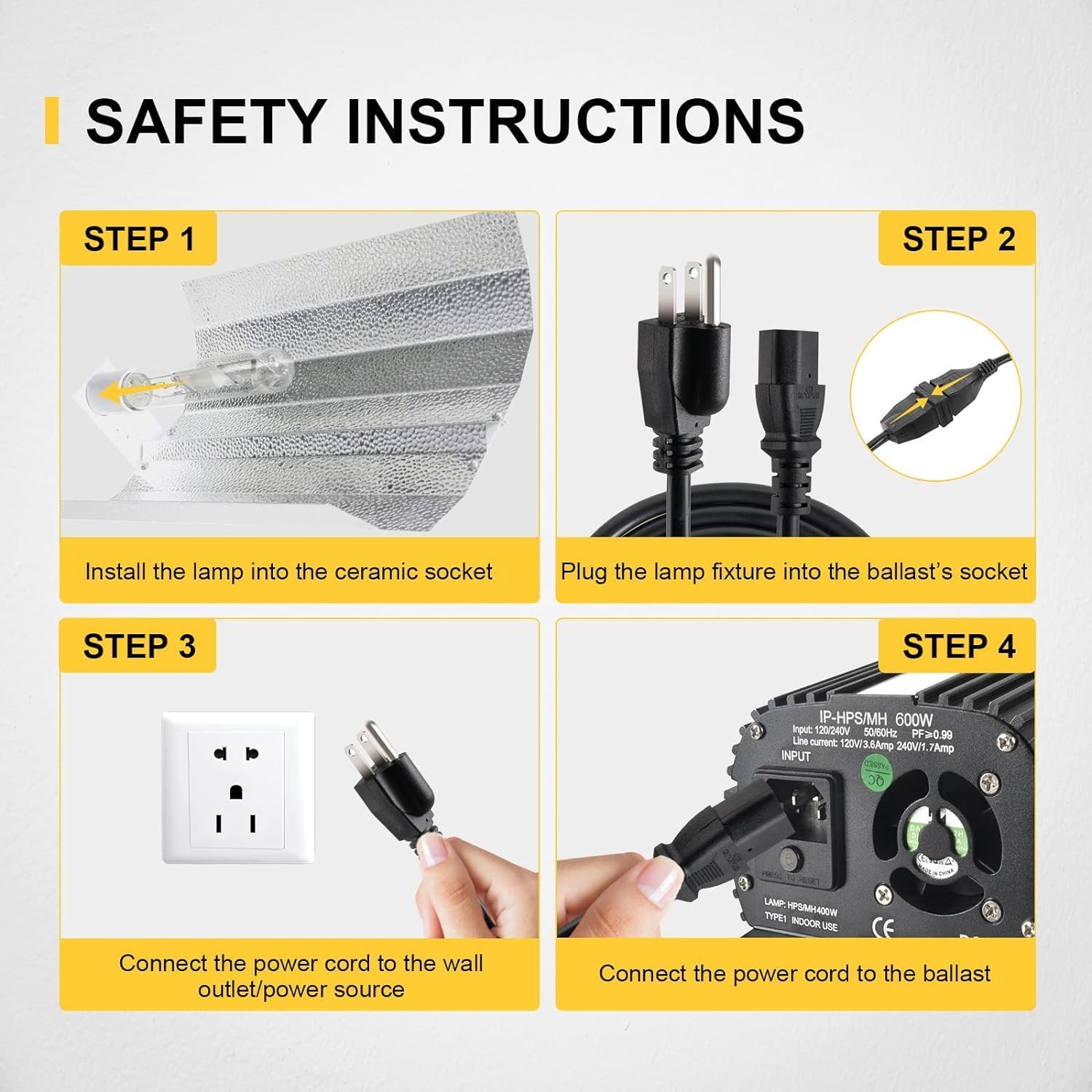

Image 2.1: Visual guide for safe connection steps.

3. Konfigurazioa eta instalazioa

Follow these steps for proper installation of your iPower 600W Digital Dimmable Electronic Horticulture Ballast.

1. Mounting the Ballast: Securely mount the ballast in a stable, dry, and well-ventilated location. Ensure adequate airflow around the unit to facilitate cooling.
2. Instalatu Lamp: Carefully install the appropriate HPS or MH lamp into the ceramic socket of your grow light fixture. Ensure the lamp is seated correctly and securely.
3. Connect Fixture to Ballast: Plug the cord from the grow light fixture into the output socket of the ballast. Ensure a firm connection.
4. Connect Power Cord to Ballast: Connect the heavy-duty power cord (included) to the input socket on the ballast.
5. Connect Power Cord to Outlet: Plug the other end of the heavy-duty power cord into a grounded wall outlet or power source. Ensure the power source matches the ballast's voltage eskakizunak.

Image 3.1: Detail of the input and output connections, including the spare fuse and internal fan.

4. Funtzionamendu-argibideak

The iPower 600W Digital Dimmable Electronic Horticulture Ballast offers flexible operation for your grow light system.

Dimmable ezarpenak:

Use the dimming knob on the ballast to select the desired power output. The available settings are:

• 50% Power: For reduced light intensity, suitable for early growth stages or when less light is required.
• 75% Power: A moderate light intensity setting.
• 100% Power: Full light intensity for peak growth stages.
• Super Lumens (110%): Provides an additional boost in light output for maximum intensity, if supported by your lamp.

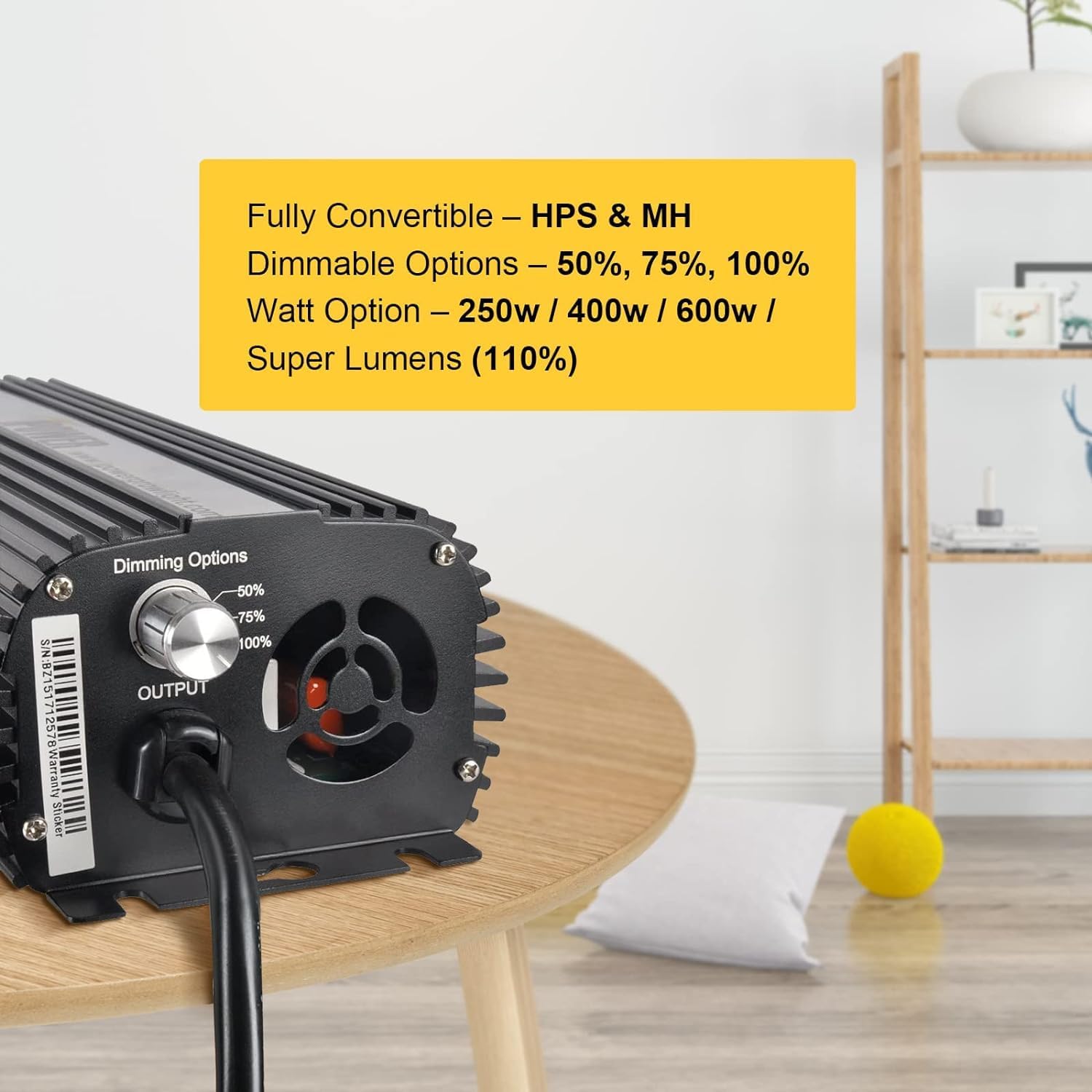

4.1. irudia: Atzekoa view of the ballast showing the dimming options knob.

Lamp Bateragarritasuna:

The ballast automatically detects and adjusts for both HPS and MH lamps. Ensure you are using a lamp wat zuzenarekintage (250W, 400W, or 600W) for optimal performance.

5. Mantentzea

Regular maintenance ensures the longevity and optimal performance of your iPower ballast.

• Garbiketa: Periodically wipe the exterior of the ballast with a dry, soft cloth to remove dust and debris. Do not use liquid cleaners directly on the unit.
• Aireztapena: Ensure the cooling fan and finned body remain clear of obstructions to allow for proper heat dissipation. Blocked vents can lead to overheating and reduced lifespan.
• Konexioak: Regularly check all electrical connections to ensure they are secure and free from corrosion.
• Fusiblearen ordezkapena: The ballast includes a spare fuse. If the unit fails to power on, check and replace the fuse if necessary, ensuring to use a fuse of the same rating.

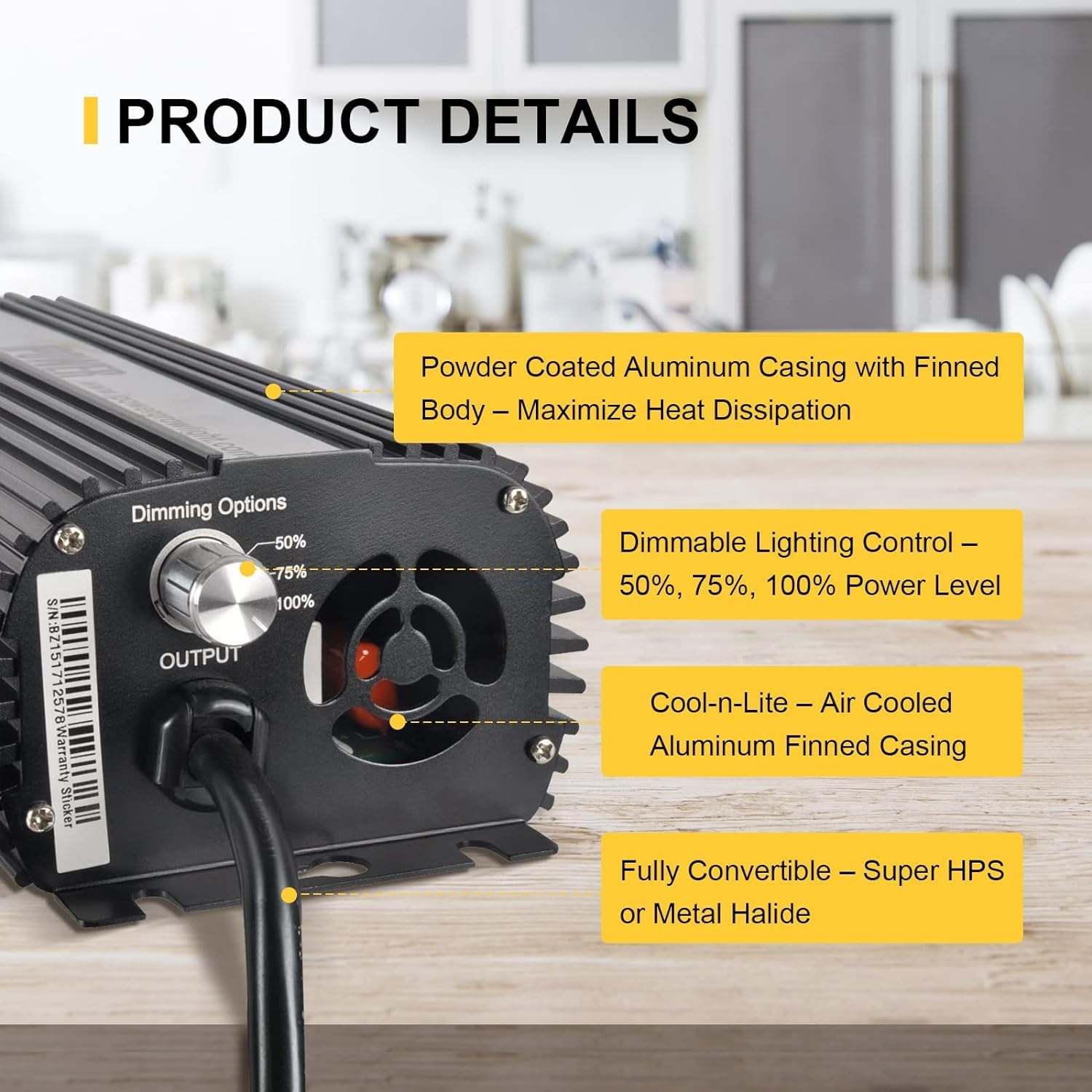

5.1 irudia: Xehetasun zehatza view of the ballast's finned casing for heat dissipation and dimming control.

6. Arazoak

If you encounter issues with your iPower ballast, refer to the following troubleshooting guide:

Ohiko arazoak eta irtenbideak:

• Ballast Does Not Power On:
  • Check if the power cord is securely plugged into both the ballast and the wall outlet.
  • Verify that the wall outlet has power by testing it with another device.
  • Inspect the fuse. If blown, replace it with a fuse of the same rating.
• Lamp Flickers or Does Not Ignite:
  • Ziurtatu lamp is correctly seated in the ceramic socket.
  • Egiaztatu lampzeratage matches the ballast's setting and capabilities.
  • Egiaztatu lamp for signs of damage or end-of-life. Replace if necessary.
  • Verify all connections between the ballast and the fixture are secure.
• Gehiegizko berotzea:
  • Ensure the ballast is in a well-ventilated area.
  • Clear any obstructions from the cooling fan and finned casing.
  • Confirm the ambient temperature is within acceptable operating limits.
• Irrati-maiztasuneko interferentzia (RFI):
  • Ensure the ballast is properly grounded.
  • Separate the ballast and its wiring from sensitive electronic equipment.
  • Consider using shielded cables if interference persists.

7. Zehaztapenak

8. Video Demonstrations

The following videos provide additional visual guidance on the product's features and operation.

9. Bermea eta Laguntza

For warranty information and customer support, please refer to the documentation included with your product or visit the official iPower webgunea. Gorde erosketa-agiria berme-erreklamazioetarako.

For further assistance, you may contact iPower customer service through their official channels. Details are typically provided in the product packaging or on the manufacturer's webgunea.
