Total TGTLI20301 20V Lithium-Ion Grass Trimmer User Manual

1. Sarrera

The Total TGTLI20301 20V Lithium-Ion Grass Trimmer is designed for efficient and convenient lawn care. This cordless tool features a no-load speed of 8200 RPM, a 300mm cutting diameter, and a 1.6mm twisted line that extends up to 5 meters. It is powered by a 20V Lithium-Ion battery and includes a smart fast charger, suitable for 220V-240V power sources at 50/60 Hz.

Ezaugarri nagusiak:

• Cordless design for enhanced mobility and ease of use.
• Equipped with a smart fast charger for quick battery replenishment.
• Ideal for cutting and trimming grass in your garden.

2. Segurtasun-argibideak

OHARRA: Irakurri segurtasun-abisu eta argibide guztiak produktu hau erabili aurretik. Abisu eta argibideei jarraitzen ez bazaie deskarga elektrikoa, sua eta/edo lesio larriak gerta daitezke.

• Always wear safety glasses and gloves when using this product to protect against flying debris.
• Be aware of the rotating blade and ensure bystanders, children, and pets are kept at a safe distance (at least 15 meters / 50 feet) from the operating area.
• Do not operate the trimmer in reverse. Operating in reverse may cause the blade to rotate in the opposite direction, creating an uncontrolled cutting hazard.
• Keep the trimmer away from flammable materials, liquids, and gases.
• Never leave the trimmer unattended while it is running or connected to a power source.
• Ensure the work area is clear of obstacles, rocks, and other debris that could be thrown by the cutting line.
• Always disconnect the battery pack before cleaning, performing maintenance, or when the tool is not in use.

3. Paketearen edukia

Egiaztatu elementu guztiak bertan daudela eta egoera onean daudela paketea hustu ondoren:

• 1 x Total TGTLI20301 20V Lithium-Ion Grass Trimmer with 300mm Blade
• 1 x Battery Pack (20V Lithium-Ion)
• 1 x Smart Fast Charger
• Erabiltzailearen eskuliburua

Note: Batteries may not be included with all purchase options. Please check your specific product packaging.

4. Konfigurazioa

4.1 Muntaketa

The grass trimmer requires some assembly before first use. Follow these general steps:

1. Lotu babeslea: Securely fasten the safety guard to the trimmer head using the provided screws. Ensure it is firmly in place to protect against debris.
2. Instalatu helduleku osagarria: Adjust and tighten the auxiliary handle to a comfortable position for optimal balance and control during operation.
3. Ardatzaren luzera doitu: If your model features an adjustable shaft, extend or retract it to a length that allows for comfortable operation without excessive bending.

4.2 Bateriaren kargatzea eta instalazioa

The trimmer operates on a 20V Lithium-Ion battery. Ensure the battery is fully charged before use.

1. Kargatu bateria: Connect the smart fast charger to a 220V-240V, 50/60 Hz power outlet. Insert the battery pack into the charger. The indicator light on the charger will show the charging status. A full charge typically takes a few hours.
2. Instalatu bateria: Once charged, slide the battery pack into the battery compartment on the trimmer until it clicks securely into place. Ensure it is fully seated to prevent accidental disconnection during operation.
3. Kendu bateria: To remove the battery, press the release button (if present) and slide the battery pack out of the compartment.

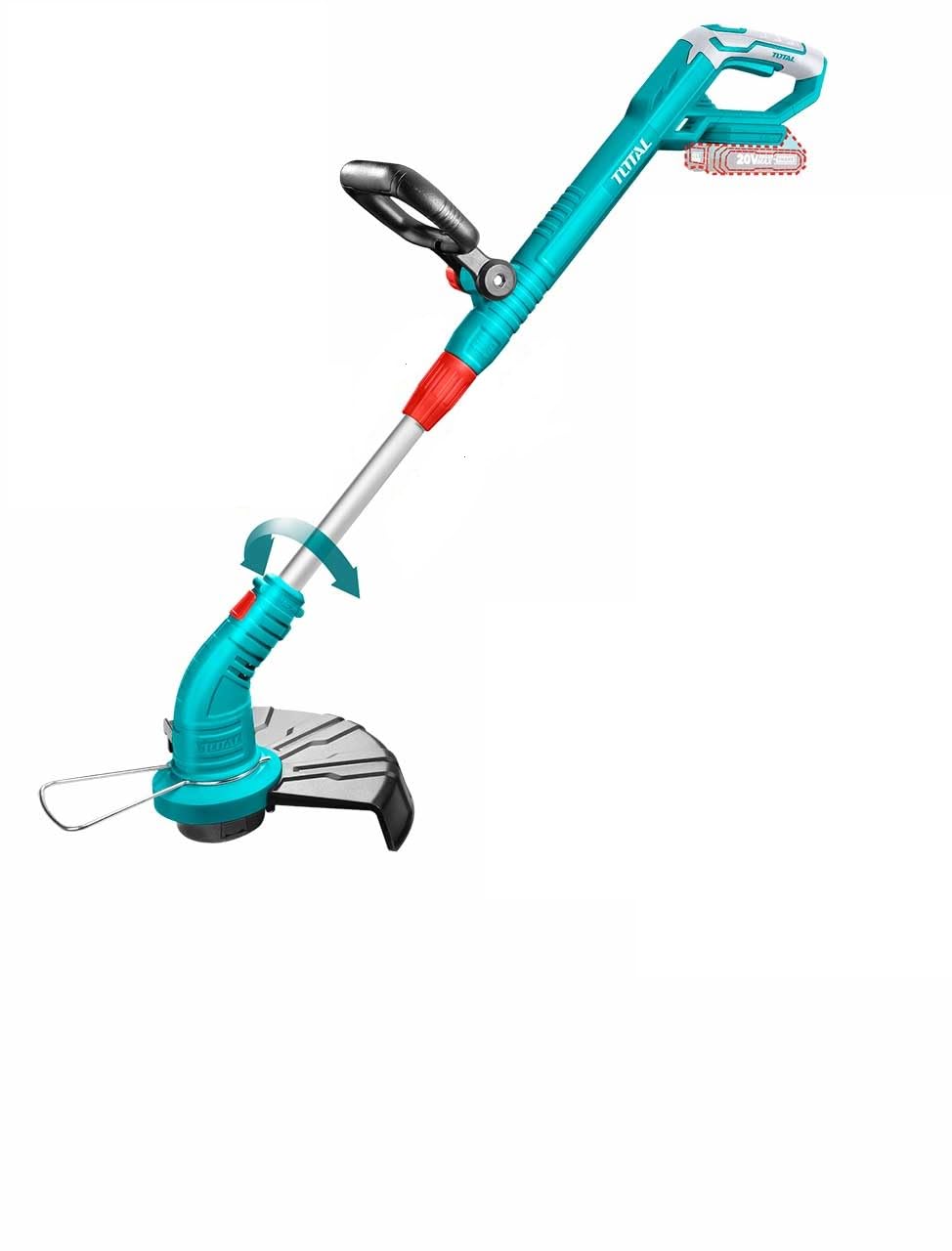

Image: The Total TGTLI20301 20V Lithium-Ion Grass Trimmer, showcasing its compact and cordless design.

5. Funtzionamendu-argibideak

Follow these steps for safe and effective operation of your grass trimmer:

1. Eragiketa aurreko egiaztapena: Before each use, inspect the trimmer for any loose parts, damage, or wear. Ensure the safety guard is properly installed and the cutting line is in good condition.
2. Abiarazi ebakitzailea: With the battery securely installed, press and hold the safety lock-off button (if applicable) and then squeeze the trigger switch to start the motor.
3. Mozteko teknika: Hold the trimmer firmly with both hands. Use a sweeping motion, moving the trimmer from side to side, to cut grass. Maintain a consistent height for an even finish.
4. Lerroaren aurrerapena: The trimmer typically features an automatic line feed system. If the line becomes too short, gently tap the trimmer head on the ground while the motor is running to advance more line.
5. Saihestu gainkargatzea: Do not force the trimmer through thick or dense vegetation. This can strain the motor and deplete the battery quickly. Take smaller passes if necessary.
6. Ebaketa-makinaren gelditzea: Release the trigger switch to stop the motor. Always remove the battery pack when finished with operation or when leaving the trimmer unattended.

6. Mantentzea

Regular maintenance ensures optimal performance and extends the life of your grass trimmer.

• Garbiketa: After each use, disconnect the battery and clean the trimmer. Remove grass clippings, dirt, and debris from the motor housing, air vents, and safety guard using a brush or cloth. Do not use water or solvents.
• Lerroaren ordezkapena: When the cutting line runs out, replace it with a new 1.6mm twisted line. Refer to the specific instructions for your trimmer head for proper line winding.
• Bateria zaintzea: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. Do not store fully discharged batteries for extended periods.
• Biltegiratzea: Store the trimmer in a dry, secure location, out of reach of children. Ensure the battery is removed before storage.
• Ikuskapena: Periodically check all screws, nuts, and bolts for tightness. Inspect the cutting line, guard, and handles for any signs of wear or damage. Replace worn or damaged parts immediately.

7. Arazoak

If you encounter issues with your grass trimmer, refer to the following common problems and solutions:

8. Zehaztapenak

9. Bermea eta Laguntza

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Total customer service. Keep your purchase receipt as proof of purchase for any warranty claims.

Bezeroarentzako arreta: Please visit the official Total website or contact your local dealer for support contact details.
