1. Sarrera
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your KIMO Electric Tacker, Model QM-9418. This cordless tool is designed for various fastening tasks, offering both finish nailing and stapling capabilities. Please read this manual thoroughly before initial use and retain it for future reference.
Figure 1: KIMO Electric Tacker QM-9418 and included accessories.
2. Segurtasun informazioa
Always prioritize safety when operating power tools. Failure to follow these instructions may result in injury or damage to the tool.
- Erabili Babes Pertsonaleko Ekipamendua (BPE): Always wear safety glasses, hearing protection, and gloves when operating the tacker.
- Lan eremuko segurtasuna: Mantendu lan-eremua garbi eta ondo argiztatuta. Eremu nahasiak edo ilunek istripuak gonbidatzen dituzte.
- Mis-fire Prevention Device: The tool is equipped with a mis-fire prevention mechanism. It will only fire when the contact arm is fully pressed against the workpiece. Do not attempt to bypass this safety feature.
- Three-Step Operation: For precise and safe nailing, follow the three-step process: 1) Press the nailer front against the material, 2) Press the cartridge, 3) Lock with the lock lever.
- Empty Shot Prevention: The tool features an empty shot prevention function, which prevents firing when the magazine is empty, reducing wear and tear and preventing damage to the workpiece.
- Bateriaren segurtasuna: Use only KIMO-approved batteries and chargers. Do not expose batteries to extreme temperatures or moisture.
- Erremintaren maneiua: Always hold the tool firmly with both hands during operation. Keep fingers away from the firing mechanism.
3. Produktua amaitu daview
The KIMO Electric Tacker QM-9418 is a versatile cordless tool designed for various fastening applications. It combines the functionality of a finish nailer and a stapler.
3.1 Osagaiak
- KIMO Electric Tacker Main Unit
- 20V/2.0Ah Lithium-ion Battery (x2)
- Bateria kargagailua
- Babes-zorroa
- Finish Nails (700 pieces, 20-50mm)
- Staples (300 pieces, 4x19-40mm)
- Allen Wrench (for jam clearing)
- Argibide eskuliburua
3.2 Ezaugarri nagusiak
- Haririk gabeko funtzionamendua: Powered by 20V 2.0Ah lithium-ion batteries, eliminating the need for air compressors or power cords.
- 2-en-1 funtzionaltasuna: Supports both finish nails (20-50mm) and staples (4x19-40mm).
- Sakonera doitzea: Easily adjust the nailing depth to suit different materials and desired finishes.
- Tiro bikoitzeko moduak: Switch between single-shot mode for precision and continuous-shot mode for rapid fastening (up to 80 nails/minute).
- LED argi integratua: Lan-eremua argitzen du argi gutxiko baldintzetan ikusgarritasun hobea lortzeko.
- Diseinu ergonomikoa: Lightweight (2.8kg main unit) and compact with a comfortable grip for extended use.
- Segurtasun blokeoa: Prevents accidental firing.
- High-Efficiency Heat Dissipation: Designed for stable performance during continuous operation.
4. Konfigurazioa
4.1 Bateria kargatzea eta instalatzea
- Ensure the battery is fully charged before use. Connect the charger to a power outlet and insert the battery. The charger indicator will show the charging status.
- Once charged, slide the battery into the battery slot at the base of the tacker until it clicks securely into place.
- Bateria kentzeko, sakatu askatzeko botoia eta irristatu bateria kanpora.
Figure 2: Battery installation and charge indicator.
4.2 Loading Nails or Staples
The KIMO Electric Tacker supports both finish nails and staples. Follow these steps to load fasteners:
- Release the Magazine: Operate the lever to release the magazine.
- Txertatu loturak: Place the strip of nails or staples into the magazine, ensuring they are oriented correctly with the points facing forward.
- Ziurtatu aldizkaria: Push the magazine back until the snap lock securely engages.
Figure 3: Three-step fastener loading process.
4.3 Adjusting Nailing Depth
The nailing depth can be adjusted to prevent damage to the material surface and achieve the desired finish.
- Aurkitu sakonera doitzeko markagailua edo palanka tresnan.
- Rotate the dial or move the lever to increase or decrease the nailing depth. Test on a scrap piece of material to ensure the correct depth is set.

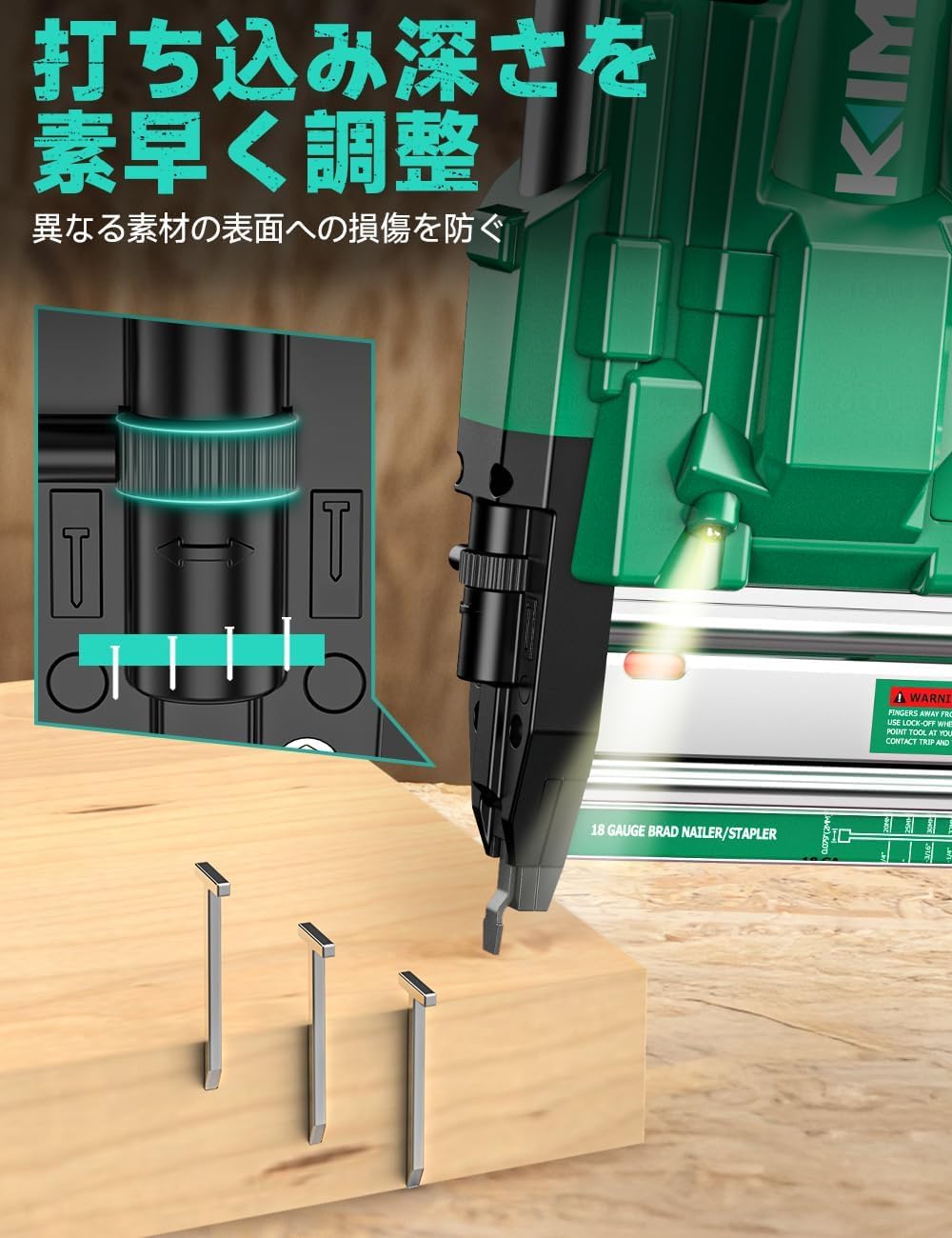

Figure 4: Depth adjustment mechanism.
5. Funtzionamendu-argibideak
5.1 Jaurtiketa modua hautatzea
The tacker offers two firing modes: single-shot and continuous-shot.
- Locate the mode selection switch on the tool.
- Mugitu etengailua nahi duzun modura:
- Single-Shot Mode: For precise fastening, one fastener is driven per trigger pull.
- Continuous-Shot Mode: For rapid fastening, fasteners are driven continuously as long as the trigger is held and the contact arm is pressed.

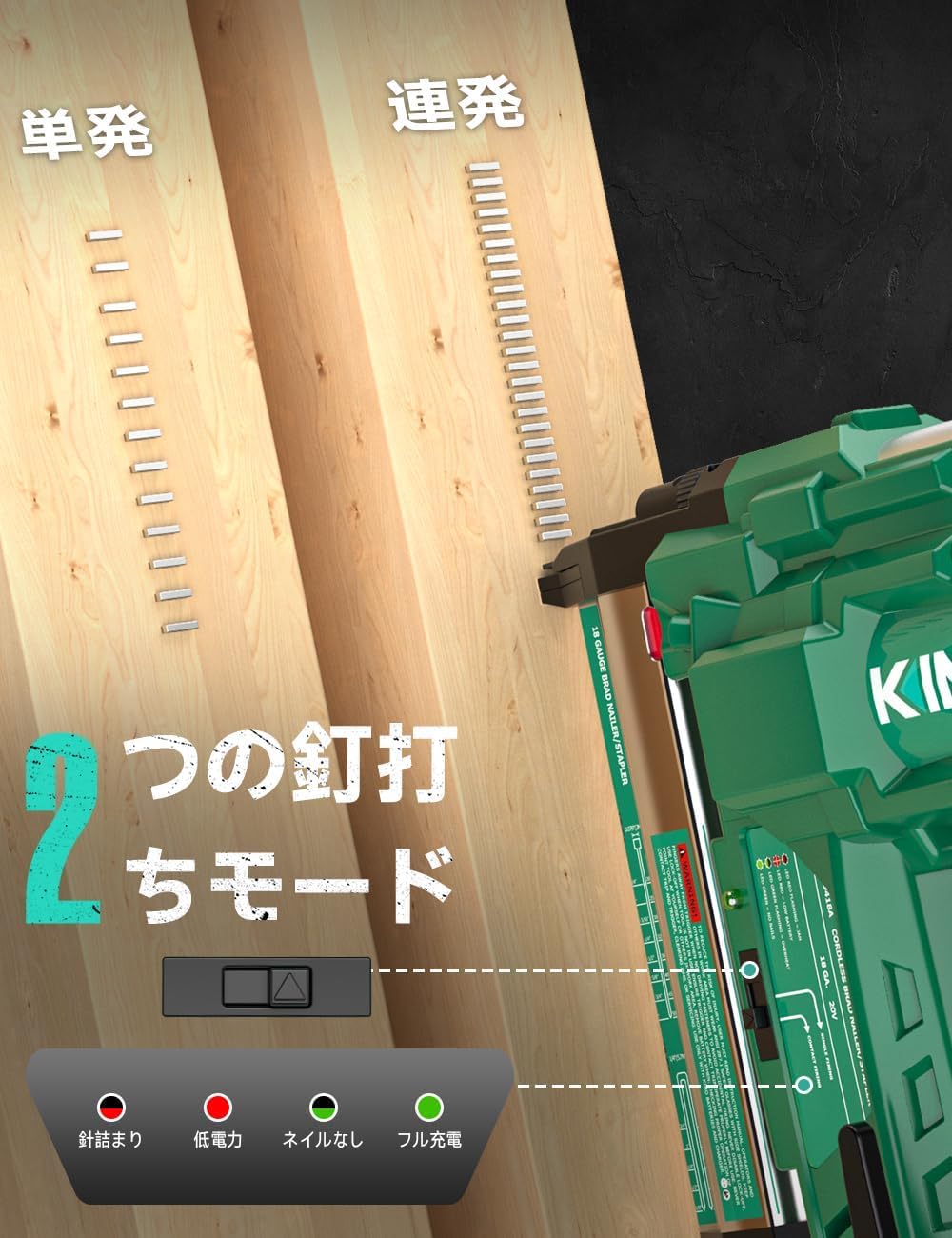

Figure 5: Firing mode selection switch.
5.2 Nailing Procedure
- Ensure the battery is installed and fasteners are loaded.
- Select the appropriate firing mode.
- Place the nose of the tacker firmly against the workpiece where the fastener is to be driven. Ensure the contact arm is fully depressed.
- Tiragailua tiragailua lotzeko.
- Askatu gatilua eta altxatu tresna lan-piezatik.
5.3 LED lanerako argia
The integrated LED light automatically illuminates the work area when the tool is in operation, providing better visibility in low-light conditions.
5.4 Applicable Materials and Uses
This tacker is suitable for a wide range of materials and applications, including:
- Woodworking (e.g., furniture assembly, decorative trim)
- Construction (e.g., securing plasterboard, insulation, temporary fixtures)
- Brikolaje proiektuak
- Barruko dekorazioa
- Cardboard pallet reinforcement
6. irudia: Adibamples of tacker applications.
6. Mantentzea
6.1 Clearing Fastener Jams
In the event of a fastener jam, follow these steps:
- Deskonektatu energia: Always remove the battery before attempting to clear a jam.
- Ireki aldizkaria: Release the magazine as if loading new fasteners.
- Kendu trabatuta dagoen lotura-elementua: Use the provided Allen wrench or pliers to carefully remove any jammed nails or staples from the firing mechanism or magazine. Do not force them out.
- Ikuskatu: Check for any damage to the magazine or firing pin.
- Itxi aldizkaria: Securely close the magazine.
6.2 Garbiketa eta biltegiratze orokorra
- Mantendu tresna garbi eta hautsik eta hondakinik gabe. Erabili zapi lehor bat kanpoaldea garbitzeko.
- Store the tool and batteries in a dry, cool place, away from direct sunlight and moisture.
- Kendu bateria tresnatik denbora luzez erabiltzen ez duzunean.
7. Arazoak
This section addresses common issues you might encounter with your KIMO Electric Tacker.
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Tresnak ez du su egiten | Bateria ez dago instalatuta edo deskargatuta Contact arm not fully depressed Magazine empty (empty shot prevention) Lotzeko tresna trabatuta | Install/charge battery Press tool firmly against workpiece Load fasteners Clear jam (see Section 6.1) |
| Fasteners not driven fully | Nailing depth set too shallow Bateria karga baxua Incorrect fastener size for material | Doitu sakonera-ezarpena sakonago Kargatu bateria Use appropriate fastener size |
| Logailuak maiz trabatzen dira | Finkagailuak hondatuta Finkagailuaren tamaina okerra Magazine or firing mechanism dirty | Use new, undamaged fasteners Ensure correct fastener size Clean magazine and firing area |
| Erreminta gehiegi berotzen da | Etengabeko erabilera luzea | Allow the tool to cool down. The high-efficiency heat dissipation design helps manage temperature, but breaks are recommended during extended use. |
If you encounter a problem not listed here or if the issue persists after attempting the solutions, please contact KIMO customer support.
8. Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Marka | KIMO |
| Modelo zenbakia | QM-9418 |
| Bateria Voltage | 20V |
| Bateria Edukiera | 2.0Ah Lithium-ion (x2 included) |
| Finish Nail Length | 20mm - 50mm (700 pcs included) |
| Grapa-tamaina | Width 4mm, Length 19mm - 40mm (300 pcs included) |
| Max Firing Speed | 80 nails/minute (continuous mode) |
| Tool Weight (main unit) | 2.8 kg |
| Ziurtagiria | PSE Ziurtagiria |
| UPC | 731029251059 |
9. Bermea eta Laguntza
9.1 Fabrikatzailearen bermea
The KIMO Electric Tacker QM-9418 comes with a 1-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
If a battery becomes unusable within one year of purchase, contact after-sales service for a replacement.
9.2 Bezeroarentzako laguntza
For any questions, technical assistance, or warranty claims, please contact KIMO customer support through the retailer where the product was purchased or visit the official KIMO webharremanetarako informazioa lortzeko gunea.
