1. Sarrera
Thank you for choosing the EASYmaxx LED Solar Spotlight. This device provides efficient, wireless outdoor lighting with a built-in motion sensor and a separate solar panel for flexible placement. It is designed for easy installation and operation, offering reliable illumination for your home entrance, garden, carport, or other outdoor areas.
2. Segurtasun-argibide garrantzitsuak
- Irakurri arretaz argibide guztiak instalatu eta erabili aurretik.
- Produktu hauentzat diseinatuta dago kanpoan erabiltzeko soilik.
- Do not attempt to disassemble, repair, or modify the unit. This will void the warranty.
- Ensure the solar panel is placed in an area that receives direct sunlight for most of the day to ensure optimal charging.
- Keep the solar panel and LED spotlight clean from dirt, dust, and debris to maintain efficiency.
- Do not immerse the product in water. It is IP44 water-resistant, meaning it is protected against splashing water.
- Mantendu haurren eskura.
3. Paketearen edukia
Mesedez, egiaztatu paketea elementu hauek dituen:
- 1x LED Solar Spotlight
- 1x Separate Solar Panel with connecting cable
- 1x Urruneko Kontrola
- 2x torlojuak horman muntatzeko
- 2x Wall plugs for wall mounting

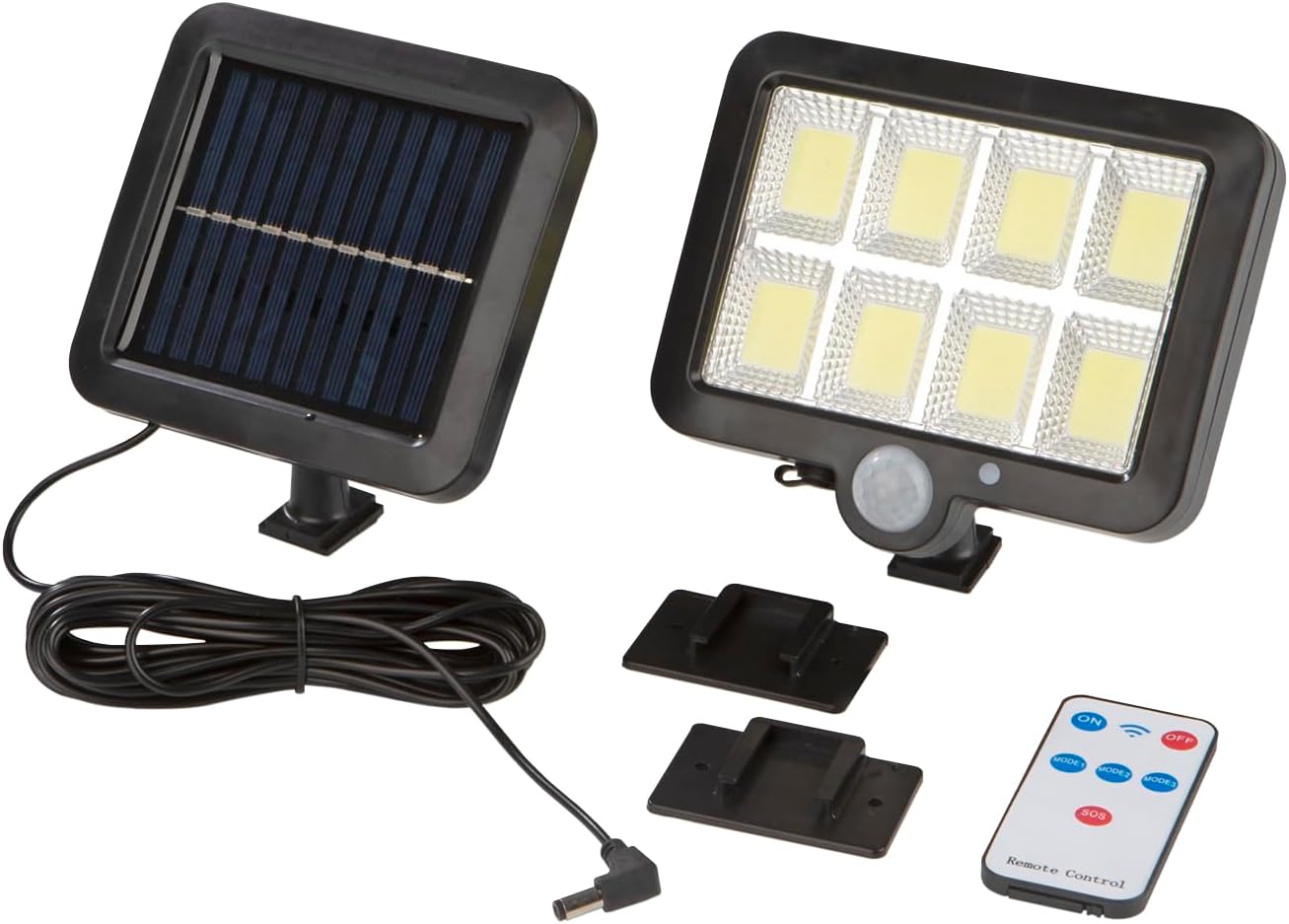

Image 1: All components included in the EASYmaxx LED Solar Spotlight package. This includes the main LED light unit with motion sensor, the separate solar panel with its connecting cable, the remote control for adjusting settings, and the necessary screws and wall plugs for installation.
4. Produktua amaitu daview
The EASYmaxx LED Solar Spotlight consists of two main units: the LED spotlight and the solar panel. They are connected by a cable, allowing for flexible installation where the solar panel can receive maximum sunlight, and the spotlight can illuminate the desired area.
- LED Spotlight Unit: Features 8 COB LEDs for bright illumination (300 lumens). It includes a built-in motion sensor and a dusk sensor.
- Eguzki-panela: Charges the internal battery of the spotlight during the day. It is designed to be mounted separately for optimal sun exposure.
- Urruneko kontrola: Allows for convenient adjustment of lighting modes and power settings.
5. Instalazioa eta konfigurazioa
Instalazio egokia lortzeko, jarraitu urrats hauek:
- Aukeratu kokapena:
- Hautatu kokapen bat eguzki panela where it will receive direct sunlight for at least 6-8 hours daily. Avoid shaded areas.
- Aukeratu kokapen bat LED fokua that provides the desired illumination coverage and where the motion sensor can effectively detect movement (recommended height: 2-3 meters).
- Muntaketa:
- Use the provided screws and wall plugs to securely mount both the solar panel and the LED spotlight to a wall, carport, or other suitable surface.
- Ensure both units are firmly attached to prevent accidental falls.
- Connect Units:
- Connect the cable from the solar panel to the input port on the LED spotlight unit. Ensure the connection is secure.
- Hasierako karga:
- Allow the solar panel to charge the spotlight for at least 24 hours in direct sunlight before first use to ensure the battery is fully charged.
6. Funtzionamendu-argibideak
The EASYmaxx LED Solar Spotlight operates automatically at dusk and can be controlled via the included remote control.
6.1 Urruneko kontrolaren funtzioak
- ON/OFF: Turns the spotlight on or off.
- 1. MODUA: Activates Sensor Mode.
- 2. MODUA: Activates Dimmed Continuous Light + Sensor Mode.
- 3. MODUA: Activates Dimmed Continuous Light Mode.
- SOS: Activates an emergency flashing light (if applicable, refer to product specifics).
6.2 Argiztapen moduak
The spotlight offers three adjustable lighting modes via the remote control:
- Mode 1 (Sensor Mode):
The light remains off until motion is detected. Upon detection, the light illuminates at 100% brightness. It turns off automatically after approximately 20 seconds of no further motion.
- Mode 2 (Dimmed Continuous Light + Sensor Mode):
The light stays on at a dimmed brightness continuously. When motion is detected, it switches to 100% brightness. After approximately 20 seconds of no further motion, it returns to dimmed continuous light.
- Mode 3 (Dimmed Continuous Light):
The light stays on at 50% brightness continuously from dusk till dawn, regardless of motion.
Image 2: Visual representation of the three distinct lighting modes. Mode 1 shows the light activating at 100% upon motion and turning off after 20 seconds. Mode 2 depicts a dimmed continuous light that brightens to 100% with motion, then returns to dim after 20 seconds. Mode 3 illustrates a continuous 50% dimmed light.
6.3 Mugimendu-sentsorea
The integrated motion sensor detects movement within a range of approximately 3-5 meters and an angle of about 120 degrees. Ensure the sensor is not obstructed for optimal performance.
Image 3: Diagram showing the motion detection capabilities of the spotlight. It highlights a detection range of approximately 3-5 meters and a wide detection angle of about 120 degrees, indicating the area where movement will trigger the light.
7. Mantentzea
- Garbiketa: Regularly wipe the solar panel and the LED light surface with a soft, damp cloth to remove dust, dirt, or debris. This ensures maximum light absorption and optimal performance. Do not use abrasive cleaners or solvents.
- Ikuskapena: Periodically check the mounting screws and connections to ensure they are secure.
- Neguko zainketa: In areas with heavy snow, ensure the solar panel is clear of snow to allow for charging.
8. Arazoak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Argia ez da gauez pizten. |
|
|
| Light stays on continuously during the day. | Dusk sensor malfunction or obstruction. | Check if the dusk sensor is covered or damaged. Ensure it is exposed to daylight. |
| Motion sensor not working or range is poor. |
|
|
| Urrutiko agintea ez da erantzuten. |
|
|
9. Zehaztapen Teknikoak
| Marka | EASYmaxx |
| Eredua | B0CP7Q14FK |
| Produktuaren neurriak | 15 x 13 x 3.5 cm (Spotlight unit) |
| Elementuaren pisua | 370 g |
| Argi iturria | 8 COB LEDs |
| Argi Fluxua | 300 lumen (gutxi gorabehera) |
| Energia iturria | Eguzki-energia |
| Ezaugarri bereziak | Motion Sensor, Dusk Sensor, Remote Control |
| Mugimendu-sentsorearen barrutia | 3-5 metro |
| Mugimendu-sentsorearen angelua | Gutxi gorabehera. 120 gradu |
| Sarrera babesteko (IP) balorazioa | IP44 (uraren zipriztinetatik babestua) |
| Aplikazio-eremua | Kanpoko erabilera soilik |

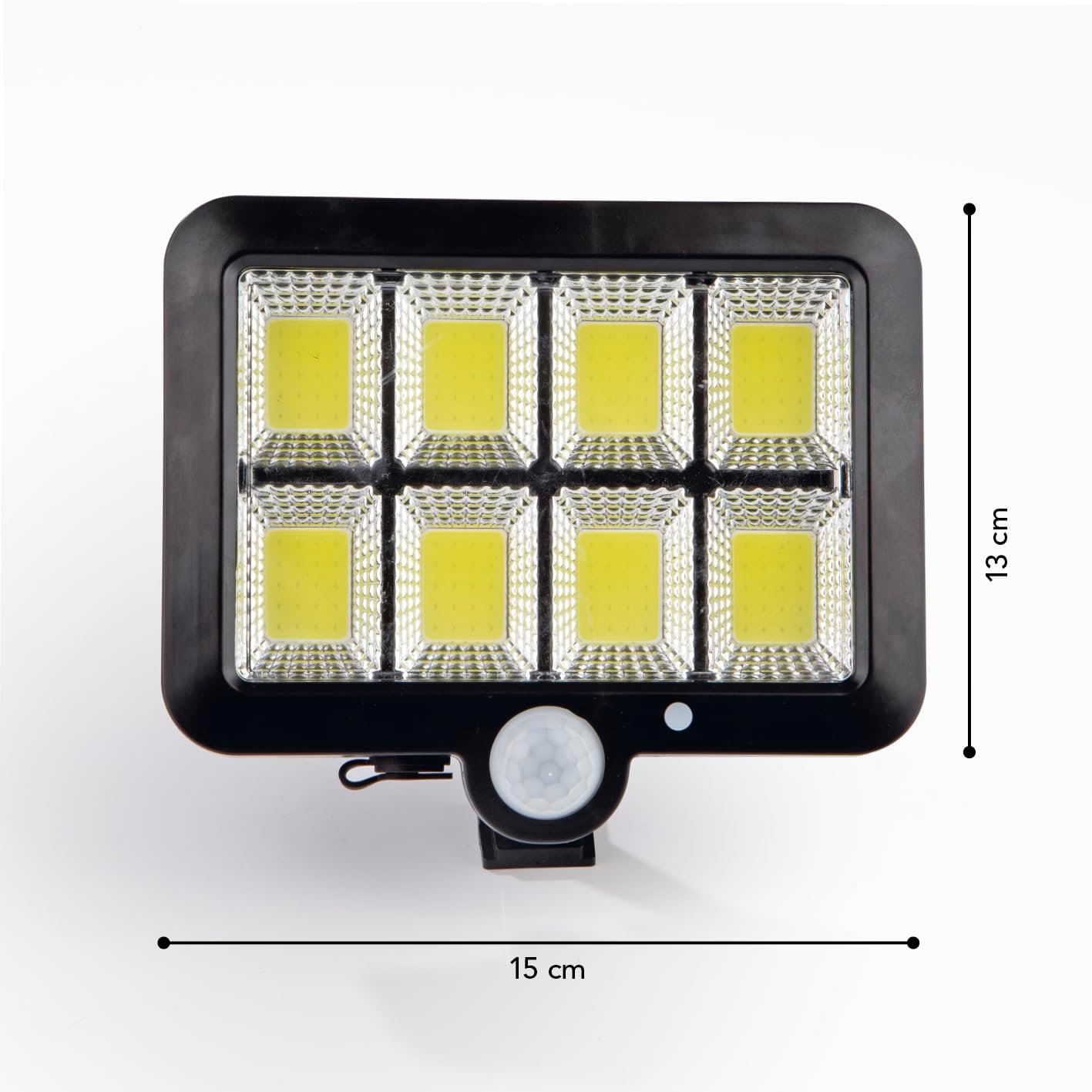

Image 4: Physical dimensions of the LED spotlight unit, showing its length of 15 cm and width of 13 cm.
10. Bermea eta bezeroarentzako laguntza
For warranty information, returns, or technical support, please refer to your purchase documentation or contact the retailer where you purchased the EASYmaxx LED Solar Spotlight. You may also visit the official EASYmaxx weblaguntza gehiago jasotzeko gunea.
Fabrikatzailea: DS Produkte GmbH
Harremanetarako: Please refer to the contact information provided with your product or on the manufacturer's official webgunea.
