Sanuvox OEM LMPRGPT160T5 UV Lamp Argibide eskuliburua

1. Produktua amaitu daview

The Sanuvox OEM LMPRGPT160T5 UV Lamp is a replacement ultraviolet lamp designed to maintain optimal air quality in your indoor environment. This lamp utilizes advanced UV technology to neutralize airborne pathogens, allergens, and other contaminants. It is specifically designed for use with Sanuvox air purification systems, including the Saber Genius 24 V, Saber Magnet 24V, Saber Pro Wireless 24V, and Saber Smart 120V models. Regular replacement of the UV lamp ensures the continuous high efficiency of your air purification system.

2. Segurtasun informazioa

Please read and understand all safety instructions before installing or operating the UV lampArgibide hauek ez jarraitzeak deskarga elektrikoak, suteak edo lesio larriak eragin ditzake.

• UV Radiation Hazard: This product emits ultraviolet (UV) radiation. Direct exposure to UV light can cause severe eye and skin damage. Inoiz ez begiratu zuzenean argiztatutako UV lamp. Avoid direct exposure to skin.
• Deskonektatu energia: Always disconnect power to the air purification system before attempting any installation, maintenance, or lamp ordezkoa.
• Instalazio profesionala: Installation should be performed by a qualified technician familiar with HVAC systems and electrical safety.
• Kontuz maneiatu: UV lamps are made of glass and can break easily. Handle the lamp carefully to prevent breakage.
• Xedapena: Erabilitako lamps according to local regulations for hazardous waste.

3. Paketearen edukia

Egiaztatu osagai guztiak daudela eta kalterik gabe daudela:

• 1 x Sanuvox OEM LMPRGPT160T5 UV Lamp

4. Instalazioa eta konfigurazioa

This section provides general instructions for replacing the UV lamp. Refer to your specific Sanuvox air purification system's manual for detailed installation steps, as procedures may vary slightly between models.

1. Potentzia deskonexioa: Locate the main power switch for your HVAC system or the specific Sanuvox air purification unit and turn it OFF. Confirm that power is completely disconnected before proceeding.
2. Access the UV Lamp Etxebizitza: Open the access panel or housing for the UV lamp within your Sanuvox air purification system. This may require tools such as a screwdriver.
3. Kendu L zaharraamp: Carefully grasp the old UV lamp by its ceramic or plastic ends. Gently twist and pull to disengage it from its socket. Avoid touching the glass portion of the lamp.
4. Instalatu L berriaamp: With clean hands or gloves, carefully insert the new Sanuvox LMPRGPT160T5 UV lamp into the socket. Ensure it is fully seated and secured. Do not force the lamp.
5. Etxebizitza Segurua: Close and secure the access panel or housing.
6. Berrezarri boterea: Turn the main power switch for your HVAC system or Sanuvox unit back ON. The UV lamp should illuminate, indicating proper installation.

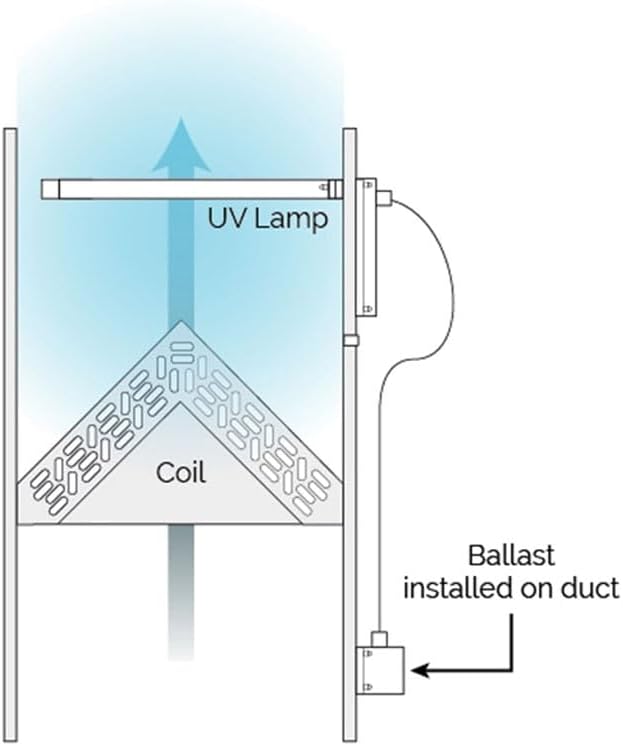

Figure 1: Typical UV Lamp Installation Diagram. This diagram illustrates how a UV lamp is typically positioned within an air duct system, showing its relation to the coil and the external ballast unit.

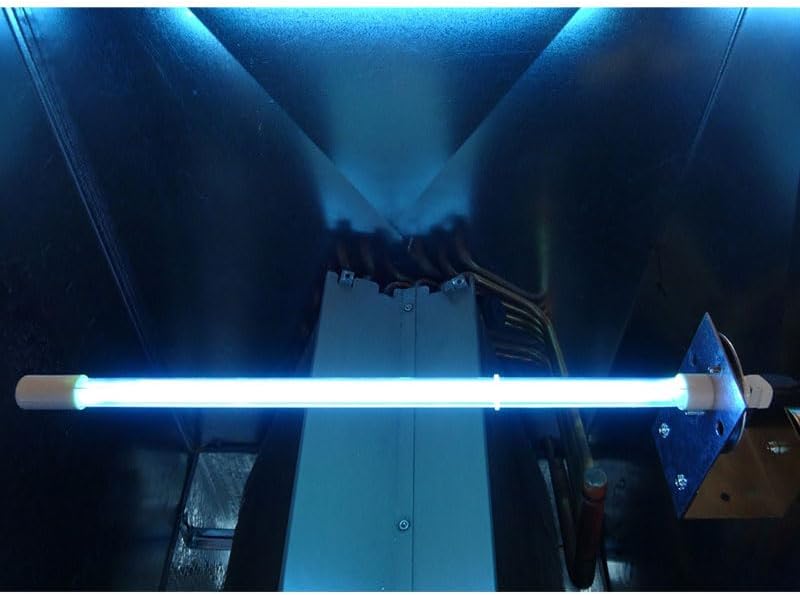

Figure 2: Installed Sanuvox UV Lamp. This image shows the Sanuvox UV lamp installed and actively operating within an air duct, emitting its characteristic blue light.

5. Funtzionamendua

Once properly installed and powered, the Sanuvox LMPRGPT160T5 UV Lamp operates continuously to purify the air passing through your HVAC system. The UV light neutralizes microorganisms, contributing to a healthier indoor environment. There are no user-adjustable settings for the lamp itself; its operation is automatic as long as the air purification system is active.

6. Mantentzea

The primary maintenance for the Sanuvox LMPRGPT160T5 UV Lamp involves periodic replacement.

• Lamp Ordezkoa: UV lamps have a finite lifespan, typically 9,000 to 12,000 hours of continuous operation (approximately 12-18 months). To ensure continued effectiveness, it is recommended to replace the lamp annually or as indicated by your specific Sanuvox system's maintenance schedule. Refer to Section 4 for replacement instructions.
• Garbiketa: l badaamp's glass surface appears dusty or dirty, gently wipe it with a clean, dry, lint-free cloth after disconnecting power. Do not use liquid cleaners.

7. Arazoak

UV lamp is not functioning as expected, consider the following:

• Lamp Ez argitzen:
  • Ensure the air purification system has power.
  • Egiaztatu lamp is correctly seated in its socket.
  • Egiaztatu lamp has reached the end of its operational life and requires replacement.
  • Inspect the ballast (power supply) for any signs of malfunction. If the ballast is faulty, the lamp ez da argituko.
• Eraginkortasun murriztua:
  • Lamp may be nearing the end of its effective lifespan, even if it still illuminates. UV output diminishes over time. Replace the lamp.
  • Ziurtatu lamp's glass surface is clean and free of dust or debris.

If issues persist after troubleshooting, contact a qualified technician or Sanuvox customer support.

8. Zehaztapenak

9. Bermea eta Laguntza

For warranty information and technical support regarding your Sanuvox OEM LMPRGPT160T5 UV Lamp or compatible Sanuvox air purification system, please refer to the documentation provided with your original Sanuvox unit or visit the official Sanuvox website. Contact information for customer service can typically be found there.
