SCULPFUN IR-2 Infrared Laser Module User Manual

1. Sarrera

The SCULPFUN IR-2 Infrared Laser Module is a high-precision engraving tool designed for use with various laser engraver machines, including SCULPFUN S9 and S30 series. Featuring a 2000mW output power and a 1064nm wavelength, this module is particularly effective for engraving on plastics and a wide range of metals with exceptional detail.

2. Segurtasun informazioa

WARNING: This is a Class IV laser product. Direct exposure to the laser beam can cause severe eye and skin damage. Always wear appropriate laser safety goggles (specifically rated for 1064nm infrared lasers) when operating this device. Never look directly into the laser beam or its reflection. Ensure the work area is well-ventilated to avoid inhaling fumes from engraved materials.

For detailed safety guidelines, refer to the safety video provided by the manufacturer.

3. Produktuaren ezaugarriak

• High Precision Engraving: The IR-2 module offers ultra-fine engraving capabilities with a 0.03mm laser spot and pulse energy up to 20,000Hz, allowing for clear and distinct marks on various materials.
• 1064nm Infrared Laser: With a longer wavelength compared to blue lasers, the 1064nm infrared laser is highly effective for engraving plastics and a wide range of metals.
• Material anitzeko bateragarritasuna: Ideal for engraving on metals such as gold, silver, platinum, copper, aluminum, zinc, iron, stainless steel, metal oxides, alloys, plastics, and dark acrylics.
• Broad Engraver Compatibility: Compatible with all SCULPFUN laser engraving machines (e.g., S9, S30 series) and other laser engraving machine accessories like rotary rollers for cylindrical objects.
• Integrated Focusing Post: Includes a focusing post for quick and easy focus adjustment, eliminating the need for additional accessories.

Image: SCULPFUN IR-2 Infrared Laser Module highlighting its 1064nm wavelength, 0.03mm light spot, and 20KHz pulse energy, suitable for engraving plastic and metal.

Image: Comparison demonstrating the superior engraving capability of the 1064nm infrared laser on plastic and various metals compared to a 450nm blue laser.

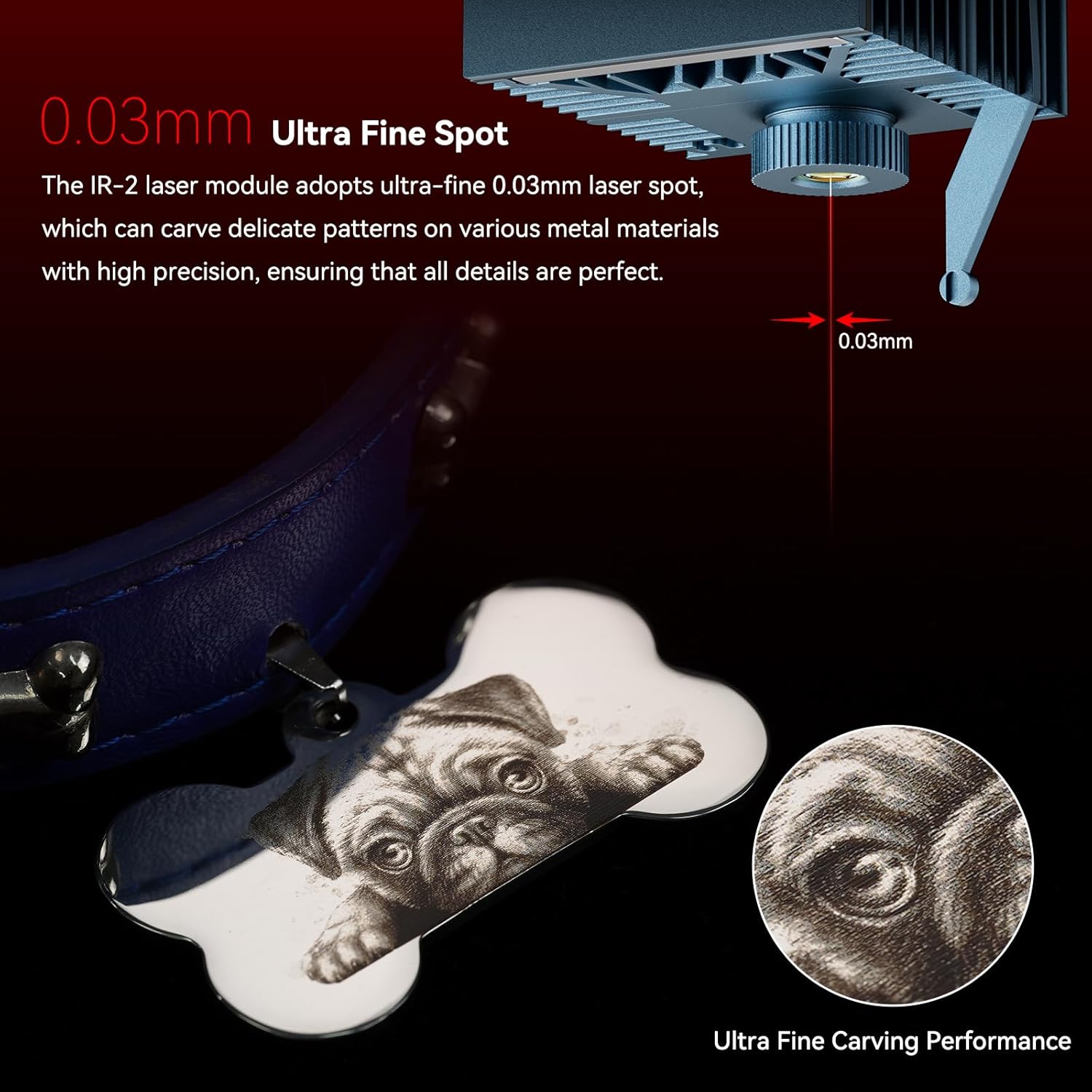

Image: Detailed engraving of a pug on a metal tag, erakutsiasing the 0.03mm ultra-fine spot for high-precision patterns.

4. Paketearen edukia

The SCULPFUN IR-2 Infrared Laser Module package includes the following items:

• 1 × 2W Infrared Laser Module
• 1 × egokitzailea
• 1 × S10 Mounting Plate
• 1 × SF-A9 Mounting Plate
• 1 × Universal Mounting Plate for Other Models
• 1 × Accessories Package (including focusing post)

Image: All components included in the SCULPFUN IR-2 Infrared Laser Module package.

5. Konfiguratzeko argibideak

Follow these steps to install and set up your SCULPFUN IR-2 Infrared Laser Module.

5.1. Module Assembly

1. Attach the appropriate mounting plate (S10, SF-A9, or universal) to the IR-2 laser module using the provided screws. Ensure a secure fit.
2. Mount the assembled laser module onto your SCULPFUN laser engraver machine. Secure it with the thumbscrews.
3. Connect the power and data cables from the laser module to your engraver.

5.2. Power Adapter Compatibility

The IR-2 laser module requires a 24V adapter. If your existing laser engraver uses a 12V adapter for its original laser head, you must replace it with the provided 24V adapter when using the IR-2 module. Failure to do so may damage the laser module or the engraver.

Important: If your machine has an air pump, unplug its terminal wire when using a 24V adapter to avoid burning the air pump. When replacing a 12V machine's original laser head with the IR-2, replace the original 12V adapter with the 24V adapter at the same time to prevent damage to the laser head.

6. Funtzionamendu-argibideak

The SCULPFUN IR-2 module is designed for use with compatible laser engraving software such as LightBurn. Ensure your software is correctly configured for the IR-2 module.

6.1. Focusing the Laser

Use the integrated focusing post to quickly set the correct focal distance. Lower the laser module until the focusing post touches the material surface, then secure the module.

6.2. Software Settings (LightBurn Example)

When using LightBurn, adjust the following parameters for optimal engraving results:

• Abiadura: Adjust based on material. For plastic, a speed of 6000mm/min is a reference. For stainless steel, 1000-3000mm/min is a reference.
• Potentzia: Set to 100% for most engraving tasks.
• Tartea: For fine detail, an interval of 0.01mm to 0.03mm is recommended.
• Irudi modua: Dither is often suitable for detailed images.

Note: Always keep the work area well-ventilated during operation.

Image: Various materials successfully engraved using the IR-2 module, demonstrating its versatility.

Image: The IR-2 module engraving a metal dog tag, highlighting its ultra-high pulse energy for clear and precise results.

7. Mantentzea

Regular maintenance ensures optimal performance and longevity of your laser module.

• Lenteen garbiketa: Periodically clean the laser lens with a soft, lint-free cloth and appropriate lens cleaning solution to maintain beam quality.
• Haizagailuaren garbiketa: Ensure the cooling fan on the module is free from dust and debris to prevent overheating.
• Kableen ikuskapena: Regularly check all cables for any signs of wear or damage. Replace damaged cables immediately.

8. Arazoak

9. Zehaztapenak

10. Bermea eta Laguntza

Bermeari buruzko informazioa eta laguntza teknikoa lortzeko, jo ezazu SCULPFUNen webgune ofizialera. webwebgunearekin edo jarri harremanetan zure saltzailearekin. Gorde erosketa-agiria berme-erreklamazioetarako.
