Baseus 3000A Super Capacitor Car Jump Starter User Manual

1. Sarrera

This manual provides detailed instructions for the safe and efficient operation of your Baseus 3000A Super Capacitor Car Jump Starter. Please read this manual thoroughly before use and retain it for future reference. This device is designed to jump-start 12V vehicles with engines up to 10.0L gasoline or 8.0L diesel, utilizing advanced supercapacitor technology.

2. Produktua amaitu daview

The Baseus Super Capacitor Car Jump Starter is a battery-free device that uses supercapacitor technology, eliminating the need for prior charging. It quickly charges from your vehicle's weak battery in minutes, then provides a powerful 3000A peak current to start your engine. Its robust design ensures reliable performance even in extreme weather conditions.

Image: The Baseus jump starter operating effectively in cold, snowy conditions, connected to a car battery.

Ezaugarri nagusiak:

• Battery-Free Supercapacitor Technology: No internal battery, no need for pre-charging. Charges rapidly from a weak car battery.
• Goi-korronte gailurra: 3000 ematen ditu Amps peak current for quick and reliable starting.
• Bateragarritasun zabala: Suitable for 12V vehicles, including cars, trucks, motorcycles, watercraft, lawnmowers, yachts, RVs, and snowmobiles, with engines up to 10.0L gas or 8.0L diesel.
• Babes sistema adimenduna: Features multiple safety protections including short-circuit, over-current, overload, over-voltage, over-charge, and over-temperature protection.
• Iraunkorra eta segurua: Designed for high safety and a long operational lifespan.

3. Segurtasun informazioa

Always observe the following safety precautions to prevent injury or damage to the device and your vehicle:

• Wear eye protection and gloves when working with car batteries.
• Erabiltzean aireztapen egokia ziurtatu.
• Ez ukitu cl gorria eta beltzaampelkarrekin zirkuitulaburrak saihesteko.
• Mantendu gailua haurrengandik eta maskotengandik urrun.
• Do not expose the device to rain or extreme moisture.
• If the device shows any signs of damage, do not use it.
• The smart protection system is designed to prevent common errors, but always connect the clampbehar bezala.

Image: The jump starter's design highlights its safety features and user-friendly interface.

4. Konfigurazioa

Before using the jump starter for the first time, ensure all components are present and undamaged. The package typically includes the Baseus 3000A Super Capacitor Jump Starter and its connecting clamps.

Image: The product packaging, indicating the 'Super Capacitor Design' and 'Super Energy Mega Series'.

This jump starter does not require pre-charging. It will draw power from your vehicle's weak battery to charge its supercapacitors before initiating the jump-start.

5. Funtzionamendu-argibideak

Follow these steps to jump-start your vehicle:

1. Ibilgailua prestatu: Ensure your vehicle is in Park (P) or Neutral (N) and the parking brake is engaged. Turn off all accessories (lights, radio, air conditioning).
2. Konektatu Cl Gorriaamp: Konektatu kable gorria (positiboa, +)amp of the jump starter to the positive (+) terminal of your vehicle's dead battery.
3. Konektatu Cl Beltzaamp: Konektatu cl beltza (negatiboa, -)amp to the negative (-) terminal of your vehicle's dead battery, or to a solid, unpainted metal part of the engine block or chassis, away from the battery.
4. Wait for Charging: The jump starter will begin to charge its supercapacitors from your vehicle's weak battery. The display will show the charging progress. This process typically takes a few minutes.
5. Ibilgailua martxan jarri: Once the jump starter indicates it's ready (e.g., a full charge indicator or specific message on the display), start your vehicle's engine.
6. Deskonektatu Clamps: Once the engine starts, immediately disconnect the black (negative, -) clamp first, followed by the red (positive, +) clamp.
7. Drive Your Vehicle: Allow your vehicle to run for at least 15-20 minutes to recharge its battery.

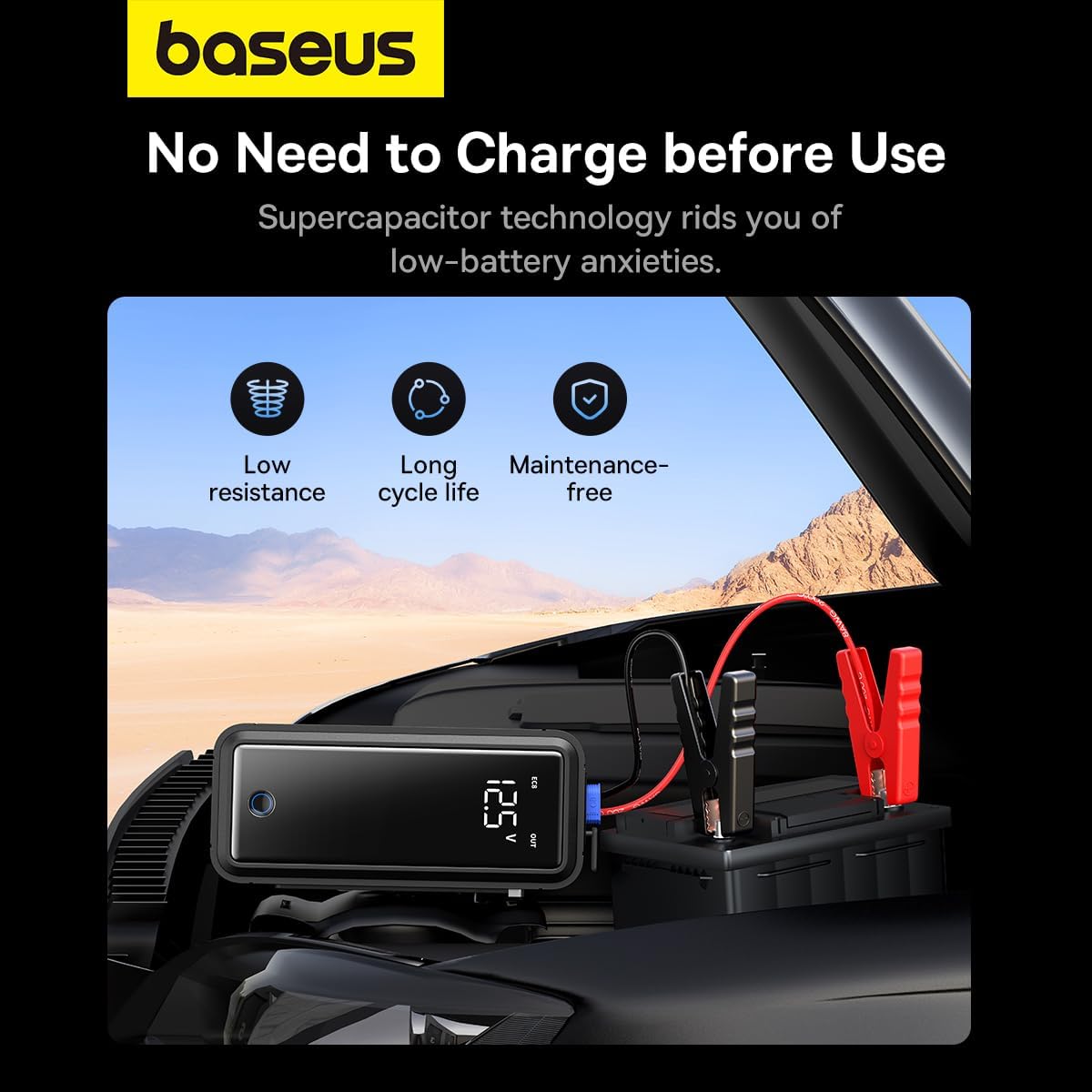

Image: The jump starter connected to a car battery, illustrating the direct charging from the vehicle's battery.

6. Abiarazle elektrikoa kargatzea

The Baseus Super Capacitor Car Jump Starter primarily charges itself from the weak car battery it is connected to. However, it also offers alternative charging methods:

• Clamp Kargatzen: Konektatu clamps to a weak car battery. The supercapacitors will fully charge in approximately 3 minutes.
• DC Port Charging: Use a compatible DC charger to charge the unit via its DC port. A full charge takes approximately 5 minutes.
• USB-C Port Charging: Connect a USB-C cable to a power source. A full charge via USB-C takes approximately 30 minutes.

Image: Various ultra-fast charging options for the jump starter, including clamp, DC port, and USB-C.

7. Mantentzea

• Garbiketa: Garbitu gailua zapi lehor eta leun batekin. Ez erabili produktu kimiko gogorrik edo garbitzaile urratzailerik.
• Biltegiratzea: Store the jump starter in a cool, dry place, away from direct sunlight and extreme temperatures.
• Kableen ikuskapena: Aldian-aldian ikuskatu cl.amps and cables for any signs of wear, damage, or corrosion. Replace if necessary.
• Battery-Free Advantage: Since it uses supercapacitors, there is no internal battery to maintain or worry about self-discharge over long periods of storage.

8. Arazoak

9. Zehaztapenak

10. Bermea eta Laguntza

For warranty information and technical support, please refer to the documentation included with your purchase or contact the retailer where you purchased the Baseus 3000A Super Capacitor Car Jump Starter. You may also visit the official Baseus webgunea laguntza gehiago eta harremanetarako datuak lortzeko.
