1. Sarrera
The STANLEY FATMAX TradeLift is a versatile, multifunctional tool designed to assist with a wide range of tasks including lifting, leveling, holding, and spreading. It is engineered to enable single-person operation for demanding jobs such as cabinet installation, window fitting, or door hanging, providing support and precision where an extra pair of hands would typically be required. This manual provides essential information for the safe and effective use of your TradeLift tool.

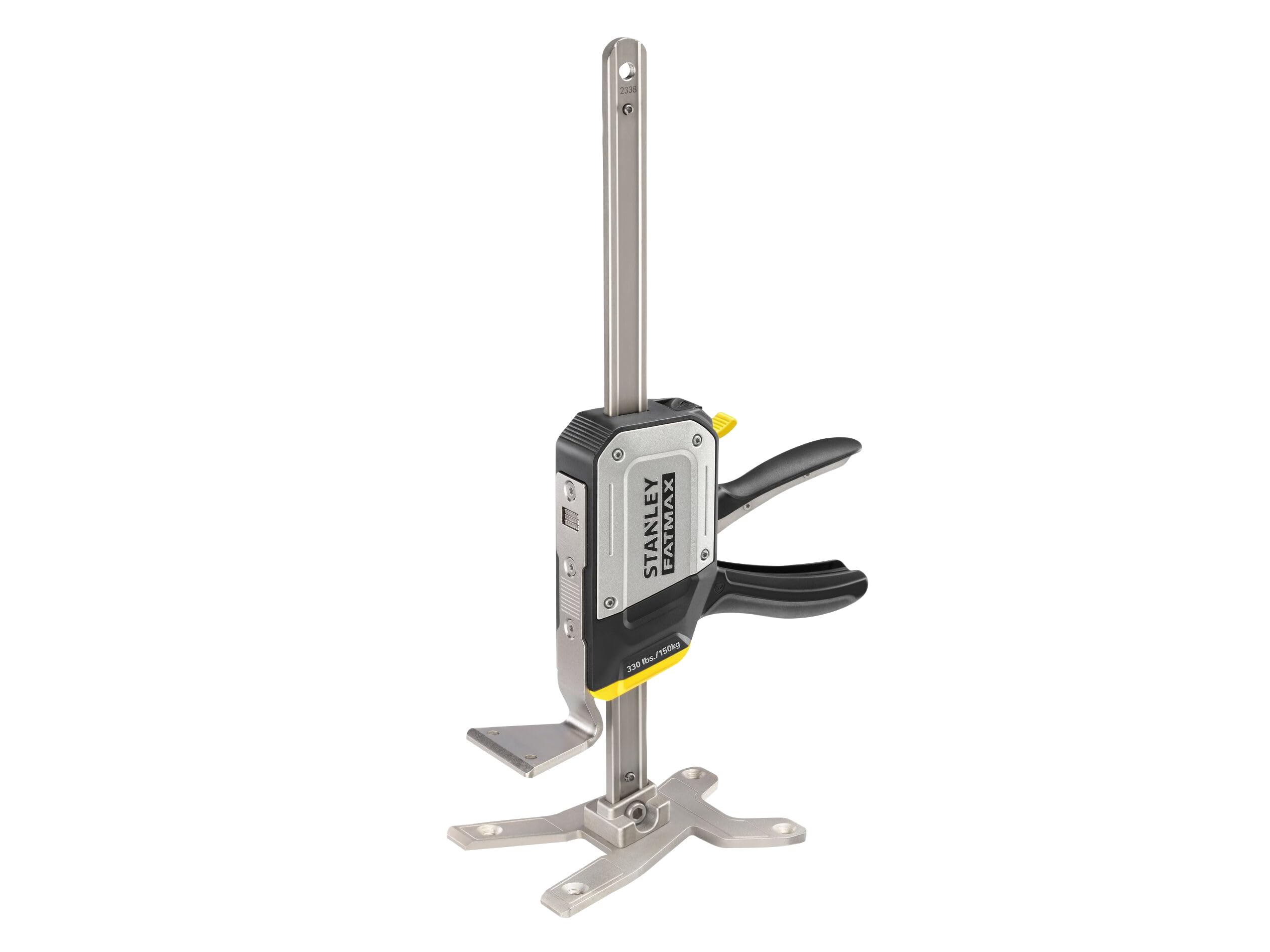

Figure 1: The STANLEY FATMAX TradeLift tool.
2. Segurtasun informazioa
Always read and understand all safety warnings and instructions before operating this tool. Failure to follow these instructions may result in serious injury or property damage.
- Gehienezko karga-gaitasuna: Do not exceed the maximum lifting capacity of 150 kg (330 lbs). Overloading can cause tool failure and injury.
- Kokapen egonkorra: Ensure the base and lifting plate are placed on stable, level surfaces before applying load. Uneven surfaces can cause the load to shift or fall.
- Karga segurua: Always ensure the object being lifted, held, or spread is securely positioned on the lifting plate and will not slip.
- Norberaren Babeserako Ekipamendua (PPE): Wear appropriate safety gear, including safety glasses and gloves, when operating the tool.
- Lan-eremu garbia: Keep the work area clear of obstructions and bystanders.
- Erabili aurretik ikuskatu: Before each use, inspect the tool for any signs of damage, wear, or loose components. Do not use a damaged tool.
- Controlled Release: Always use the controlled release mechanism for lowering objects to prevent sudden drops.
- Children and Unauthorized Users: Mantendu tresna haurren eta trebatu gabeko pertsonen eskura.
3. Produktua amaitu daview
The TradeLift tool is constructed with a durable metal housing for professional strength and longevity. Key components include:
- Lifting Plate: The upper platform that supports the object being lifted or held.
- Oinarrizko plaka: The stable foundation of the tool.
- Helduleku eragilea: Used to raise the lifting plate.
- Fine Adjustment Lever: Allows for precise, small adjustments (2.5 mm per click) when lowering.
- Full Release Button: Recessed button for quick, complete lowering of the lifting plate.
- Spreading Arm: The adjustable arm used for spreading applications.
Figure 2: Key components of the TradeLift tool.
4. Konfigurazioa
The STANLEY FATMAX TradeLift is ready for use out of the box. No assembly is required. Ensure the tool is clean and free from debris before use.
- Place the tool on a stable, flat surface.
- For spreading applications, ensure the spreading arm is correctly positioned and secured.
5. Funtzionamendu-argibideak
5.1. Lifting and Holding
- Kokatu tresna: Place the TradeLift directly under the object you intend to lift or hold. Ensure the base plate is stable and the lifting plate is centered under the load.
- Raise the Load: Squeeze the operating handle repeatedly to raise the lifting plate. The tool will lift objects up to 150 kg to a maximum height of 220 mm.
- Karga finkatu: Once the desired height is reached, the tool will automatically hold the load in place.

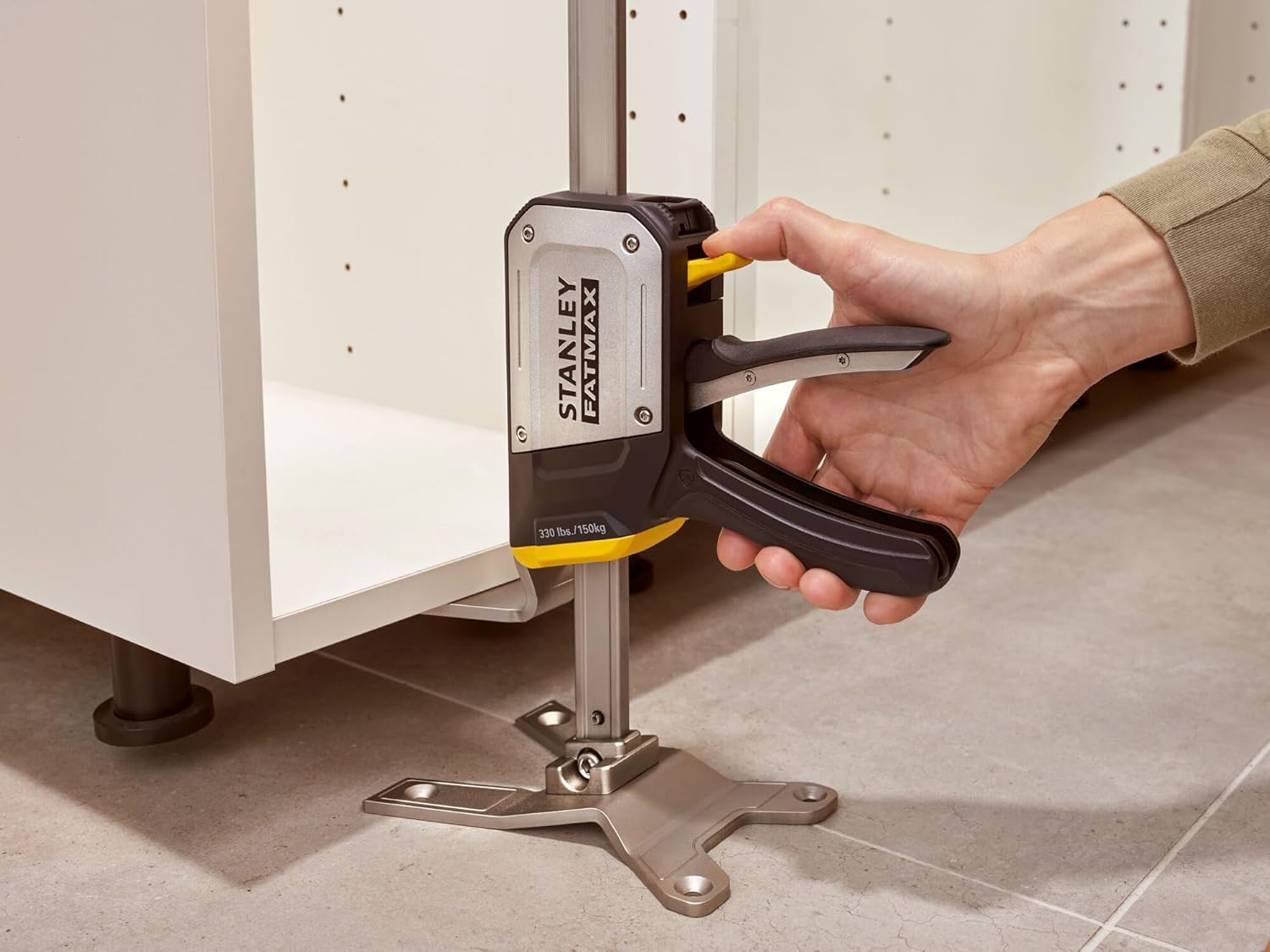

Figure 3: Lifting a cabinet with the TradeLift.

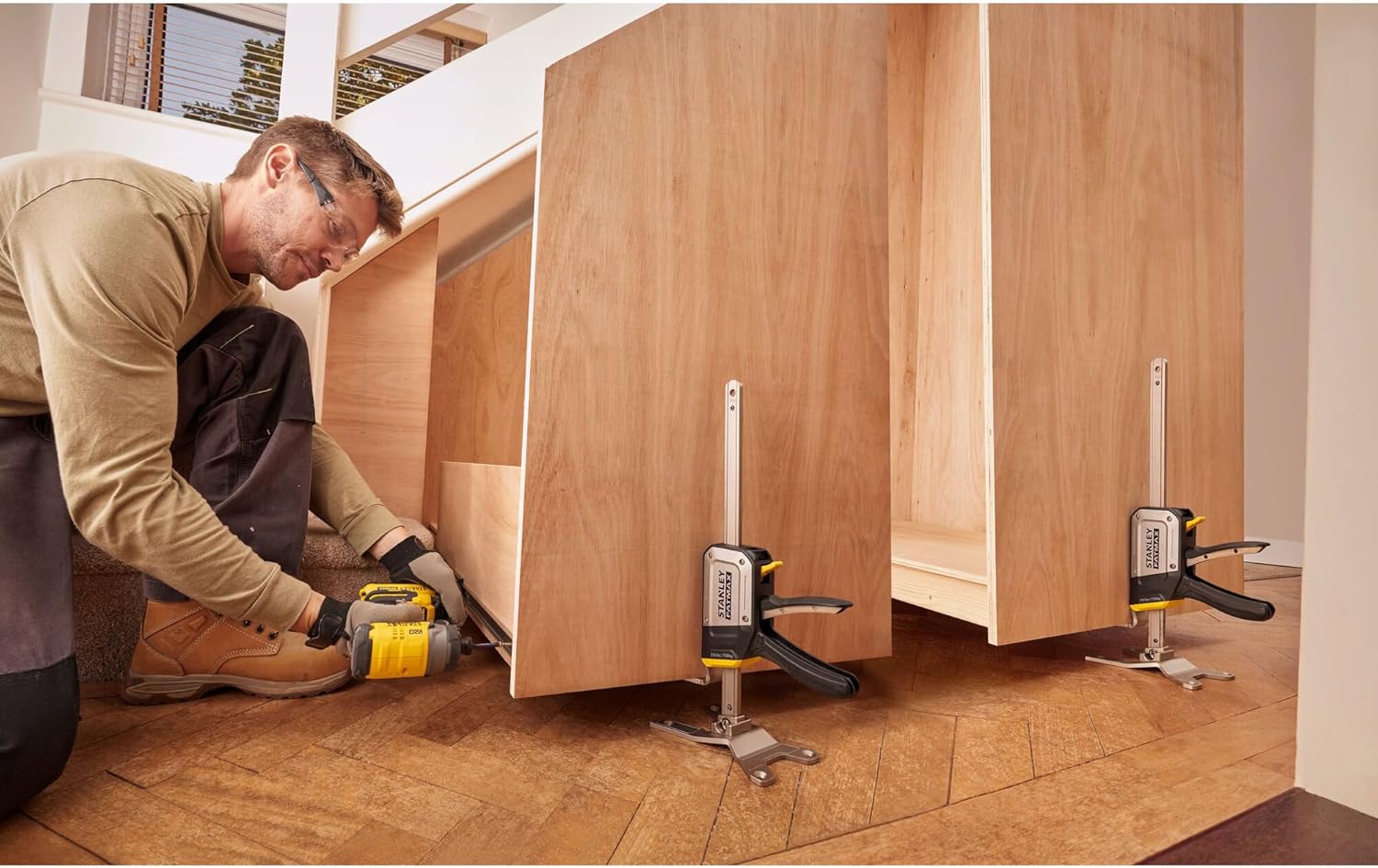

Figure 4: Supporting a large panel with multiple TradeLift tools.
5.2. Leveling (Fine Adjustment)
- Initial Lift: Lift the object slightly above the desired level using the operating handle.
- Doikuntza fina: To lower the object precisely, gently press the fine adjustment lever. Each press will lower the lifting plate by approximately 2.5 mm, allowing for accurate leveling.
Figure 5: Leveling a cabinet with fine adjustments.
5.3. Spreading
- Configure for Spreading: Adjust the tool to its spreading configuration by positioning the spreading arm as needed.
- Kokatu tresna: Place the tool between the two surfaces you wish to spread apart.
- Aplikatu presioa: Squeeze the operating handle to extend the spreading arm, applying outward pressure. The tool can spread up to 220 mm.
Figure 6: Using the TradeLift for spreading applications.
5.4. Askatuasing the Load
To fully release the load and lower the lifting plate quickly, press the recessed full release button. This safety feature prevents accidental activation.
5.5. Video Demonstrations
Video: Lifting and Installation Applications
This video demonstrates the TradeLift being used for various lifting and installation tasks, such as positioning cabinets and doors. It highlights the ease of use for single-person operations.
Video: Controlled Lowering and Spreading
This video illustrates the controlled lowering function and the tool's application in spreading scenarios, showcasinbere aldakortasunari esker.
6. Mantentzea
Proper maintenance ensures the longevity and reliable performance of your TradeLift tool.
- Garbiketa: After each use, wipe down the tool with a clean, dry cloth to remove dust, dirt, and debris. Avoid using harsh chemicals or abrasive cleaners.
- Lubrifikazioa: Periodically apply a light lubricant to moving parts, such as the lifting mechanism and pivot points, to ensure smooth operation.
- Biltegiratzea: Store the tool in a dry, clean environment, away from extreme temperatures and direct sunlight.
- Ikuskapena: Regularly check for any loose screws, bolts, or signs of wear on the lifting plates, base, and handle. Tighten any loose fasteners and replace worn parts if necessary.
7. Arazoak
If you encounter issues with your TradeLift, refer to the following common problems and solutions:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Tool does not lift or hold load | Overload; mechanism jammed; worn components | Reduce load to within 150 kg capacity; check for obstructions and clear them; inspect for wear and replace if necessary. |
| Lifting plate lowers too quickly | Full release button accidentally pressed; mechanism wear | Ensure the full release button is not engaged; use the fine adjustment lever for controlled lowering; inspect mechanism for wear. |
| Difficulty in operating handle | Lack of lubrication; dirt/debris in mechanism | Clean the tool and apply lubricant to moving parts. |
8. Zehaztapenak
- Modelo zenbakia: FMHT83550-1 (STA183550)
- Materiala: Metala
- Maximum Lifting Capacity: 150 kg (330 lb)
- Gehienezko altxatze-altuera: 220 mm
- Doikuntza fina: 2.5 mm per click
- Produktuaren neurriak (LxWxH): 28.5 x 13 x 47 cm
- Elementuaren pisua: 2.5 kg
- Kolorea: Horia eta Beltza
9. Bermea eta Laguntza
For warranty information, technical support, or to purchase replacement parts, please refer to the official STANLEY webwebgunera edo jarri harremanetan bezeroarentzako arreta-zerbitzuarekin. Gorde erosketaren frogagiria berme-erreklamazioetarako.
