LIORQUE G0181R-P Projection Alarm Clock Radio User Manual

1. Sarrera eta Overview

The LIORQUE G0181R-P is a versatile projection alarm clock radio designed to enhance your daily routine. It features a large digital display, dual alarms, FM radio, a convenient snooze function, and a projection feature to display the time on your ceiling or wall. Additionally, it includes two USB ports for charging your devices.

1.1. irudia: Amaituview of the LIORQUE G0181R-P Projection Alarm Clock Radio, highlighting its main features including time projection, FM radio, dual alarms, snooze, infinite brightness adjustment, and dual USB charging ports.

2. Konfigurazioa

2.1 Energia-konexioa

Connect the provided power adapter to the DC IN port on the back of the alarm clock and plug it into a standard wall outlet. The display will light up, indicating the device is receiving power.

Image 2.1: The alarm clock connected to its power adapter, which is plugged into a wall socket. This illustrates the initial power setup.

2.2 Bateriaren babeskopia

The unit includes a built-in CR2032 button cell battery. This battery serves as a backup to retain time and alarm settings during a power outage. It does not power the main display or functions.

3. Funtzionamendu-argibideak

3.1 Ordua ezartzea

1. Eduki sakatuta ORDUA botoia. Orduko zifrak keinu egingo dute.
2. Erabili VOL+ or Boluntario ordua doitzeko botoiak.
3. Sakatu ORDUA berriro. Minutuen digituak keinuka hasiko dira.
4. Erabili VOL+ or Boluntario minutuak doitzeko botoiak.
5. Sakatu ORDUA a third time to confirm and exit time setting mode.
6. 12 orduko eta 24 orduko formatuaren artean aldatzeko, sakatu 12/24H button during normal time display.

Image 3.1: The front display of the alarm clock, showing the digital time. This is the primary interface for time and alarm settings.

3.2 Alarmaren ezarpena (alarma bikoitzak)

This clock features two independent alarms (Alarm 1 and Alarm 2).

1. Eduki sakatuta 1. ALARMA MULTZOA or 2. ALARMA MULTZOA button. The hour digits for the selected alarm will flash.
2. Erabili VOL+ or Boluntario alarma-ordua doitzeko botoiak.
3. Sakatu dagokion botoia. ALARMA MULTZOA botoia berriro sakatu. Minutuen digituak keinuka hasiko dira.
4. Erabili VOL+ or Boluntario botoiak alarmaren minutuak doitzeko.
5. Sakatu dagokion botoia. ALARMA MULTZOA button a third time to confirm.
6. Alarma aktibatzeko/desaktibatzeko, sakatu ALARMA 1 ON/OFF or ALARMA 2 ON/OFF button. An indicator icon will appear on the display when an alarm is active.

Image 3.2: The display showing two distinct alarm settings, illustrating the dual alarm capability of the clock.

3.3 Snooze funtzioa

Alarma jotzen duenean, sakatu botoi handia SNOOZE button on top of the clock to temporarily silence the alarm. The alarm will sound again after the set snooze duration. The default snooze time is 5 minutes and can be adjusted from 5 to 60 minutes in the settings.

Image 3.3: A person pressing the snooze button on the alarm clock, with an overlay indicating the adjustable snooze duration.

3.4 FM irratiaren funtzionamendua

1. Sakatu IRRATIA ON/OFF botoia FM irratia pizteko.
2. Sakatu ESKANETATU button to automatically scan and save available FM stations (up to 10 stations).
3. Erabili MEMORIA botoia gordetako estazioen artean aldatzeko.
4. Doitu bolumena VOL+ or Boluntario botoiak.
5. Irratia itzaltzeko, sakatu IRRATIA ON/OFF botoia berriro.

Image 3.4: The alarm clock displaying FM radio frequencies, with visual cues indicating radio waves, demonstrating its FM radio functionality.

3.5 Time Projection

The projector allows you to display the time on a wall or ceiling.

1. Sakatu PROIEKZIOA ON / OFF button to activate or deactivate the projection.
2. Rotate the projector lens to adjust the projection angle.
3. Eduki sakatuta PROJECTION ROTATE button to rotate the projected image 180 degrees for optimal viewing.
4. Adjust the projection brightness using the dedicated projection brightness control (often a small wheel or button near the projector lens).

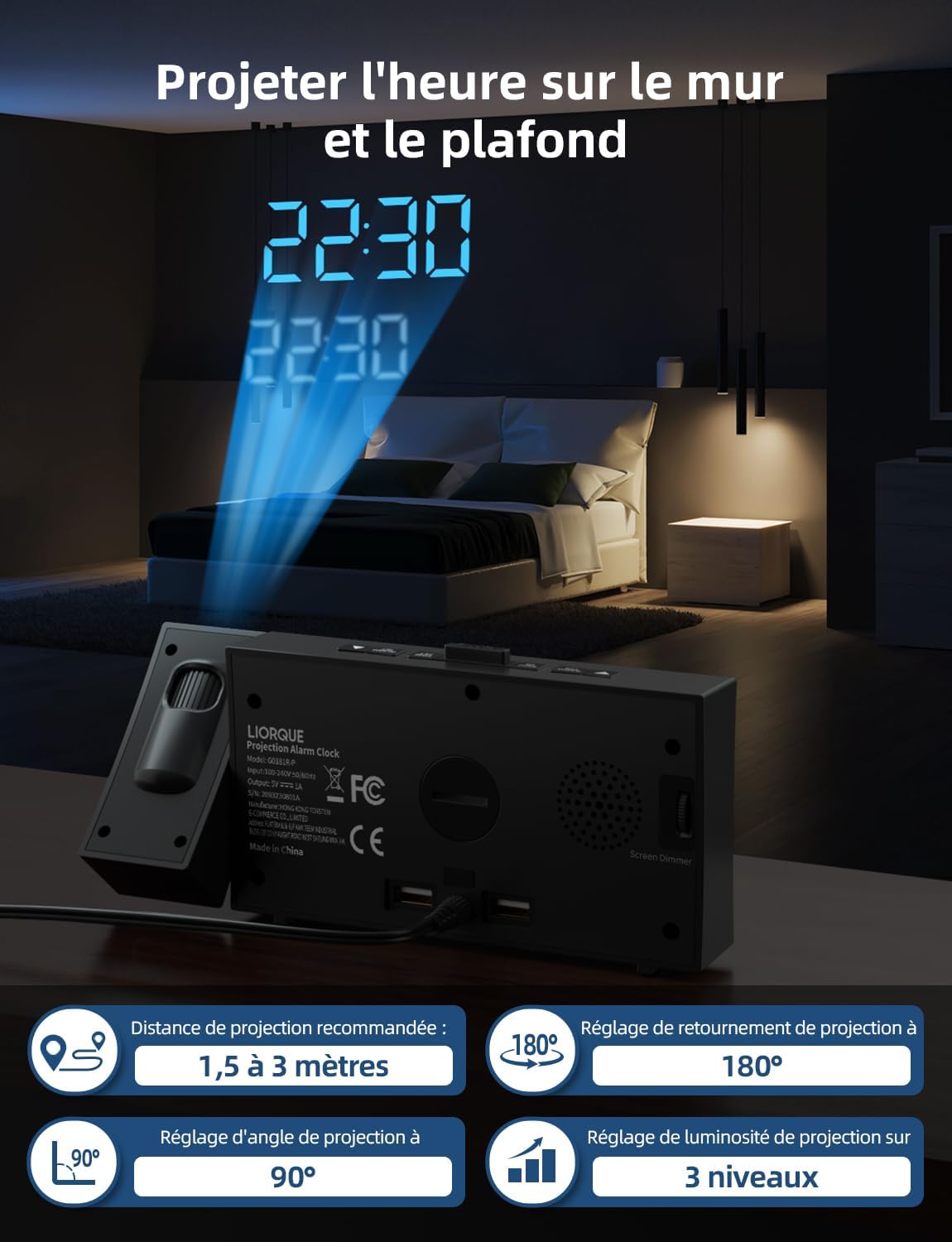

Image 3.5: The alarm clock projecting the time onto a bedroom ceiling, demonstrating its projection feature.

3.6 Pantailaren distira doitzea

The main display brightness can be adjusted to your preference.

1. Sakatu DIMMER button repeatedly to cycle through different brightness levels (e.g., High, Medium, Low, Off).
2. Some models may feature an infinite dimmer wheel or button for precise adjustment.

Image 3.6: The alarm clock with a visual representation of its infinite brightness adjustment feature, allowing users to set the display intensity from 0% to 100%.

3.7 USB kargatzeko ataka

Two USB charging ports are located on the back of the unit. These ports provide power to charge compatible electronic devices such as smartphones or tablets. Simply connect your device's USB charging cable to one of the ports.

Image 3.7: The alarm clock charging two smartphones simultaneously via its integrated USB ports, demonstrating its charging capability.

4. Mantentzea

4.1 Garbiketa

To clean the alarm clock, gently wipe the surfaces with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents as they may damage the finish. Ensure the device is unplugged before cleaning.

4.2 Bateria ordezkatzea

The CR2032 backup battery typically lasts for several years. If you notice that time and alarm settings are not retained after a power outage, the battery may need replacement. To replace, locate the battery compartment on the bottom of the unit, open it, and replace the old CR2032 battery with a new one, ensuring correct polarity. Dispose of old batteries responsibly.

5. Arazoak

• Pantailarik ez / Unitatea ez da pizten: Ensure the power adapter is securely plugged into both the clock and a working wall outlet. Check if the outlet is functional.
• Alarma ez da jotzen: Verify that the alarm is activated (check for the alarm icon on the display). Ensure the alarm volume is not set to zero.
• Radio Static / Poor Reception: Extend the FM antenna fully. Try repositioning the clock to improve reception. Perform an auto-scan to find stronger stations.
• Ez dago argi proiekzioa: Adjust the focus of the projector lens (if available) and ensure the projection distance is within the recommended range (typically 1.5 to 3 meters). Clean the projector lens if it appears dusty.
• Time/Settings Lost After Power Outage: The CR2032 backup battery may be depleted and needs replacement.

6. Zehaztapenak

7. Bermea eta Laguntza

This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact LIORQUE customer support. If you encounter any issues not covered in this manual, please reach out to the manufacturer's support team for assistance.

For further support, please visit the official LIORQUE webwebgunean edo jarri harremanetan bere bezeroarentzako arreta zerbitzuarekin.
