1. Sarrera eta Overview
This manual provides essential information for the safe and efficient operation of your Hisense MCF189E1 Chest Freezer. Please read it thoroughly before installation and use, and keep it for future reference. This chest freezer offers a generous 191-liter capacity, operates quietly at 39 dB, and is rated Energy Class E for efficient performance.
Zer dago Kutxan:
- Hisense MCF189E1 Chest Freezer
- Erabiltzailearen eskuliburua
- Berme Txartela
- Energia Etiketa
Irudia: Aurrealdea view of the Hisense MCF189E1 Chest Freezer, highlighting its 191L capacity and Energy Class E rating.
2. Segurtasun informazioa
To reduce the risk of fire, electric shock, or injury when using your freezer, follow these basic precautions:
- Ziurtatu gailua behar bezala lurrarekin lotuta dagoela.
- Ez kaltetu hozte-zirkuitua.
- Mantendu aireztapen-zuloak oztoporik gabe.
- Ez erabili gailu mekanikorik edo bestelako baliabiderik desizozteko prozesua bizkortzeko, fabrikatzaileak gomendatutakoak ez ezik.
- Ez erabili etxetresna elektrikorik elikagaiak biltegiratzeko konpartimentuen barruan, fabrikatzaileak gomendatutako motakoak izan ezik.
- Unplug the freezer before cleaning or performing maintenance.
- Tresna hau ez da gaitasun fisiko, sentsorial edo mental murriztua duten edo esperientzia eta ezagutza falta duten pertsonek (haurrak barne) erabiltzeko, baldin eta haien segurtasunaz arduratzen den pertsona batek gailuaren erabilerari buruz gainbegiratu edo jarraibiderik eman ez badu.
- Haurrak gainbegiratu behar dira aparatuarekin jolasten ez dutela ziurtatzeko.
3. Produktuaren ezaugarriak
Your Hisense MCF189E1 Chest Freezer is designed with convenience and efficiency in mind:
3.1 Movable Internal Baskets
The freezer includes internal baskets that can be easily moved or removed, allowing for flexible organization of your frozen goods and maximizing storage space.
Image: Illustration of movable internal baskets for optimized storage.
3.2 Easy Cleaning
The interior and exterior surfaces are designed for easy cleaning, ensuring hygiene and simple maintenance.
Image: A hand demonstrating the easy-to-clean interior surface of the freezer.
3.3 Electronic Temperature Control
An intuitive electronic control panel allows for precise temperature adjustments and activation of the Super Freeze function.
Image: Close-up of the electronic control panel for temperature management.
3.4 Zarata gutxiko funtzionamendua
Designed for quiet performance, the freezer operates at a low noise level of 39 dB, ensuring a peaceful environment.
Image: Visual representation of the freezer's low noise output.

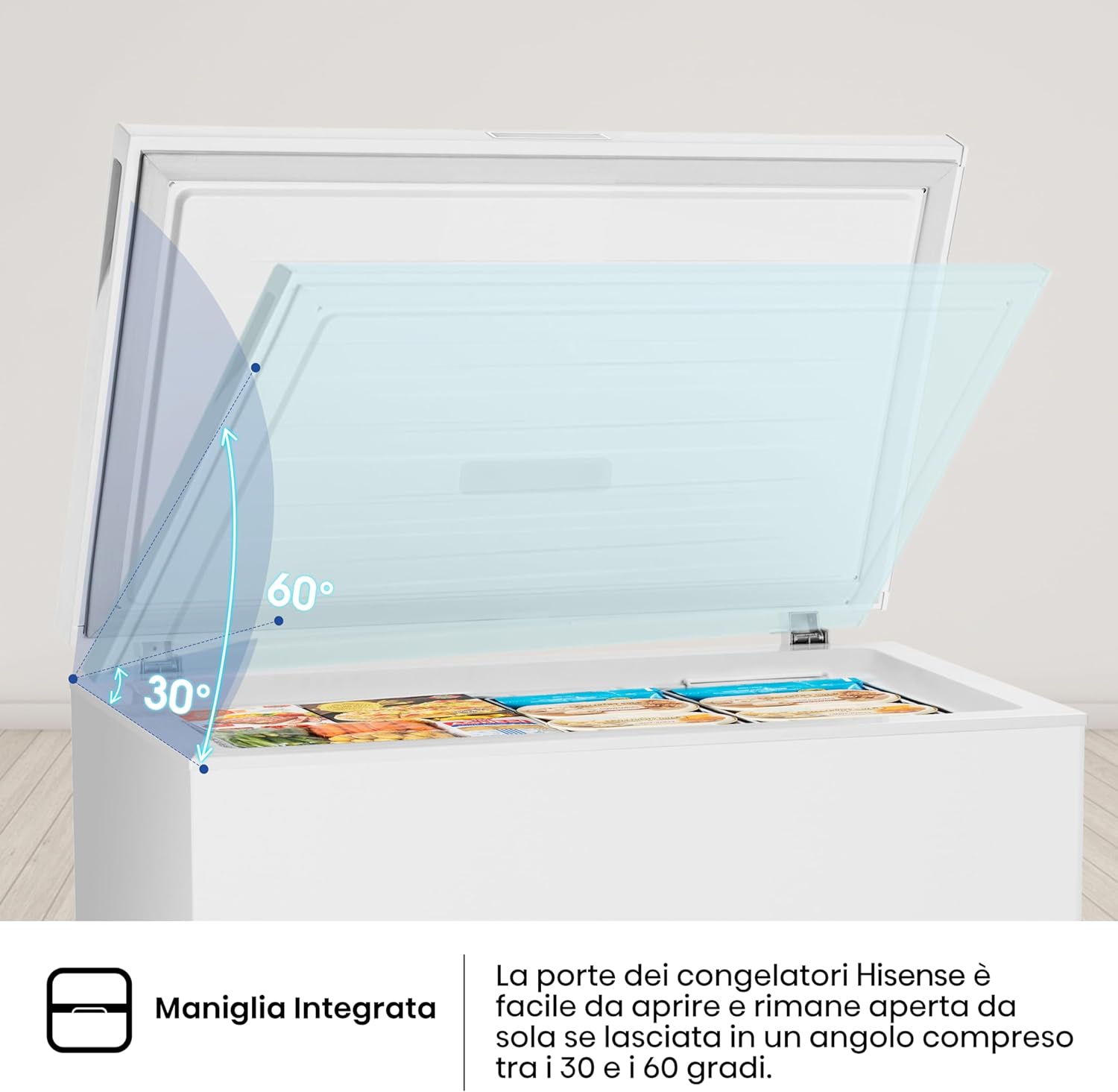

3.5 Self-Holding Freezer Door
The freezer door is designed to remain open at angles between 30 and 60 degrees, providing convenience when loading or unloading items.
Image: Diagram showing the freezer door's ability to stay open at various angles.
3.6 Helduleku integratua
The modern, recessed integrated handle with rounded corners offers a sleek design that complements any kitchen and is easy to clean.
Image: Detail of the freezer's integrated handle design.
4. Konfigurazioa
4.1 Paketatzea
Carefully remove all packaging materials. Inspect the freezer for any damage. Keep packaging materials away from children.
4.2 Jartzea
- Place the freezer on a firm, level surface to prevent vibrations and ensure proper operation.
- Ensure adequate ventilation around the appliance. Leave at least 10 cm of space on the sides and back, and 30 cm above the freezer for proper air circulation.
- Avoid placing the freezer in direct sunlight or near heat sources (e.g., ovens, radiators) to maintain energy efficiency.
- Ez instalatu tresna iragarkianamp edo kokapen hezea.
Image: Dimensions of the freezer (Width: 89.1 cm, Depth: 55.7 cm, Height: 85.3 cm).
4.3 Hasierako garbiketa
Before first use, clean the interior and exterior of the freezer with a soft cloth and mild detergent. Rinse with clean water and dry thoroughly.
4.4 Energia-konexioa
Plug the freezer into a dedicated, properly grounded electrical outlet. Allow the freezer to stand for at least 2-4 hours before plugging it in to allow refrigerants to settle.
5. Funtzionamendu-argibideak
5.1 Tenperatura Kontrola
The electronic control panel allows you to set the desired temperature. Refer to the display for the current temperature. Use the 'Temp. Set' button to adjust the temperature. Lower numbers typically indicate colder temperatures.
5.2 Super Izozte Funtzioa
For rapid freezing of fresh food, activate the 'Super Freeze' function. This will quickly lower the temperature to freeze items faster, preserving their quality. The function will typically deactivate automatically after a set period or when the target temperature is reached.
5.3 Janaria kargatzea
When loading food, ensure that items are properly packaged to prevent freezer burn and maintain freshness. Avoid blocking the internal air circulation (if applicable) and do not overload the freezer, as this can hinder efficient freezing.
6. Mantentzea
6.1 Garbiketa
- Barrualdea: Clean the interior regularly with a solution of mild detergent and warm water. Avoid abrasive cleaners or sharp objects.
- Kanpoaldea: Garbitu kanpoko gainazalak leun batekin, damp cloth. For the stainless steel door, use a specialized stainless steel cleaner if necessary.
- Ateko zigilua: Clean the door gasket regularly to ensure a tight seal and prevent energy loss.
6.2 Desizoztea
Over time, frost will accumulate inside the freezer. Defrost the freezer when the frost layer is about 0.5-1 cm thick to maintain efficiency. To defrost:
- Deskonektatu izozkailua korronte-hartunetik.
- Kendu janari-elementu guztiak eta gorde beste izozkailu edo hozkailu batean.
- Leave the lid open to allow the frost to melt naturally. You can place towels at the bottom to absorb water.
- Behin desizoztuta, barrualdea ondo garbitu eta lehortu.
- Konektatu berriro izozkailua eta utzi hozten janaria itzuli aurretik.
7. Arazoak
If you encounter issues with your freezer, consult the table below for common problems and solutions:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Izozkailuak ez du funtzionatzen | Argindarrik ez; kablea deskonektatuta; etengailu magnetotermikoa jauzi egin du. | Check power supply; ensure cord is securely plugged in; reset circuit breaker. |
| Tenperatura ez da nahikoa hotza | Temperature setting too high; door opened too frequently; excessive food load; poor ventilation. | Adjust temperature setting lower; minimize door openings; reduce food load; ensure proper ventilation. |
| Gehiegizko zarata | Freezer not level; objects vibrating against the unit; normal operating sounds. | Adjust leveling feet; ensure nothing is touching the freezer; some sounds (e.g., refrigerant flow) are normal. |
| Gehiegizko izozteak pilatzea | Door not sealing properly; high humidity; door opened too frequently. | Check door gasket for damage or obstruction; ensure door closes completely; minimize door openings. |
If the problem persists after checking these points, please contact Hisense customer support.
8. Zehaztapenak
| Zehaztapena | Balioa |
|---|---|
| Marka | Hisense |
| Modelo zenbakia | MCF189E1 |
| Edukiera | 191 litro |
| Energia Eraginkortasun Klasea | E |
| Zarata Maila | 39 dB |
| Neurriak (LxWxH) | 89.1 cm x 55.7 cm x 85.3 cm |
| Produktuaren pisua | 31 kg |
| Ateko materiala | Altzairu herdoilgaitza |
| Kolorea | Zuria |
Etiketa energetikoa:
Image: Official Energy Label for the Hisense MCF189E1, showing Class E efficiency and 191L capacity.
Xehetasun gehiagorako, jo EPREL datu basea.
9. Bermea eta Laguntza
Your Hisense MCF189E1 Chest Freezer comes with a manufacturer's warranty. Please refer to the warranty card included in the packaging for specific terms and conditions.
For returns or issues with defective/damaged products, please consult the retailer's return policy or contact their customer service directly. For purchases made on Amazon, you may refer to their dedicated help pages for returns and warranty information.
For technical assistance or further inquiries, please contact Hisense customer support.
10. Produktu Ofizialen Bideoak
No official product videos from the seller or vendor were available for embedding in this manual.
