Sarrera
This manual provides essential information for the setup, operation, and maintenance of your STRONG SRT32HG6733C 32-inch HD Android Smart TV. Please read these instructions carefully before using the product to ensure proper functionality and safety.
Kutxan dagoena
Upon unpacking, verify that all items listed below are present and in good condition:
- STRONG SRT32HG6733C TV Unit
- Remote control with voice recognition
- 2 x AAA bateria
- Erabiltzailearen eskuliburua (dokumentu hau)
Image: The STRONG SRT32HG6733C TV unit with its central stand, remote control, and included accessories.
Konfigurazioa
1. Euskarria lotzea
Carefully place the TV screen-down on a soft, clean surface to prevent scratches. Align the central stand with the mounting holes on the bottom of the TV. Secure the stand using the provided screws. Ensure the stand is firmly attached before proceeding.
Irudia: Atzealdea view of the TV showing the central stand attachment points and various input ports.
2. Potentzia konektatzea
Plug the power cord into the TV's power input, then into a wall outlet. The TV will enter standby mode.
3. Hasierako konfigurazioa eta sareko konexioa
Upon first power-on, the TV will guide you through the initial setup process. This includes language selection, country, and network connection. For optimal Smart TV functionality, connect to your Wi-Fi network. You can also connect via an Ethernet cable for a stable wired connection.

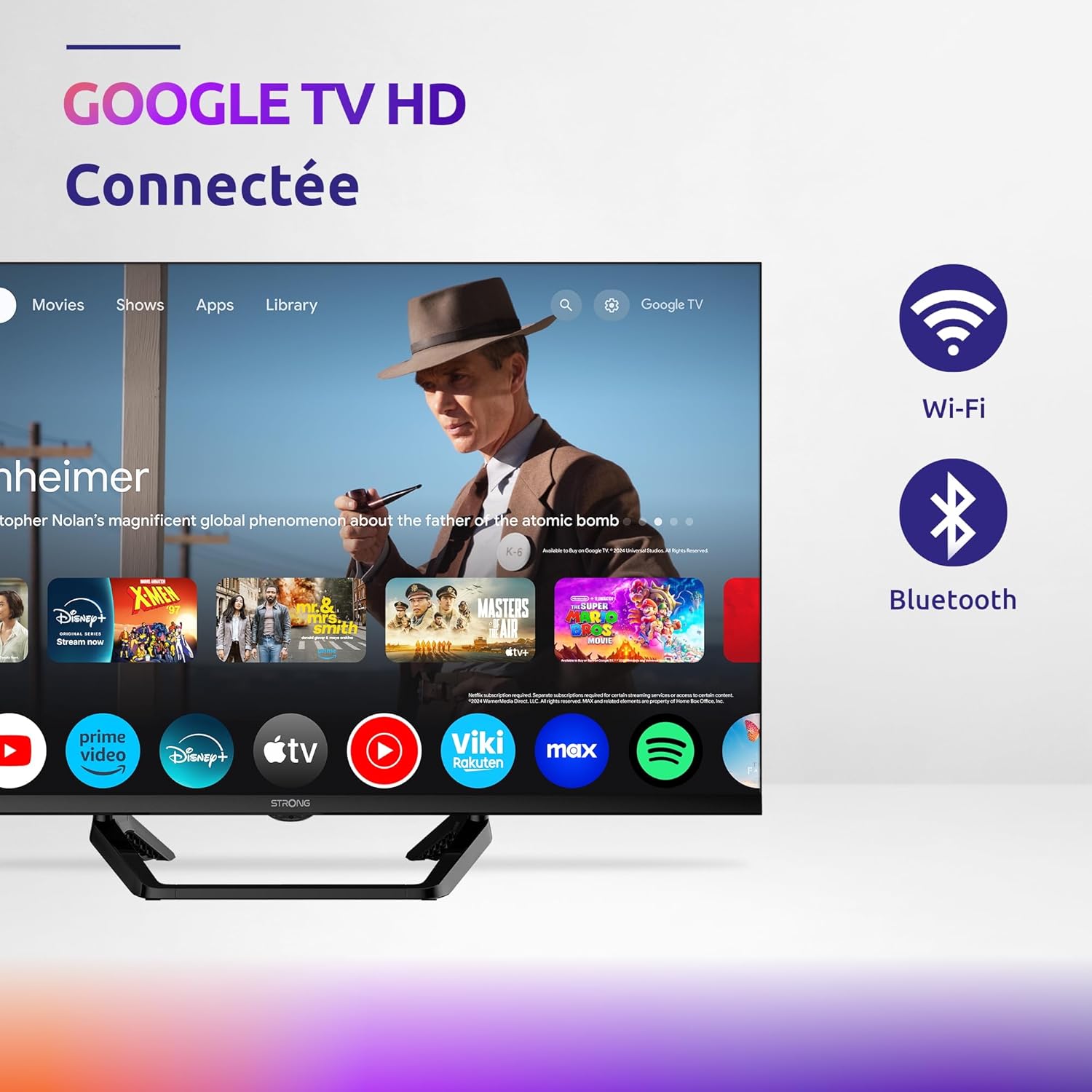

Image: The TV screen displaying connectivity options, highlighting Wi-Fi and Bluetooth symbols.
Funtzionamendu-argibideak
Oinarrizko Funtzioak
- Piztu/Itzali: Sakatu urrutiko agintean edo telebistan pizteko botoia.
- Kanalaren hautaketa: Use the CH+/- buttons or the number pad on the remote.
- Bolumen kontrola: Erabili BOLUMEN+/- botoiak.
- Sarrera iturria: Press the SOURCE button to select between HDMI, AV, DVB-T/T2, DVB-C, DVB-S/S2 inputs.
Telebista adimendunen ezaugarriak (Google TV)
Your TV runs on Google TV, providing access to a wide range of applications and services.
- Hasierako pantaila: Access your favorite apps, movies, and shows directly from the customizable home screen.
- Streaming aplikazioak: Pre-installed apps include Netflix, Prime Video, YouTube, and Disney+. Additional apps can be downloaded from the Google Play Store.
- Google Laguntzailea: Use the voice recognition remote to control your TV, search for content, and get information by pressing the Google Assistant button and speaking your command.
- Google Cast: Stream content from your compatible smartphone or tablet directly to the TV.
Image: The TV screen showing the Google TV interface with icons for Netflix, YouTube, Prime Video, Disney+, and other streaming services.
Image: A user holding the voice-controlled remote, with a visual representation of Google Assistant responding to a voice command on the TV screen.
Konektibitatea
Telebistak kanpoko gailuak konektatzeko hainbat ataka eskaintzen ditu:
- HDMI atakak (x2): Konektatu Blu-ray erreproduzitzaileak, joko kontsolak edo HDMI gaitutako beste gailuak.
- USB ataka (x1): Erreproduzitu multimedia filefitxategiak (argazkiak, bideoak, musika) USB biltegiratze gailu batetik.
- Ethernet (RJ45) Port: Interneteko kable bidezko konexio baterako.
- Antenna (ANT in) / Satellite (SAT in) Inputs: Connect your terrestrial or satellite antenna for live TV.
- CI zirrikitua: Baldintzapeko Sarbide Moduluek (CAM) kanal enkriptatuak deszifratzeko.
- SPDIF irteera: Soinu-barra edo etxeko zinema-sistema batera audio-irteera digitalerako.
- AV sarrera: Bideo konposatua eta audio estereoa erabiltzen dituzten gailu zaharragoak konektatzeko.
- Aurikularretarako irteera: Entzungailuak konektatzeko.
Irudia: Atzealde zehatza view of the TV highlighting all available input and output ports, including AV in, HDMI, USB, Ethernet, S/PDIF, ANT in, SAT in, CI slot, and Headphone output.
Bideoa: Aurrebista labur batview demonstrating the TV's use in a mobile setting, such as a camper van, showing its compact size and clear display for entertainment on the go.
Mantentzea
Telebista garbitzea
Pantaila garbitzeko, astiro-astiro zapi leun eta pelusik gabeko batekin garbitu. Orban egoskorrak izanez gero, apur bat garbitu.ampen the cloth with water or a screen-cleaning solution. Avoid using harsh chemicals or abrasive materials. Clean the TV casinoihal lehor eta leun batekin garbitu.
Software eguneraketak
Your Android TV may receive software updates periodically. Ensure your TV is connected to the internet to receive these updates. Updates can improve performance, add new features, and enhance security. You can check for updates manually in the TV's settings menu.
Arazoak konpontzea
| Arazoa | Irtenbide posiblea |
|---|---|
| Botererik ez | Egiaztatu elikatze-kablea telebistara eta hormako entxufean ondo konektatuta dagoela. Ziurtatu entxufea funtzionatzen duela. |
| Ez dago irudirik, baina soinua badago | Egiaztatu sarrera-iturri zuzena hautatuta dagoela. Egiaztatu kanpoko gailuetarako kable-konexioak. |
| Soinurik ez, baina irudia badago | Check the volume level and mute status. Ensure audio cables are correctly connected if using external speakers. |
| Urruneko kontrola ez dabil | Ordeztu bateriak. Ziurtatu ez dagoela oztoporik urrutiko agintearen eta telebistaren IR sentsorearen artean. |
| Ezin da wifira konektatu | Ziurtatu bideratzailea piztuta eta funtzionatzen duela. Idatzi berriro Wi-Fi pasahitza. Saiatu telebista eta bideratzailea berrabiarazten. |
| Telebista adimendunen aplikazioak motelak dira edo ez dute erantzuten | Check your internet connection speed. Close unused applications. Restart the TV. |
Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Modelo zenbakia | SRT32HG6733C |
| Pantailaren tamaina | 32 hazbete (81 cm) |
| Bistaratzeko Teknologia | LED |
| Ebazpena | HD prest (1366 x 768p) |
| Sistema eragilea | Google TV |
| Konektibitatea | Wi-Fi, Bluetooth, 2x HDMI, 1x USB, Ethernet (RJ45), AV In, SPDIF, ANT in, SAT in, CI Slot |
| Sintonizatzaileak | DVB-T/T2, DVB-C, DVB-S/S2 (HEVC 265 codec) |
| Ezaugarri bereziak | Google Assistant, Google Cast, Dolby Audio |
| Neurriak (W x D x H) | 71.8 x 22.3 x 45.2 cm (euskarriarekin) |
| Dakarten osagaiak | TV, Voice Remote, 2x AAA Batteries, Manual |
Image: Diagram showing the dimensions of the STRONG SRT32HG6733C TV, including width, height, and depth with the central stand.
Bermea eta Laguntza
This product comes with a manufacturer's warranty of 24 months. For warranty claims or technical support, please refer to the contact information provided on the official STRONG webgunea edo zure erosketa-dokumentazioa.
For frequently asked questions and additional resources, visit the STRONG Brand Store.
Images: Icons representing warranty information and frequently asked questions.
