1. Sarrera
Thank you for choosing the SHIDU S95 40W Voice Amplifier. This portable and versatile device is designed to provide clear and powerful sound amplification for various settings, including classrooms, meetings, outdoor events, and karaoke. Featuring a wireless microphone, Bluetooth connectivity, and multiple playback options, the S95 ensures your voice is heard with clarity and impact.
2. Zer dago kutxan
- SHIDU S95 ahotsa Ampbiziagoa
- Haririk gabeko mikrofonoa
- USB-C kargatzeko kablea
- 3.5 mm-ko AUX kablea
- Sorbalda-uhal
- Erabiltzailearen eskuliburua
3. Produktua amaitu daview
Ezaugarri nagusiak:
- 40 W potentzia irteera: Delivers clear and powerful sound, covering up to 22,600 sq.ft (2100 ㎡) for audiences of 300+ people.
- Wireless UHF Microphone: Provides stable signal reception and freedom of movement.
- Bluetooth 5.0 konexioa: Konektatu zure gailuetara audioa erreproduzitzeko modu errazean.
- Erreprodukzio modu anitz: Supports TF card, USB disk, AUX audio input, and FM radio.
- 4000mAh bateria kargagarria: Offers up to 15 hours of continuous use and can emergency charge mobile devices.
- Echo Adjustment: Enhances vocal effects for singing or presentations.
- Diseinu eramangarria: Compact and lightweight with a carrying strap for easy transport.
4. Konfiguratzeko argibideak
4.1 Gailua kargatzea
Lehenengo aldiz erabili aurretik, kargatu guztiz ahots-gailua ampargitzailea eta haririk gabeko mikrofonoa.
- Ampbiziagoa: Connect the provided USB-C charging cable to the DC 5V port on the amplifier and a compatible USB power adapter (not included). The battery indicator on the screen will show charging status.
- Haririk gabeko mikrofonoa: Connect the USB-C charging cable to the microphone's charging port. The blue light will flash during charging and turn solid when fully charged.
4.2 Piztu/Itzaltzea
- Ampbiziagoa: Long press the power button on the amplifier for 3 seconds to turn it on or off.
- Haririk gabeko mikrofonoa: Long press the power button on the microphone for 3 seconds. The blue light will turn on.
4.3 Pairing the Wireless Microphone
- Piztu ahotsa amplifier. It will announce "Bluetooth is waiting for connection."
- Turn on the wireless microphone. The blue light will flash.
- Press the 'M' button on the amplifier three times quickly to switch to UHF mode. The screen will display 'UHF'.
- Mikrofonoa eta amplifier will automatically pair. A voice prompt will confirm successful connection.
4.4 Video Guide: Unboxing and Setup
This video demonstrates the unboxing process and initial setup of the SHIDU S95 Voice Amplifier, including powering on and pairing the wireless microphone.
5. Funtzionamendu-argibideak

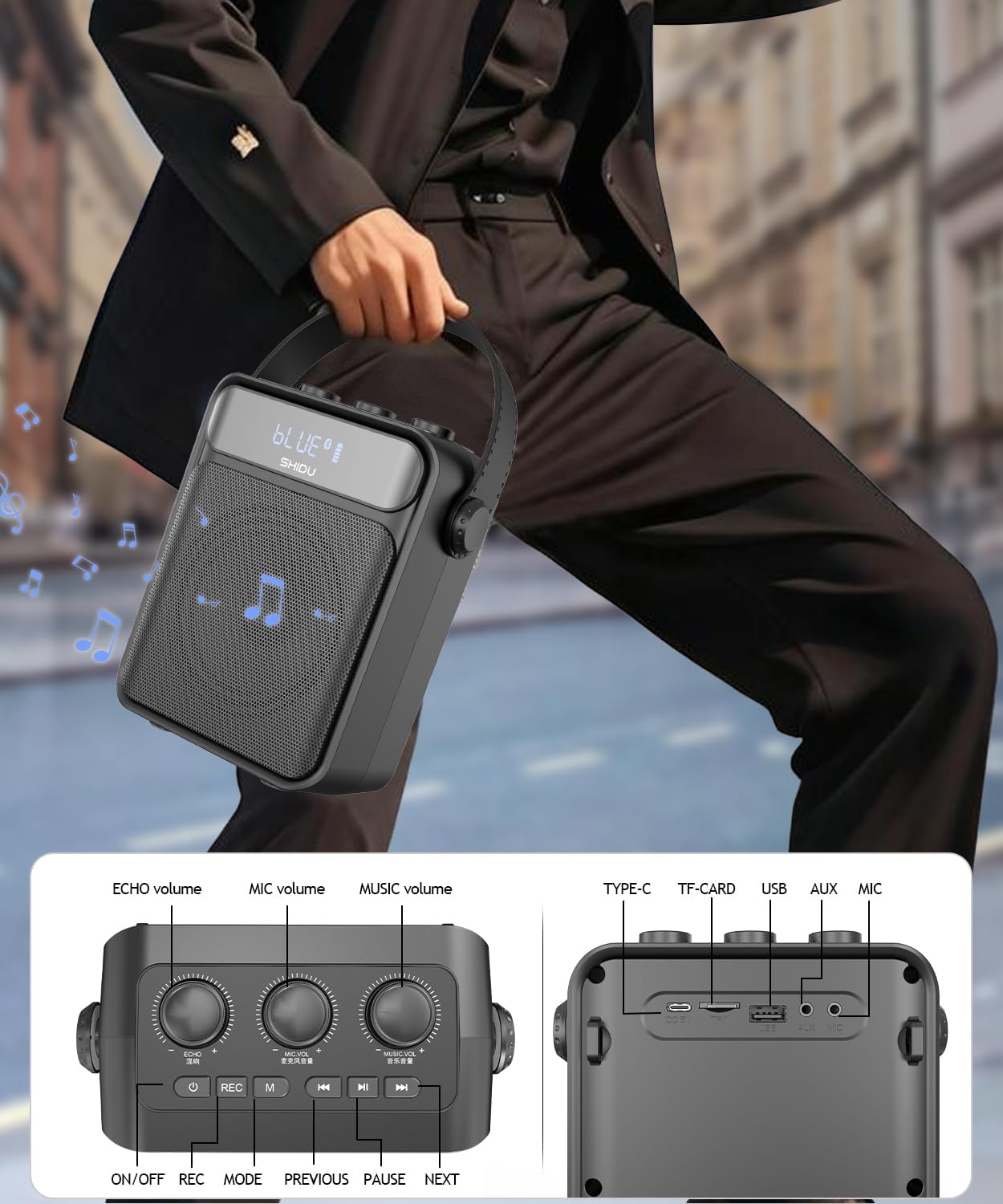

5.1 Volume Controls
- Mikrofonoaren bolumena: Rotate the 'MIC.VOL' knob to adjust the microphone volume.
- Musikaren bolumena: Rotate the 'MUSIC.VOL' knob to adjust the music playback volume.
- Oihartzuna: Rotate the 'ECHO' knob to add or reduce echo effect to the microphone sound.
5.2 Modu hautaketa
Press the 'M' button on the amplifier to cycle through different modes: Bluetooth, TF Card, USB, AUX, and FM Radio.
5.3 Bluetooth modua
- Aldatu amplifier to Bluetooth mode (indicated by 'BLUE' on the screen).
- Enable Bluetooth on your mobile device and search for 'S95'.
- Select 'S95' to connect. A voice prompt will confirm successful connection.
5.4 TF Card/USB Disk Playback
- Insert a TF card or USB flash drive into the corresponding slot.
- The amplifier will automatically switch to TF/USB mode and begin playing audio files.
- Use the previous/next track buttons to navigate.
5.5 AUX sarrera
Connect an external audio device (e.g., smartphone, tablet) to the AUX port using the 3.5mm AUX cable. The amplifier will automatically switch to AUX mode for playback.
5.6 FM Irratia
- Aldatu FM modura 'M' botoia erabiliz.
- Long press the play/pause button to initiate automatic channel searching.
- Use the previous/next track buttons to switch between saved FM channels.
5.7 Grabaketa-funtzioa
Insert a TF card or USB flash drive. Press the 'REC' button to start recording. Press 'REC' again to stop and save the recording. Recordings are saved in MP3 format.
5.8 Benetako Haririk gabeko Estereo (TWS) Funtzioa
If you have two SHIDU S95 amplifiers, you can pair them for True Wireless Stereo sound.
- Turn on both speakers and ensure they are in Bluetooth mode.
- On one speaker, long press the 'M' button until you hear a prompt indicating TWS pairing mode.
- The two speakers will automatically connect, providing a stereo audio experience.
5.9 Video Guide: Product Features
This video provides a demonstration of the SHIDU S95 Voice Amplifier's various features, including volume controls, mode selection, and connectivity options.
6. Mantentzea
- Garbitu gailua zapi leun eta lehor batekin. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
- Saihestu gailua tenperatura altuen, eguzki-argiaren eraginpean edo hezetasunean jartzea.
- Gorde amplifier and microphone in a cool, dry place when not in use.
7. Arazoak
| Arazoa | Irtenbide posiblea |
|---|---|
| Ez dago soinurik ampbiziagoa | Ziurtatu amplifier is powered on and charged. Check volume levels for both microphone and music. Verify correct mode selection (Bluetooth, AUX, etc.). |
| Wireless microphone not pairing | Ziurtatu biak amplifier and microphone are powered on. Switch the amplifier to UHF mode by pressing the 'M' button three times quickly. Make sure the microphone is charged. |
| Bluetooth konexio arazoak | Ziurtatu amplifier is in Bluetooth mode. Forget 'S95' from your device's Bluetooth settings and try pairing again. Keep devices within range. |
| Poor sound quality/distortion | Adjust microphone and music volume levels. Reduce echo if it's causing feedback. Ensure microphone is not too close to the speaker. |
8. Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Irteera Wattage | 25 Watts (Note: Product title states 40W, specifications list 25W. Please refer to product packaging for definitive wattage.) |
| Energia iturria | Bateriaren bidez |
| Bateria mota | Litio ioia (4000 mAh) |
| Konektibitate Teknologia | AUX, Bluetooth, USB |
| Konektore mota | Aux, USB |
| Materiala | Akrilonitrilo Butadieno Estirenoa (ABS) |
| Elementuaren pisua | 2.58 kilo |
| Kanal kopurua | 1 |
| Audio Sarrera | TF card/USB/TYPE-C charging port/Microphone port |
| Maiztasun Erantzuna | 18 KHz |
| Zarata Maila | 70 dezibelio |
| Inpedantzia | 4 ohmio |
| Tamaina | 7.55 * 6.45 * 3.3 hazbete |
9. Bermea eta Laguntza
SHIDU offers a 36-month warranty for this product. For any questions or support needs, please contact SHIDU customer service. Refer to the product packaging or the official SHIDU webharremanetarako datuak lortzeko gunea.
