Produktua amaituview
The HUNTVISION E3-LT Light Bulb Camera is a wireless security camera designed for indoor surveillance. It features 3MP Full HD resolution, a 360-degree panoramic view, 2.4G WiFi connectivity, two-way audio communication, and color night vision capabilities. This camera is designed to provide comprehensive monitoring and peace of mind for your home or office environment.
Figure 1: HUNTVISION E3-LT Light Bulb Camera. This image displays the overall design of the camera, including its light bulb base for easy installation into standard E27/E26 sockets, and the rotatable camera head with its lens and indicator light.
Ezaugarri nagusiak:
- 3MP HD Osoko Bereizmena: Delivers crisp, clear video footage.
- Kolore Gaueko Ikusmena: Argi gutxiko baldintzetan ere kolore osoko bideoa eskaintzen du.
- 3600 Panoramic View: Offers extensive coverage with remote pan (3550) and tilt (850) control via the mobile app.
- Bi norabideko audioa: Mikrofono eta bozgorailu integratuak denbora errealeko komunikaziorako.
- Instant Alerts & Motion Tracking: Receives notifications and tracks movement automatically.
- Easy Wireless Setup: Connects via 2.4G WiFi and Bluetooth 4.2.
- Dual-Stream HD Playback: Allows switching between main and sub-streams for optimized viewing.
- Etxe adimendunaren bateragarritasuna: Works with Alexa and Google Home for voice control.
Paketearen edukia
Mesedez, egiaztatu paketea elementu hauek dituen:
- 1 x HUNTVISION E3-LT Light Bulb Camera
- 1 x Erabiltzailearen eskuliburua (dokumentu hau)
- (Additional accessories like mounting screws or reset pin may be included depending on the specific package version.)
Konfigurazio Gida
1. Kamera piztea
- Locate a standard E27/E26 light bulb socket (110-240V) in your desired indoor monitoring area.
- Carefully screw the HUNTVISION E3-LT camera into the light bulb socket until it is securely fastened.
- Ensure the power to the socket is turned on. The camera will power up and initiate its self-test sequence. You may hear a prompt or see an indicator light flash.
2. Downloading the Mobile App
The HUNTVISION E3-LT camera operates with a dedicated mobile application. Bilatu the official "Huntvision" app on your smartphone's app store (iOS or Android) or scan the QR code provided in the quick start guide (if applicable) to download and install it.

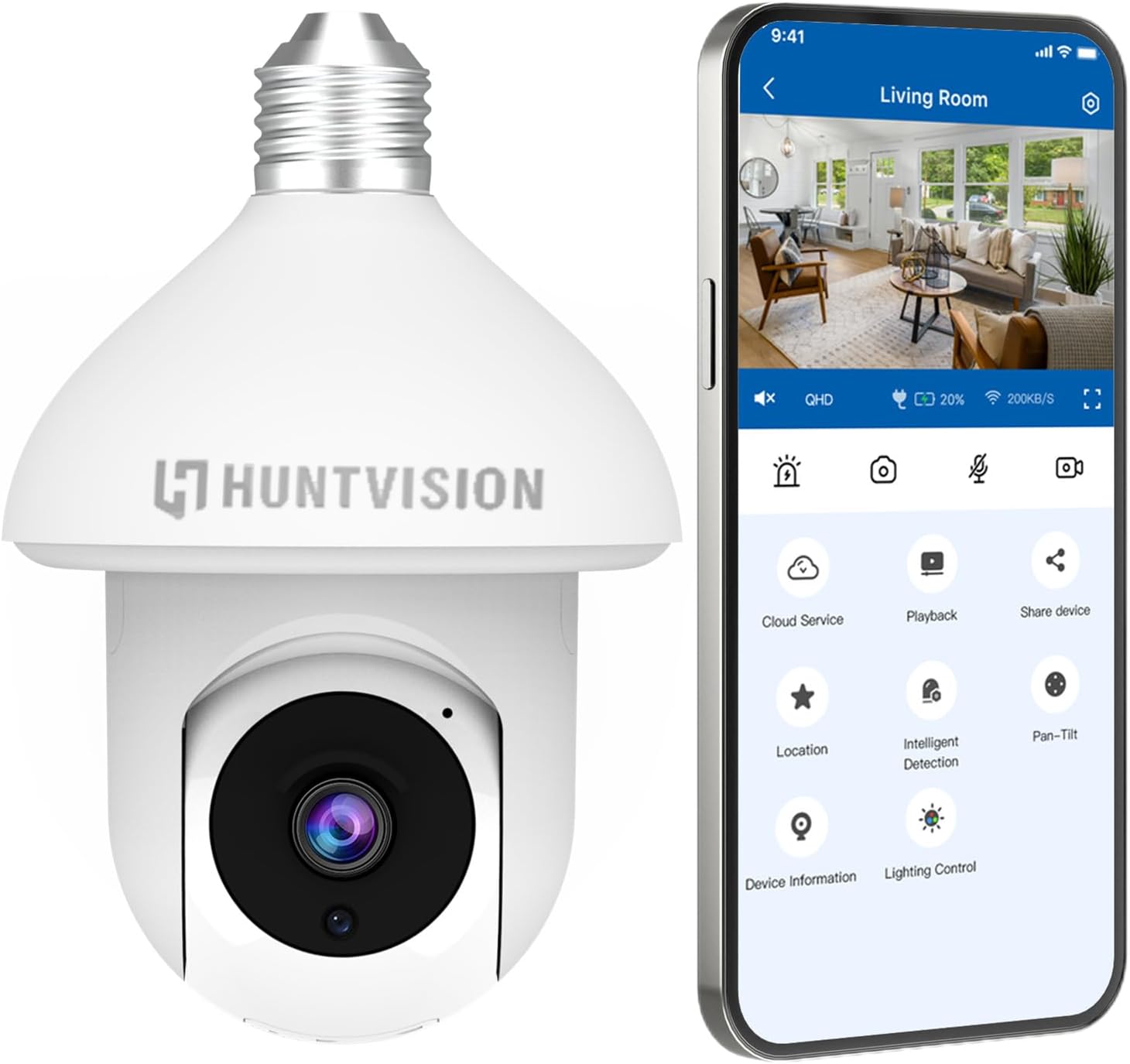

Figure 2: Camera and Mobile App Interface. This image illustrates the camera's appearance alongside a smartphone screen showing the intuitive mobile application, which allows for full control and monitoring of the device.
3. Kamera Wi-Fi sarera konektatzea
- Open the Huntvision app and create an account or log in if you already have one.
- Follow the in-app instructions to add a new device. Select the E3-LT model.
- Ziurtatu zure telefonoa 2.4 GHz-ko Wi-Fi sare batera konektatuta dagoela. Kamerak 2.4 GHz-ko Wi-Fia bakarrik onartzen du.
- The app will guide you through the connection process, which typically involves scanning a QR code generated by the app with the camera's lens, or using a one-touch reset button on the camera to initiate pairing.
- Behin konektatuta, kameraren adierazle-argia aldatuko da, eta aplikazioan baieztapena jasoko duzu.
Funtzionamendu-argibideak
Zuzenean View eta Grabaketa
- From the app's home screen, tap on your E3-LT camera to access the live view.
- You can manually record video or capture screenshots directly from the live view interfazea.
- The camera supports Dual-Stream HD Playback, allowing you to switch between main (higher quality) and sub-stream (smoother viewing, lower bandwidth) modes for optimal performance.
Panorama eta okertze kontrola
The E3-LT camera offers a wide field of view with remote pan and tilt functionality.
Figure 3: Pan and Tilt Movement. This diagram visually represents the extensive horizontal (3550) and vertical (880) rotation range of the camera, enabling comprehensive coverage of the monitored area.
- Zuzenean view, use the directional controls on the app interface to remotely adjust the camera's viewing angle (Pan 3550, Tilt 850).
- You can also use digital zoom to get a closer look at specific areas.
Gaueko Ikusmena
The camera is equipped with advanced night vision technology, including a full-color night mode.
Figure 4: Color Night Vision vs. Traditional Night Vision. This comparison highlights the superior clarity and detail provided by the camera's color night vision feature compared to standard black-and-white night vision.
- Kamera automatikoki aldatzen da gaueko ikusmen modura argi gutxiko baldintzetan.
- Access settings in the app to adjust night vision preferences, including enabling or disabling color night vision.
Two-Way Audio and Alerts
Communicate with individuals near the camera and receive instant notifications.
Figure 5: Two-Way Audio Communication. This image demonstrates the practical use of the two-way audio feature, allowing users to speak and listen through the camera, for example, to communicate with visitors or delivery personnel.
- Tap the microphone icon in the app's live view kameraren bozgorailutik hitz egiteko.
- The camera's built-in microphone allows you to hear audio from the camera's surroundings.
- Configure motion detection and sound detection settings in the app to receive instant alerts on your smartphone.
- You can also trigger an alarm sound directly from the app to deter intruders.
Biltegiratze-aukerak
- Tokiko biltegiratzea: The camera supports local storage via a microSD card (not included). Insert a compatible microSD card into the designated slot on the camera.
- Hodeiko biltegiratzea: Optional cloud storage services may be available through the app for secure off-site recording. Refer to the app for subscription details.
Smart Home Integrazioa
- The HUNTVISION E3-LT camera is compatible with Amazon Alexa and Google Home.
- Follow the instructions within the Alexa or Google Home app to link your Huntvision account and enable voice control for your camera.
Mantentzea
- Garbiketa: Garbitu kameraren lentea eta gorputza oihal leun eta lehor batekin. Ez erabili garbitzaile likidorik edo material urratzailerik.
- Firmware eguneraketak: Regularly check the mobile app for available firmware updates to ensure optimal performance and security.
- Lekua: Ensure the camera is securely screwed into the light bulb socket and is not exposed to direct water or extreme temperatures, as it is designed for indoor use.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Kamera ez da pizten. | Socket not powered; camera not screwed in properly. | Ensure the light switch is on. Re-screw the camera firmly into the socket. Test the socket with a regular bulb. |
| Ezin da Wi-Fira konektatu. | Wi-Fi pasahitz okerra; 5 GHz-ko Wi-Fi sarea; kamera bideratzailetik urrunegi. | Double-check Wi-Fi password. Ensure you are connecting to a 2.4GHz network. Move the camera closer to the router or use a Wi-Fi extender. Perform a one-touch reset on the camera and try again. |
| Bideoaren kalitate eskasa. | Low network bandwidth; dirty lens. | Check your internet speed. Switch to the sub-stream in the app. Clean the camera lens gently with a soft cloth. |
| Bi norabideko audioa ez dabil. | Microphone/speaker disabled in app; app permissions. | Check audio settings in the app. Ensure the app has microphone permissions on your phone. |
| Mugimendu alertak ez dira jaso. | Motion detection disabled; app notifications off. | Enable motion detection in the app settings. Check your phone's notification settings for the Huntvision app. |
Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Marka | HUNTVISION |
| Ereduaren izena | E3-LT |
| Bideo Harrapaketa Ebazpena | 1296p (3MP Full HD) |
| Konektibitate-protokoloa | Bluetooth, Wi-Fi (2.4G) |
| Energia iturria | Kable elektrikoa |
| Muntatze Mota | Ceiling Mount (Light Bulb Socket) |
| Elementuaren neurriak (L x W x H) | 3.94 x 3.94 x 5.91 hazbete |
| Elementuaren pisua | 8.2 ontza (0.51 libra) |
| Barruko/Kanpoko erabilera | Barruan |
| Kontrol-metodoa | Aplikazioa (iOS/Android) |
| Gailu bateragarriak | Smartphone, Amazon Alexa, Google Home |
| Bideo Harrapaketa formatua | MP4 |
| Gomendatutako Erabilerak | Zaintza |
Bermea eta Laguntza
For warranty information and technical support, please refer to the official HUNTVISION website or contact their customer service directly. Contact details are typically available on the product packaging or the official brand webgunea.
Always ensure you are using the latest version of the mobile application for optimal performance and access to the newest features and security updates.
