Fortinet FortiAP 441K Wi-Fi 7 Indoor Wireless Access Point User Manual

1. Sarrera

This manual provides essential information for the proper installation, operation, and maintenance of your Fortinet FortiAP 441K Wi-Fi 7 Indoor Wireless Access Point. Please read this manual thoroughly before using the device to ensure optimal performance and safety.

Figure 1: Fortinet FortiAP 441K Wi-Fi 7 Indoor Wireless Access Point, top view.

2. Segurtasun informazioa

Jarraitu segurtasun neurri hauek gailuari kalterik edo zeure buruari kalterik ez egiteko:

• Install the device in a dry, well-ventilated area, away from direct sunlight and heat sources.
• Ziurtatu lurra egokia deskarga elektrikoa saihesteko.
• Ez ireki gailua casing. Konponketa guztiak langile kualifikatuen esku utzi.
• Use only the power supply methods specified for this device (PoE++).
• Mantendu gailua uretatik eta hezetasunetik urrun.

3. Paketearen edukia

Egiaztatu elementu guztiak zure paketean daudela:

• Fortinet FortiAP 441K Wireless Access Point
• Mounting Bracket (for ceiling or wall mounting)
• Instalazio Gida
• Band (referring to the device itself, as per product data)

4. Konfigurazioa

4.1 Muntaketa

The FortiAP 441K is designed for indoor ceiling or wall mounting. Use the provided mounting bracket and hardware to secure the device in a central location for optimal Wi-Fi coverage.

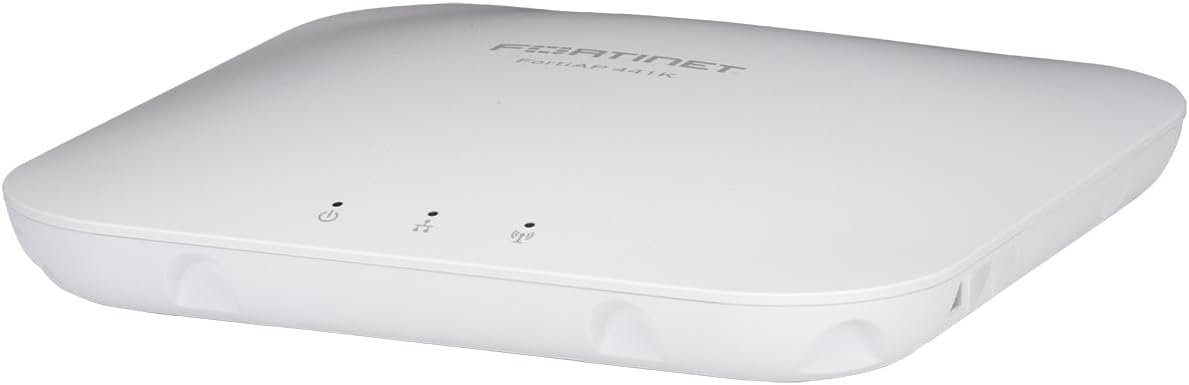

Figure 2: Fortinet FortiAP 441K, suitable for discreet ceiling or wall mounting.

4.2 Piztea

The FortiAP 441K supports Power over Ethernet (PoE++). Connect an Ethernet cable from a PoE++ compliant switch or injector to the device's Ethernet port. The device will power on automatically.

4.3 Sareko konexioa

Connect the FortiAP 441K to your network infrastructure using one of its 10 Gigabit Ethernet ports. These ports provide high-speed connectivity for optimal performance.

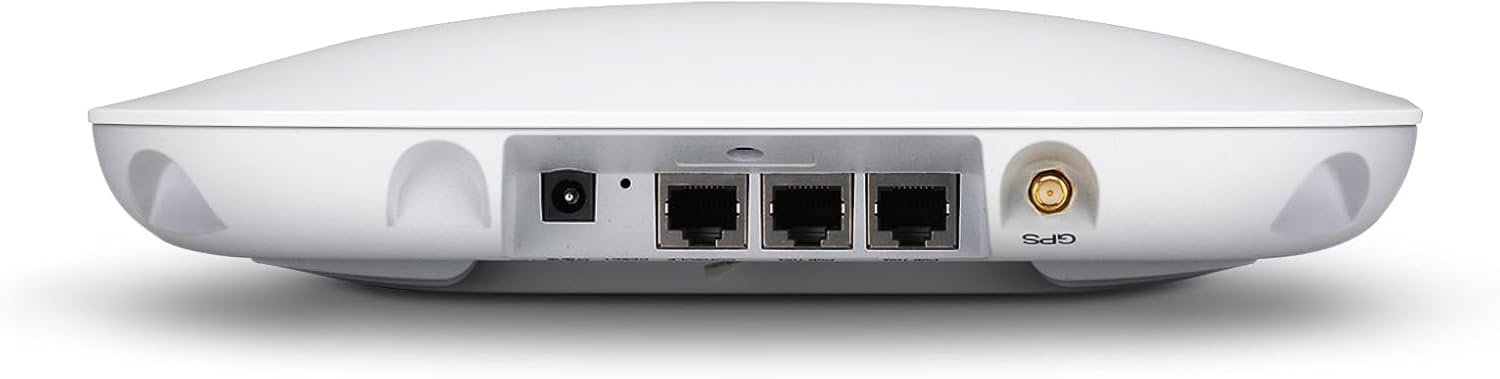

3. Irudia: Atzealdea view of FortiAP 441K, highlighting the Ethernet ports for network connection and power.

5. Funtzionamendu-argibideak

Once powered on and connected to the network, the FortiAP 441K will begin broadcasting Wi-Fi signals across its tri-band frequencies (2.4 GHz, 5 GHz, and 6 GHz). Clients can connect to the appropriate SSID (Service Set Identifier) as configured in your Fortinet network management system. The access point is designed to provide 24/7 scanning across all bands while simultaneously offering client access.

6. Ezaugarri nagusiak

The FortiAP 441K offers advanced features for high-performance wireless networking:

• Wi-Fi 7 estandarra: Supports the latest Wi-Fi 7 (802.11ax) standard for enhanced speed and efficiency.
• Hiru Bandako Funtzionamendua: Utilizes 2.4 GHz, 5 GHz, and 6 GHz bands for flexible and high-capacity wireless connectivity.
• 4x4 MU-MIMO: Features 4x4 Multi-User Multiple-Input, Multiple-Output technology for improved performance with multiple connected devices.
• Barne antenak: Equipped with internal antennas for a sleek design and optimized signal coverage.
• 2x 10G Ethernet Ports: Provides two 10 Gigabit Ethernet ports for high-speed wired backhaul.
• OFDMA: Orthogonal Frequency-Division Multiple Access for efficient channel utilization.
• Integrated BLE/ZigBee Radio: Can be used for beaconing and location-based applications.

4 Irudia: Gainetikview of FortiAP 441K key specifications and features.

7. Mantentzea

To ensure the longevity and optimal performance of your FortiAP 441K, follow these maintenance guidelines:

• Regularly check for firmware updates through your Fortinet management interface to ensure the latest security patches and features.
• Mantendu gailua garbi eta hautsik gabe. Erabili zapi leun eta lehor bat garbitzeko.
• Ensure adequate airflow around the device to prevent overheating.
• Ez jarri objektu astunak gailuan.

8. Arazoak

If you encounter issues with your FortiAP 441K, refer to the following common troubleshooting steps:

• Potentziarik gabe: Verify that the Ethernet cable is securely connected and that the PoE++ switch/injector is functioning correctly.
• Wi-Fi seinalerik ez: Check the device status indicators. Ensure the access point is properly configured and broadcasting SSIDs.
• Errendimendu motela: Check network congestion, client device capabilities (Wi-Fi 7 clients will perform best), and ensure the 10G Ethernet ports are utilized for backhaul.
• Konektibitate arazoak: Restart the access point and any connected network devices. Verify network settings in your Fortinet management system.

For more advanced troubleshooting, consult the Fortinet support documentation or contact technical support.

9. Zehaztapenak

Figure 5: FortiAP 441K dimensions for installation planning.

10. Bermea eta Laguntza

The Fortinet FortiAP 441K is covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official Fortinet website. For technical support, product registration, and additional resources, please visit the Fortinet support portal.
