1. Sarrera
This manual provides essential information for the assembly, setup, operation, and maintenance of your GoolRC Dancing Wing Hobby T05 Vogee-08 820mm Wingspan Balsa Wood RC Aeroplane Trainer KIT. Please read these instructions thoroughly before beginning assembly or operation to ensure safe and correct use of the product. This product is a KIT and requires additional components and assembly.

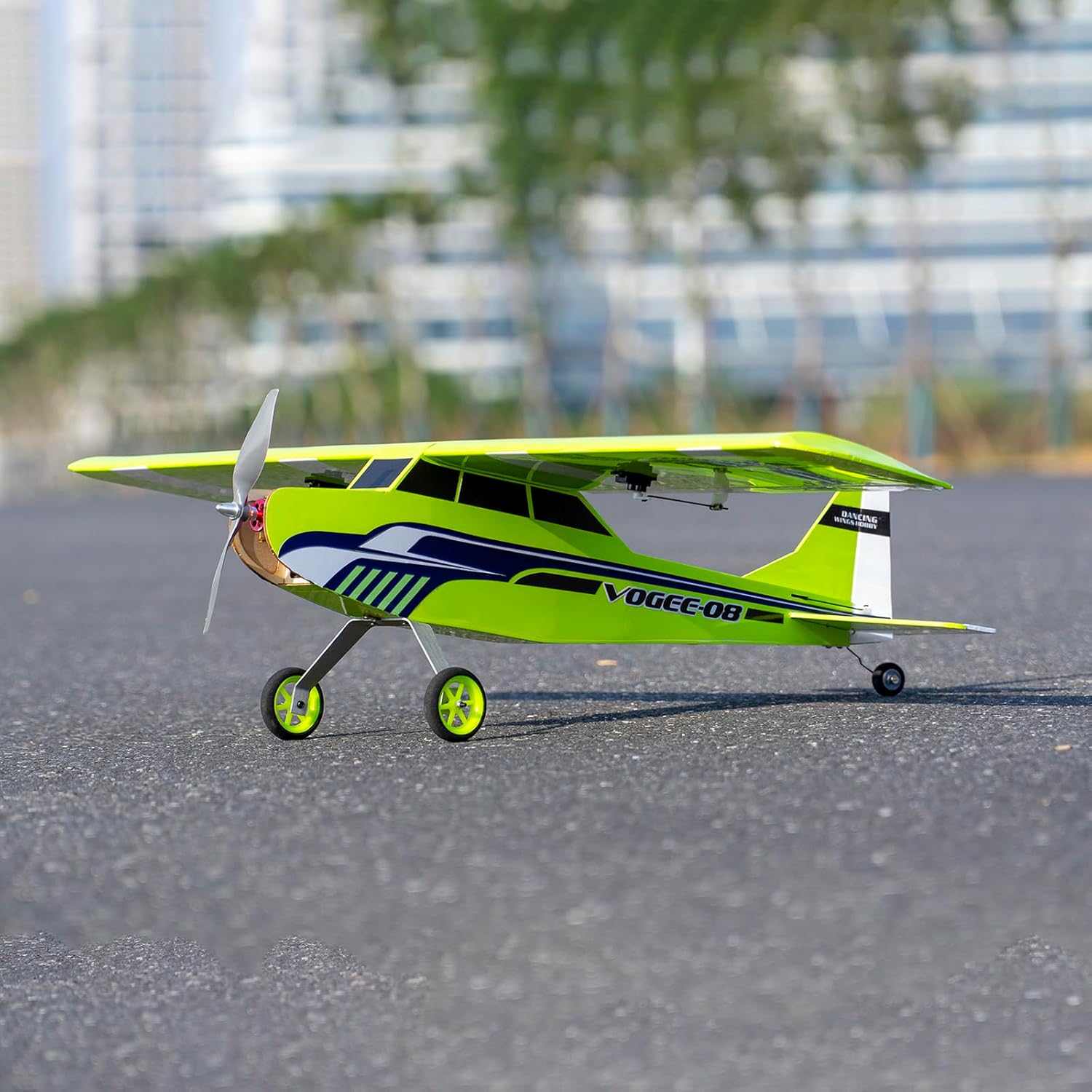

Image 1.1: The fully assembled and decorated T05 Vogee-08 RC Aeroplane.
2. Produktua amaitu daview
2.1 Ezaugarriak
- Balsa Wood Material: Crafted from premium balsa wood, ensuring durability and resistance to damage.
- Great Flying Performance: Designed for superior flying performance, offering smooth and stable flights.
- Erraza Muntatzeko: Engineered for straightforward and quick assembly.
- Garraio erraza: Lightweight and compact design facilitates convenient transportation to various outdoor flying locations.
- Ideal for All Skill Levels: User-friendly design suitable for both beginners and experienced flyers.
2.2 Zehaztapenak
Image 2.1: Key specifications and the balsa wood frame of the T05 Vogee-08.
| Zehaztapena | Balioa |
|---|---|
| Marka Izena | Dantza Hegalaren Zaletasuna |
| Elementuaren izena | T05 Vogee-08 |
| Materiala | Balsa Egurra |
| Hego zabalera | 820 mm (32 hazbete) |
| Luzera | 630 mm (25 hazbete) |
| Pisu hegalaria | 450 g inguru |
| Hegaleko eremua | 12.9 dm² |
| Hegal-karga | 35 g/dm² |
| Fabrikatzaileak Gomendatutako Adina | 16 urtetik gora |
3. Paketearen edukia
The GoolRC Dancing Wing Hobby T05 Vogee-08 KIT includes the following components:
- 1 x Dancing Wing Hobby T05 Vogee-08 820mm KIT (Balsa Wood Airframe Components)
Note: Motor, ESC, servo, propeller, film pack, transmitter, receiver, battery, charger, and glue are NOT included and must be purchased separately.
3.1. irudia: Amaituview of the KIT components and suggested additional equipment.
4. Muntatzeko jarraibideak
The T05 Vogee-08 is a KIT model, requiring careful assembly of its balsa wood components. Detailed, step-by-step instructions are typically provided by the manufacturer within the physical product packaging. Please refer to those specific instructions for precise assembly guidance.
4.1 Batzar Nagusirako aholkuak
- Laneko eremua: Ensure a clean, well-lit, and organized workspace.
- Tresnak: Gather all necessary tools, including hobby knife, sandpaper, glues (CA glue, epoxy, wood glue as recommended), clamps, and measuring tools.
- Irakurri argibideak: Always read through the entire assembly manual provided with the KIT before starting.
- Egokitze lehorra: Dry fit all parts before applying glue to ensure proper alignment and fit.
- Kola: Use appropriate glues for balsa wood and allow sufficient drying time.
- Estaldura: Once the airframe is assembled, apply the covering material (film pack, not included) according to its instructions to protect the wood and provide aerodynamic finish.

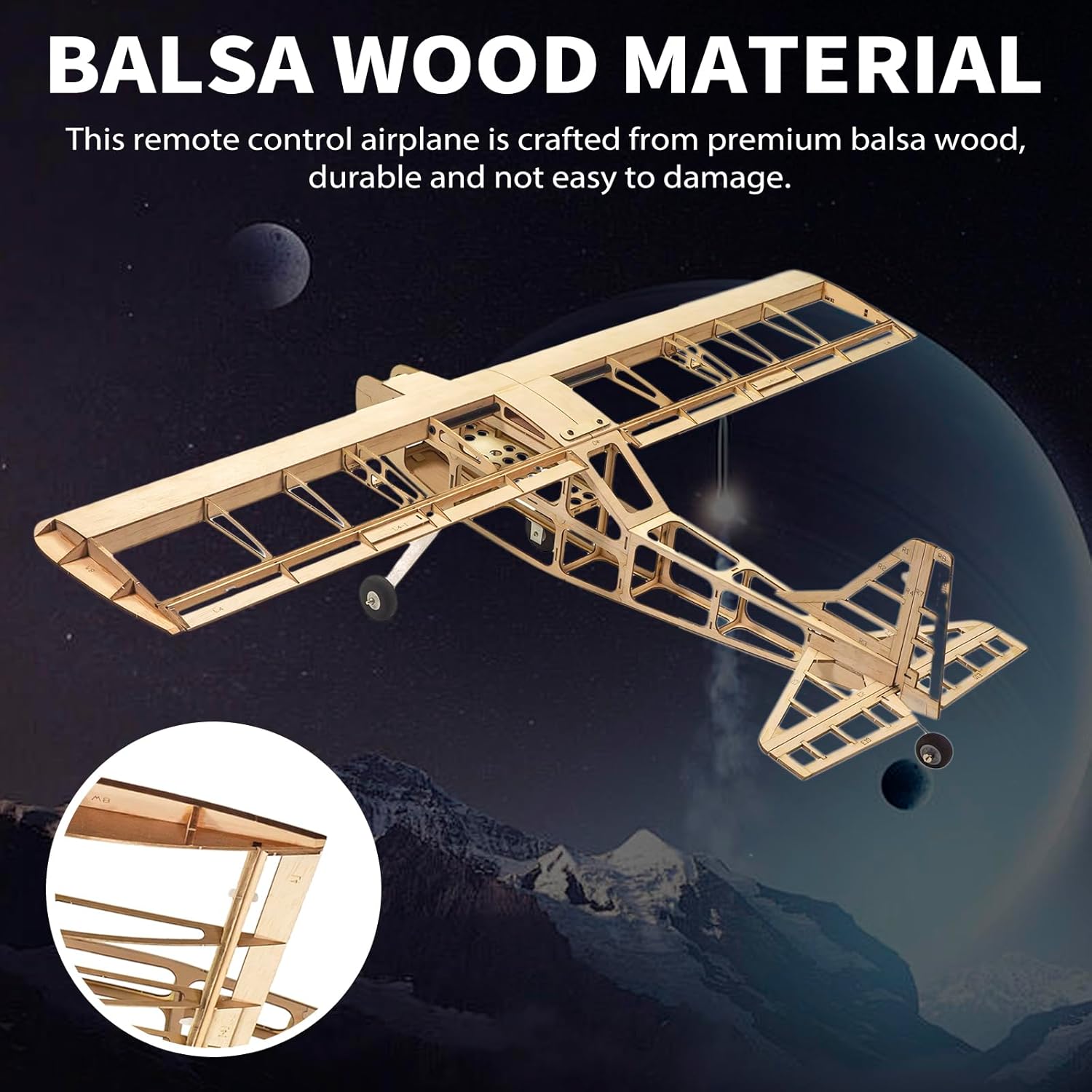

Image 4.1: Detail of the balsa wood material and construction.
5. Setup: Suggested Equipment
To complete your T05 Vogee-08 RC Aeroplane and prepare it for flight, the following equipment is suggested:
- Motorra: M1908-2050KV
- ESC (Electronic Speed Controller): 20A
- Folding Propeller: 7 hazbetekoa
- Zerbitzaria: 9 g * 4 pieza
- RX (Hargailua): ≥4CH (4 Channel or more)
- Bateria: 2S LiPo (800-1300mAh recommended)
- Igorlea: Compatible with your chosen receiver (e.g., 4-channel or more)
- Kargagailua: Compatible with your LiPo battery
- Film Pack: For covering the airframe
5.1 Installation of Electronics
Follow the specific instructions provided with your chosen motor, ESC, servos, and receiver for proper installation and wiring. Ensure all connections are secure and correctly oriented. Pay close attention to motor rotation direction and servo arm setup for control surfaces.
6. Funtzionamendu-argibideak
Operating an RC aeroplane requires practice and adherence to safety guidelines. This section provides general guidance.
6.1 Hegaldi aurreko egiaztapenak
- Bateria: Ensure the flight battery is fully charged and securely installed.
- Kontrol gainazalak: Verify that all control surfaces (ailerons, elevator, rudder) move freely and in the correct direction relative to your transmitter inputs.
- Helizea: Egiaztatu helizea ondo lotuta dagoela eta kalterik gabe dagoela.
- Grabitate Zentroa (CG): Confirm the aircraft's CG is within the recommended range (refer to the KIT's specific manual for details). Incorrect CG can lead to unstable flight.
- Irratiaren barrutia: Perform a range check of your radio system before the first flight of the day.
6.2 Take-off
Choose an open, clear area for take-off. Apply throttle smoothly and gradually increase speed. Maintain a straight path using rudder control. Once sufficient speed is gained, gently apply up elevator to lift off.
6.3 Hegaldi Kontrola
- throttle: Motorraren abiadura eta altuera kontrolatzen ditu.
- Igogailua: Tonua kontrolatzen du (sudurra gora/behera).
- Aleroiak: Controls roll (wing tilt) for turning.
- Lema: Controls yaw (nose left/right) for coordinated turns and ground steering.
6.4 Lurreratzea
Approach the landing strip into the wind. Reduce throttle and gradually decrease altitude. Maintain control with elevator and ailerons. Flare gently just above the ground by applying a small amount of up elevator to slow down and touch down smoothly.
7. Mantentzea
Regular maintenance ensures the longevity and safe operation of your T05 Vogee-08.
- Inspect Airframe: After each flight, check the balsa wood airframe for any damage, cracks, or loose joints. Repair as needed.
- Check Covering: Ensure the film covering is intact and free from tears or wrinkles. Repair or re-apply heat if necessary.
- Control Linkages: Verify that all control linkages are secure and free from excessive play.
- Motorra eta helizea: Inspect the motor for any debris and the propeller for nicks or cracks. Replace damaged propellers immediately.
- Bateria zaintzea: Follow manufacturer guidelines for LiPo battery charging, storage, and discharge.
- Garbitasuna: Keep the aircraft clean from dirt, grass, and other debris.
8. Arazoak
Atal honek aurki ditzakezun arazo ohikoenei heltzen die.
- Aircraft not responding to controls:
- Check transmitter and receiver power.
- Ensure receiver is bound to the transmitter.
- Verify servo connections and functionality.
- Motorra ez dabil biratzen:
- Egiaztatu bateriaren konexioa eta karga-maila.
- Verify ESC connection to motor and receiver.
- Ensure ESC is armed (throttle stick at lowest position).
- Hegaldi ezegonkorra:
- Re-check Center of Gravity (CG).
- Inspect control surfaces for damage or incorrect throws.
- Ensure wings are securely attached and not warped.
- Hegaldi-denbora laburra:
- Baliteke bateria ez egotea guztiz kargatuta edo zahartzen ari izatea.
- Propeller size or pitch may be inefficient for the motor.
- Excessive throttle usage.
9. Segurtasun Jarraibideak
RC aircraft are not toys. Improper use can cause serious injury or property damage. Always prioritize safety.
- Hegaldi Eremua: Fly in open areas away from people, buildings, power lines, and roads. Avoid flying over crowds.
- Eguraldi-baldintzak: Ez hegan egin haize bortitzetan, euripean edo bestelako eguraldi baldintza txarrenetan.
- Hegaldi aurreko egiaztapena: Always perform a thorough pre-flight check before each flight.
- Bateriaren segurtasuna: Handle LiPo batteries with extreme care. Do not overcharge, over-discharge, or puncture them. Store in a fire-safe location.
- Helizearen Segurtasuna: Keep hands and face clear of the propeller when the battery is connected. The propeller can cause severe injury.
- Adinaren gomendioa: This product is recommended for users 16 years and up. Adult supervision is advised for younger operators.
- Ikusmen lerroa: Always maintain visual line of sight with your aircraft.
- Tokiko araudia: Be aware of and comply with all local regulations and laws regarding RC aircraft operation.
10. Bermea eta Laguntza
For specific warranty information and technical support, please refer to the documentation included with your product or contact GoolRC customer service directly. Keep your purchase receipt as proof of purchase.
