1. Sarrera
Thank you for choosing the Haozee Smart WiFi Sprinkler Timer with Hub. This device provides an automatic and intelligent solution for watering your garden, lawn, or yard. Featuring app control, voice control, a built-in flow meter, and support for Home Assistant Zigbee2mqtt, this system ensures precise and efficient irrigation tailored to your needs. Please read this manual carefully before installation and operation to ensure optimal performance and longevity of your device.
2. Produktua amaitu daview
The Haozee Smart WiFi Sprinkler Timer is designed for seamless integration into your smart home ecosystem. It connects to a Zigbee gateway (included) to enable remote control and advanced scheduling features via a smartphone application.
Image: The main unit of the Haozee Smart WiFi Sprinkler Timer, showing its robust gray plastic casing and brass hose connectors.
Ezaugarri nagusiak:
- App Control/Voice Control/Button Control: Manage your watering schedules and settings through the dedicated smartphone app, voice commands, or directly via the device button.
- Precise Watering On Demand: Built-in flow meter calculates water volume, allowing for accurate irrigation and preventing overwatering.
- Euri-atzerapen modua: Easily activate a rain delay for 24, 48, or 72 hours to conserve water and avoid over-saturation.
- Easy Management: Monitor irrigation history and water consumption for the past 7 days directly from the app.
- Zigbee2mqtt Support: Compatible with Tuya Zigbee hub, Home Assistant, and Zigbee2mqtt for expanded smart home integration.
- Included Gateway: The product comes with a multi-mode Zigbee gateway for immediate setup.
3. Paketearen edukia
Mesedez, egiaztatu elementu guztiak daudela eta egoera onean daudela paketea irekitzean.
- Haozee Smart WiFi Sprinkler Timer (Main Unit)
- Multi-mode Zigbee Gateway (Model G01Pro)
- Erabiltzailearen eskuliburua
- Mounting Screws and Wall Plugs (for gateway)
- Bihurkin txikia (bateriaren konpartimenturako)
- Brass Adapter (1 inch to 3/4 inch inlet)
- Plastic Adapter (1 inch to 1/2 inch inlet)
Video: An unboxing and product display of the Haozee Smart Water Valve, showing the main unit, included gateway, and accessories.
4. Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Marka | Haozee |
| Modelo zenbakia | HZ-ZB-WV-US |
| Kolorea | Grisa |
| Materiala | Plastikoa |
| Produktuaren neurriak | 1.8" L x 4.7" W x 6.9" H |
| Elementuaren pisua | 0.47 kilogramo (1.04 libra) |
| Ezarpen kopurua | 4 |
| Etxe adimendunen bateragarritasuna | Tuya Gateway, Home Assistant, Zigbee2mqtt |
| Wireless Protocol (Gateway) | 2.4G Wi-Fi, Zigbee, BLE |
| Power Source (Timer) | 4*AA Alkaline Batteries (not included) |
| Energia iturria (pasabidea) | DC 5V/1A |
| Working Temperature (Gateway) | -20°C ~ 85°C |
| Uraren Erresistentzia | IP65 Waterproof (Timer) |
5. Konfigurazio gida
5.1 Install Batteries in Sprinkler Timer
- Locate the battery compartment on the back of the sprinkler timer.
- Use the provided screwdriver to open the battery slot.
- Insert 4*AA alkaline batteries, ensuring correct polarity.
- Securely close the battery compartment with the screws.
Image: Close-up of the battery compartment, showing the location for four AA batteries and the waterproof rubber pads.
5.2 Connect the Zigbee Gateway
- Plug the multi-mode Zigbee Gateway into a power source using a DC 5V/1A adapter (not included).
- Ensure the gateway is within Wi-Fi range and close enough to the sprinkler timer for initial pairing.
- Download the "Smart Life" or "Tuya Smart" app from your smartphone's app store (iOS/Android).
- Open the app and register or log in.
- Follow the in-app instructions to add the Zigbee Gateway. The app will search for nearby devices.
5.3 Pair the Sprinkler Timer with the Gateway
- Once the gateway is successfully added to the app, select "Add Device" within the gateway's interface in the app.
- On the sprinkler timer, long-press the on/off switch (pairing/switching button) for 5 seconds until the indicator light flashes, indicating pairing mode.
- The app will detect the sprinkler timer. Confirm the addition.
- Once paired, the device will appear in your app, ready for configuration.
Video: Demonstrates the process of adding the Zigbee gateway to the app, installing batteries in the timer, and pairing the timer with the app.
5.4 Instalazio fisikoa
- Attach the sprinkler timer to your outdoor faucet. Use the appropriate adapter (brass for 3/4 inch, plastic for 1/2 inch) if needed. Ensure a tight, leak-free connection.
- Connect your garden hose or irrigation system to the 3/4" external thread outlet at the bottom of the timer.
- Position the timer to avoid direct exposure to extreme weather conditions if possible, although it is IP65 waterproof.
Image: The sprinkler timer installed on an outdoor faucet, with the Zigbee gateway shown nearby, illustrating the remote control capability.
Image: A diagram highlighting the 1-inch to 1/2-inch inlet, 1-inch to 3/4-inch inlet, 1-inch internal thread inlet, battery slot, pairing/switching button, and 3/4-inch external thread outlet.
6. Funtzionamendu-argibideak
6.1 Aplikazioen kontrola
Once the sprinkler timer is paired with the app, you can access various control and scheduling options:
- Eskuzko ureztatzea: Turn the water on/off instantly or set a specific duration for a single watering cycle.
- Scheduled Irrigation: Create custom watering schedules based on time, duration, and frequency (e.g., daily, specific days of the week).
- Volume-Based Irrigation: Utilize the built-in flow meter to set watering based on a specific volume of water (e.g., 10 gallons).
- Euria atzerapena: Activate the rain delay feature to skip watering for 24, 48, or 72 hours, preventing overwatering during rainy periods.
- Water Consumption Tracking: View real-time irrigation records and water consumption data for the past 7 days.
Image: The sprinkler timer connected to a hose, with a smartphone displaying the app interface for controlling watering duration and capacity.
Image: A screenshot of the app interface demonstrating settings for cyclical irrigation, including start time, duration, frequency, and capacity mode.
Image: A visual representation of the rain delay mode in the app, allowing users to skip watering for 24, 48, or 72 hours.
6.2 Ahots kontrola
If your Zigbee gateway supports voice assistants like Alexa or Google Assistant, you can link your Smart Life/Tuya Smart account to enable voice commands for basic watering functions (e.g., "Alexa, turn on the garden water," "Hey Google, turn off the sprinkler").

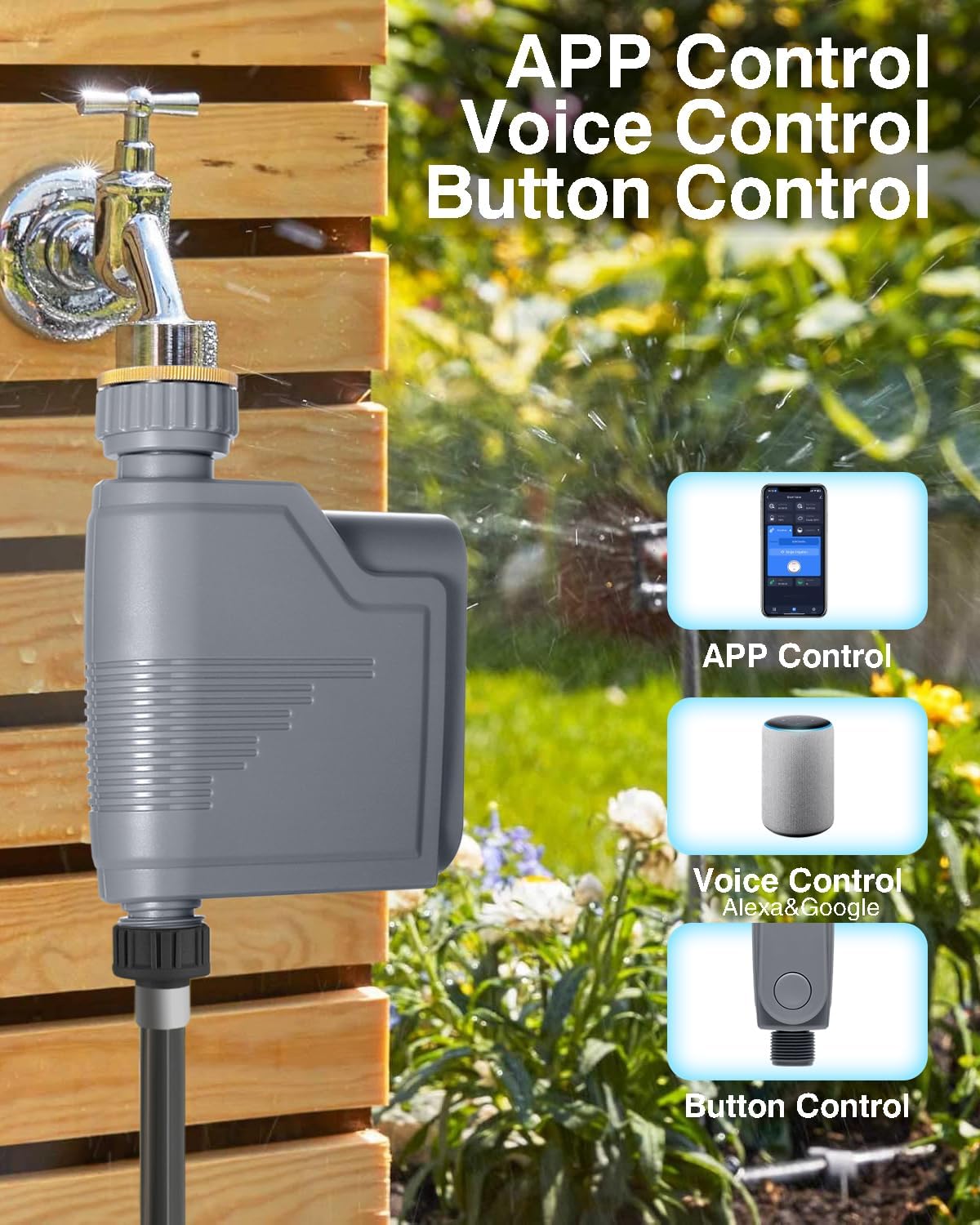

Image: Illustrates the three control methods: APP Control, Voice Control (Alexa & Google), and Button Control, with the sprinkler timer in the background.
6.3 Botoien kontrola
The physical button on the sprinkler timer serves two primary functions:
- Watering Switch: A short press can manually start or stop watering.
- Network Settings/Reset: Long-press the button for 5 seconds to reset the internet connection or enter pairing mode.
Irudia: Xehetasun zehatza view of the button on the sprinkler timer, indicating its dual function as a watering switch and a network settings/reset button.
7. Mantentzea
- Bateria ordezkatzea: Replace the 4*AA alkaline batteries when the app indicates low battery or the device stops responding. Ensure the battery compartment is sealed tightly after replacement.
- Garbiketa: Garbitu tenporizadorearen kanpoaldea aldian-aldian zapi leun eta lehor batekinamp oihal. Ez erabili garbitzaile urratzailerik eta ez sartu gailua uretan.
- Neguan egitea: Before freezing temperatures, disconnect the timer from the faucet and hose. Drain any remaining water and store the device indoors in a dry, frost-free location.
- Thread Adapters: Ensure the movable metal thread adapter is tightened properly to prevent leaks. The flexible fitting design allows for easy disassembly and assembly for cleaning or storage.
Image: A close-up of the movable metal thread adapter, highlighting its practical and durable design for easy installation and removal.
8. Arazoak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Gailua ez da aplikazioarekin parekatzen. | Gateway not connected, timer not in pairing mode, weak signal. | Ensure gateway is online. Long-press timer button for 5 seconds to enter pairing mode. Move gateway closer to the timer. Check app for correct device type selection. |
| Ur emaririk ez. | Faucet off, low battery, timer valve stuck, hose kinked. | Check if the outdoor faucet is fully open. Replace batteries. Manually activate the valve via the app or button to check for movement. Ensure hose is not kinked. |
| Konexioetatik ihesak. | Loose connections, worn washers. | Tighten all connections. Check and replace rubber washers if they are worn or damaged. |
| App shows incorrect data (e.g., battery, weather). | Connectivity issue, app not refreshed. | Ensure stable Wi-Fi connection for the gateway. Refresh the app. If issues persist, try re-pairing the device. |
9. Bermea eta Laguntza
Haozee products are designed for reliability and performance. For warranty information and technical support, please refer to the contact details provided on the product packaging or visit the official Haozee webgunea. Gorde erosketa-agiria berme-erreklamazioetarako.
Lineako laguntza: For the latest FAQs, troubleshooting guides, and software updates, please visit Haozee Store on Amazon.
