1. Sarrera
Thank you for choosing the Impex OMEGA M3 DX200 Induction Cooktop. This appliance is designed for efficient and convenient cooking with its 7 cooking modes, soft button controls, and 4-digit LED display. Please read this manual thoroughly before use to ensure safe and optimal operation.
2. Segurtasun neurri garrantzitsuak
Lesioak edo kalteak saihesteko, jarraitu beti oinarrizko segurtasun neurri hauek:
- Ez sartu sukaldea uretan edo beste likido batean.
- Ziurtatu elikatze-kablea ez dagoela kaltetuta eta lurrera konektatutako entxufe batera behar bezala konektatuta dagoela.
- Mantendu aparatua haurren eskura.
- Do not touch the hot surface immediately after cooking. The ceramic plate retains residual heat.
- Indukzioarekin bateragarriak diren sukaldeko tresnak bakarrik erabili.
- Do not place metallic objects such as knives, forks, spoons, or lids on the induction cooktop as they can become hot.
- Ziurtatu sukaldeko plakaren inguruan behar bezala aireztatuta dagoela funtzionamenduan zehar.
- In case of malfunction, do not attempt to repair the appliance yourself. Contact customer support.
3. Paketearen edukia
Despaketatzean, egiaztatu behean zerrendatutako elementu guztiak daudela eta egoera onean daudela:
- Impex OMEGA M3 DX200 Induction Cooktop
- Erabiltzailearen eskuliburua (dokumentu hau)
- Berme Txartela

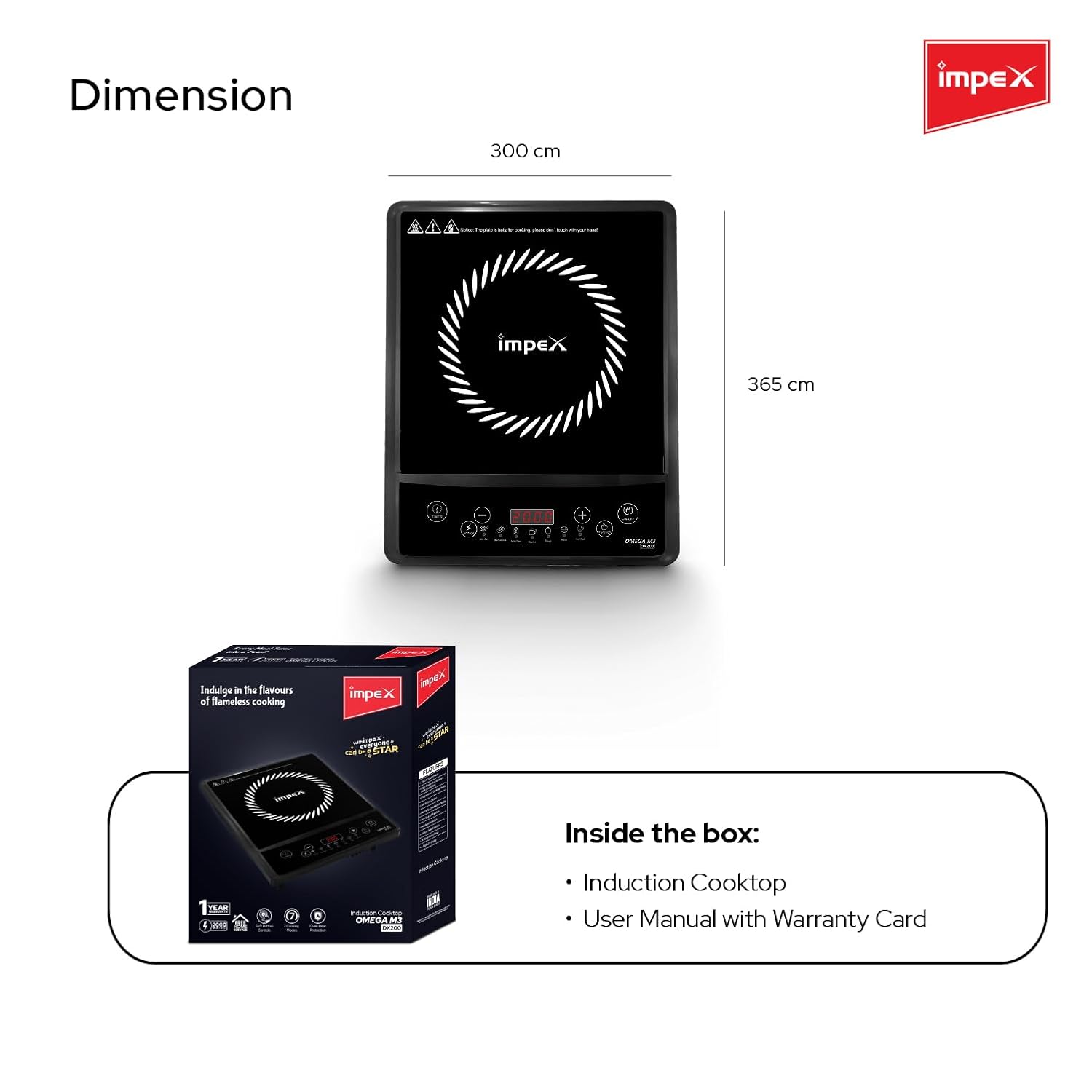

Image: The Impex OMEGA M3 DX200 Induction Cooktop packaging, illustrating the cooktop, user manual, and warranty card included in the box.
4. Zehaztapen Teknikoak
| Ezaugarri | Zehaztapena |
|---|---|
| Eredua | OMEGA M3 DX200 |
| Boterea | 2000 W |
| Kontrol mota | Soft Button Control |
| Bistaratzea | 4 digituko LED pantaila |
| Sukaldaritza moduak | 7 Pre-programmed Modes |
| Segurtasun Ezaugarriak | Gehiegizko berotze babesa |
| Neurriak (LxWxH) | 36 x 5 x 29 zentimetro |
| Elementuaren pisua | 1 kg 800 g |
| Energia iturria | Kable elektrikoa |
| Erregai Mota | Elektrikoa |
| Fabrikatzailea | KCM Appliances Pvt Ltd |
5. Konfigurazioa eta instalazioa
Follow these steps to set up your Impex OMEGA M3 DX200 Induction Cooktop:
- Desegin: Carefully remove the induction cooktop and all accessories from the packaging. Retain packaging for future transport or storage.
- Lekua: Place the cooktop on a stable, flat, heat-resistant surface. Ensure there is adequate space (at least 10-15 cm) around the appliance for proper ventilation. Do not place it near heat sources or flammable materials.
- Potentzia-konexioa: Entxufatu elikatze-kablea lurrera konektatutako entxufe elektriko estandar batera. Ziurtatu bolumena...tage-k etxetresna elektrikoaren eskakizunak betetzen ditu.
- Hasierako garbiketa: Before first use, wipe the ceramic glass surface with a soft, damp oihal.
Image: The Impex OMEGA M3 DX200 Induction Cooktop, showcasing its sleek design and control panel, ready for initial setup.
6. Funtzionamendu-argibideak
6.1 Kontrol-panela amaituview
The Impex OMEGA M3 DX200 features a user-friendly soft button control panel and a 4-digit LED display for easy operation.
Image: The Impex OMEGA M3 DX200 Induction Cooktop, highlighting its soft button controls, 4-digit LED display, and overall design.
6.2 Oinarrizko funtzionamendua
- Piztu: Place an induction-compatible pot or pan centrally on the cooking zone. Press the 'ON/OFF' button to turn on the cooktop. The LED display will illuminate.
- Aukeratu Sukaldaritza modua: Press the 'Function' or specific mode buttons (e.g., Stir-Fry, Water, Rice) to select your desired cooking mode. The corresponding indicator will light up, and the display will show the default power level or temperature.
- Doitu ezarpenak: Use the '+' and '-' buttons to adjust the power level or temperature according to your cooking needs.
- Ezarri tenporizadorea (baldin badago): Some modes may allow setting a timer. Refer to the specific mode instructions for details.
- Itzali: After cooking, press the 'ON/OFF' button to turn off the cooktop. Remove the cookware. The fan may continue to run for a short period to cool down the appliance.
6.3 7 Cooking Modes
The Impex OMEGA M3 DX200 offers 7 pre-programmed cooking modes for various dishes:
- Stir-Fry: Ideal for quick cooking at high temperatures.
- Barbakoa: Suitable for grilling or searing.
- Milk/Tea: Gentle heating for liquids.
- Ura: Rapid boiling of water.
- Zopa: Consistent heating for simmering soups.
- Arroza: Optimized for cooking rice.
- Pot beroa: Maintains a steady temperature for hot pot dishes.
Image: The Impex OMEGA M3 DX200 Induction Cooktop displaying its 7 pre-programmed cooking modes: Stir-Fry, Barbecue, Milk/Tea, Water, Soup, Rice, and Hot Pot.
6.4 Berotze gehiegizko babesa
The cooktop is equipped with an overheat protection system. If the internal temperature becomes too high, the appliance will automatically shut off to prevent damage. An error code may appear on the display. Allow the cooktop to cool down before attempting to use it again.

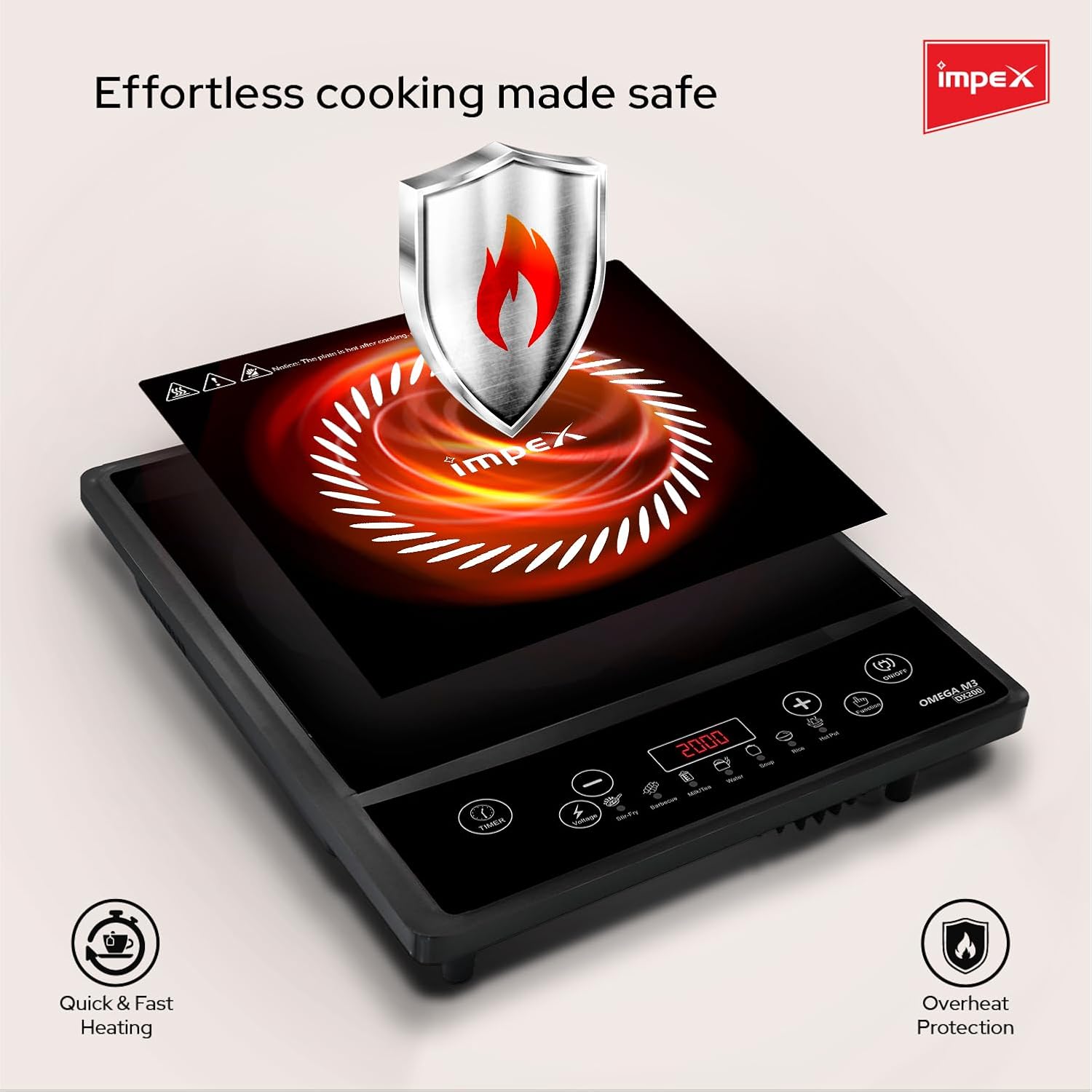

Image: A visual representation of the Impex OMEGA M3 DX200 Induction Cooktop's overheat protection mechanism, ensuring safe operation.
7. Zainketa eta Mantentzea
Proper care and maintenance will extend the life of your induction cooktop:
- Azalera garbitzea: After each use, ensure the cooktop is cool. Wipe the ceramic glass surface with a soft, damp cloth and mild detergent. For stubborn stains, use a non-abrasive ceramic cooktop cleaner.
- Cleaning the Fan/Vents: Periodically check the air inlet and outlet vents for dust or debris. Clean them gently with a soft brush or vacuum cleaner to ensure proper airflow.
- Ez erabili: Saihestu gainazala urra dezaketen garbitzaile urratzaileak, estropajolak edo objektu zorrotzak erabiltzea.
- Biltegiratzea: If storing the cooktop for an extended period, ensure it is clean and dry. Store it in a cool, dry place away from direct sunlight.
8. Arazoak konpontzeko gida
If you encounter any issues with your Impex OMEGA M3 DX200 Induction Cooktop, refer to the table below for common problems and solutions:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Cooktop does not turn on | No power supply; Power cord not plugged in; Fuse blown | Check power outlet; Ensure cord is securely plugged in; Check household fuse/circuit breaker |
| Cooktop beeps and displays an error code (e.g., E0, E1) | No cookware or incompatible cookware; Overheat protection activated; Internal malfunction | Place induction-compatible cookware; Allow cooktop to cool down; Contact customer support if problem persists |
| Cooking process is slow or uneven | Incorrect power setting; Cookware not flat or too small; Poor quality cookware | Increase power level; Use flat-bottomed, induction-compatible cookware that covers the cooking zone; Use high-quality cookware |
| Fan continues to run after turning off | Normal cooling process | This is normal. The fan will stop automatically once the internal components have cooled. |
If the problem persists after attempting these solutions, please contact Impex customer support.
9. Bermea eta bezeroarentzako laguntza
9.1 Produktuaren bermea
The Impex OMEGA M3 DX200 Induction Cooktop comes with a 1 urteko produktuaren bermea from the date of purchase. Please retain your purchase receipt and warranty card for any warranty claims. The warranty covers manufacturing defects under normal use conditions. It does not cover damage caused by misuse, accidents, unauthorized repairs, or normal wear and tear.
9.2 Bezeroarentzako laguntza
For technical assistance, service, or warranty inquiries, please contact:
KCM Appliances Pvt Ltd Customer Support: 1860 425 2444
Please have your product model number (OMEGA M3 DX200) and purchase details ready when contacting support.
