Hoteche 28-Inch Manual Push Floor Sweeper (Model G840931) - Instruction Manual

Produktua amaituview

The Hoteche 28-Inch Manual Push Floor Sweeper is designed for efficient cleaning of large outdoor and indoor areas. This non-electric sweeper offers a wide sweeping path and a generous debris capacity, making it suitable for various surfaces without requiring power or fuel.

• Wide 28-Inch Operating Width: Cleans large spaces quickly, ideal for driveways, patios, warehouses, garages, and parking lots.
• Errendimendu handia: Sweeps up to 30,200 ft² per hour for maximum productivity.
• Eco-Friendly Manual Operation: No electricity or fuel needed, minimizing environmental impact. Optimal 4 km/h operating speed.
• 4-Gallon High-Capacity Debris Container: Allows for extended cleaning sessions with fewer stops. The container is detachable and easy to clean.
• Durable, Lightweight, and User-Friendly Design: Constructed with high-quality materials for longevity. Lightweight and easy to maneuver with an ergonomic handle for comfort.

Muntaketa eta Konfigurazioa

The Hoteche Manual Push Floor Sweeper requires minimal assembly. Follow these steps to prepare your sweeper for use.

1. Erantsi heldulekua: Screw the handle sections onto each side of the main sweeper body. Ensure they are securely fastened.
2. Install Side Sweeper Brushes: Flip the sweeper to access the underside. Attach the two round side sweeper brushes by fitting them into place and securing them with the provided plastic locking pieces.
3. Place Debris Collection Chamber: Position the 4-gallon debris collection chamber onto the sweeper body.
4. Secure Top Handle Section: Attach the top part of the handle using the carriage bolts, plastic spacers, and quick-release locks. Ensure all connections are tight.
5. Adjust Handle Angle (Optional): Loosen the gear pieces on the handle to adjust the angle for comfortable operation, then re-tighten.

Irudia: Gainetikview of the Hoteche Manual Push Floor Sweeper components, including the main body, handle, and brushes.

Image: Close-up of the sweeper's underside, showing the 28-inch sweep span and the three rotating brushes designed for maximum pickup efficiency.

Funtzionamendu-argibideak

Using your Hoteche Manual Push Floor Sweeper is straightforward. Follow these guidelines for optimal cleaning performance.

1. Eremua prestatu: Ensure the area to be swept is free of large obstacles that could damage the brushes or impede operation.
2. Push the Sweeper: Grip the ergonomic handle and push the sweeper forward at a steady walking pace (approximately 4 km/h). The wheels drive the brushes, sweeping debris into the collection chamber.
3. Maniobrak: The sweeper is lightweight and features a front swivel caster wheel, making it easy to turn and navigate around corners or obstacles.
4. Hondakinen bilketa: The two front circular brushes sweep debris towards the center, where a corkscrew-style brush picks it up and deposits it into the 4-gallon collection chamber.

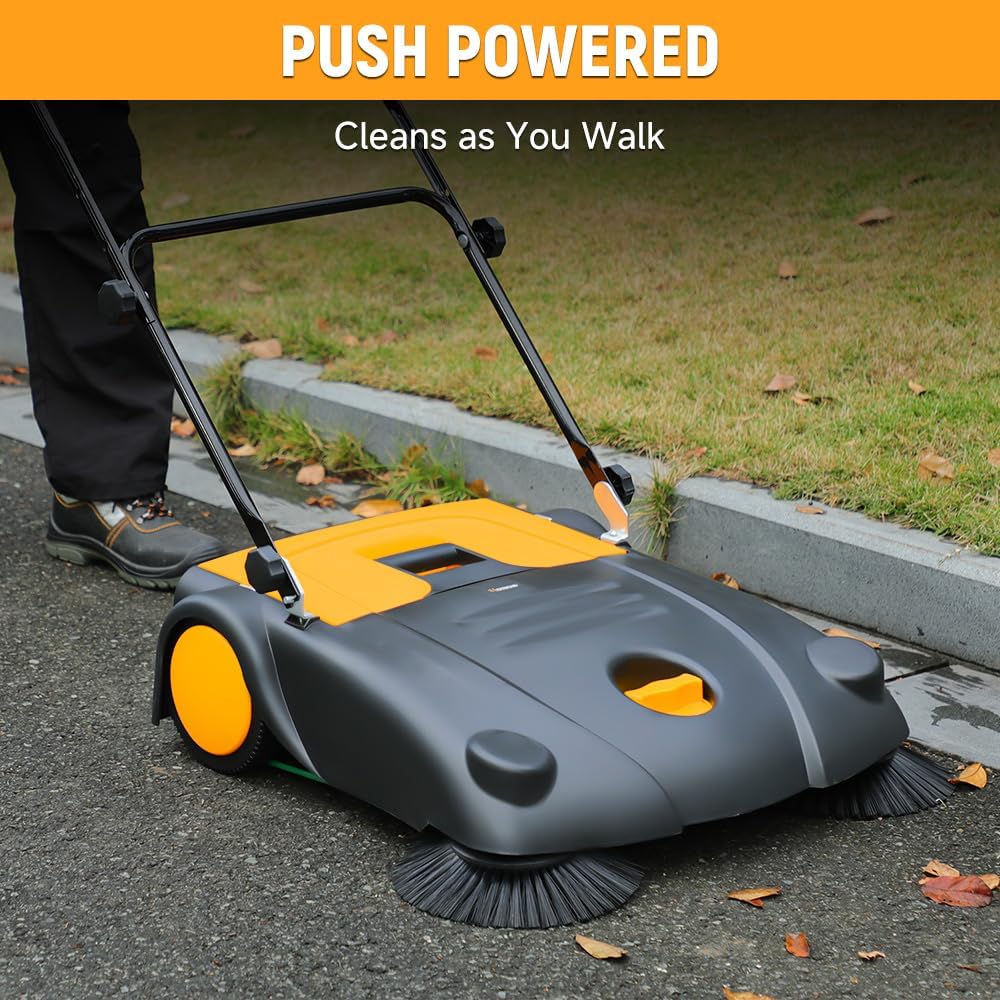

Image: A person demonstrating the push-powered operation of the sweeper, showing how it cleans as you walk.

Mantentzea

Mantentze-lan erregularrak zure garbigailuaren iraupena eta errendimendu optimoa bermatzen ditu.

1. Empty Debris Container: Regularly empty the 4-gallon debris container. It is detachable for easy disposal.
2. Eskuila garbiak: Periodically inspect and clean the brushes to remove any tangled debris, such as long grass, string, or hair, which could reduce sweeping efficiency.
3. Biltegiratzea: When not in use, the sweeper's handle can be collapsed for compact storage. Store in a dry, protected area.

Image: A person removing the 4-gallon collection box from the sweeper, demonstrating its large capacity and ease of emptying.

Image: The sweeper shown in its compact, folded position, highlighting its easy storage and portability.

Arazoak konpontzea

If you encounter issues with your sweeper, refer to the following common problems and solutions:

• Garbigailuak ez ditu hondakinak ondo jasotzen:
  • Check if brushes are tangled with debris and clean them.
  • Ensure the sweeper is being pushed at a consistent, appropriate speed.
  • Verify that the debris collection chamber is not full.
• Hauts gehiegi:
  • While designed to minimize dust, very fine dust may still be airborne. Consider sweeping in calm conditions or lightly dampening the surface if appropriate for the material.
• Difficulty maneuvering:
  • Check for any obstructions around the wheels or brushes.
  • Ensure the handle is securely locked in a comfortable position.

Zehaztapenak

Bermea eta Laguntza

For warranty information, technical support, or to purchase replacement parts, please refer to the documentation included with your product or contact Hoteche customer service directly. Specific warranty terms and conditions may vary.
