1. Sarrera
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your KATOOL KATRAX Mini Skid Steer Track Loader, Model KT-SK26 W. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage. Keep this manual in a safe place for future reference.

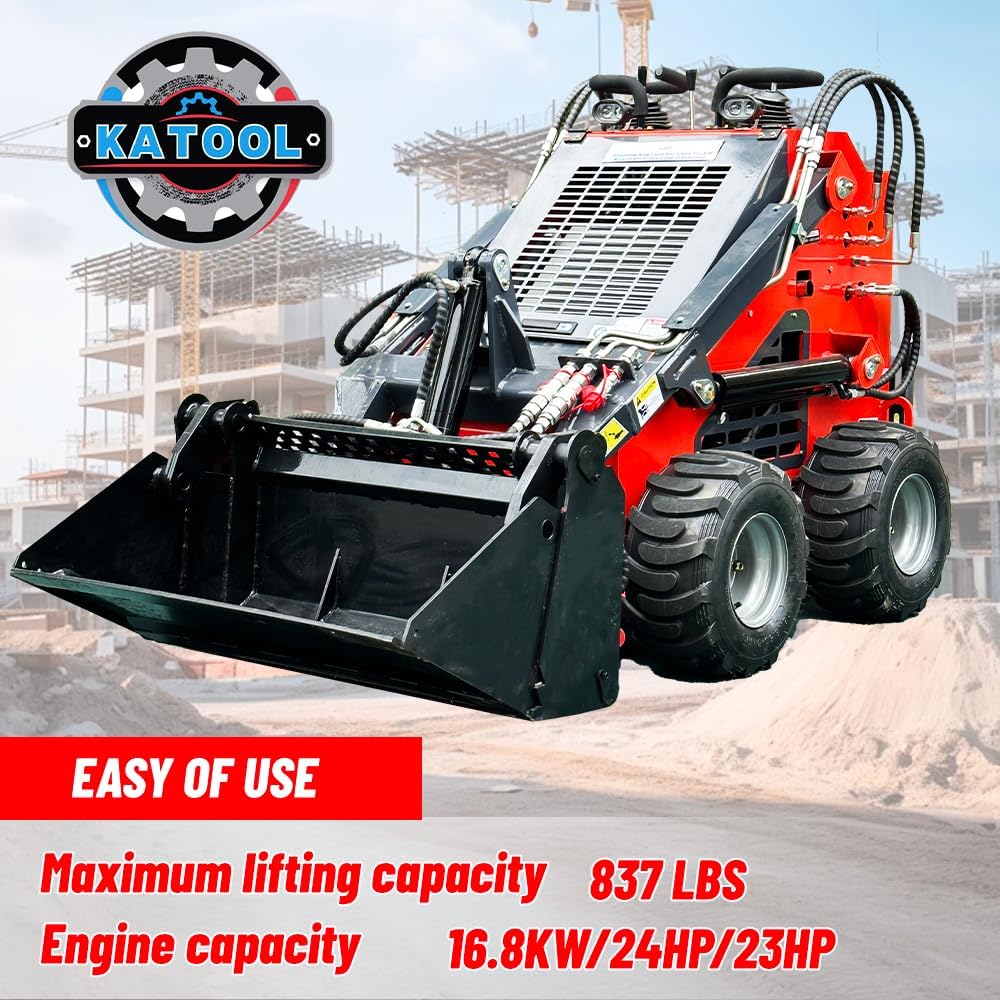

Figure 1.1: KATOOL KATRAX Mini Skid Steer Track Loader KT-SK26 W. This image shows the overall view of the mini skid steer loader, highlighting its compact design and robust construction, suitable for various tasks.
2. Segurtasun-argibideak
Makina astunak erabiltzeak segurtasun-protokoloak zorrotz betetzea eskatzen du. Argibide hauek ez jarraitzeak lesio larriak edo heriotza eragin ditzake.
- Irakurri eskuliburu osoa: Understand all operating procedures and safety warnings before starting the machine.
- Norberaren Babeserako Ekipamendua (PPE): Beti erabili EPI egokia, besteak beste, kaskoa, segurtasun-betaurrekoak, entzumen-babesak, segurtasun-botak eta eskularruak.
- Operator Qualification: Langile trebatu eta baimenduek bakarrik erabili beharko lukete ekipamendu hau.
- Lan eremuko segurtasuna: Ensure the work area is clear of bystanders, especially children and pets. Be aware of overhead power lines, underground utilities, and uneven terrain.
- Makinen ikuskapena: Perform a pre-operation inspection before each use. Check for leaks, loose parts, damaged components, and proper fluid levels.
- Motorraren ihesa: Operate in well-ventilated areas to avoid carbon monoxide poisoning.
- Egonkortasuna: Operate on stable, level ground whenever possible. Avoid steep slopes or unstable surfaces.
- Mantentze-segurtasuna: Disconnect the battery and relieve hydraulic pressure before performing any maintenance or repairs.
3. Key Components Overview
Familiarize yourself with the main parts of your KATRAX Mini Skid Steer Loader.
3.1. General Structure
3.1. irudia: Aurrealdea view of the KATRAX Mini Skid Steer Track Loader. This image displays the robust front bucket attachment and the overall compact design of the machine, ready for digging and bull-dozing tasks.
3.2. Wheels and Tracks
Figure 3.2: Close-up of the machine's wheels and tracks. This view highlights the durable tires designed for traction and stability across various terrains, essential for a track loader.
3.3. Operating Handles

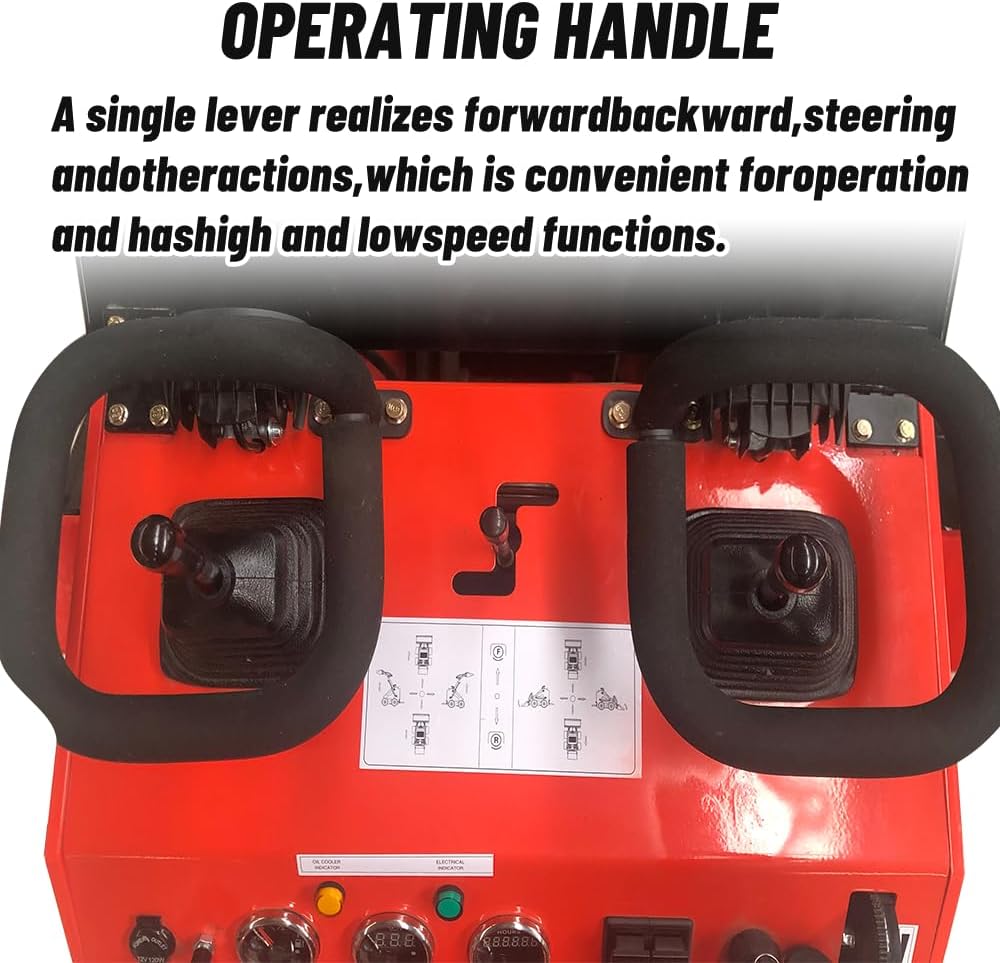

Figure 3.3: Operating handles. These controls allow for precise manipulation of the loader's movement and functions, including forward, backward, and steering, with high and low-speed options.
3.4. Kontrol-panela

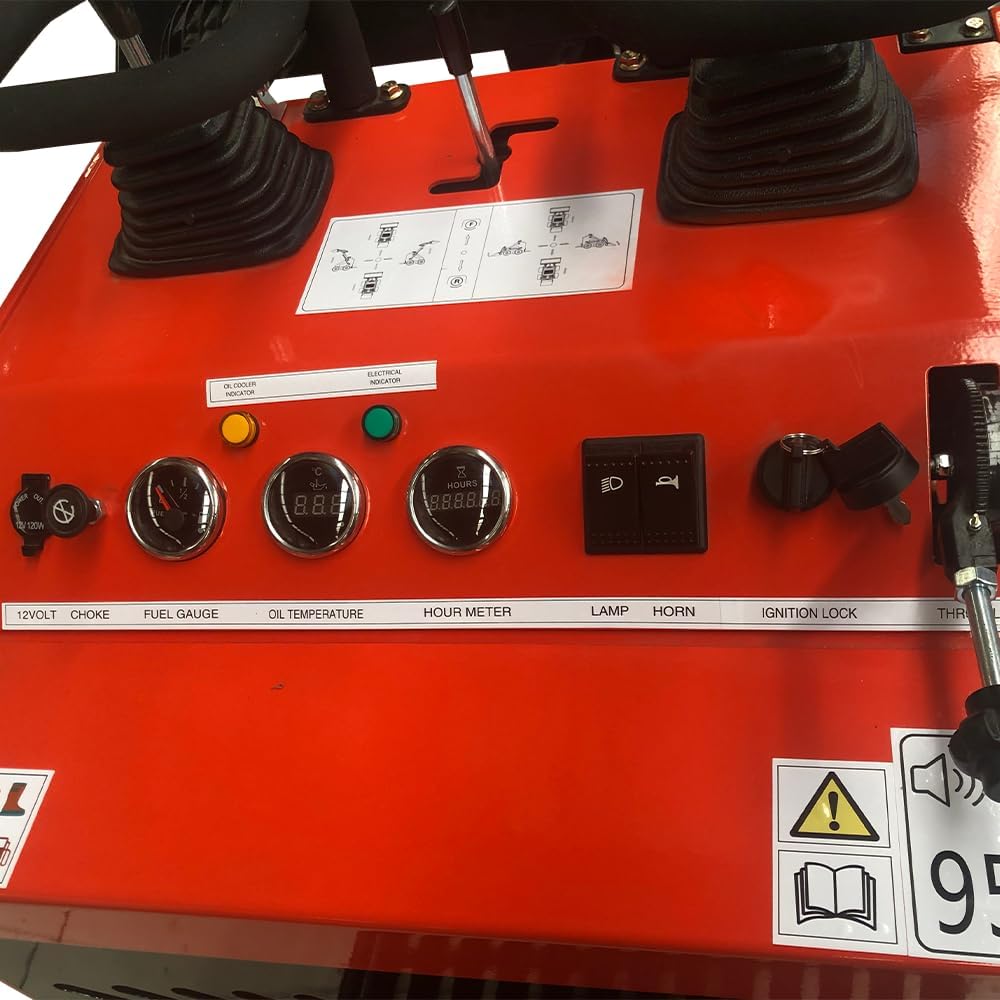

Figure 3.4: Control panel. This panel features essential gauges and switches, including a 12V outlet, choke, fuel gauge, oil temperature, hour meter, lamp, horn, and ignition lock, providing the operator with critical machine status information.
3.5. Konexio hidraulikoak
Figure 3.5: Hydraulic quick connectors. These connections facilitate the attachment and detachment of various hydraulic implements, expanding the versatility of the skid steer loader.
3.6. Engine Compartment and Inspection Panel
Figure 3.6: Engine compartment with inspection panel. The easily accessible inspection panel allows for convenient checking of the sprocket and driving motors, ensuring meticulous maintenance.
4. Konfigurazioa eta funtzionamendu aurreko egiaztapenak
Before operating your KATRAX Mini Skid Steer, perform the following setup and checks:
- Despaketatzea eta muntatzea: Ensure all components are present and undamaged. Follow any specific assembly instructions provided with the packaging.
- Fluidoen mailak:
- Motor-olioa: Egiaztatu motorraren olioaren maila neurgailuaren bidez. Gehitu gomendatutako olioa beharrezkoa bada.
- Fluido hidraulikoa: Egiaztatu fluido hidraulikoaren maila. Ziurtatu funtzionamendu-tarte seguruaren barruan dagoela.
- Erregaia: Fill the fuel tank with the appropriate fuel type for the RATO R740D engine.
- Bateria konexioa: Connect the battery terminals securely. This machine features an electric start.
- Pneumatikoen presioa: Inspect tire pressure and inflate to the recommended levels if needed.
- Ikus-ikuskapena: Check for any loose bolts, hoses, or electrical connections. Ensure all safety guards are in place and functional.
- Kontrol funtzionaltasuna: Test all controls (steering, lift, tilt) for proper movement and responsiveness before starting the engine.
5. Funtzionamendu-argibideak
Follow these steps for safe and effective operation of your mini skid steer loader.
5.1. Motorra martxan jartzea
- Ziurtatu makina lur mailakatuan dagoela eta aparkaleku-balazta jarrita dagoela.
- Turn the ignition key to the 'ON' position. Observe the control panel for indicator lights.
- If the engine is cold, pull the choke lever (refer to Figure 3.4).
- Turn the ignition key to the 'START' position. Release the key once the engine starts.
- Allow the engine to warm up for a few minutes before engaging in heavy work.
5.2. Kontrol Paneleko funtzioak
Refer to Figure 3.4 for the layout of the control panel.
- 12 V-ko irteera: For powering accessories.
- Chokes: Motor hotz bat martxan jartzeko erabiltzen da.
- Erregai-neurgailua: Displays the current fuel level.
- Olioaren tenperatura: Indicates engine oil temperature. Monitor this during operation.
- Ordu-kontagailua: Tracks total operating hours for maintenance scheduling.
- Lamp/Horn: Controls the machine's lighting and horn.
- Ignition Lock: Secures the machine when not in use.
5.3. Makina funtzionatzea
The KATRAX Mini Skid Steer uses a single lever control system for movement (refer to Figure 3.3).
- Aurrera/Atzera: Push the operating lever forward to move forward, pull backward to reverse.
- Zuzendaritza: Move the lever left or right to steer the machine.
- Abiadura handia/baxua: The machine features high and low-speed functions for different operational needs. Consult the specific lever markings for engagement.
- Loader Arm Operation: Use the dedicated controls (typically foot pedals or additional levers, not explicitly shown but standard for skid steers) to raise, lower, tilt, and dump the bucket.
- Karga-gaitasuna: Do not exceed the maximum lifting capacity of 837 LBS. Overloading can cause instability and damage.
- Ikusgarritasuna: Always maintain clear visibility of your surroundings and the attachment.
6. Mantentzea
Regular maintenance is crucial for the longevity and safe operation of your KATRAX Mini Skid Steer.
6.1. Eguneko egiaztapenak
- Egiaztatu motorraren olioa, fluido hidraulikoa eta erregai mailak.
- Inspect tires/tracks for damage and proper inflation.
- Look for any leaks (oil, hydraulic fluid, fuel).
- Clean debris from the engine compartment and radiator.
- Verify all lights and safety features are working.
6.2. Mantentze-lan programatuak
Refer to the hour meter (Figure 3.4) for scheduling maintenance tasks.
- Motor-olio aldaketa: Replace engine oil and filter according to the engine manufacturer's recommendations (RATO R740D).
- Aire-iragazkia: Inspect and clean or replace the air filter as needed, especially in dusty conditions.
- Sistema hidraulikoa: Check hydraulic hoses and fittings for wear or damage. Replace hydraulic fluid and filter at recommended intervals.
- Lubrifikazioa: Grease all pivot points and moving parts as specified in the lubrication chart (if provided separately).
- Inspection Panel Access: The inspection panel (Figure 3.6) provides easy access to check the sprocket and driving motors. Regularly inspect these components for wear.
6.3. Garbiketa
Keep the machine clean, especially the engine and hydraulic components, to prevent overheating and ensure proper function.
7. Arazoak
This section addresses common issues you might encounter. For problems not listed here, contact qualified service personnel.
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Motorra ez da martxan jartzen | No fuel; Dead battery; Faulty ignition; Choke not engaged (cold engine) | Check fuel level; Charge/replace battery; Inspect ignition system; Engage choke for cold starts. |
| Potentzia hidraulikoaren galera | Low hydraulic fluid; Clogged hydraulic filter; Damaged hydraulic pump/hose | Check/add hydraulic fluid; Replace hydraulic filter; Inspect for leaks or damage, contact service. |
| Makina gehiegi berotzen da | Low engine coolant; Clogged radiator; Low engine oil; Overloading | Check coolant level; Clean radiator fins; Check/add engine oil; Reduce load. |
| Funtzionamenduan zehar ezohiko zaratak | Loose components; Worn bearings; Engine issue | Stop machine immediately and investigate source of noise. Tighten loose parts, contact service for internal issues. |
8. Zehaztapenak
Key technical specifications for the KATOOL KATRAX Mini Skid Steer Track Loader KT-SK26 W.
- Eredua: KT-SK26 W
- Motorra: 23 HP RATO R740D Double Cylinder Engine, EPA compliant
- Energia iturria: AC (for electric start system)
- Standard Lifting Capacity: 20L
- Maximum Lifting Capacity: 837 LBS
- Makinaren pisua: 900 kg inguru
- Gidatze sistema: Hydraulic Four-Wheel Drive
- Dakarten osagaiak: Mini skid-steer loader
- Honetarako diseinatua: Small construction projects, farms, gardens, public spaces, parks, orchards.
9. Bermea eta Laguntza
For warranty information, technical support, or service inquiries regarding your KATOOL KATRAX Mini Skid Steer Track Loader, please contact your authorized dealer or the manufacturer, KATOOL. Retain your proof of purchase for warranty claims.
Manufacturer: KATOOL
