Sarrera
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of the Dasan Dual Rainfall Shower System. This system features a 12-inch overhead rainfall showerhead, a 6-inch wall-mounted showerhead, and a versatile handheld shower, all controlled by a pressure-balancing valve for consistent temperature. Please read these instructions carefully before installation and use to ensure proper function and safety.

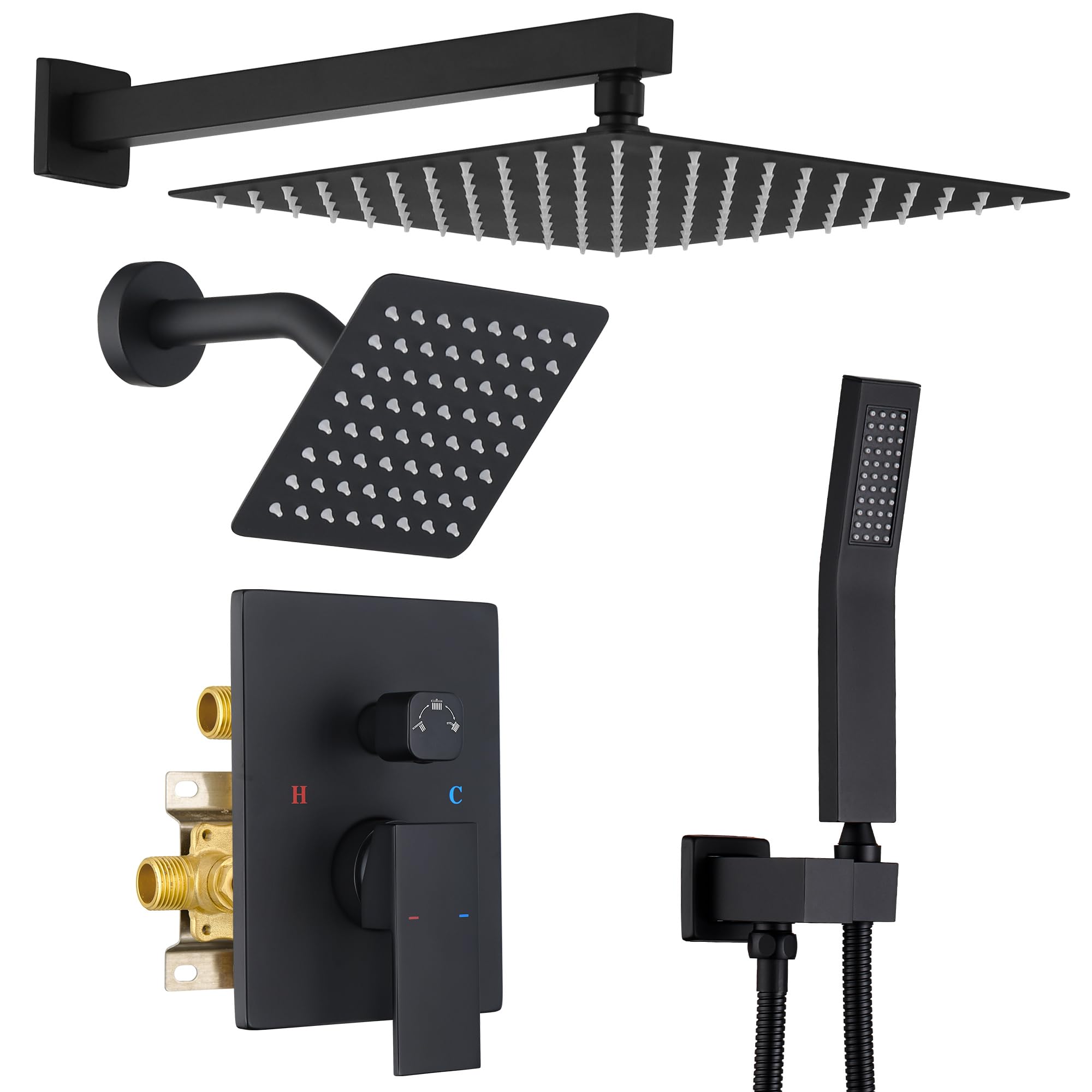

Irudia: Gainetikview of the Dasan Dual Rainfall Shower System, showcasing the 12-inch rainfall showerhead, 6-inch wall-mounted showerhead, handheld shower, and control valve in a matte black finish.
Produktuaren Ezaugarriak
- Dutxa-buru bikoitzak: Includes a 12-inch overhead rainfall showerhead and a 6-inch wall-mounted showerhead, both adjustable up to 360°.
- High-Pressure Rain Shower: Ultra-thin design for powerful rainfall, even in low-pressure conditions. Air-injection technology enhances spray and saves water.
- Versatile Handheld Shower: Features a handheld shower with a 59-inch metal hose for targeted cleaning and ease of use with children or pets. Silicone nozzles allow for easy mineral deposit removal.
- Pressure-Balancing Cartridge: Advanced cartridge prevents sudden temperature changes (scald protection) and eliminates water hammer noise.
- Akabera iraunkorra: Electroplated surface and glazed finish resist fingerprints and water stains, ensuring long-term appearance and easy maintenance.
Image: Close-up of the control valve knob, illustrating the ability to switch between 12-inch rain shower, 6-inch tilted rainfall, and handheld spray modes.
Image: Diagram showing air and water mixing within the rainfall showerhead for enhanced pressure and water saving.
Konfigurazioa eta Instalazioa
Installation of this shower system requires plumbing knowledge and should ideally be performed by a qualified professional. Ensure all local plumbing codes are followed. The system includes a pressure-balancing rough-in valve with 1/2" NPT connectors.
Osagaiak barne:
- 12" Shower Head
- 6" Shower Head
- Eskuko Dutxa
- 59" Hose
- Shower Valve & Trim Kit
Image: The pressure balancing rough-in valve, highlighting the 1/2" NPT connector and features like pressure balance, cUPC certification, and water hammer prevention.
Instalazio Urratsak (Orokorra)view):
- Instalatzen hasi aurretik, itxi ur-hornidura nagusia.
- Install the rough-in valve body into the wall, ensuring it is level and securely mounted. Connect hot and cold water lines to the appropriate inlets (marked H for Hot, C for Cold).
- Install the 12-inch overhead shower arm and head, ensuring a secure, leak-free connection.
- Install the 6-inch wall-mounted shower arm and head.
- Mount the handheld shower holder and connect the 59-inch hose to the handheld shower and the valve outlet.
- Install the trim kit, including the handle and faceplate, onto the rough-in valve.
- Test all connections for leaks and ensure proper water flow and temperature control.
Bideoa: Amaiera batview of the Dasan Dual Rainfall Shower System, demonstrating its features and functionality. This video is provided by Dasan USA.
Funtzionamendu-argibideak
The Dasan Dual Rainfall Shower System is designed for intuitive operation.
Tenperatura kontrola:
- The main handle controls water temperature. Turn the handle left for hot water and right for cold water.
- The pressure-balancing cartridge maintains a consistent temperature, preventing sudden changes.
Shower Mode Selection:
- A dedicated knob on the valve allows you to switch between the 12-inch rainfall showerhead, the 6-inch wall-mounted showerhead, and the handheld shower.
- Rotate the knob to select your desired spray mode.

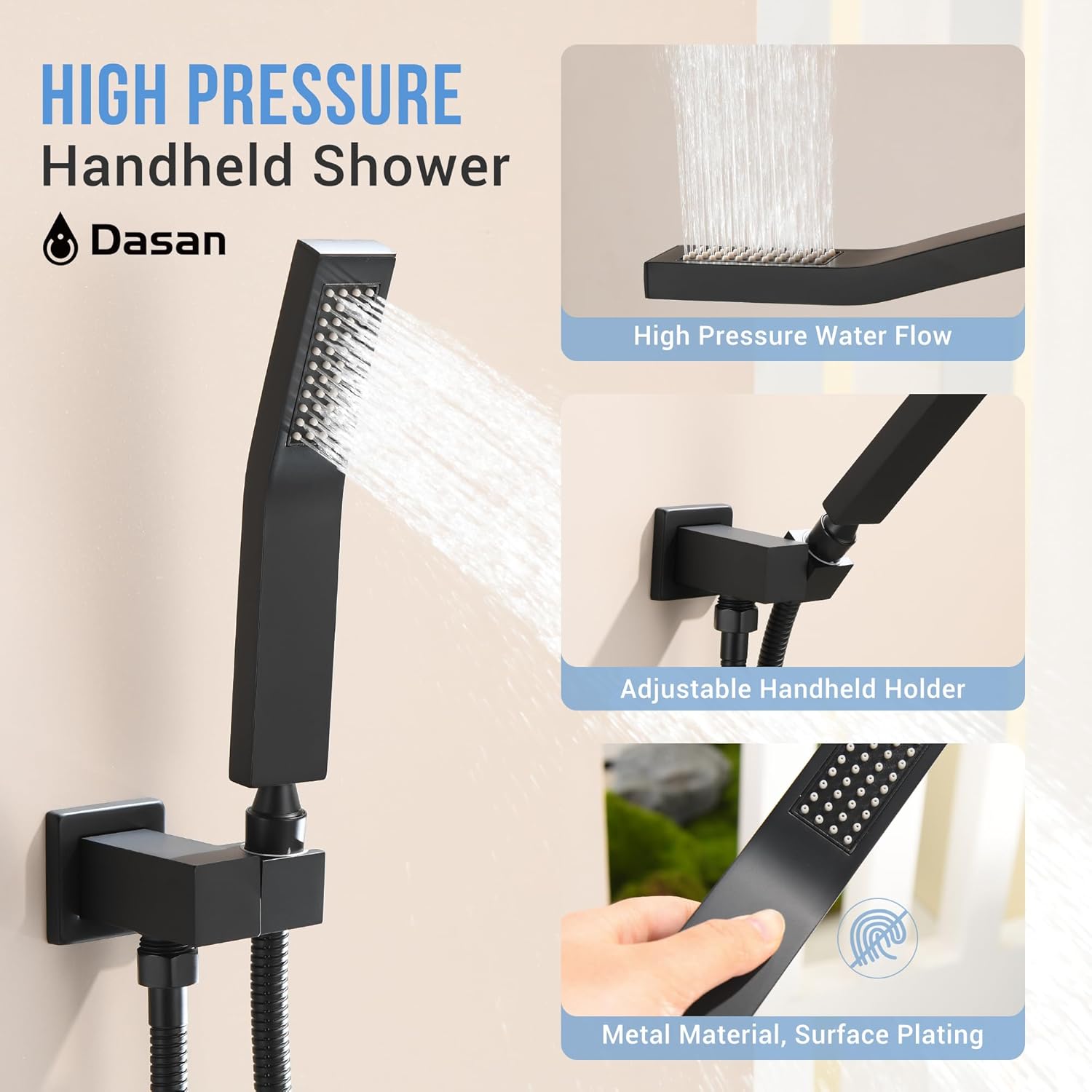

Image: The high-pressure handheld shower in operation, showing its adjustable angle design and flexibility for targeted cleaning.
Mantentzea
Regular maintenance will ensure the longevity and optimal performance of your Dasan shower system.
- Akabera garbitzea: The electroplated and glazed finish is designed to resist fingerprints and water stains. Clean with a soft, damp oihal bat eta xaboi leuna. Saihestu garbitzaile urratzaileak, produktu kimiko gogorrak edo urratzaile-eskuilak, hauek akabera kaltetu baitezakete.
- Garbiketa-toberak: The silicone nozzles on both showerheads and the handheld shower are designed for easy cleaning. Simply rub your finger across the nozzles to dislodge any mineral deposits. This helps maintain consistent water flow.
- Mahuka zaintzea: Periodically check the 59-inch metal hose for any signs of wear or damage. Clean the hose with a soft cloth.
Image: A hand demonstrating how to easily clean the self-cleaning silicone nozzles on the showerhead to remove mineral buildup.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Ur Presio baxua | Clogged showerhead nozzles; low household water pressure; partially closed shut-off valve. | Clean showerhead nozzles by rubbing them. Check main water supply valve. Consult a plumber if household pressure is consistently low. |
| Uraren Tenperaturaren gorabeherak | Pressure-balancing cartridge issue; insufficient hot water supply. | Ensure hot water heater is functioning correctly. If problem persists, the pressure-balancing cartridge may need inspection or replacement by a professional. |
| Leaking from Showerhead/Handheld | Loose connections; worn washers/seals; damaged component. | Check and tighten all connections. Inspect washers and seals for wear and replace if necessary. If a component is damaged, contact customer support. |
| Water Hammer Noise | Sudden water flow changes; air in pipes. | The built-in check valve should prevent this. If noise occurs, ensure proper installation and check for air in the plumbing system. |
Zehaztapenak
| Zehaztapena | Xehetasuna |
|---|---|
| Marka | Dasan |
| Modelo zenbakia | DA-SS306S12W-MB |
| Kolorea | Beltza Mattea |
| Materiala | Letoia, altzairu herdoilgaitza |
| Akabera mota | Matea |
| Helduleku kopurua | 1 |
| Muntatze Mota | Hormako Muntaia |
| Emaria | 1.8 GPM |
| Head Sizes | 12 inches (Rainfall), 6 inches (Wall Mount) |
| Eskuko mahuka luzera | 59 hazbetekoa |
| Produktuaren neurriak | 16.14 x 13.39 x 7.28 hazbete |
| Elementuaren pisua | 13.02 kilo |
Bermea eta Laguntza
Bermearen informazioa:
The Dasan Dual Rainfall Shower System comes with a 10 urteko berme mugatua for residential use and a 5 urteko berme mugatua for commercial use. This warranty covers manufacturing defects and material flaws under normal use and service.
For detailed warranty terms and conditions, please refer to the official Dasan webwebgunean edo jarri harremanetan bezeroarentzako laguntzarekin.
Bezeroarentzako laguntza:
If you have any questions, require technical assistance, or need to report an issue with your product, please contact Dasan customer support through the following channels:
- Webgunea: Visit the official Dasan webMaiz egiten diren galderen eta harremanetarako formularioen gunea.
- Posta elektronikoa: [Txertatu bezeroarentzako arreta-zerbitzuko helbide elektronikoa hemen, baldin badago]
- Telefonoa: [Txertatu Bezeroarentzako Arreta Telefono Zenbakia hemen, baldin badago]
Please have your model number (DA-SS306S12W-MB) and purchase date ready when contacting support.
