Jocoevol 5-Drawer Dresser User Manual

1. Sarrera

Thank you for choosing the Jocoevol 5-Drawer Dresser, Model NG-0619. This modern chest of drawers is designed to provide efficient storage for your bedroom, living room, hallway, or entryway. Crafted from high-quality manufactured wood, it offers stability, durability, and resistance to water and scratches. This manual provides essential information for safe assembly, proper usage, and maintenance of your new furniture.

Image 1.1: The Jocoevol 5-Drawer Dresser, Retro Brown, featuring a sleek, modern design.

2. Segurtasun informazioa

Mesedez, irakurri eta ulertu segurtasun-jarraibide guztiak muntatu eta erabili aurretik. Jarraibide hauek ez jarraitzeak lesioak edo produktua kaltetu dezake.

• Tibuaren aurkako gailua: This dresser includes an anti-collapse design (anti-tip kit) to prevent accidental tipping. It is crucial to install this device securely to a wall stud as instructed during assembly. This measure significantly reduces the risk of injury, especially to children and pets.
• Pisuaren banaketa: Distribute weight evenly across drawers and on the top surface. Avoid placing heavy items on the top edge of open drawers, as this can cause instability.
• Tiraderaren erabilera: Do not open more than one drawer at a time. Opening multiple drawers simultaneously can shift the dresser's center of gravity and increase the risk of tipping.
• Muntaia: Assemble the dresser on a soft, clean surface to prevent scratches. Ensure all fasteners are tightened securely before use. Periodically check and re-tighten fasteners as needed.
• Haurrak: Ez utzi haurrei komoda gainean igotzen edo harekin jolasten. Mantendu pieza txikiak eta muntaketa-osagarriak haurren eskura ez dauden lekuetan.

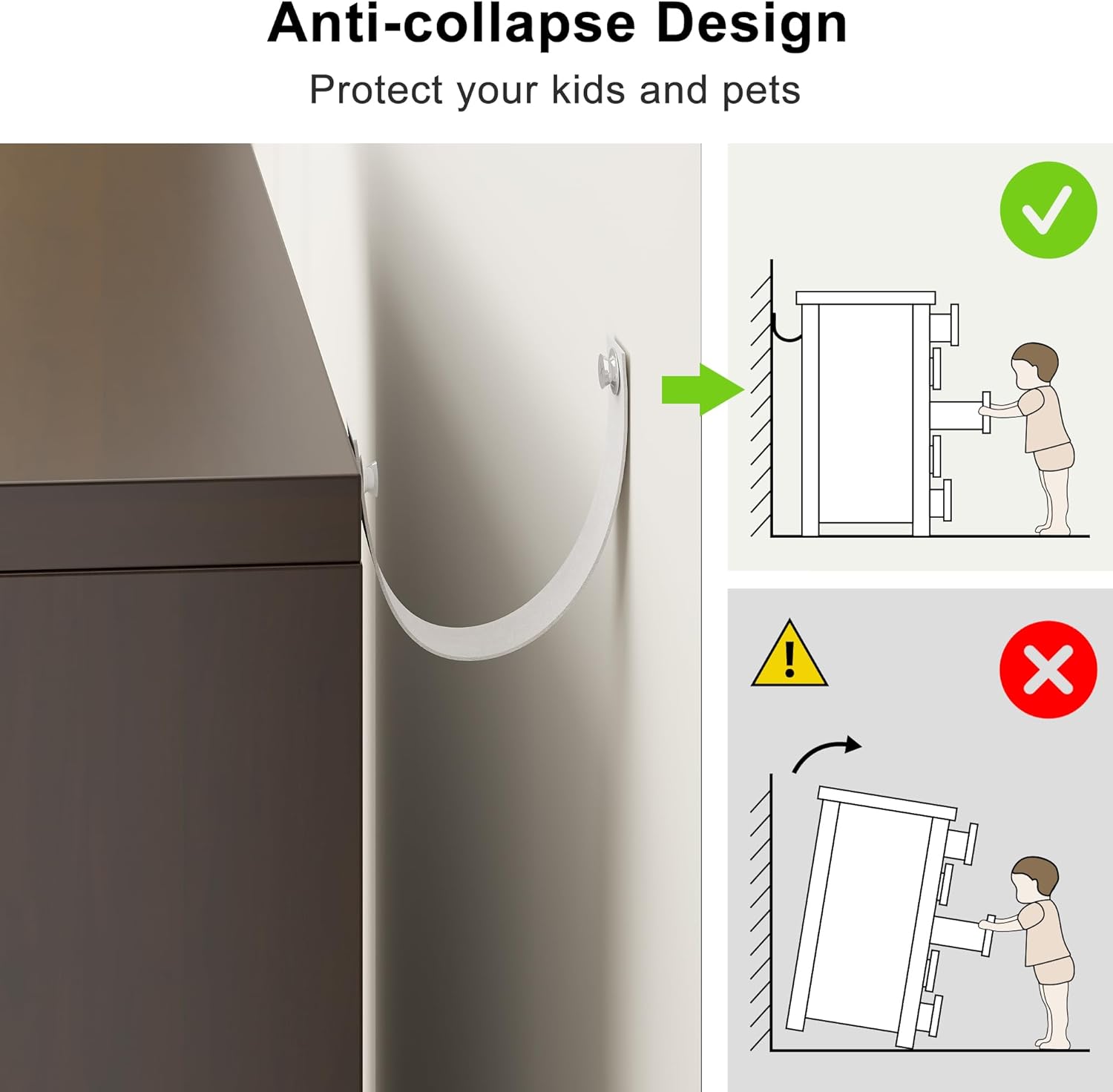

Image 2.1: Illustration of the anti-collapse design, showing correct installation to prevent tipping.

3. Paketearen edukia

Muntaketa hasi aurretik, egiaztatu pieza eta hardware guztiak daudela eta kalterik gabe daudela. Piezarik falta edo kaltetuta badago, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

Paketeak eduki behar du:

• Komoda-panelak (goia, behea, alboak, atzealdea)
• Tiraderen panelak (aurrea, atzealdea, alboak, behealdea)
• Tiraderentzako diapositibak
• Muntaketa-osagarriak (torlojuak, espiga, kama-blokeoak, etab.)
• Tip-anti kit
• Argibide eskuliburua

4. Muntaketa argibideak (konfigurazioa)

Assembly of the Jocoevol 5-Drawer Dresser is designed to be straightforward. All necessary hardware and detailed step-by-step instructions are included in the package. No special tools are required, though a Phillips head screwdriver may be helpful.

1. Prestatu lan-eremua: Clear a spacious area and lay out all components on a soft, clean surface (e.g., a blanket or carpet) to prevent damage.
2. Atalak identifikatzea: Kontsultatu eskuliburuan dagoen piezen zerrenda osagai bakoitza identifikatzeko.
3. Muntatu markoa: Follow the step-by-step diagrams to construct the main dresser frame. Ensure all connections are secure.
4. Instalatu tiradera-irristailuak: Attach the drawer slides to the dresser frame and to the drawer sides as indicated. Ensure they are level and aligned for smooth operation.
5. Tiraderak muntatu: Construct each of the five drawers according to the instructions. Insert the drawer bottoms and secure the front and back panels.
6. Txertatu tiraderak: Carefully slide the assembled drawers into the dresser frame. Test each drawer for smooth movement.
7. Iraulketaren aurkako kita instalatzea: Securely attach the anti-tip device to the back of the dresser and to a wall stud using the provided hardware. This step is critical for safety.

Image 4.1: The dresser with drawers fully extended, illustrating the drawer slide mechanism and internal construction.

5. Erabilera (Funtzionamendua)

Your Jocoevol 5-Drawer Dresser is designed for organizing various items in your home.

• Biltegiratzea: Utilize the five deep drawers for clothing, linens, accessories, or other personal items. The spacious top surface can be used for decorative items, lamps, edo liburuak.
• Tiraderaren funtzionamendua: Drawers are equipped with smooth-gliding slides. Pull and push drawers gently and evenly. Avoid forcing drawers open or closed.
• Lekua: This dresser is suitable for bedrooms, closets, living rooms, hallways, and entryways. Ensure it is placed on a level surface.

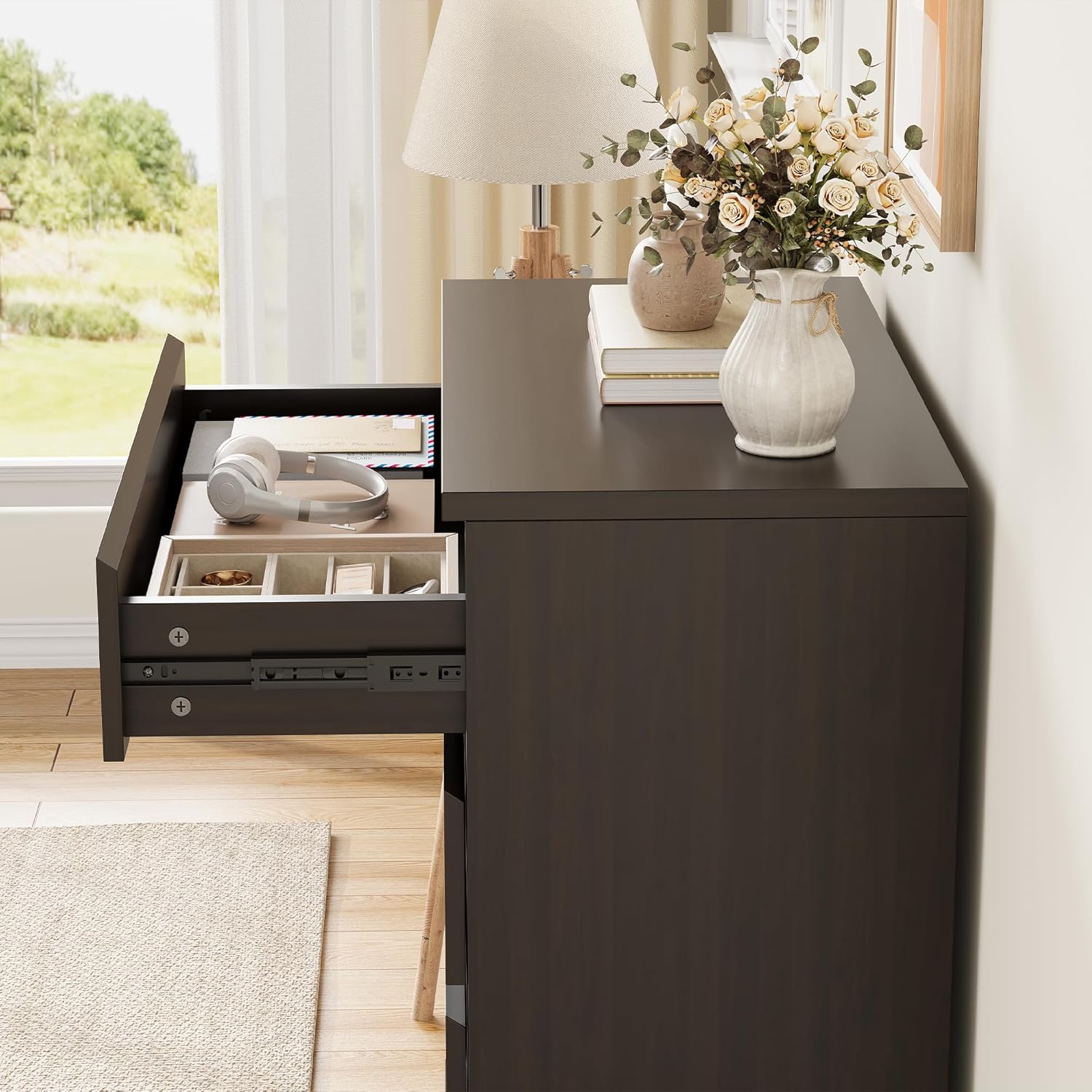

Image 5.1: An open drawer showcasing its capacity for various items, including a jewelry organizer.

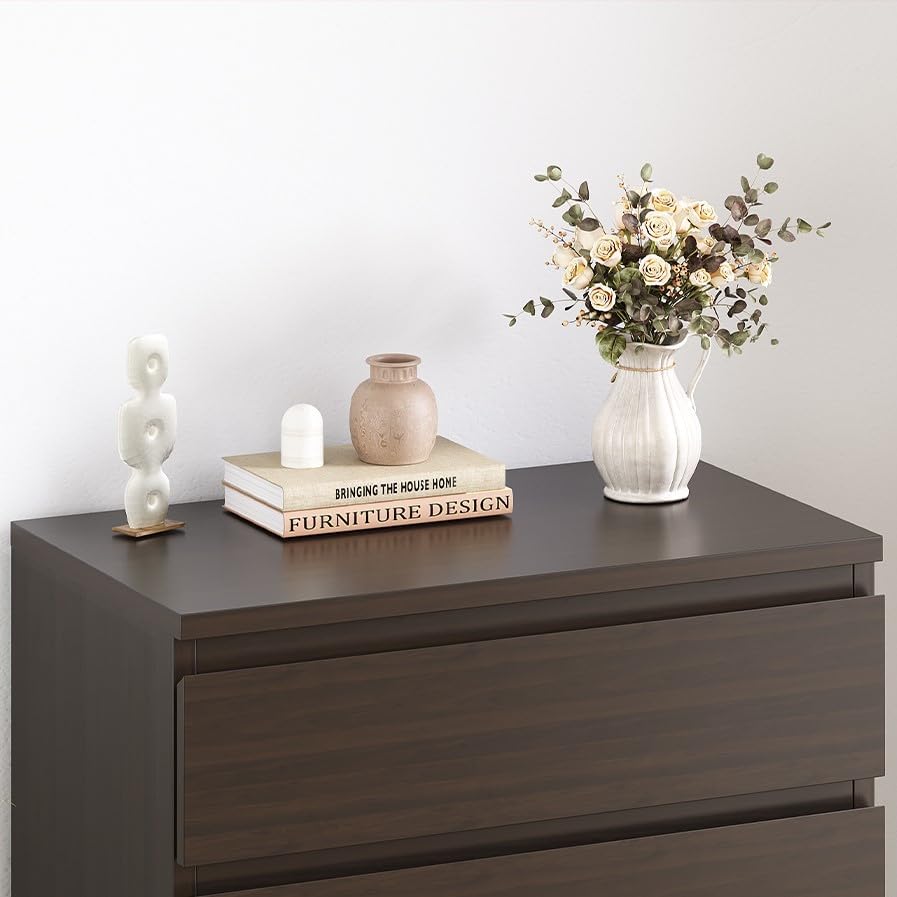

Image 5.2: The top surface of the dresser, suitable for displaying decorative items like vases and books.

6. Mantentzea

Arreta egokiak zure komodaren bizitza eta itxura luzatuko ditu.

• Garbiketa: Wipe the dresser surfaces with a soft, damp oihal. Saihestu produktu kimiko gogorrak edo garbitzaile urratzaileak, hauek akabera kaltetu baitezakete.
• Isurketak: Garbitu berehala isuritako edozein likido urak eragindako kalteak edo orbanak saihesteko.
• Loturak: Aldian-aldian egiaztatu torloju eta lotura guztiak ondo estututa daudela ziurtatzeko. Behar izanez gero, berriro estutu egonkortasuna mantentzeko.
• Eguzkiaren argia: Saihestu eguzki-argiaren eraginpean denbora luzez, kolorea galtzea edo aldatzea eragin baitezake.

Image 6.1: Visual representation of the dresser's key quality features, including its easy-to-clean surface.

7. Arazoak

Zure komoda-armairuarekin arazoak badituzu, jo ezazu honako ohiko irtenbide hauetara:

8. Zehaztapenak

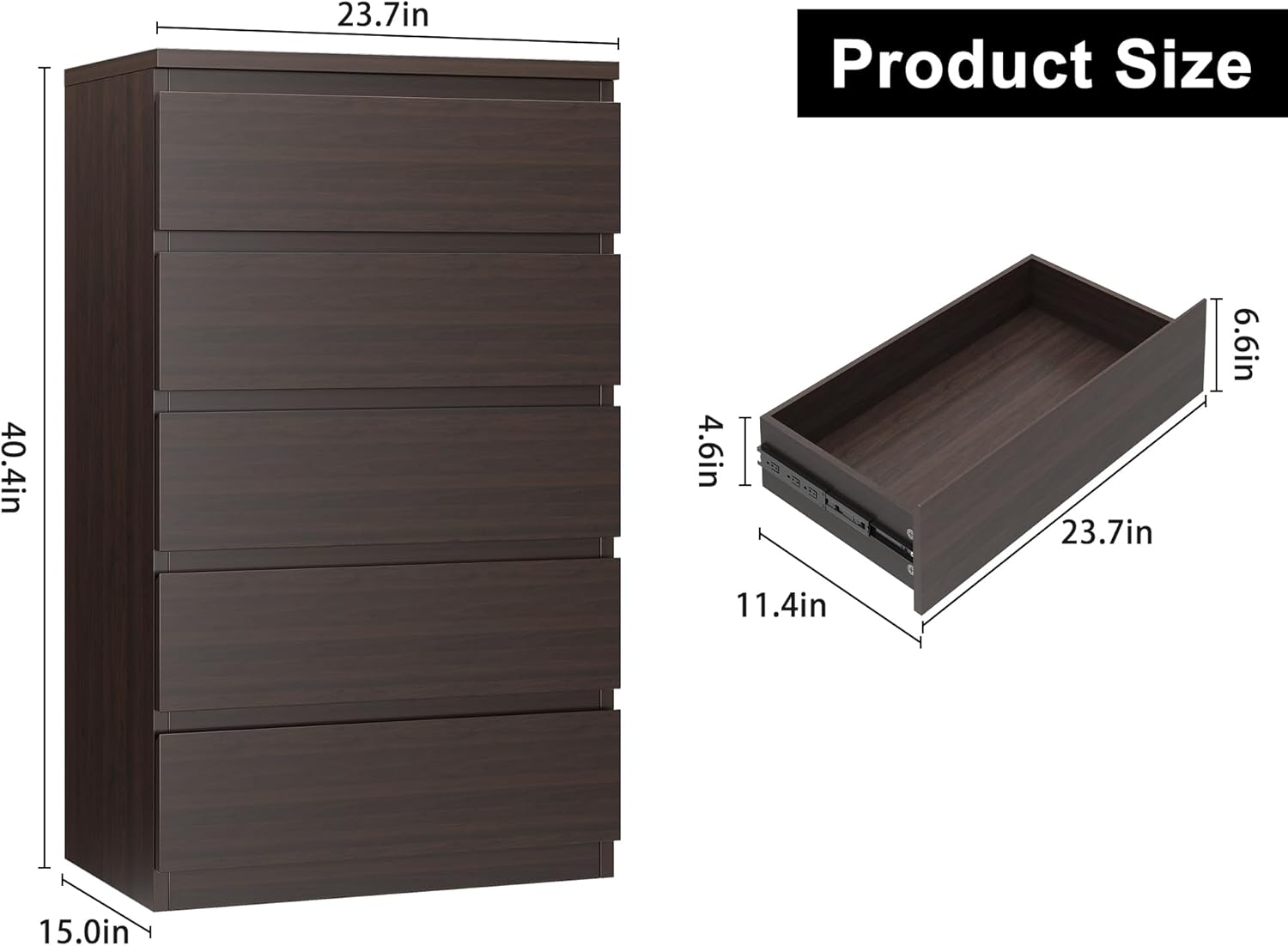

Image 8.1: Detailed dimensions of the dresser (23.7"W x 15"D x 40.4"H) and an individual drawer (23.7"L x 11.4"W x 6.6"H).

9. Bermea eta Laguntza

While specific warranty details are not provided in this manual, Jocoevol is committed to customer satisfaction. If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Jocoevol customer support.

For support, please refer to the contact information provided with your purchase or visit the official Jocoevol store page on Amazon: Jocoevol Store.
