GEHPYYDS PCP Electric Air Compressor User Manual

1. Segurtasun informazio garrantzitsua

Read and understand all safety warnings and instructions before operating this air compressor. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage. Keep this manual for future reference.

• Presio handiko arriskua: This compressor generates extremely high pressure (up to 4500 PSI / 300 Bar). Always ensure all connections are secure and rated for the pressure. Never point the air outlet at people or animals.
• Segurtasun elektrikoa: Use only the specified power sources (110V/220V AC or 12V DC car battery). Ensure the power cord is undamaged. Do not operate in wet conditions or with wet hands.
• Gehiegizko berotzea: Monitor the temperature display. If the temperature reaches 70°C (158°F), shut off the compressor and allow the cooling fan to run until the unit cools down. Prolonged operation at high temperatures can damage the unit.
• Aireztapena: Operate the compressor in a well-ventilated area to prevent heat buildup.
• Dry Air Only: This compressor is designed for dry compressed air only. Do not use with flammable gases or liquids.
• Haurrak eta maskotak: Mantendu haurrak eta maskotak konpresoretik urrun funtzionatzen ari den bitartean.
• Mantentzea: Egin aldizkako mantentze-lanak eskuliburu honetan deskribatzen den bezala, funtzionamendu segurua eta eraginkorra bermatzeko.

2. Produktua amaitu daview

The GEHPYYDS PCP Electric Air Compressor is a portable high-pressure pump designed for inflating PCP air rifles, paintball tanks, and other high-pressure air devices. It features an adjustable pressure gauge with auto-stop functionality, a built-in cooling fan, and an oil/water separator for clean, dry air output.

2.1. irudia: Aurrealdea view of the GEHPYYDS PCP Electric Air Compressor highlighting its main benefits.

Ezaugarri nagusiak:

• Itzaltze automatikoa: Preset the desired pressure, and the compressor will automatically stop when reached.
• Dual Power Capability: Operates on 110V/220V AC (home socket) or 12V DC (car battery).
• Integrated Cooling System: Built-in fan for air cooling, eliminating the need for external water or oil cooling.
• Oil/Water Separator: Effectively filters moisture and oil from the air for clean output.
• Diseinu eramangarria: Compact with a handgrip for easy transport and storage.
• Tenperaturaren jarraipena: LED display for monitoring internal temperature.

2.2. irudia: Xehetasuna view of the compressor with labeled components and dimensions.

3. Paketearen edukia

Egiaztatu behean zerrendatutako elementu guztiak zure paketean sartuta daudela. Elementuren bat falta bada edo hondatuta badago, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

• 1 x PCP Air Compressor Unit
• 1 x Air Hose with 8mm Quick Connector
• 1 x DC 12V Cable for Car Battery Connection
• 1 x Erabiltzailearen eskuliburua (dokumentu hau)
• Accessories (O-rings, filters, etc.)

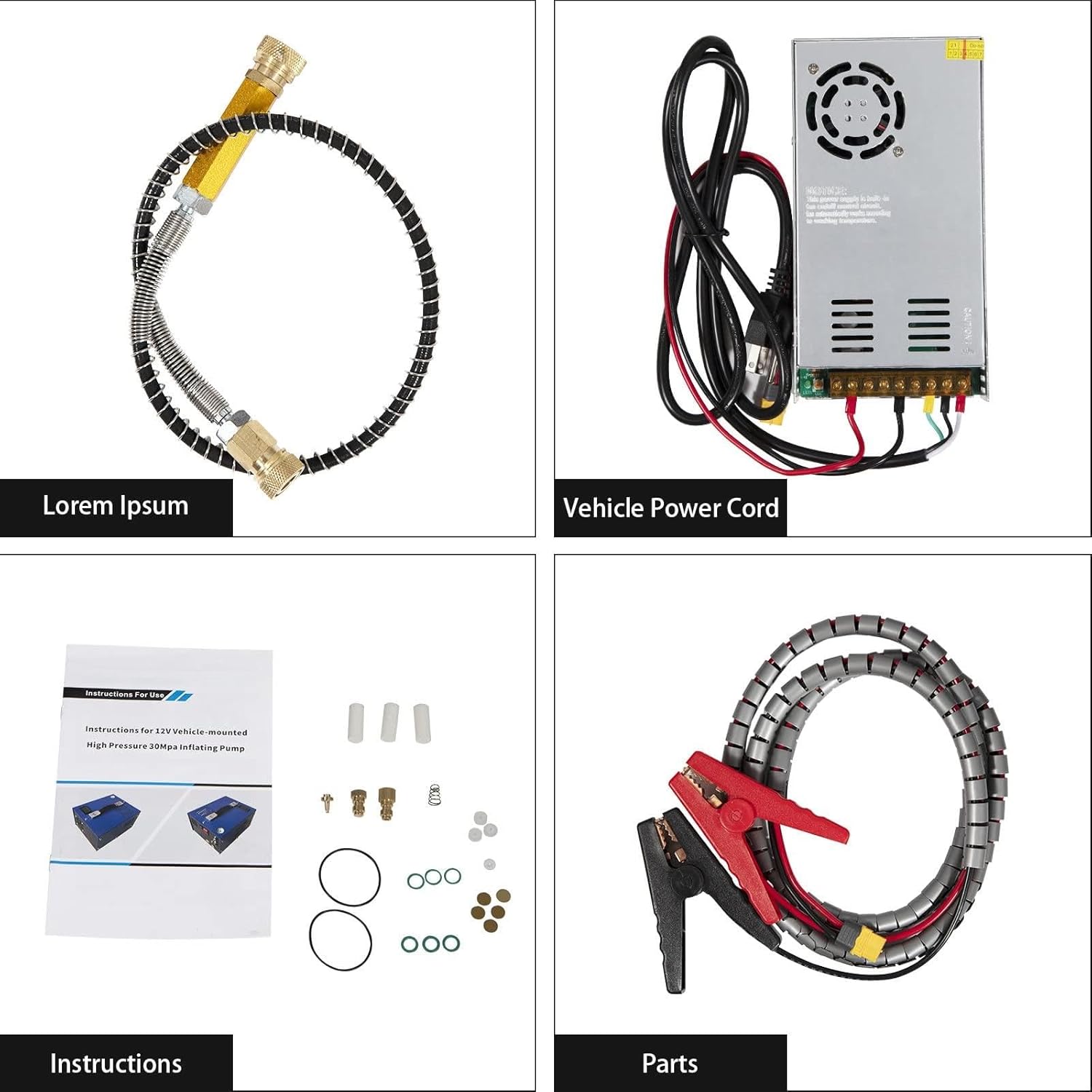

3.1. irudia: Produktuaren paketearen edukia.

4. Konfigurazioa

Follow these steps to set up your GEHPYYDS PCP Electric Air Compressor.

1. Aukeratu energia iturria:
   • For Home Use (AC Power): Connect the compressor to a standard 110V/220V AC power outlet using the appropriate power cord (not explicitly listed in package contents but implied by 110V/220V power supply).
   • For Car Battery Use (DC Power): Connect the provided DC 12V cable to the 12V DC power socket on the compressor and to your car battery terminals (red to positive, black to negative). Ensure a secure connection.
2. Aire-hodia konektatu: Attach the 8mm quick connector of the air hose to the high-pressure air outlet on the compressor. Ensure it is firmly seated and locked.
3. Prepare Device for Inflation: Connect the other end of the air hose to the device you intend to inflate (PCP rifle, paintball tank, etc.). Ensure this connection is also secure.
4. Check Bleed Valve: Ensure the bleed valve (refer to Figure 2.2) is closed before starting the compressor.

5. Funtzionamendu-argibideak

Operating the compressor involves setting the desired pressure, monitoring the unit, and safely inflating your device.

1. Ezarri nahi duzun presioa: Use the adjustable pressure gauge to set the target pressure for your device. The compressor will automatically shut off once this pressure is reached.
2. Turn On Cooling Fan: Locate the cooling fan switch (refer to Figure 2.2) and turn it ON. The fan must run throughout the inflation process to prevent overheating.
3. Konpresorea abiarazi: Turn on the main compressor switch (refer to Figure 2.2). The compressor will begin to build pressure.
4. Monitorearen tenperatura: Continuously monitor the LED temperature display. If the temperature approaches 70°C (158°F), immediately turn off the compressor switch, but allow the cooling fan to continue running until the temperature drops.
5. Itzaltze automatikoa: The compressor will automatically stop once the preset pressure is achieved.
6. Askapen presioa: After the compressor stops, slowly open the bleed valve to release any residual pressure in the hose. This is crucial before disconnecting the hose.
7. Deskonektatu: Once pressure is fully released, disconnect the air hose from your device and then from the compressor. Turn off the cooling fan and disconnect the power.

5.1. irudia: hurbileko planoa views of the compressor's controls and gauges.

Inflation Rate Example:

For a 0.5L (500cc) tank, inflation from 0 to 300 Bar (4500 PSI) takes approximately 25 minutes. Inflation from 200 Bar to 300 Bar takes approximately 5 minutes.

6. Mantentzea

Regular maintenance ensures the longevity and safe operation of your compressor.

• Iragazki-sistema: The compressor features a filter with replaceable drying medium and a dust filter. Regularly check and replace the drying medium and clean the dust filter to ensure clean, dry air output. Refer to the accessories for replacement parts.
• Garbiketa orokorra: Keep the exterior of the compressor clean and free of dust and debris. Ensure cooling vents are not obstructed.
• Biltegiratzea: Gorde konpresorea leku fresko eta lehor batean, eguzki-argitik eta hezetasunetik urrun.

7. Arazoak

If you encounter issues with your compressor, refer to the following common problems and solutions.

• Compressor Does Not Turn On:
  • Check power connections to ensure they are secure and the power source is active.
  • Egiaztatu etengailua 'ON' posizioan dagoela.
  • If using 12V DC, ensure the car battery has sufficient charge.
• Compressor Overheats (Temperature reaches 70°C):
  • Immediately turn off the compressor switch.
  • Ensure the cooling fan is running. If not, check the fan switch.
  • Allow the unit to cool down completely before resuming operation.
  • Ziurtatu konpresorearen inguruan aireztapen egokia dagoela.
• Slow Inflation or Low Pressure Output:
  • Egiaztatu mahuka-konexio guztiak ihesak daudenik.
  • Inspect the air hose for damage or kinks.
  • Check the filter system; a clogged filter can restrict airflow.
  • Ensure the bleed valve is fully closed.
• Air Contains Moisture or Oil:
  • The oil/water separator's drying medium may need replacement.
  • Ensure the activated carbon separator on the hose is functioning correctly.

Hemen azaltzen ez diren arazoetarako, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

8. Zehaztapenak

9. Bermea eta Laguntza

This manual does not contain specific warranty information. For details regarding warranty coverage, returns, or technical support, please refer to the product packaging, your purchase receipt, or contact the manufacturer directly.

For any questions or assistance, please reach out to GEHPYYDS customer service.
