MiBOXER HZ5 5-in-1 LED kontrolagailuaren erabiltzailearen eskuliburua

1. Sarrera

The MiBOXER HZ5 5-in-1 LED Controller is a versatile device designed for managing various LED lighting systems. It supports both Zigbee 3.0 and 2.4G wireless communication, offering flexible control for single color, dual white (CCT), RGB, RGBW, and RGB+CCT LED lights. This controller integrates seamlessly with compatible smart home systems and offers precise control over brightness, color, and color temperature.

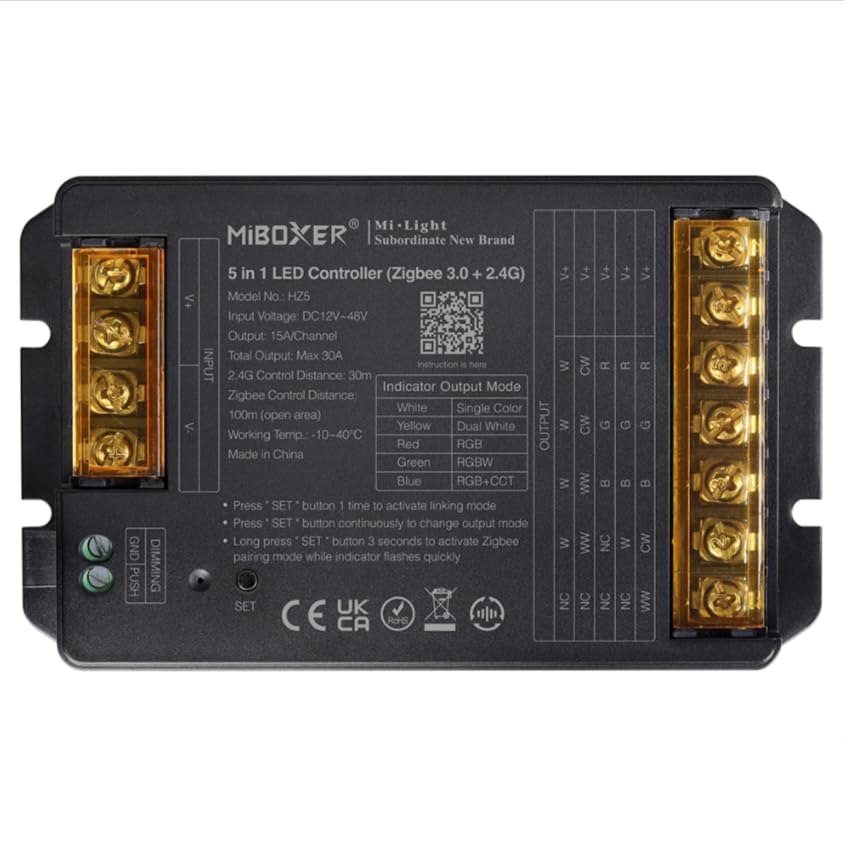

Image 1: MiBOXER HZ5 5-in-1 LED Controller device.

2. Segurtasun informazioa

• Always disconnect power before installing or performing maintenance on the controller or connected LED strips.
• Ziurtatu sarrera voltage (DC12-24V) and output current (Max 6A/Channel, Total Max 12A) ratings are strictly observed to prevent damage to the device or LED strips.
• Do not expose the controller to moisture, water, or extreme temperatures (-10~40°C).
• Gailu hau barrualdean erabiltzeko bakarrik dago pentsatuta.
• Consult a qualified electrician if you are unsure about any installation steps.

3. Produktuaren ezaugarriak

• Zigbee 3.0 Standard Protocol: Ensures broad compatibility with Zigbee-enabled smart home hubs.
• 5-in-1 bateragarritasuna: Supports single color, dual white (CCT), RGB, RGBW, and RGB+CCT LED lights.
• Extensive Color Control: Offers 16 million colors adjustable, saturation adjustable, and color temperature adjustable.
• PUSH Iluntze Laguntza: Allows for simple brightness adjustment using a push switch.
• Modu dinamikoak: Built-in 18 dynamic modes with jumping and gradually changing effects (for 2.4G remote control).
• 2.4G Wireless Technology: Provides stable control with a range of up to 30 meters.
• Aplikazioaren eta ahotsaren kontrola: Compatible with smart apps and voice assistants like Alexa and Google Assistant.

4. Konfigurazioa eta instalazioa

4.1 Kableatzeko jarraibideak

Proper wiring is crucial for the correct operation of the LED controller. Refer to the diagrams below for different LED strip configurations. Always ensure power is disconnected before making any connections.

Image 2: Wiring diagrams for Single Color and CCT (Dual White) LED strips. Connect the V+ and V- terminals for power input. For Single Color, connect the LED strip's positive to V+ and negative to W. For CCT, connect the LED strip's positive to V+, warm white to WW, and cool white to CW.

Image 3: Wiring diagrams for RGB, RGBW, and RGB+CCT LED strips. Connect the V+ and V- terminals for power input. For RGB, connect the LED strip's positive to V+, Red to R, Green to G, and Blue to B. For RGBW, add the White channel to W. For RGB+CCT, add Warm White to WW and Cool White to CW.

4.2 Pairing and App Integration

The HZ5 controller supports both 2.4G remote control and smart app integration via Zigbee 3.0. To pair the device with a remote or app, follow these steps:

1. Piztu gailua.
2. Activate Linking Mode: Press the 'SET' button on the controller once to activate linking mode. The indicator light will flash.
3. Activate WiFi Pairing Mode: For app control, long press the 'SET' button for 3 seconds. The indicator light will flash quickly, indicating it's ready for WiFi pairing.
4. Aplikazioaren konfigurazioa: Open your compatible smart home app (e.g., MiBoxer Smart app), select 'Add Device', and follow the on-screen instructions to discover and add the controller. Ensure Bluetooth is enabled on your phone for easier device discovery.

4 irudia: Adibideaample of the mobile application interface for controlling LED lighting, showing color selection and brightness adjustment.

Image 5: The MiBOXER HZ5 controller is compatible with popular voice assistants such as Amazon Alexa and Google Assistant for convenient hands-free operation.

5. Funtzionamendu-argibideak

5.1 Switching Output Modes

The HZ5 controller can operate in different output modes depending on the connected LED strip type. The indicator light on the controller changes color to show the current output mode:

• Gorria: RGB modua
• Berdea: RGBW modua
• Urdina: RGB+CCT mode
• Horiak: Single Color mode
• Zian: Dual White (CCT) mode

To change the output mode, press the 'SET' button continuously until the desired indicator color is displayed.

5.2 Kontrola aplikazioaren bidez

Once paired with the smart app, you can control your LED lighting with various functions:

• Kolore aukeraketa: Use the color wheel to choose from 16 million colors.
• Distira doitzea: Doitu distira maila % 1tik % 100era.
• Kolore Tenperatura: For CCT and RGB+CCT strips, adjust the color temperature from warm white to cool white.
• Dynamic Scenes: Select from pre-programmed dynamic modes or create custom scenes.
• Musika sinkronizazioa: Some apps may offer music synchronization features.
• Programazioa: Set timers and schedules for automatic on/off or scene changes.

6. Mantentzea

• Garbiketa: Use a soft, dry cloth to clean the controller. Do not use harsh chemicals or abrasive cleaners.
• Biltegiratzea: Store the controller in a cool, dry place away from direct sunlight and extreme temperatures when not in use for extended periods.
• Firmware eguneraketak: Periodically check the MiBOXER app for any available firmware updates to ensure optimal performance and access to new features.

7. Arazoak

• Potentziarik gabe: Ensure the power adapter is correctly connected and providing the specified DC12-24V. Check all wiring connections.
• LEDek ez dute erantzuten: Verify that the LED strip is correctly wired to the controller according to the specific mode (Single Color, CCT, RGB, RGBW, RGB+CCT). Check if the correct output mode is selected on the controller.
• Parekatzeko arazoak: If the controller fails to pair with the app or remote, ensure the device is in the correct pairing mode (single press for linking, long press for WiFi pairing). Try resetting the controller by disconnecting and reconnecting power, then re-attempt pairing.
• Kontrol etengabea: Check for potential interference from other 2.4G devices. Ensure the controller is within the 30-meter control distance from the remote or WiFi router.
• Kolore okerrak: If RGB/RGBW/RGB+CCT colors are incorrect, double-check the wiring of the R, G, B, W, CW, WW channels to ensure they match the LED strip's configuration.

8. Zehaztapenak

Image 6: Technical drawing showing the dimensions of the MiBOXER HZ5 controller.

9. Bermea eta Laguntza

This product is typically covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation or contact the retailer for specific warranty terms and duration.

For technical support, troubleshooting assistance, or further inquiries, please contact MiBOXER customer service or visit their official webgunea. Gorde erosketa-agiria erosketaren frogagiri gisa berme-erreklamazioetarako.
